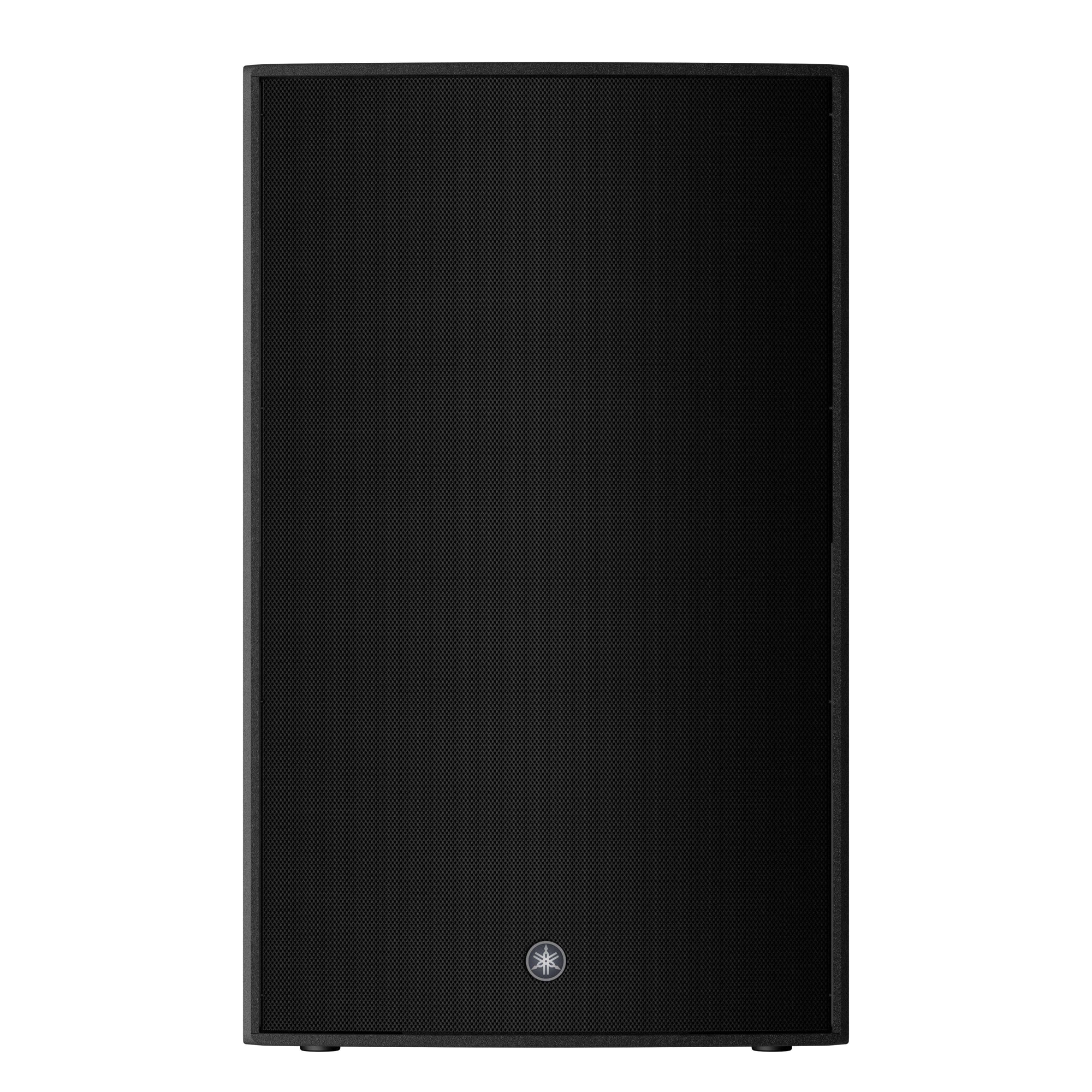

Name: Yamaha DZR315 2000W 3-way Powered Speaker
Brand: Yamaha
SKU: DZR315
Price: 1799.99 USD
Availability: OutOfStock

Advanced FIR-X Tuning

96kHz DSP processors help focus the considerable power output of the DZR into truly high-resolution sound with super-low latency. Yamaha’s newly developed Advanced FIR-X tuning improves significantly on our proprietary FIR-X tuning technology which utilizes linear phase FIR filters for the crossover network and correct EQ. Using FIR filters, we are able to realize very smooth frequency response for stunning clarity and sound imaging without phase distortion. Accurate EQ filtering is also provided for pinpoint adjustment to realize ideal clarity and best-in-class SPL without signal degradation.

An onboard LCD screen allows users to easily navigate the variety of DSP functions, load presets, and make precise adjustments to PEQ, delay, and routing. Store up to 8 user presets to save your own parameter adjustments, or use the optimized dedicated factory presets for using DZR and DXS XLF Series in combination. Users can easily transfer saved settings to a USB flash drive.

D-CONTOUR

D-CONTOUR is an intelligent multi-band compressor that ensures your DZR’s sound stays consistent and clear no matter how hard you drive them. By constantly monitoring the output of multiple frequency bands and applying the optimum EQ adjustments for each, even the highest output levels maintain outstanding clarity and musicality.

A perfect complement to the DZR’s versatile cabinet design, D-CONTOUR provides two different settings, FOH/MAIN or MONITOR mode, offering more detailed tuning of your sound relative to your PA’s configuration. FOH/MAIN mode boosts the lower frequencies to compensate for low end that is typically missing when speakers are used in suspended applications or mounted on a speaker stand. MONITOR mode is optimized for floor monitoring application by taming down problematic low frequencies that can be enhanced by floor reflection, and smoothing a wide range of frequencies to deliver the clarity professionals demand from their stage monitors. Both of these presets were perfected by performing countless listening tests with skilled sound engineers to ensure consistent sound with low distortion at any output level.

DSP protection functions for maximum output and component longevity

One of the advantages of active loudspeakers is that the combination of transducers and amplifiers can be perfectly matched and optimized for the best possible performance. During the development of the DZR and DXS XLF Series, we measured and tested the durability of each transducer and the overall amplifier output to set optimal limiter points for each model using precise DSP control. Employing many of the same protection functions used in our high-end professional power amplifiers, our state-of-the-art DSP consistently monitors the status of the power supply, power amplifiers, transducers, and signal levels, to protect each component in order to maintain optimum performance while extending component life and usability.

High power 2000W Class-D amplification

The all new, highly efficient Class-D amplification module produces best-in-class 2000W of power and an impressive 143dB SPL. All the amplifiers were selected and optimized to match the full-range DZR’s high, mid (only for DZR315), and low frequency transducers, while separate, customized amps were developed for the DXS XLF subwoofers as well.

Custom designed transducers

HF transducer

The HF transducers are comprised of a 2˝ voice coil and 1˝ throat compression driver, a titanium diaphragm and Neodymium magnet housed in a durable heat –resistant aluminum cast frame.

MF transducer for the 3-way

The MF transducer for the 3-way DZR315 models feature an 8˝ Cone, 1.5˝ voice coil providing better efficiency and super-low distortion for the low-mid frequencies, and contributing to the extraordinarily high 143dB maximum SPL and the clarity of the sound.

LF transducer

Our newly developed proprietary LF transducers use large 3˝ voice coils, cast aluminum frames, and a very strong, lightweight neodymium magnet to handle high power and powerful low frequency response despite the lightweight construction. The response is tightly controlled, particularly in the mid-bass and vocal range, assuring overall response is powerful and distortion-free even at the highest outputs.

Power in flexibility

Smart design for professional functionality

DZR15, DZR12 and DZR10 speakers feature a rotatable horn to allow vertical or horizontal mounting to further adapt to the acoustic dimensions of a venue. The coverage angle of the DZR15 is 90x50° and the DZR12 and DZR10 have 90x60° dispersion from a vertical position. The constant directivity horns were designed with the goal of providing smooth, level coverage across the intended coverage area, minimizing roll-off that is common in conventional horn designs.

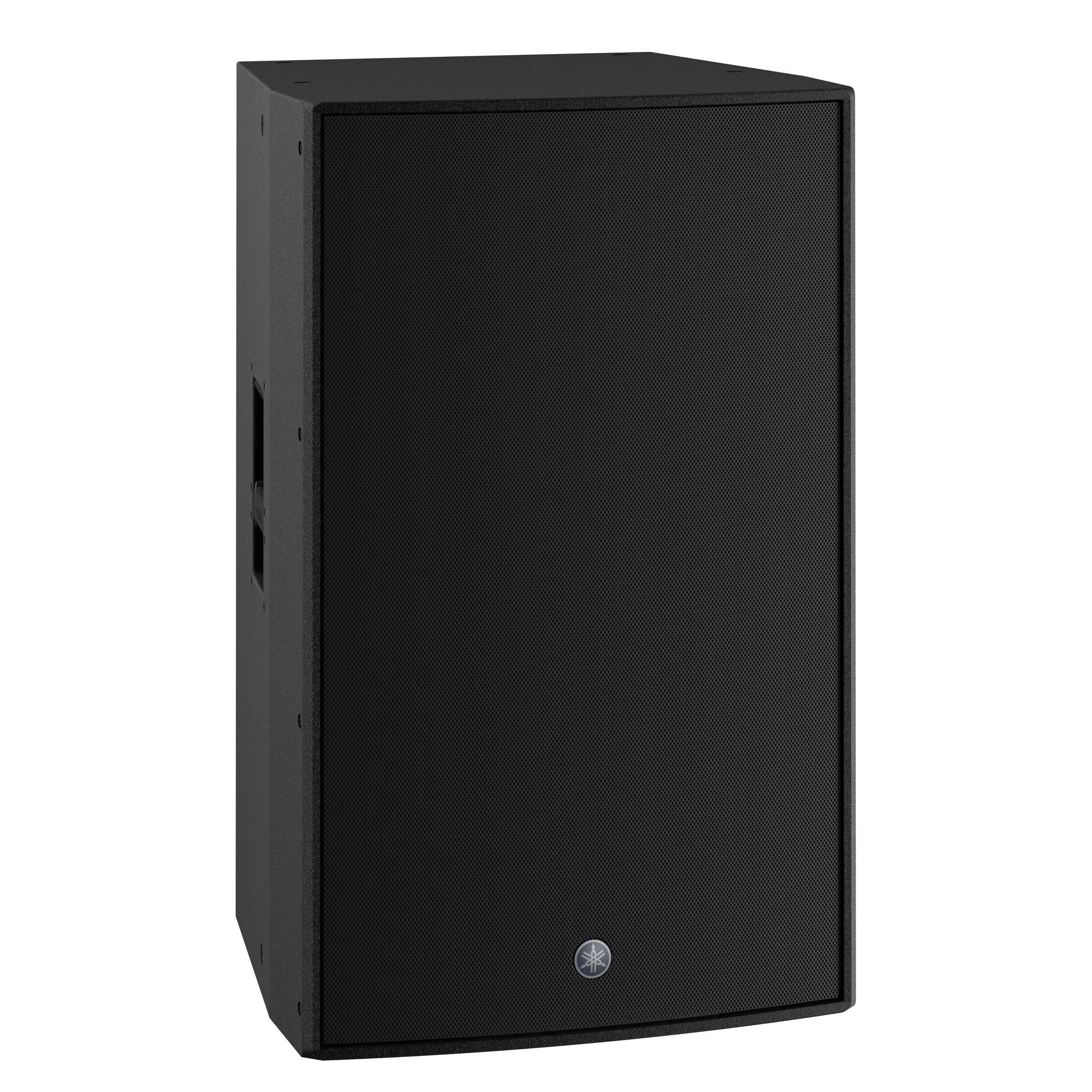

The cabinets are constructed from a high grade 15mm thick plywood then painted with an extremely durable, military grade Polyurea coating. The enclosures of the full-range speakers also feature butterfly joints for added strength and cabinet vibration reduction, as well as a wide, flare-shaped port that helps to minimize port noise even at very high output levels. The enclosure design for the DZR15, DZR12 and each of their Dante models, enables mirror-mode monitor placement that produces a symmetrical sound field for the performer, creating a larger, more defined “sweet spot” than conventional monitoring configurations. (DZR10 / DZR10-D are asymmetric.) Used in either a balanced dual-mono configuration or a stereo monitor mix setup, mirror-mode floor monitoring can enhance your playing and performance considerably.

U Brackets for vertical or horizontal mounting

DZR Series loudspeakers offer plenty of rigging points, allowing for rigged application with standard eyebolts*. Please refer to the specifications for details. *Eyebolts not included.

Utilities for safe and secure operation

DZR Series make it fast and easy to configure panel settings and transfer data via USB, and also feature a panel locking function to keep your settings safe. Users can even export information such as internal device and log data to USB for rapid troubleshooting should difficulties arise.

Features:

3-way powered loudspeaker with 2" HF, 8" MF, and 15" LF drivers
Boasts a high-power 2,000-watt Class D amplifier and 31Hz–20kHz frequency range
Advanced FIR-X tuning employs a combination of FIR filtering and corrective EQ to minimize phase distortion
D-Contour is an intelligent multiband compressor that maintains clarity at high output levels
FOH/MAIN and MONITOR modes allow you to fine-tune your sound based on your application
DSP protection safeguards your power supply, power amplifiers, and transducers against damage
Optimized factory presets and intuitive LCD screen make operation easy
Great-sounding, custom-designed transducers
Universal switching mode power supply offers maximum power, along with stable, worry-free operation
Lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating
Includes multiple integrated M10 rigging points for suspended applications

Specs:

Powered: Yes
Power Configuration: Bi-amped Class D
Channels: 2
LF Driver Size: 15" cone
Mid Driver Size: 8" cone
HF Driver Size: 1" throat compression driver
LF Driver Power Amp: 850W Continuous
HF Driver Power Amp: 100W Continuous
Total Power: 2000W Dynamic Peak

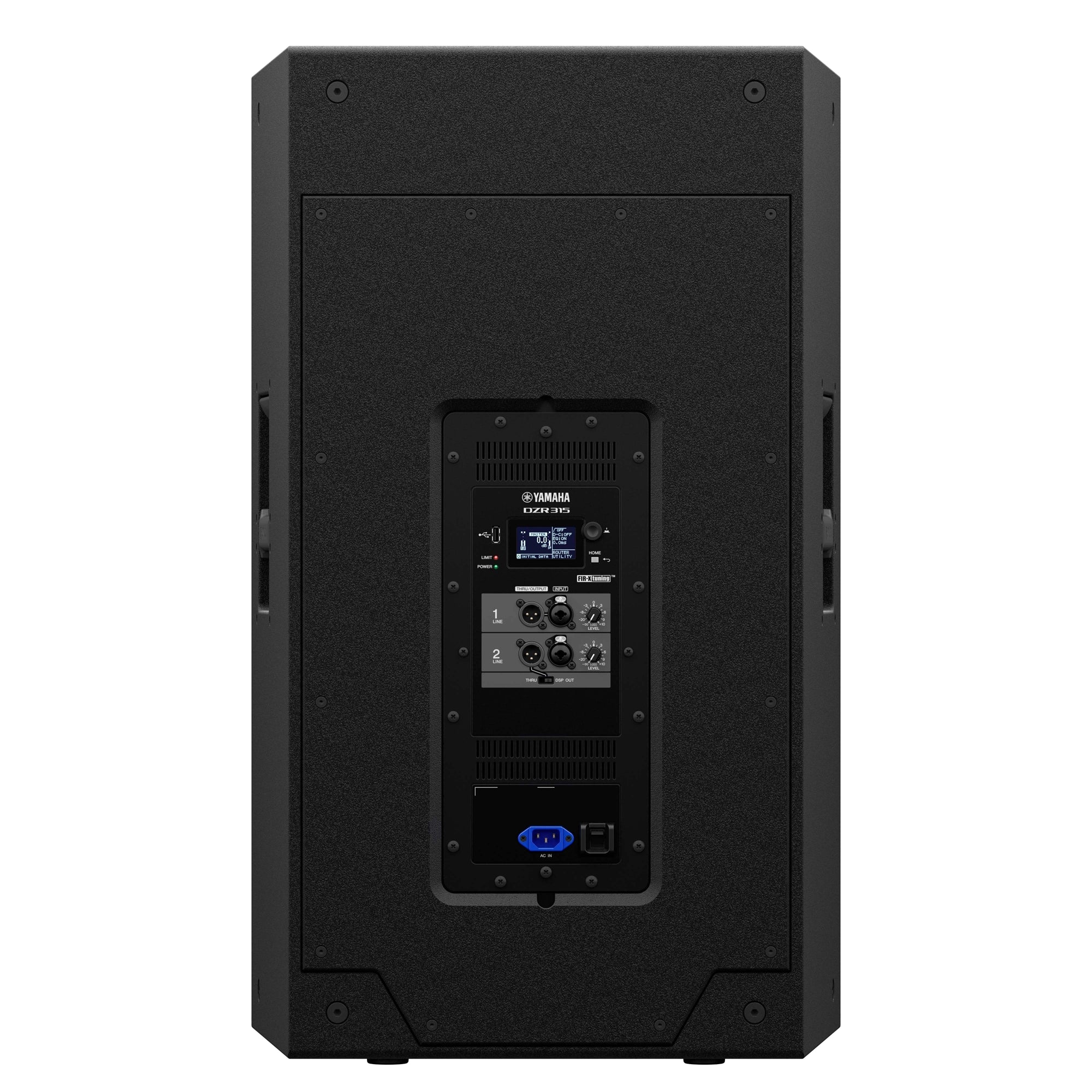

Inputs: 2 x XLR-1/4" combo
Outputs: 2 x XLR
USB: 1 x Type A
Frequency Range: 31Hz-20khz (-10 dB)
Crossover Frequency: 700Hz, 2500Hz
Maximum Peak SPL: 143dB SPL @ 1m
Horizontal Coverage Angle: 75 Degrees
Vertical Coverage Angle: 50 Degrees
Signal Processing: EQ, Delay
Enclosure Material: Plywood
Mounting Options: 16 x M10 Fly Points
Power Source: Standard IEC AC cable
Height: 35.3"
Width: 21.6"
Depth: 20.5"
Weight: 91.7 lbs.
