Name: Mackie PROFX22V3 22-channel Mixer with USB and Effects
Brand: Mackie
SKU: 2051303-00
Price: 799.99 USD
Availability: InStock

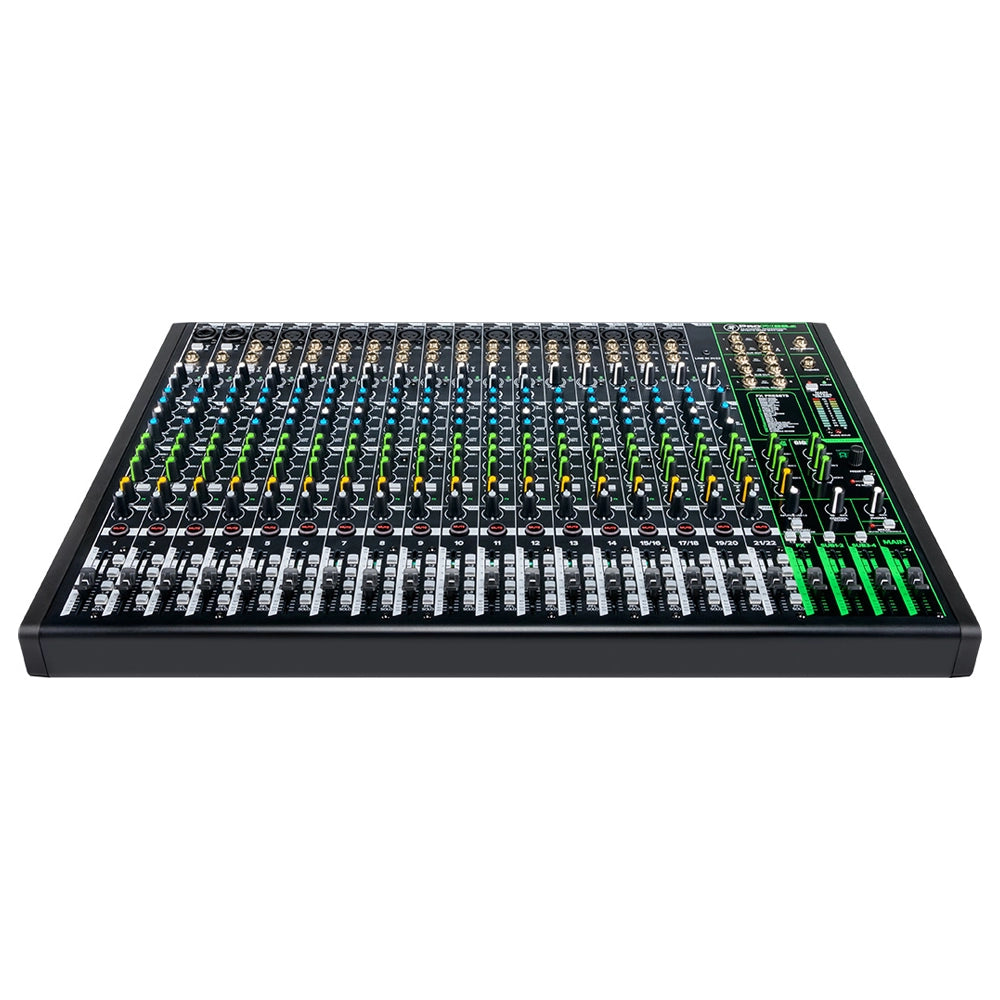

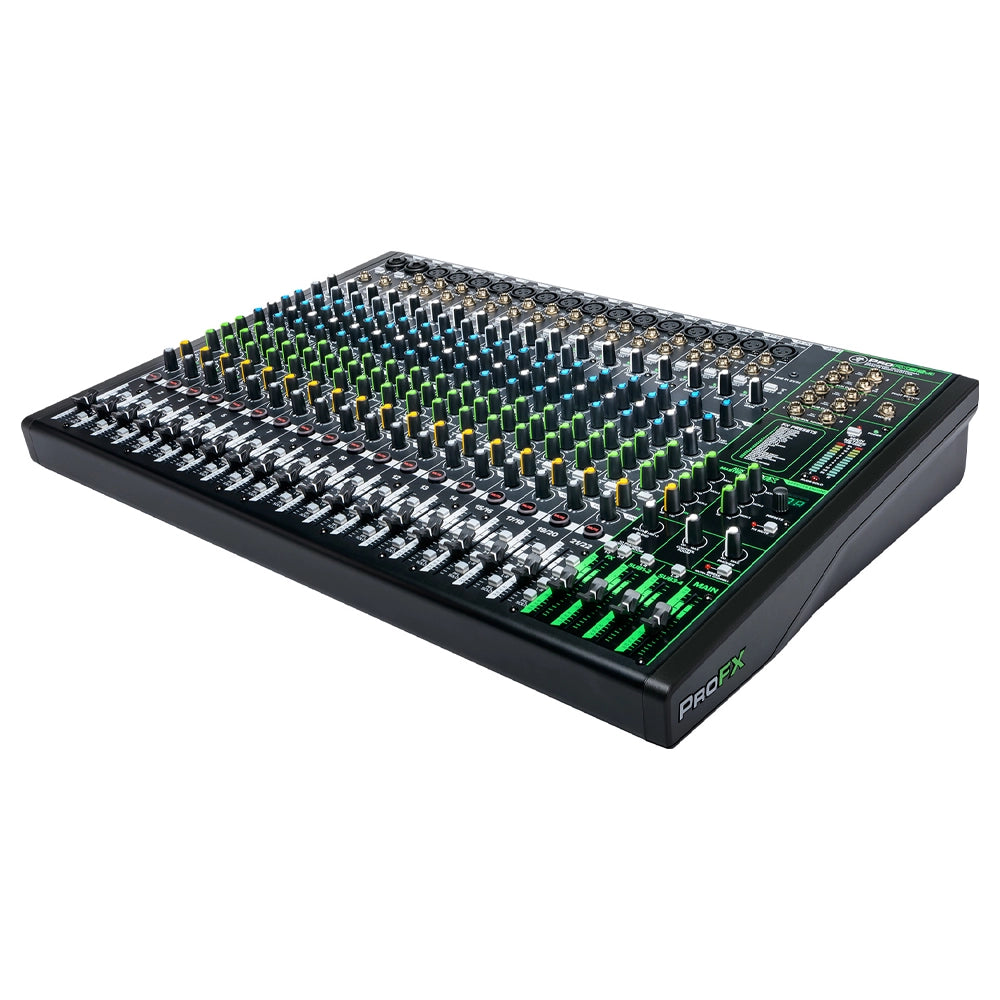

Experience the best-in-class series of professional analog usb mixers with effects. The Mackie ProFX22v3 is a 22-channel mixer that brings next-level performance and versatility to recording studios and performance venues.

MIX / RECORD / CREATE AT THE NEXT LEVEL

Bring legendary sound to the studio or the stage. The Mackie ProFX22v3 gives you ultimate control, versatility and flexibility for multiple applications that range from recording to live sound reinforcement. In addition to a powerful FX engine, Mackie ProFX22v3 comes with Waverform OEM to power your workflow.

FEATURES:

22-channel USB mixer with 17 low-noise, high-headroom Onyx preamps that provide 60dB of gain
3-band EQ with On/Off hard bypass switch and variable mid frequency control
Dual stereo USB return for additional routing flexibility during performances
Latency-free direct monitoring for hassle-free overdub sessions
High-resolution recording with sample rates up to 192kHz to Mac/PC via USB
24 included effects, including reverbs, delays and choruses, delivered via GigFX effects engine
Built-in compression keeps louder audio in check while pulling up softer audio sources
Switchable Hi-Z inputs for guitars, bass, and other instruments
100Hz low-cut filter and 48V phantom power on all channels
Aux/Monitor with dedicated per-channel send control
Dual stereo subgroup output bus with per-channel assignment
Headphone output with separate level and blend control
Dedicated control room output with level control
Footswitch input for FX mute
Waveform OEM professional software bundle included with purchase of ProFX22v3

SPECS:

Type: Analog Mixer with USB Interface
Channels: 22 (14 x mono, 4 x stereo)
Computer Connectivity: USB (2 x 4)
A/D Resolution: 24-bit/192kHz
Faders: 22 x 60mm Faders
Inputs - Mic Preamps: 2 x XLR-1/4" combo (mic/line/Hi-Z), 15 x XLR (mic)
Phantom Power: Yes
Inputs - Line: 12 x 1/4", 6 x 1/4" (3 x stereo), 1 x 1/8" (stereo)

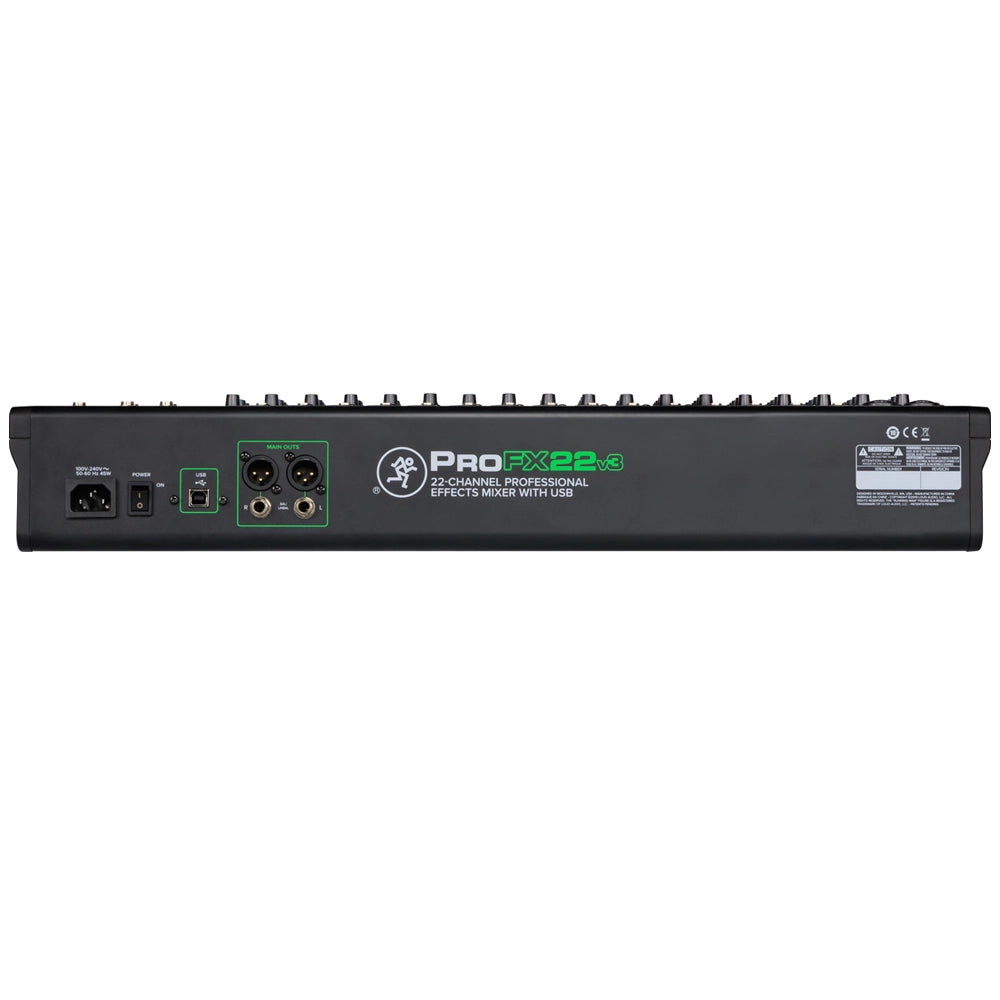

Outputs - Main: 2 x XLR, 2 x 1/4" (L/R), 2 x 1/4" (control room)
Outputs - Other: 4 x 1/4" (sub group out)
Aux Sends: 1 x FX Send (post), 2 x Monitor Send (pre), 1 x Monitor Send (pre/post)
Send/Return I/O: 1 x 1/4" (FX send), 3 x 1/4" (monitor send)
Busses/Groups: 2 x Sub Group
Inserts: 14 x 1/4" (channel)
Headphones: 1 x 1/4"
USB: 1 x Type B
Other I/O: 1 x 1/4" (footswitch)
EQ Bands: 3-band EQ with Variable Mid Frequency (mic channels), 100Hz Low-cut Filter
Signal Processing: 12 x Channel Compressors
Effects: GigFX Engine: Reverbs, Chorus, Delay, Flange, Auto-Wah
Software: Waveform OEM DAW, FX Plug-in Collection
Power Source: Standard IEC AC cable
Height: 4.4"
Width: 17.1"
Depth: 24.1"
Weight: 19.8 lbs.
