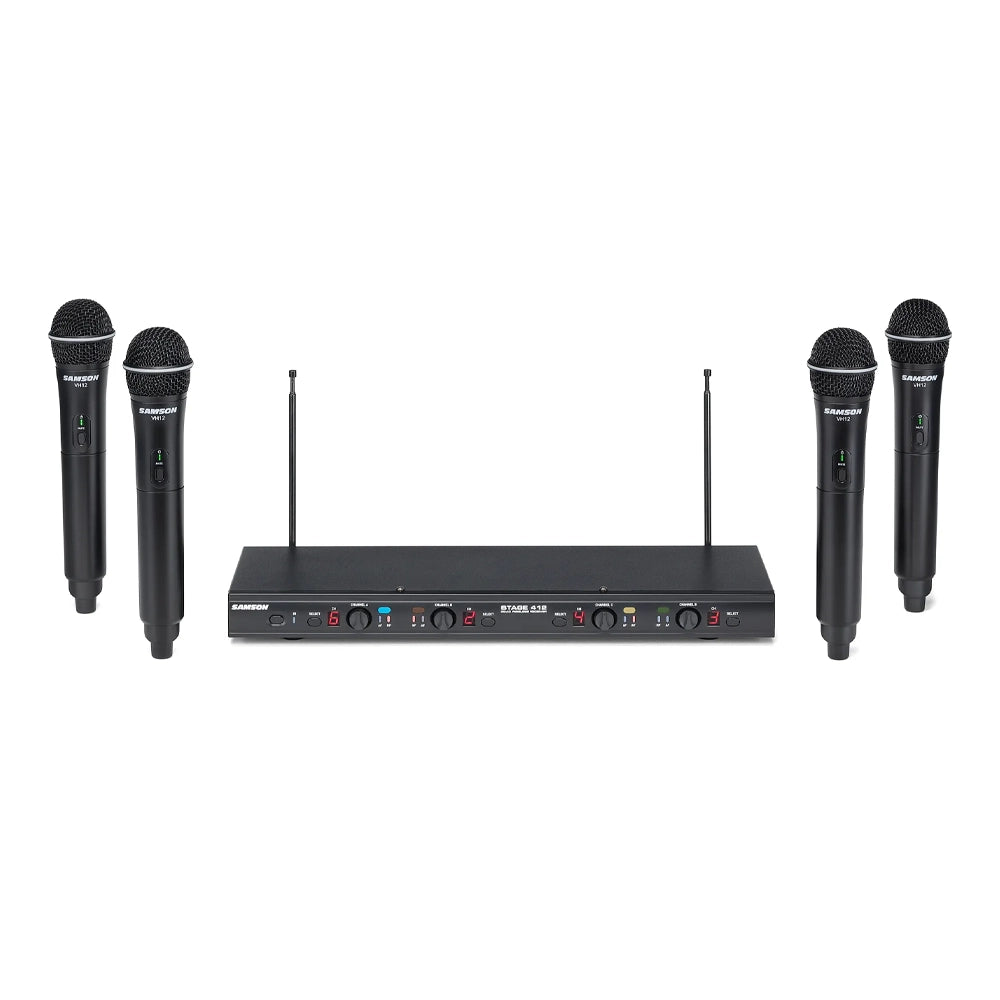

Samson Stage 412 Quad-Channel Handheld VHF Wireless System

Quad-Channel Handheld VHF Wireless System, Frequency Selectable

The Stage 412 is a frequency-agile four-channel wireless microphone system featuring four dynamic handheld microphones that transmit to a single rugged metal receiver. Each handheld microphone is equipped with Samson's Q6 dynamic microphone capsule, delivering crisp, clear sound and reliable VHF wireless performance for presentations, educational environments, houses of worship, karaoke, and other applications involving up to four performers.

VHF Operation

Samson has long been a leader in wireless audio innovation. The Stage 412 operates within the reliable VHF frequency spectrum, which has become less congested with the transition to digital television broadcasting.

Simple Setup

The Stage 412 offers four wireless channels, each with six selectable operating frequencies across a frequency range of 173 MHz to 198 MHz. Its IR synchronization feature allows users to wirelessly match each transmitter to a receiver channel in seconds.

With an operating range of up to 200 feet (60 meters), performers and presenters have ample freedom to move. Each handheld transmitter provides up to 10 hours of operation using two AA batteries (not included).

Versatile Performance

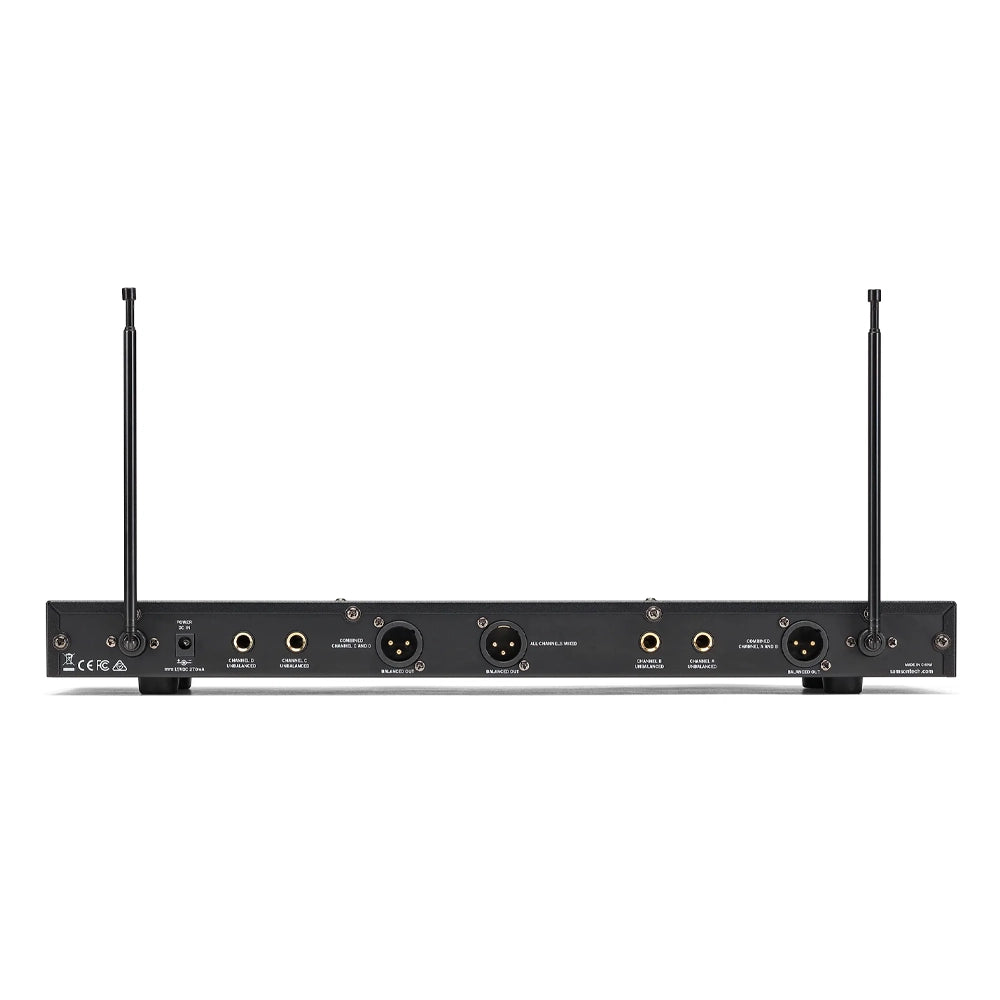

Built around the rugged metal SR412 receiver, the Stage 412 is designed for durability and flexibility. The rear panel features four individual 1/4" outputs and three balanced XLR mixed outputs for connection to mixers or powered speakers.

The 1/4" outputs provide separate channel signals, while the XLR outputs offer mixed outputs for channels A/B, C/D, and all four channels combined. Dedicated front-panel volume controls allow easy adjustment and balancing of performers.

Features

Stage 412 Wireless System

• Quad-channel VHF wireless system (173 MHz–198 MHz)
• Six selectable frequencies per channel
• Supports up to three simultaneous systems (region dependent)
• IR synchronization for quick transmitter-to-receiver pairing
• Operating range up to 200 ft (60 m)
• AC power adapter included

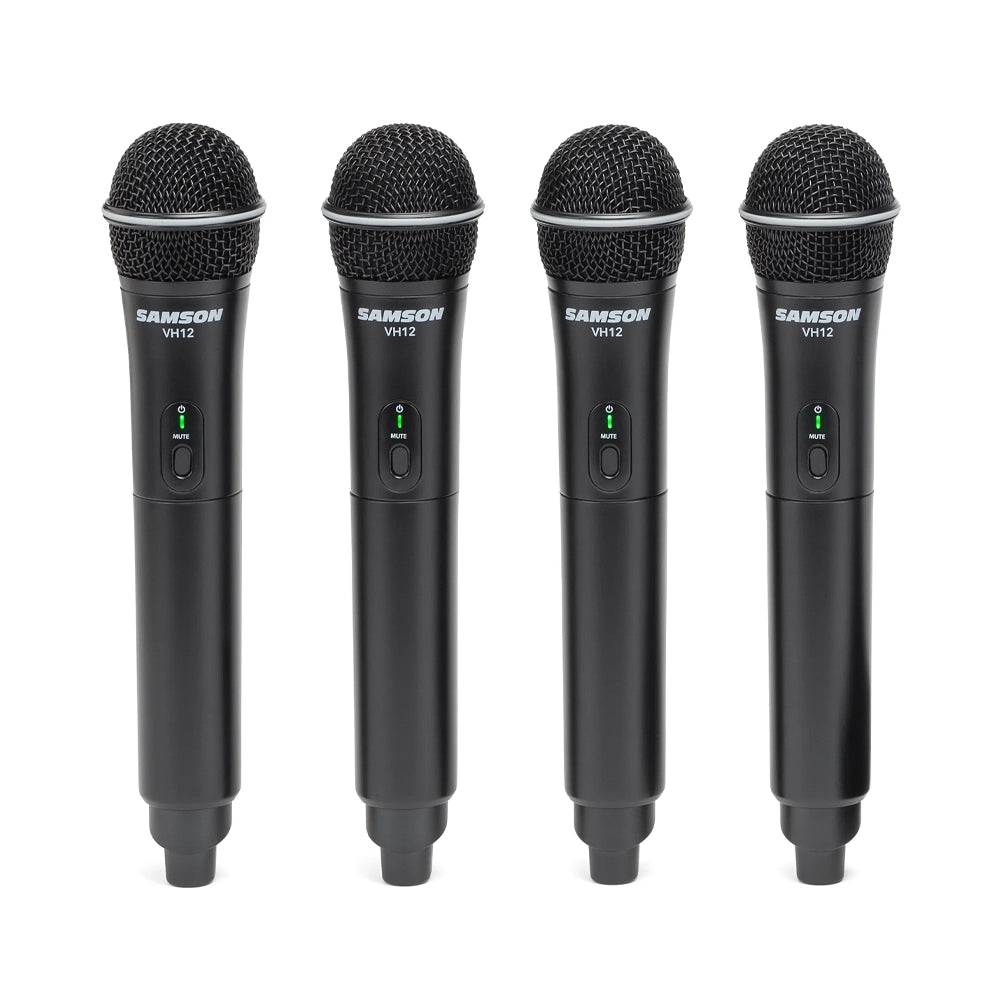

VH12 Handheld Transmitters

• Q6 dynamic microphone capsules
• Up to 10 hours of battery life with two AA batteries (not included)

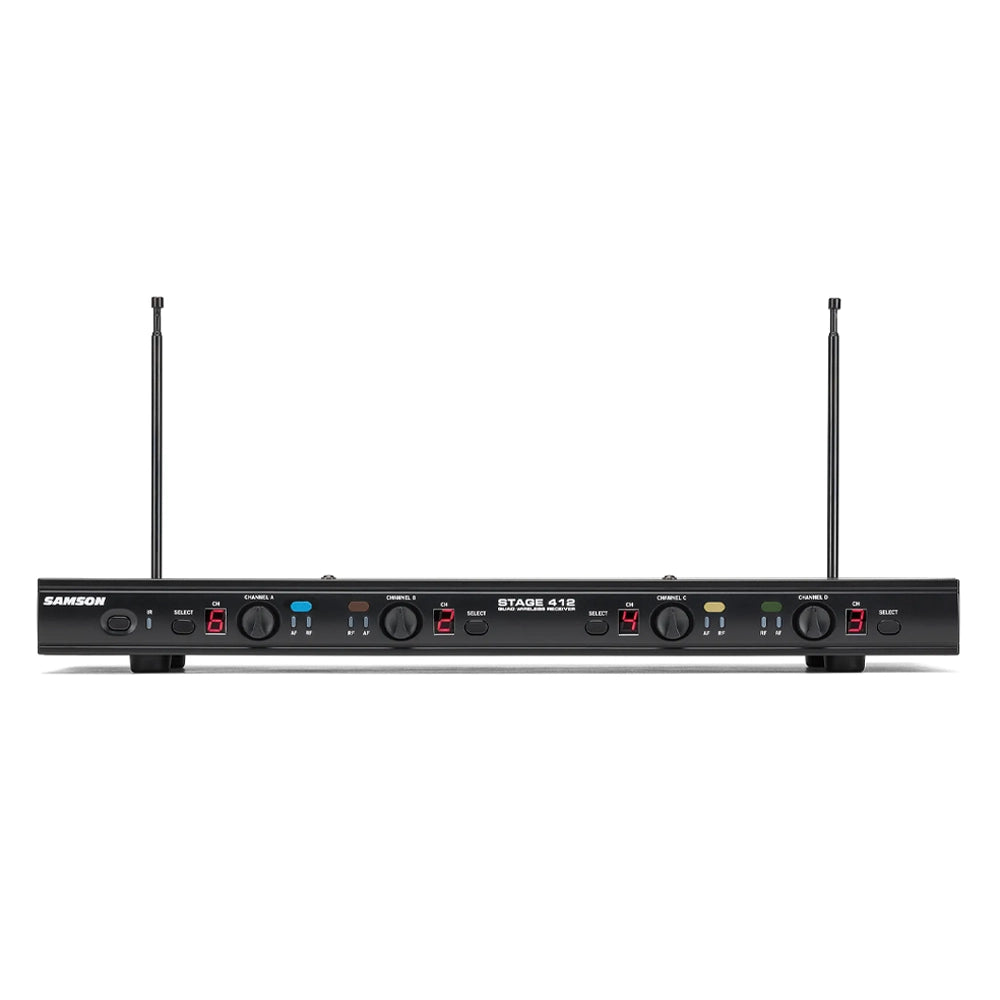

SR412 Wireless Receiver

• Rugged metal chassis construction
• Independent volume controls for each channel
• Four individual 1/4" outputs
• Three balanced XLR mixed outputs

Specifications

System

• Operating Frequency: VHF 173 MHz – 198 MHz
• Frequencies per Channel: 6
• Frequency Stability: ±0.005%
• Modulation: FM
• Maximum Deviation: ±30 kHz
• Operating Range: 200 ft / 60 m
• Frequency Response: 80 Hz – 15 kHz
• Tone Key Frequency: 30.00 kHz

VH12 Handheld Transmitter

• RF Power Output: 10 mW
• Microphone Element: Dynamic
• Battery Life: Up to 10 hours
• Current Consumption: 120 mA (typical)
• Dimensions: Ø2.17" × 10" (Ø55 × 254 mm)
• Weight: 0.5 lb (0.23 kg)

SR412 Receiver

• Image Rejection: 35 dB
• Dynamic Range: 100 dB
• Maximum Output: 1.37 V
• Sensitivity: -100 dBm @ 30 dB SINAD
• Output Connectors: 2 x 1/4" (6.3 mm) Unbalanced, 3 x XLR Balanced
• Audio Output Level: -12 dB
• Dimensions: 16.92" × 6.7" × 1.57" (430 × 170 × 40 mm)
• Weight: 3.08 lb (1.40 kg)
