Sennheiser EW-D 835-S Wireless Handheld Microphone System- Q1-Q6

Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. Receive state-of-the-art live sound featuring Sennheiser renowned e 835 capsules on a lightweight handheld transmitter with integrated mute switch.

Features:

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability.
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance.
• Auto scan creates reliable connections with minimal time and effort.
• 134 db audio input dynamic range eliminates the need for sensitivity adjustments and preserves every detail.
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 khz apart.
• 56 mhz of tuning bandwidth and equidistant spacing enables up to 90 channels.
• 2,240 selectable frequencies allow for fine tuning.
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)

Specifications:

• Frequency range: 470.2 - 526 mhz
• THD, total harmonic distortion: ≤ -60 db for 1 khz @ -3 dbfs input level
• Operating temperature: -10 °C - +55 °C (14 °F - 131 °F)
• Operating relative humidity: 5 - 95 % (non-condensing)
• Audio frequency response: 20 Hz - 20 khz (-3 db) @ 3 dbfs

What’s in the Box:

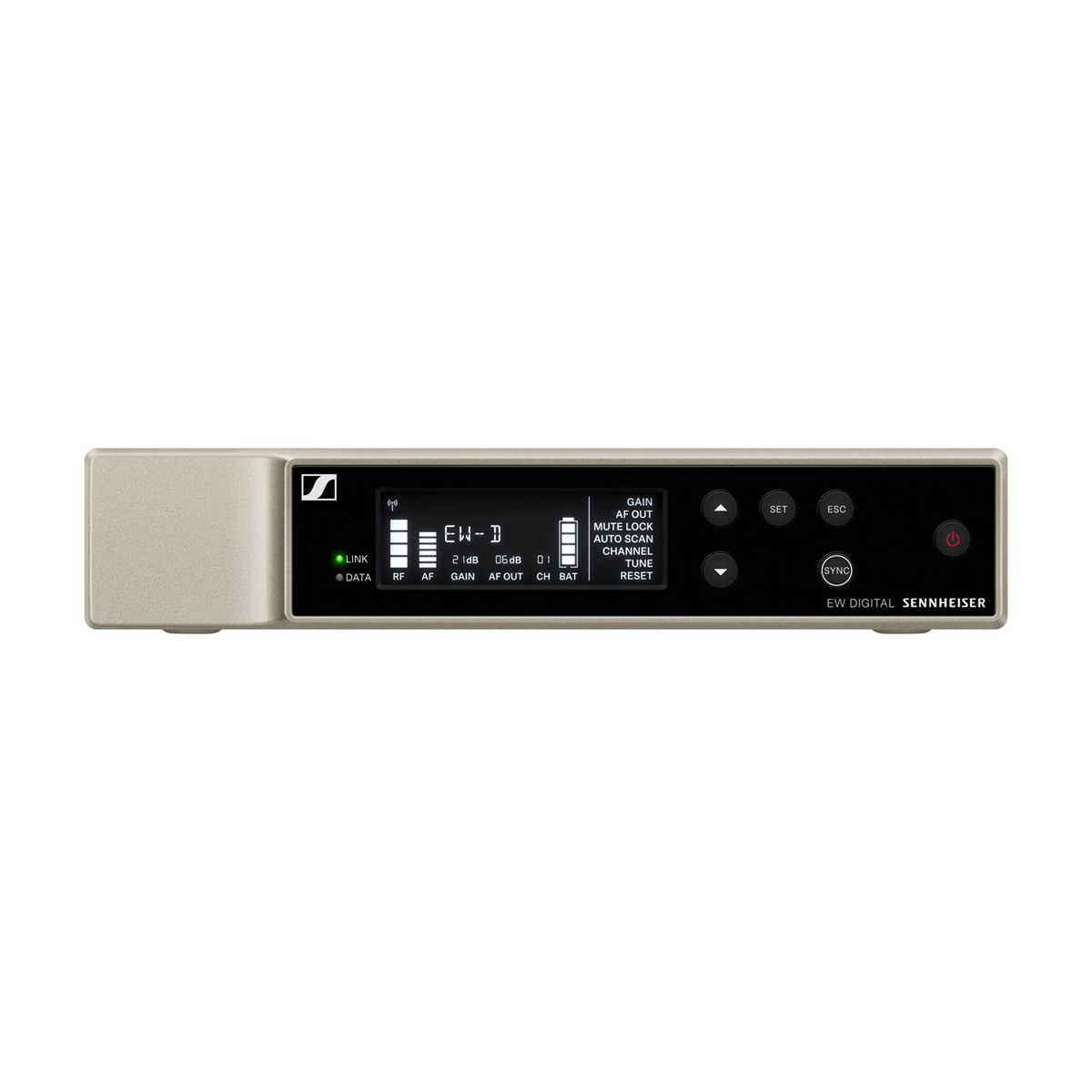

• EW-D EM rack receiver
• EW-D SKM-S handheld transmitter
• MMD 835 microphone module
• MZQ 1 microphone clamp
• 2 rod antennas
• Power supply with country adapters
• Rackmount set
• 4 rubber feet
• Quick guide
• Safety guide
• Manufacturer declaration sheet

Specs:

• Configuration: MMD835 Handheld, ME2 Lavalier
• System Analog/Digital: Digital
• System Frequency Range: 470-526 mhz
• System Operating Range: 328 ft. Line-of-sight
• System Frequency Response: 20Hz-20khz
• System Microphone Included: Yes
• System Channel Selection: Auto
• Microphone Type: Handheld Dynamic, Lavalier Condenser
• Microphone Polar Pattern: Handheld Cardioid, Lavalier Omnidirectional
• Microphone Max SPL: 130db SPL (lav), 154db SPL (handheld)
• Microphone Size: 10.6" x 2"
• Microphone Color: Black
• Microphone Frequency Response: 50Hz-18khz
• Microphone Cable Length: 5.2 ft.
• Microphone Self Noise: 32db
• Transmitter Form Factor: Handheld, Bodypack
• Transmitter Dynamic Range: 134db
• Transmitter Mute Feature: Yes
• Transmitter Battery Type: 2 x AA or Rechargeable Battery pack
• Transmitter Battery Life: 8 hours (AA), 12 hours (rechargeable)
• Transmitter Dimensions: 10.6" x 2" (handheld), 2.5" x 3.1" x 0.8" (bodypack)
• Receiver Antenna Type: Detachable
• Receiver Type: Rackmount (kit included), Table Top
• Receiver Rackmountable: Yes
• Receiver Rack Spaces: Half-rack
• Receiver Front Panel Display: Yes
• Receiver Displays: OLED
• Receiver Outputs: 1 x XLR, 1 x 1/4"
• Receiver Dimensions: 7.4" x 1.7" x 8.3"
• Receiver Weight: 2.2 lbs.
