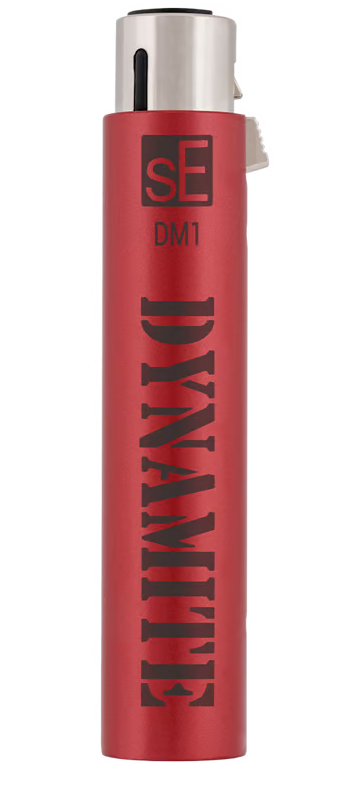

sE Electronics DM1 Dynamite 1-channel Active Inline Preamp
RECOMMENDED USE
Dynamic & passive ribbon microphones
HIGHLIGHTS
Sophisticated class-A design and specially-selected high-grade FETs for a signal boost without coloration
Vastly lower output impedance and nearly half the noise of anything else on the market to raise any mic level with clarity
Always a consistent +28dB regardless of the connected load to enable mics with a lower output
Provides improved level to a preamp – all without adding noise or coloration, bringing new life to your favorite passive microphones
All-metal housing and premium finish ensures the DM1 can handle demanding on-tour or recording/broadcast studio lifestyles
Gold plated XLR connector for loss-free reliable signal connection
Perfect for podcasting, recording, or live sound
Specs
Power
Electrical Impedance135 Ohms
Recommended Load Impedance>1K Ohms
Connectivity3-pin male/female XLR connector
Powering48V Phantom Power (P48 according to IEC 61938)
Sound
Frequency range10 Hz - 120 kHz (-0.3 dB)
Gain28 dB
Current consumption3.0 mA
Max output level (0.5% THD)8.3 dBV (2.6 V)
Output noise level9 µV (a-weighted)
Dimensions
Preamp diameter19 mm (0.75 in.)
Preamp length96 mm (3.78 in.)
Preamp weight96 mm (3.78 in.)
What's in the box
DM1
sE Logo Sticker
User manual with warranty card

sE Electronics DM1 Dynamite 1-channel Active Inline Preamp
Sale price$99.99 USD
Regular price$129.99 USD (/)
