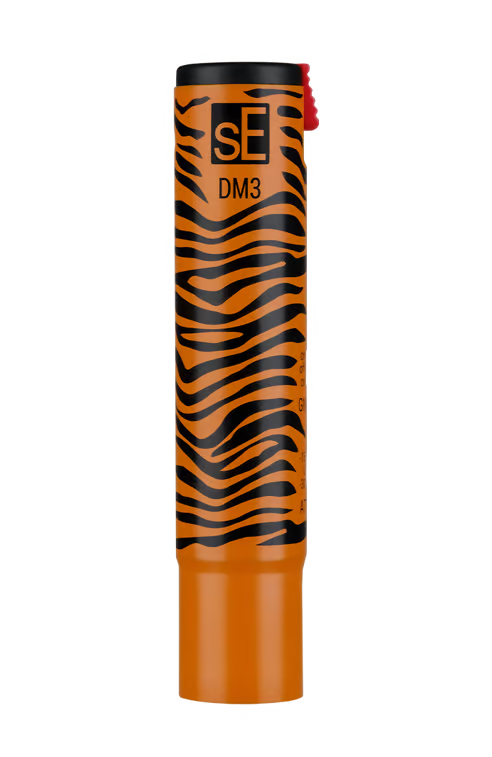

sE Electronics Dm3 Dynamite Active Direct Box
RECOMMENDED USE
Electric guitar, bass guitar, piezo pickups, keyboard, synthesizers, drum machines, laptops
HIGHLIGHTS
Ultra-HiZ input for getting the best out of your instrument
Massive headroom for even the hottest instruments
A new standard to the ground lift switch
Lockable ¼” input jack to prevent accidental disconnects
Dedicated Class-A output buffer amplifier and premium finish
Slim, all-metal discrete housing and gold XLR connectors
Specs
Power
Electrical Impedance86 Ohms
Recommended Load Impedance>1K Ohms
ConnectivityInput: 6.3 mm (1/4 in.) TRS jack
Output: 3-pin male XLR connector
Powering48V Phantom Power (P48 according to IEC 61938)
Sound
Frequency range10 Hz - 120 kHz (-0.3 dB)
Current consumption3.8 mA
Max input level (0.5% THD)19 / 34 / 49 dBV (9.0 / 51 / 285 V)
Output noise level1 μV
Dimensions
DI diameter20 mm (0.79 in.)
DI lengthLength: 95.5 mm (3.76 in.)
DI weight70 g (2.47 oz.)
What's in the box
DM3
Screwdriver
sE 1/4" plug keychain
sE Logo Sticker
User manual with warranty card

sE Electronics Dm3 Dynamite Active Direct Box
Sale price$99.99 USD
Regular price$129.99 USD (/)
