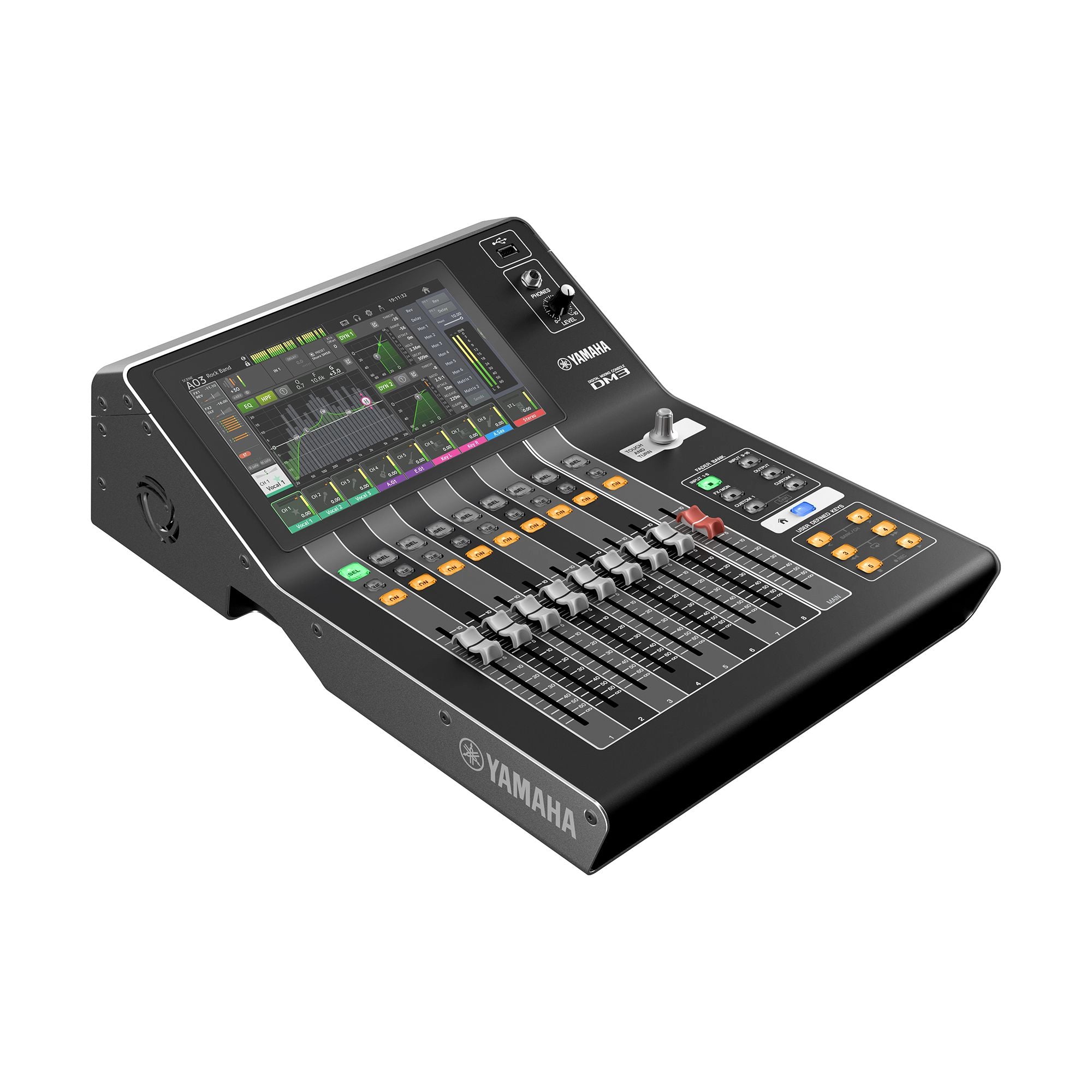

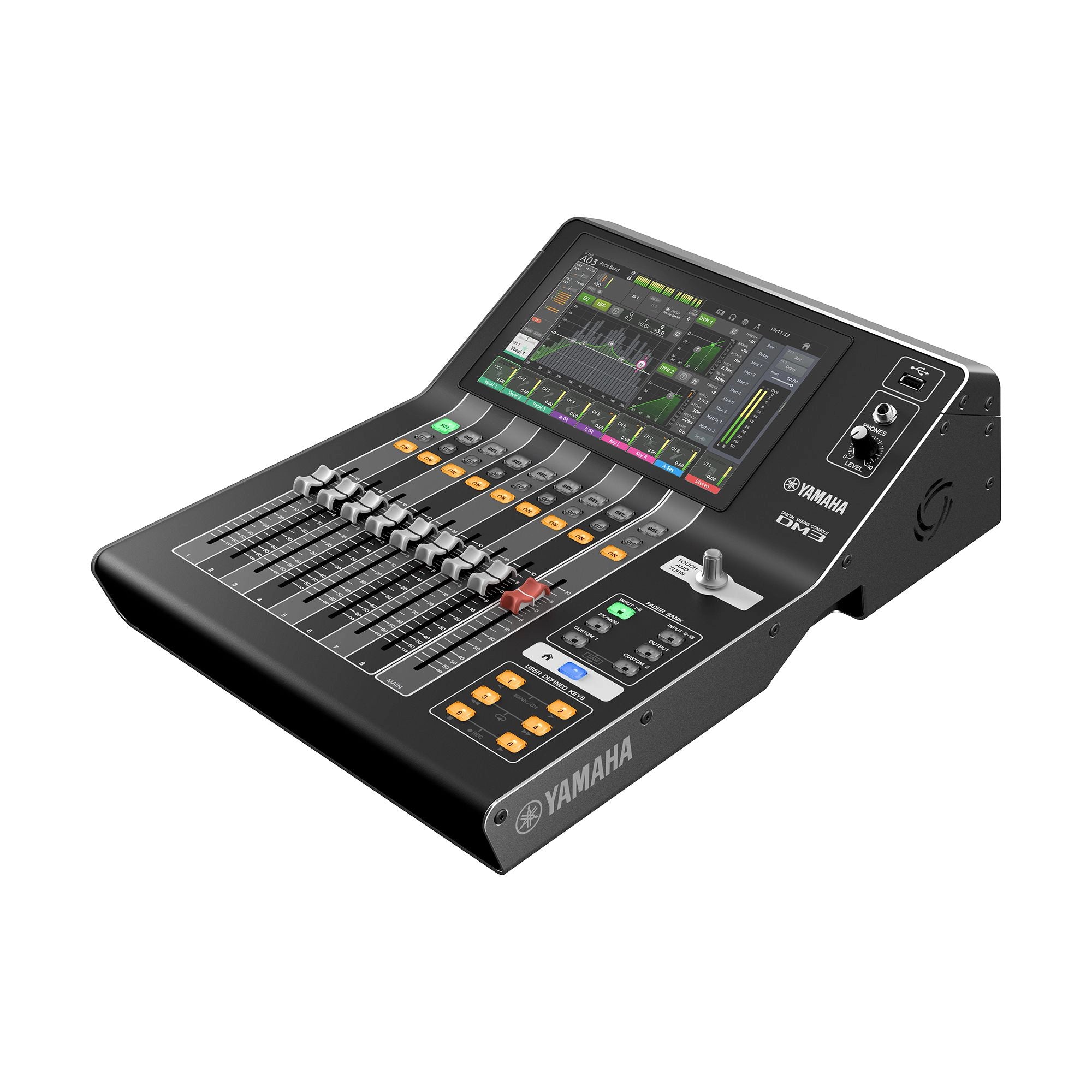

Yamaha DM3-D 22 Channel Digital Mixing Console with Dante
The DM3-D is a compact Dante-equipped digital mixing console with versatile capabilities that make it perfect for a wide range of applications. The DM3 offers superb sound quality, fast and easy setup and operation, and professional-level features.
The word “compact” is often associated with limitations, and in the sound reinforcement world, often implies compromises in functionality, connectivity, or sound quality, and sometimes all three. Until now choosing a compact console has almost invariably been a matter of what you’re willing to sacrifice to get the capabilities you need in the space you have. The new DM3 series of mixing consoles shatters this stereotype, offering superb sound quality, fast and easy setup and operation, and professional-level features for live sound, streaming, and live or home recording and music production—a combination unmatched in any other mixing console this size. In an ever-changing world that constantly presents new challenges as well as opportunities, DM3 mixing consoles give you the power and flexibility to do more with than you ever imagined with a compact digital console.
- 8 + 1 fader configuration
- 9-inch multi-touch screen
- Input mixing channels: 16 mono + 1 stereo + 2 FX return
- Busses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
- Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
- Dante: 16 inputs, and 16 outputs
- USB: 18 inputs, and 18 outputs
- 18 Effects, and GEQ on Mix 1-6 and Stereo channels
- Sampling rate: 48kHz/96kHz
- Dimensions (W x H x D): 320 mm × 140 mm × 455 mm
- Net weight: 14.3lbs
| DM3-D | ||
|---|---|---|
| Mixing Capacity | Input Channels | 16 mono + 1 stereo + 2 FX return |
| Mix Buses | 6 | |
| Matrices | 2 (Supports Input to Matrix) | |
| Stereo Buses | 1 | |
| FX Buses | 2 | |
| Cue Buses | 1 | |

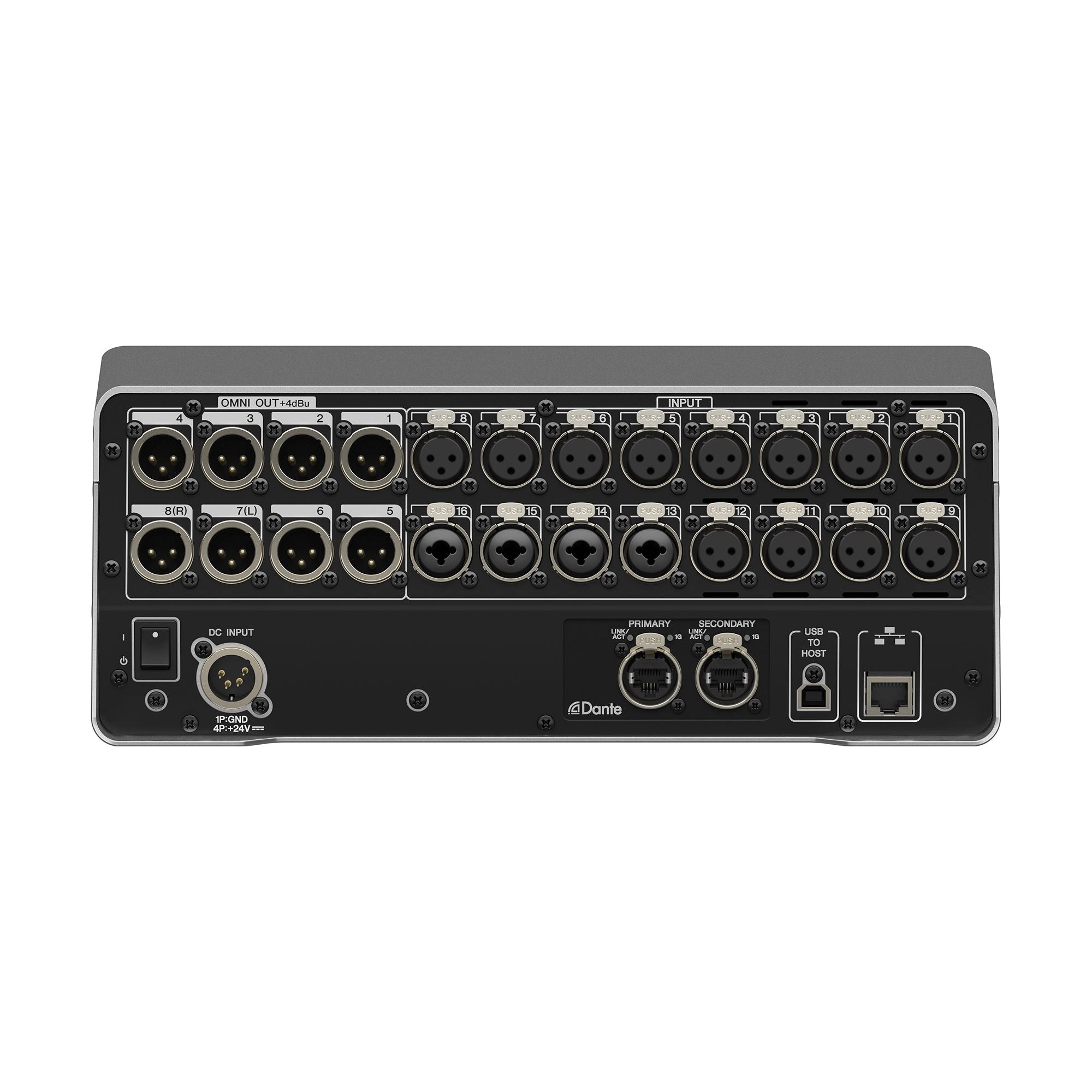

| I/O Connectors | Analog Input | 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) |
| Analog Output | 8 (XLR) | |
| Dante | 2 (etherCON: Primary/Secondary) | |
| Network | 1 (RJ-45) | |
| USB TO HOST | 1 (USB Type-B, USB2.0) | |
| USB TO DEVICE | 1 (USB Type-A) | |
| Phones | 1 (TRS Phones) | |
| DC | 1 (XLR 4pin, DC power IN) | |

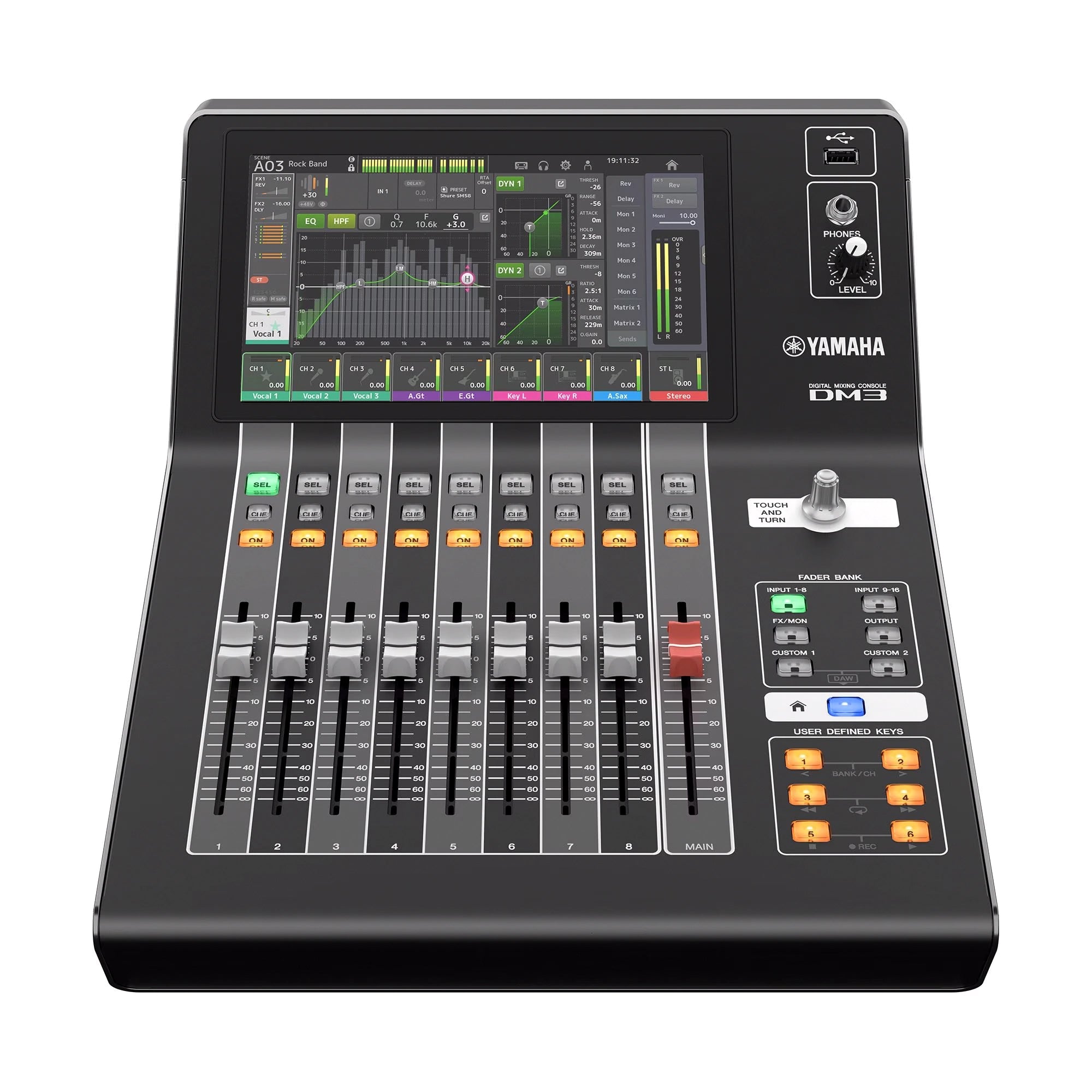

| User Interface | 1x 9-inch multi-touch screen, 9x faders (8 channels + 1 main), 1x "Touch and Turn" rotary encoder | |
| Recording & Playback | PC/Mac | Recording 18 track, Playback 18 track |
| USB storage device | Recording 2 track (USB hard disk / SSD / flash memory), Playback 2 track (USB hard disk / SSD / flash memory) | |
| Sampling frequency rate | 96 kHz / 48 kHz | |
| Signal delay | Less than 1.3 ms, (CH INPUT to OMNI OUT, Fs=96 kHz) | |
| Frequency response | +0.5, -1.0 dB 20 Hz-20 kHz, reference to the nominal output level@1 kHz, INPUT to OMNI OUT | |
| Total harmonic distortion | Less than 0.01 % 20 Hz - 20 kHz@+4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain= Min*1 | |
| Hum & noise level | Equivalent input noise | -126 dBu typ., Input Gain= Max. |
| Residual output noise | -84 dBu, ST main off*2 | |
| Dynamic range | 110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain=Min. | |
| Crosstalk | -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain= Min. @1 kHz*3 | |
| Power requirements | DC24 V/2.5 A, PA-L500 (100 V-240 V, 50 Hz/60 Hz) | |
| Power consumption | 43 W | |
| Dimensions | W | 320 mm (12.6") |
| H | 140 mm (5.6") | |
| D | 455 mm (18.0") | |
| Net weight | 6.5 kg (14.3 lb) | |
| Included Accessories | Owner's Manual, Power Adapter, Download Information | |
| Accessories | RK-DM3 | |
| Operating temperature | 0 - 40 °C | |
| Storage temperature | -20 - 60 °C | |
