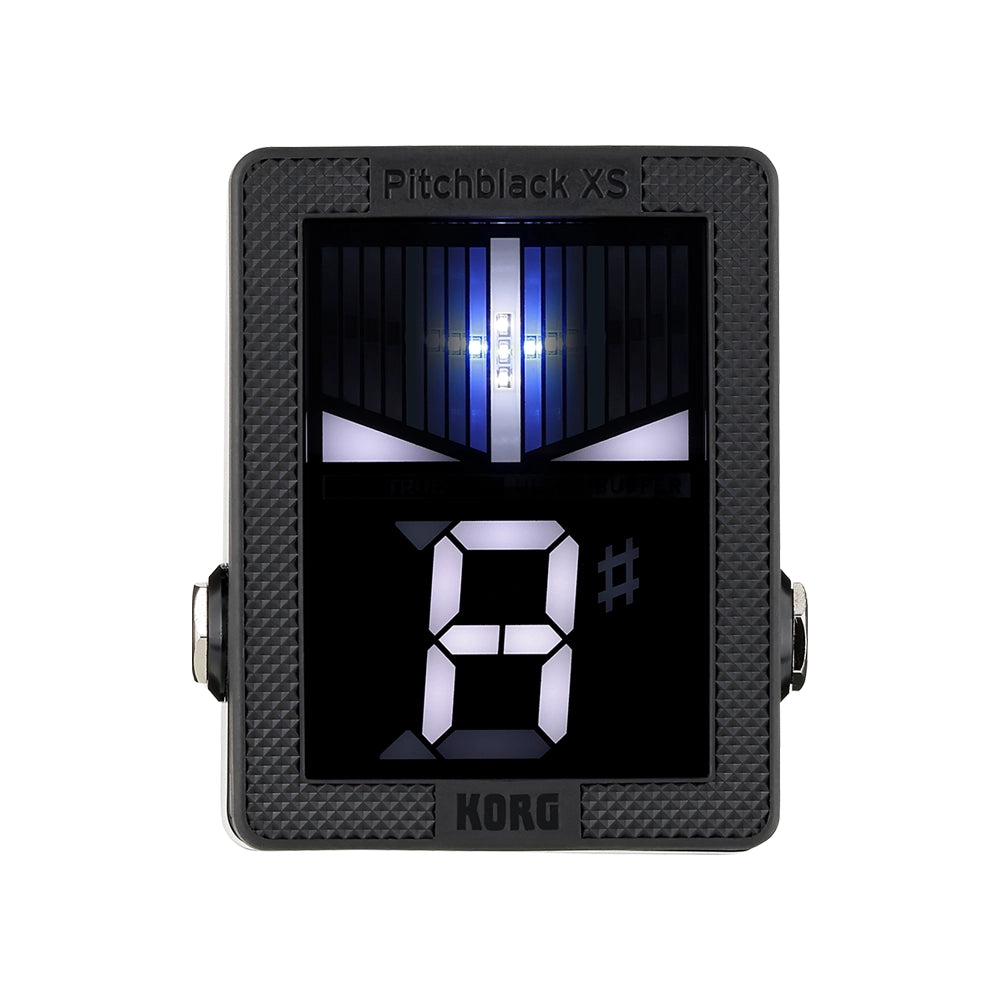

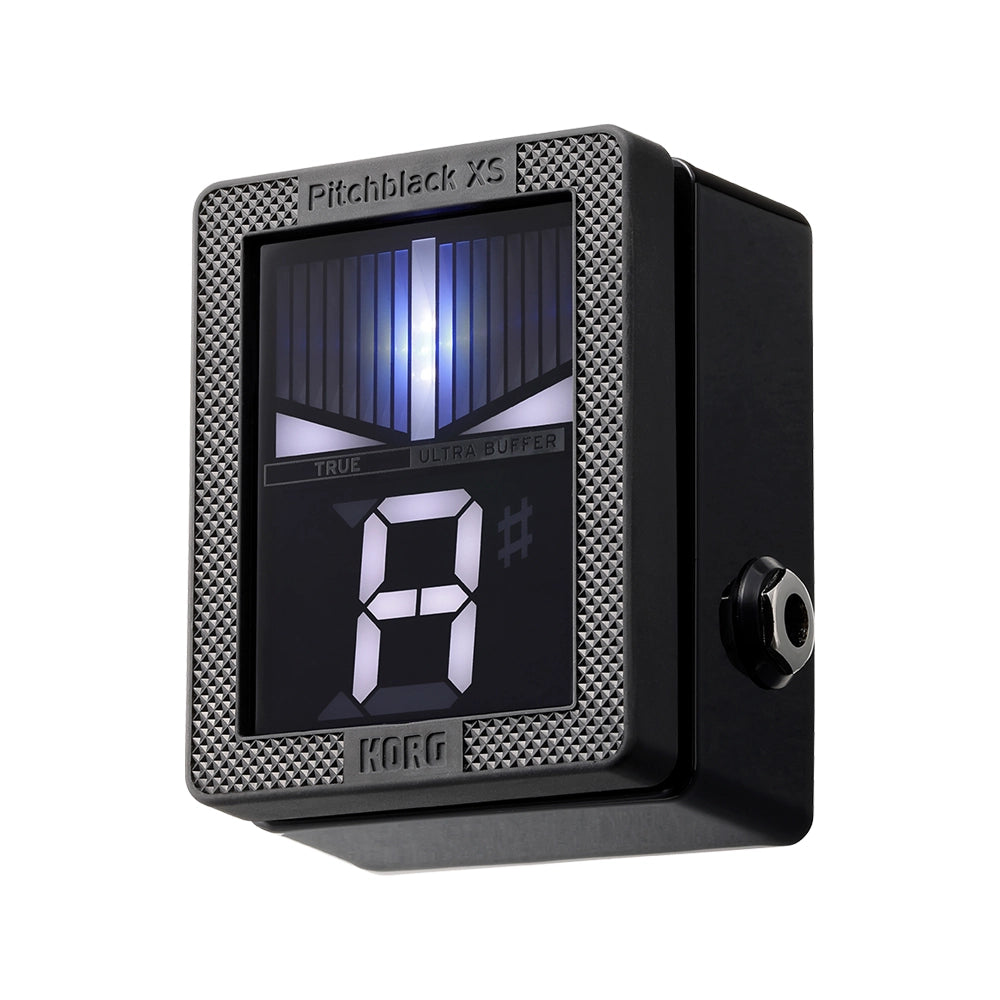

Korg Pitchblack XS Custom Pedal Tuner

The pitchblack xs not only features a true bypass for outputting the sound exactly as it was input, but now includes a built-in ultra buffer.

Why is this important?

The majority of electric guitars use passive pickups with a high impedance output. When you are using a cable there is a loss of tone, usually high frequencies, after about 6 m (around 18 feet) and this problem gets worse the longer your cable. A buffer boosts the signal over long cables to avoid loss of tone, keeping it clean and clear - even when your pedal is off.

The ultra buffer enhances the sound quality in bypass mode, so that you can still maintain audio quality even when using a long cable to connect to the tuner, or when inserting the tuner into a complex effects board.

On the pitchblack xs, you can switch between true bypass and the ultra buffer, according to your tastes and environment.

FEATURES:

• Increased size and brightness provides crystal-clear visibility under most settings
• Double the meter LEDs means greater display definition as well as higher distinction in tuning accuracy
• Ultra-high tuning precision is accurate to a range of ±0.1 cents
• Variable brightness displays and tuning modes accommodate the needs of guitarists for any scenario
• Ultra Buffer system ensures preservation of signal strength and clarity for consistent use across complex systems and long cables
• Standard 9V power supply (not included)

SPECS:

• Scale: 12 note equal temperament
• Detection Range: E0 (20.60Hz)~C8(4,186Hz)
• Calibration Range: A4=436〜445Hz（1Hz steps）
• Detection Accuracy: +/- 0.1 cent (display mode: Srobe)
• Input Impedance: 1 M-ohm (tuner on)
• Display Modes: Regular, Strobe, Half-strobe, Mirror

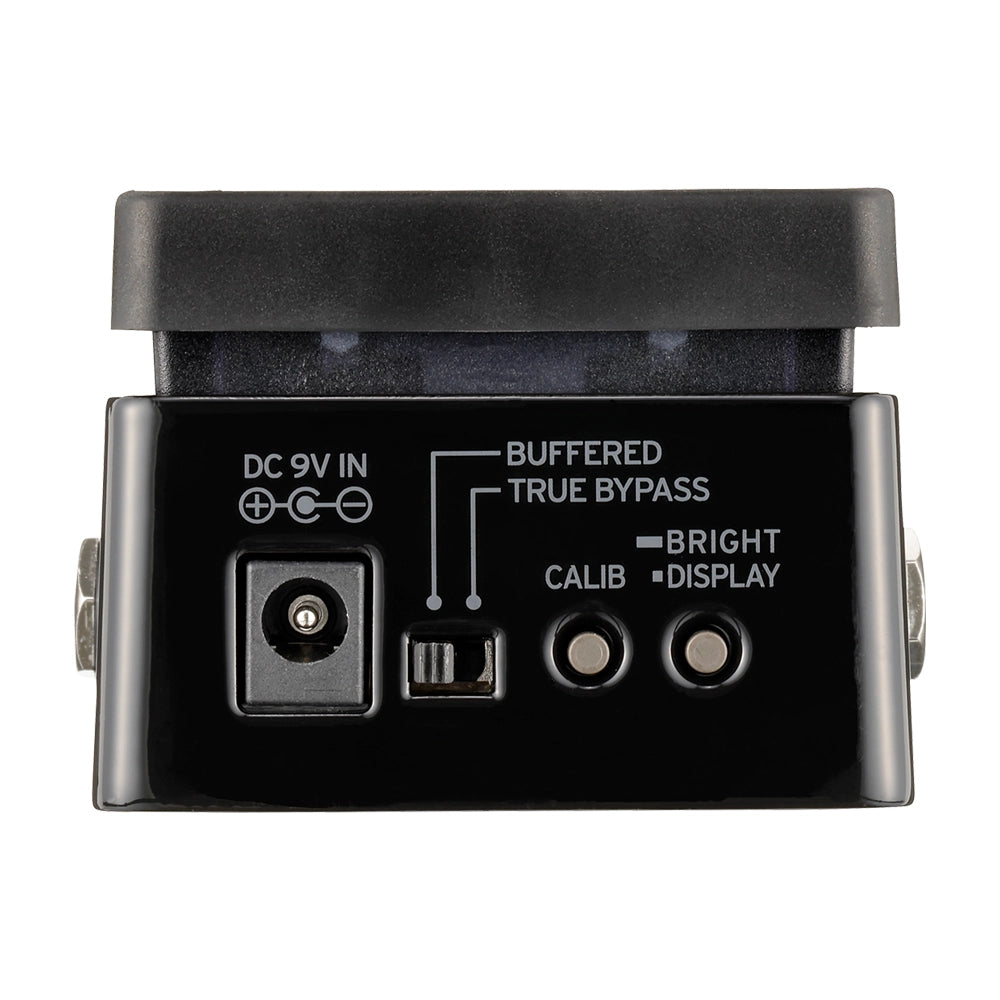

• Connectors: INPUT (mono 1/4” jack), BYPASS (mono 1/4” jack), DC 9V IN
• Power Supply: AC adaptor (9V)
• Power Consumption: Maximum 40 Ma
• Dimensions (W x D x H): 70 x 80 x 47 mm (including protrusions)
• Weight: 198 g
• Included Items: Notices, Rubber feet
• Accessories: AC adaptor (9V)
