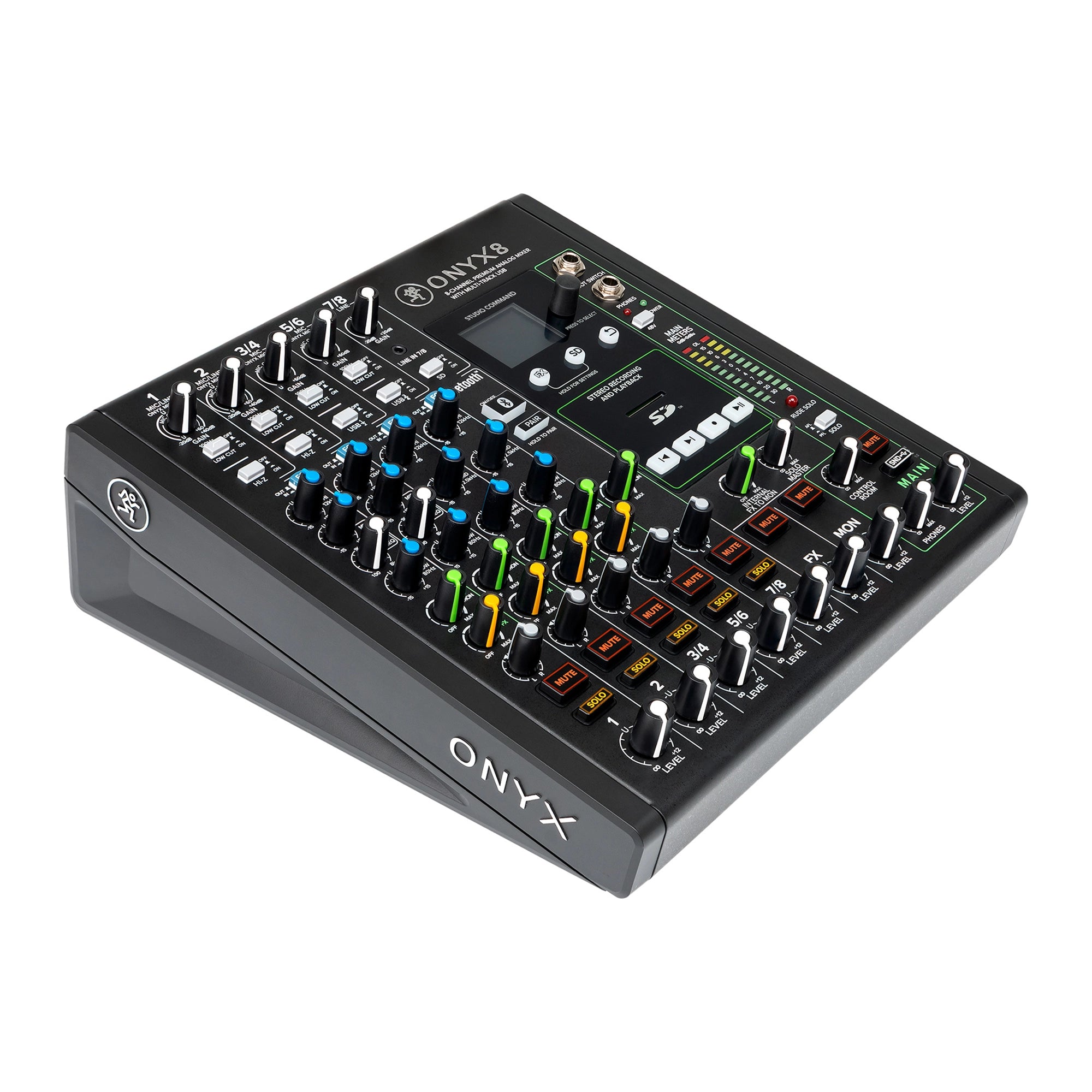

Mackie Onyx8 8-channel Analog Mixer with Multi-Track USB

Record and mix with a premium analog mixer at the heart of your studio. The Mackie Onyx8 is a compact 8-channel USB mixer with everything you need to elevate the quality of your creative projects like never before. Use the Mackie Onyx8 to bring a new level of sonic performance and versatility to any home recording, live audio or mobile sound setup.

CAPTURE CREATIVITY, WHEREVER IT STRIKES

When it comes to pristine audio, you need a premium mixer at the heart of your setup, whether you’re recording in your home studio or on the road. Every detail of the Mackie Onyx8 is geared towards recording and content creation at a professional level, from our award-winning Onyx preamps to the Perkins “British Style” EQs inspired by classic desks from the ‘60s and ‘70s.

Onyx Mic Preamps

Record ultra-clean, transparent sound with incredible accuracy. Our award-winning Onyx Mic Preamps are designed for maximum studio-quality performance. Create podcasts, live stream gameplay, or produce the next hit. No matter what you do, we want to make sure you sound great.

Perkins EQ

The Mackie Onyx8 features an enhanced 3-Band “British Style” Perkins EQ based on the same circuit used on classic mixing consoles from the ‘60s and ‘70s. This version designed by Mackie offers greater filter control, minimum phase shift and allows you to pinpoint specific frequency ranges.

To create the Perkins EQ, Cal Perkins started with the Wien Bridge circuit topology inspired by the hallowed “British” desks of the ‘60s and ‘70s. This design essentially trades boost/cut capability for a wider, highly musical Q filter. After a mind-numbing amount of math, Cal was able to specify capacitor and resistor values that would give the EQ an extra 6dB of control (±15 dB) without excessively narrowing the “Q” or bandwidth of the filters. It's what we call a win-win.

Features:

• 4 award-winning Onyx mic preamps
• Analog circuitry delivers premium-quality sound with minimum noise
• Analog/USB channel strips with flexible routing
• Studio-grade effects with user customization options
• 3-band Perkins EQ with On/Off hard bypass switches
• Switchable hi-Z inputs for guitars, bass, and other instruments
• 100Hz low-cut filter and 48V phantom power on all mic channels
• High-resolution 24-bit/96kHz multi-track recording to Mac/PC via USB

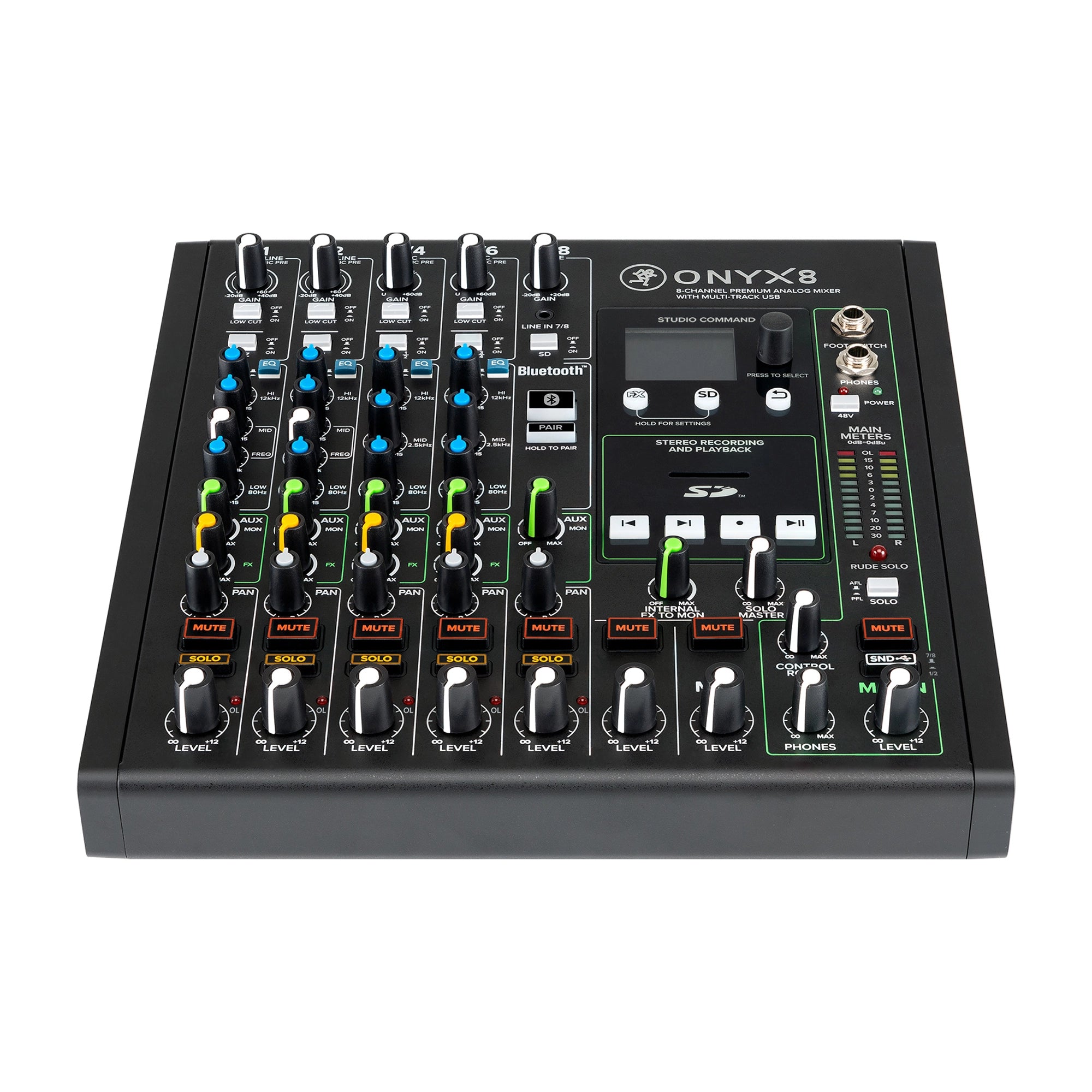

• Full-color display and single-knob interface
• Dedicated buttons for Previous, Next, Record, and Play/Pause
• Bluetooth streaming capabilities

Specs

• Type: Analog Mixer
• Channels: 8
• Computer Connectivity: USB, Bluetooth
• A/D Resolution: 24-bit/96kHz

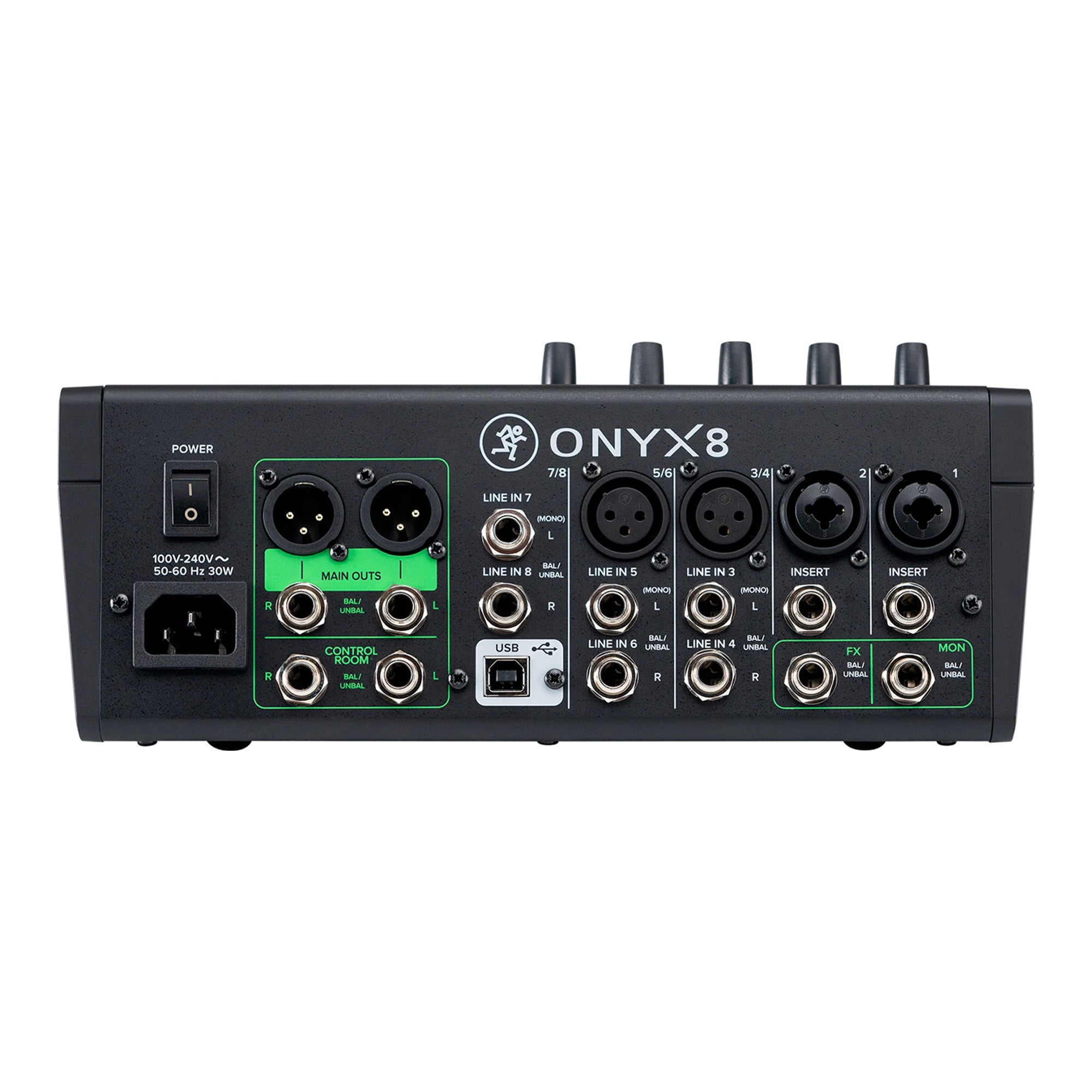

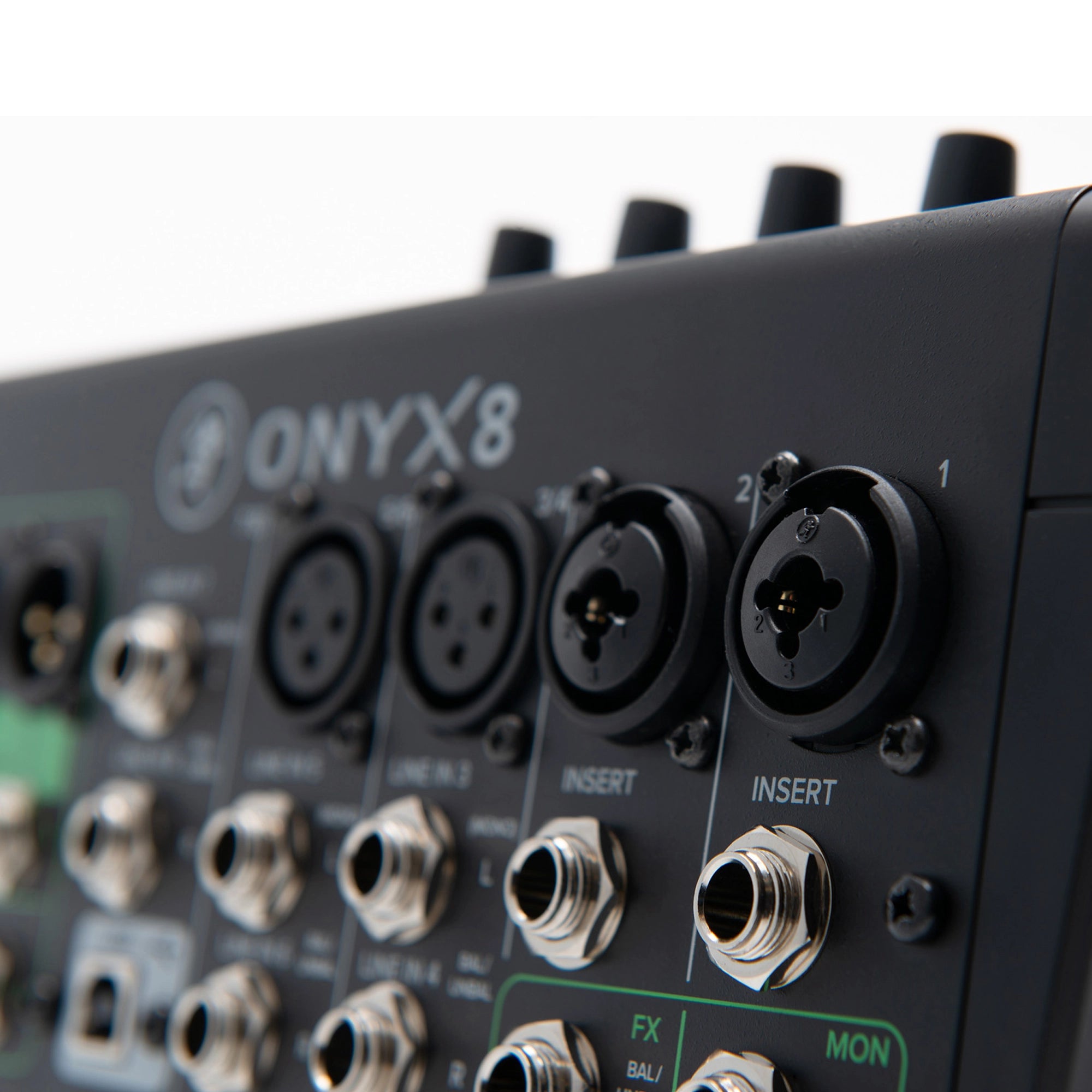

• Inputs - Mic Preamps: 2 x XLR-1/4" combo, 2 x XLR
• Phantom Power: Yes
• Inputs - Line: 6 x 1/4" (3 x stereo), 1 x 1/8"
• Outputs - Main: 2 x XLR (main), 2 x 1/4" (main), 2 x 1/4" (control room)
• Send/Return I/O: 1 x 1/4" (FX), 1 x 1/4" (mon)
• Inserts: 2 x 1/4"
• Headphones: 1 x 1/4"
• USB: 1 x Type B
• Bluetooth: Yes
• Other I/O: 1 x 1/4" (footswitch)
• EQ Bands: 4-band EQ
• Effects: Yes
• Storage: SD card slot
• Power Source: Standard IEC AC cable
• Height: 4.5"
• Width: 10.5"
• Depth: 11"
• Weight: 7.1 lbs.
