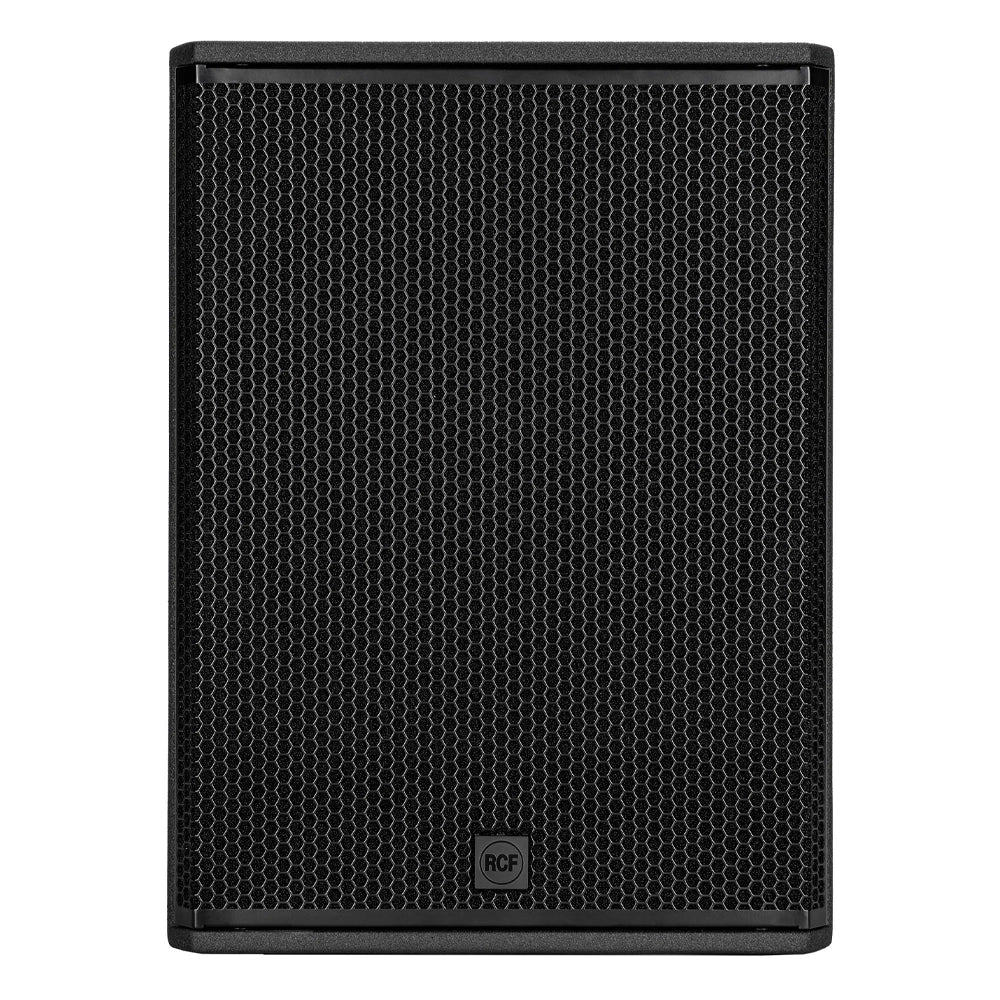

RCF SUB 708-AS MK3 18-inch 1,400-watt Active Subwoofer
Legendary subwoofers
RCF subwoofers are the first choice of many sound engineers, thanks to the very high SPL levels at very low frequencies, small dimensions compared to the competitors, self-powered design, long-term reliability, and impressive size/weight to SPL output ratio. Your crowd will be able to live an engaging immersive experience in both live sound or DJing applications.
Power That Moves
RCF's improvements in transducer design make them stronger and more powerful so the amplifier follows the evolution. With 1400W peak power, the Class-D amplifier manages extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. The speaker design is energy-efficient so there's no need for a cooling fan. The amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet with no moving parts. The stereo input circuit with crossover features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.

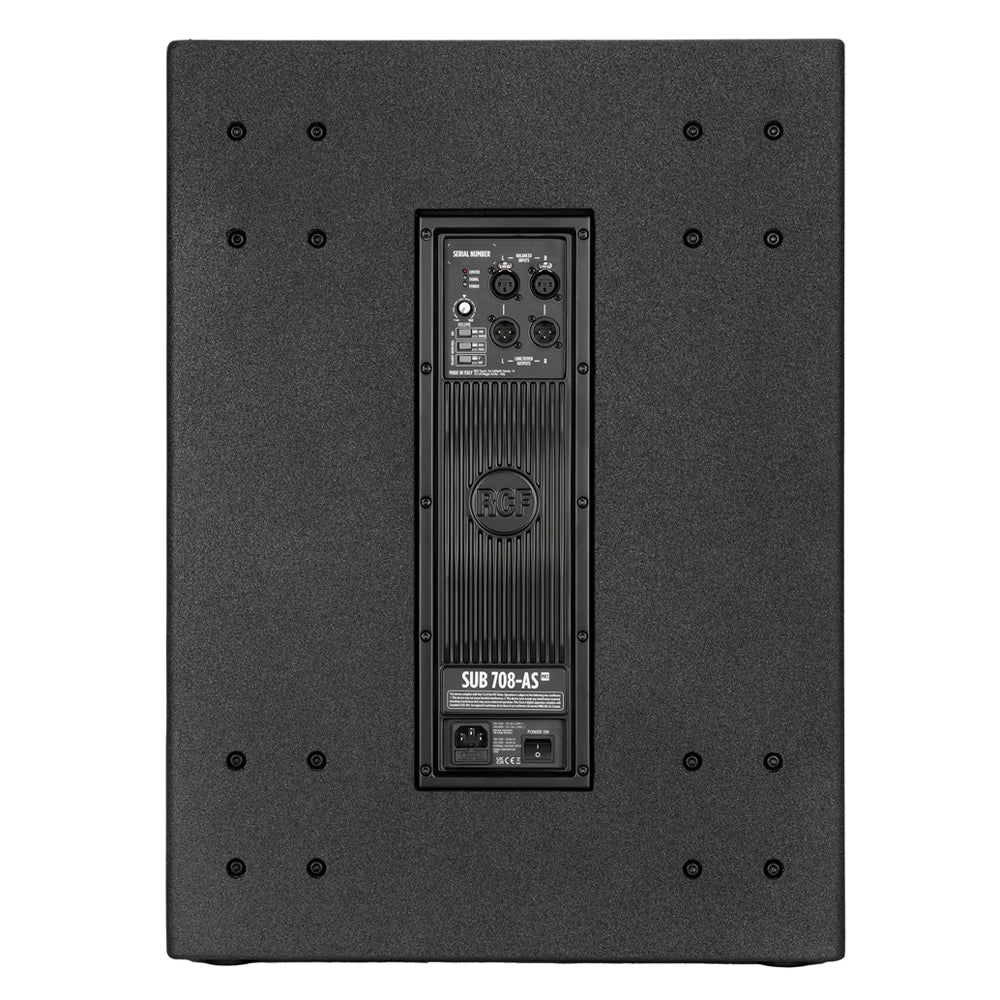

SUB 7 Series subwoofers can be configured from the rear panel, and features a full set of commands:
- X-OVER PRESET 80Hz/120Hz
- POLARITY REVERSE
- OUT SIGNAL, LINE / HIGH PASS
- POLARITY REVERSE
- OUT SIGNAL, LINE / HIGH PASS
Bass Motion Control
When searching for an extended bass with enhanced performance, RCF engineers found a way to remove the high-pass filter, replacing it with a forward-thinking approach. Introducing BMC (Bass Motion Control), the newly advanced woofer excursion management feature. The speaker equipped with BMC can handle the lowest audible frequencies without affecting the woofer stability, with extended linearity and better sound integrity.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.
The BMC method works by creating a complete map of the dynamic behavior of the woofer, to generate a custom algorithm that only limits over-excursions. This gives total freedom of signal reproduction to the transducer. When high-pass filters normally protect the woofer motion from becoming destructive but change the phase behavior, the new BMC algorithm breaks conventional rules.
Tour-Ready Workhorse

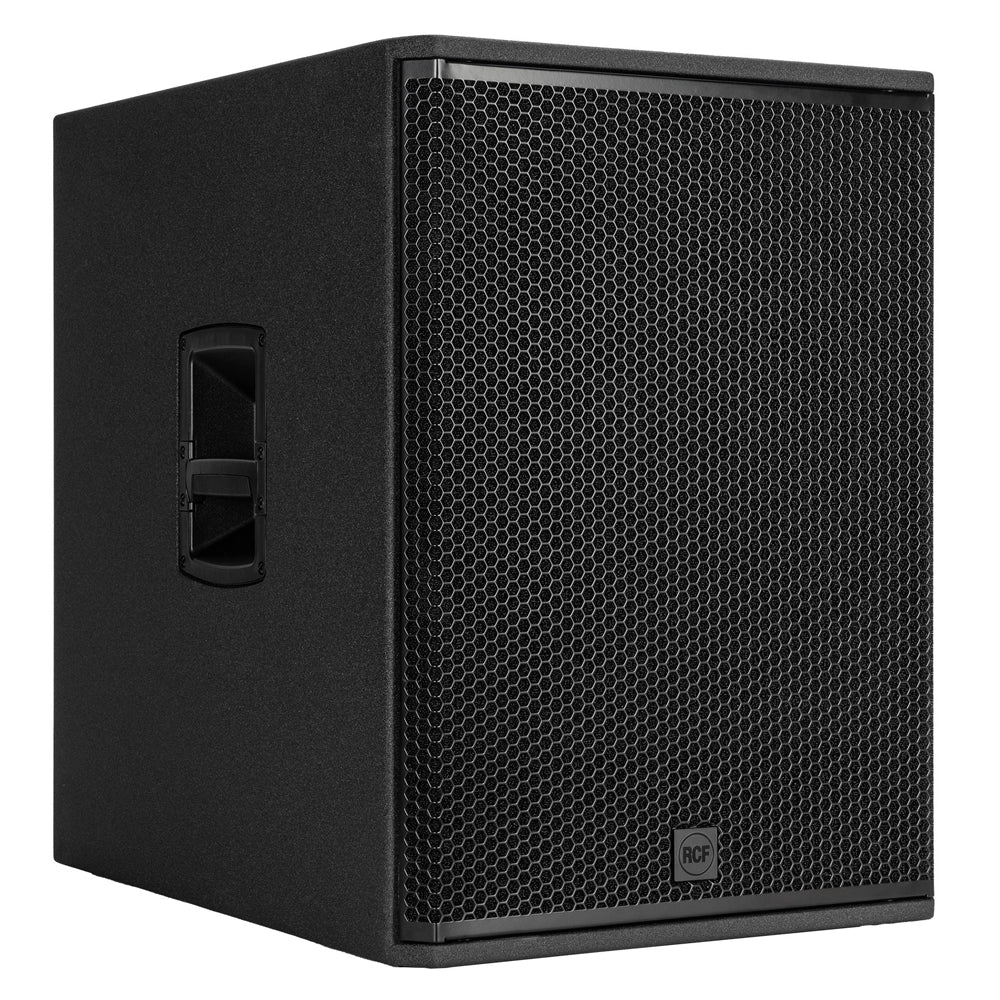

The subwoofer is suitable for a wide range of live sound applications. The rugged all-plywood cabinet is easy to carry and stack, due to its light-weight. All are equipped with ergonomic handles with rubber grips for easy set-up and tear down. The M20 threaded pole mount on the top allows the cabinet to support speakers with a pole mount. The heavy-duty polyurea coating, the powder-coated metal grille, and the rugged structure of the cabinet withstand long-term use and transportation. Separate housing for the amplifier guarantees component efficiency and reliability. An acoustically transparent sound foam backing on the inside of the grille ensures protection from dust and humidity. With its frontal vented ports, the subwoofer can also be used in recessed spaces.
Features:
- Packs 1,400 watts of pure Class D power into a portable active subwoofer
- Ceramic-loaded 18-inch woofer yields thunderous bass down to 35Hz
- Delivers sound pressure levels up to 133dB with generous amounts of headroom
- Built-in stereo crossover, switchable crossover frequencies, and a polarity-reverse switch
- Digitally controlled equalization, soft limiting, and system protection
- Stereo XLR input and a stereo XLR signal output
- Bass-reflex housing and bass motion control excursion management
- Near-bulletproof Baltic birch cabinet with a scratch-resistant polyurea coating
Specs
- Powered/Unpowered: Powered
- LF Driver Size: 18" subwoofer
- Power Rating: 700W RMS
- Total Power: 1400W Class D
- Inputs: 1 x XLR
- Outputs: 1 x XLR
- Frequency Response: 40Hz-120Hz
- Maximum Peak SPL: 133 dB SPL @ 1m
- Mounting Options: Floor, Pole
- Power Source: Standard IEC AC cable
- Enclosure Material: Baltic birch plywood
- Height: 27.28"
- Width: 19.88"
- Depth: 26.97"
- Weight: 88.18 lbs
- Manufacturer Part Number:13000810
RCF SUB 708-AS MK3 18-inch 1,400-watt Active Subwoofer
Sale price$1,699.99 USD
Regular price$1,899.99 USD
