Shure BLX14R/MX53 Wireless Headworn Microphone System W/ MX153 Omnidirectional Condenser Microphone - J11 Band
BLX14R/MX53
Wireless Rack-mount Presenter System with MX153 Earset Microphone
Overview
The Shure BLX14R/MX53 Wireless Rack-mount Presenter System combines professional-quality sound with simple setup and up to 14 hours battery life for legendary audio performance right out of the box. The system includes BLX4R half-rack single-channel receiver, MX153 subminiature earset microphone with BLX1 bodypack transmitter, lavalier clip, power supply, 2 AA batteries, windscreens, rackmount kit, 2 1/4 wave antennas, zipper bag, and user guide.
Specs
System
| Wireless Technology | Analog UHF |
| Diversity | Yes |
| RF Frequency Band | J11: 596 to 608 MHz / 614 to 616 MHz |
| Number of RF Channel Frequencies | 123 |
| Max Operating Range | 300' / 91.4 m (Line of Sight) |
| Max Transmitters per Band | 12 |
| Dynamic Range | 100 dBA |
| Encryption | No |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | No |
Receiver
| Receiver Type | 1x Tabletop/Rack-Mountable |
| Mounting Options | Rackmount (with Included Hardware, 1 U Half-Rack) |
| Antenna | 2x Removable 1/4 Wave External (Rear-Mount) |
| Number of Audio Channels | 1 |

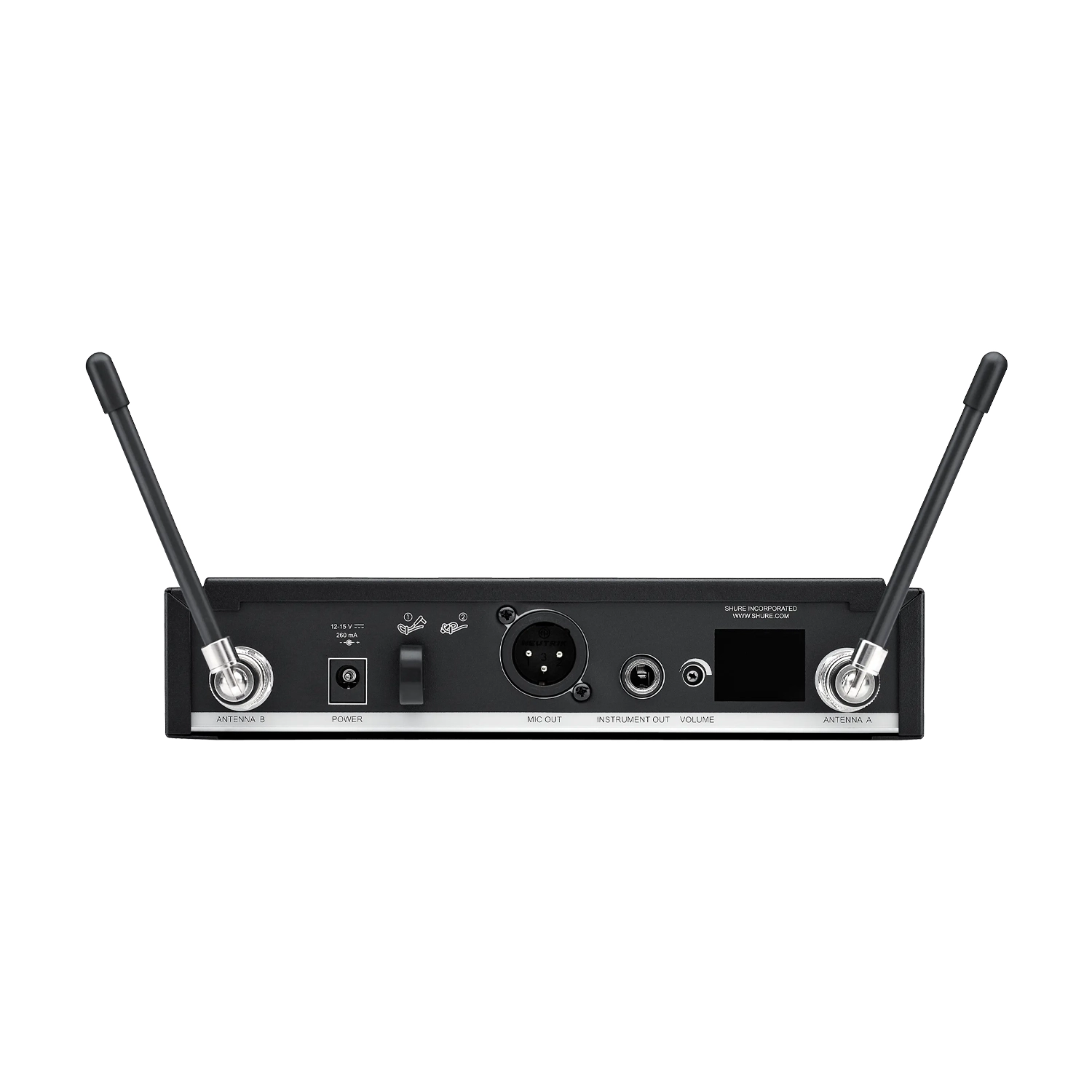

| Audio I/O | 1x XLR 3-Pin Balanced Output 1x 1/4" TS Unbalanced Output |
| Network I/O | No |
| USB/Lightning Connectivity | No |
| Frequency Response | 50 Hz to 15 kHz (Dependent on Mic) |

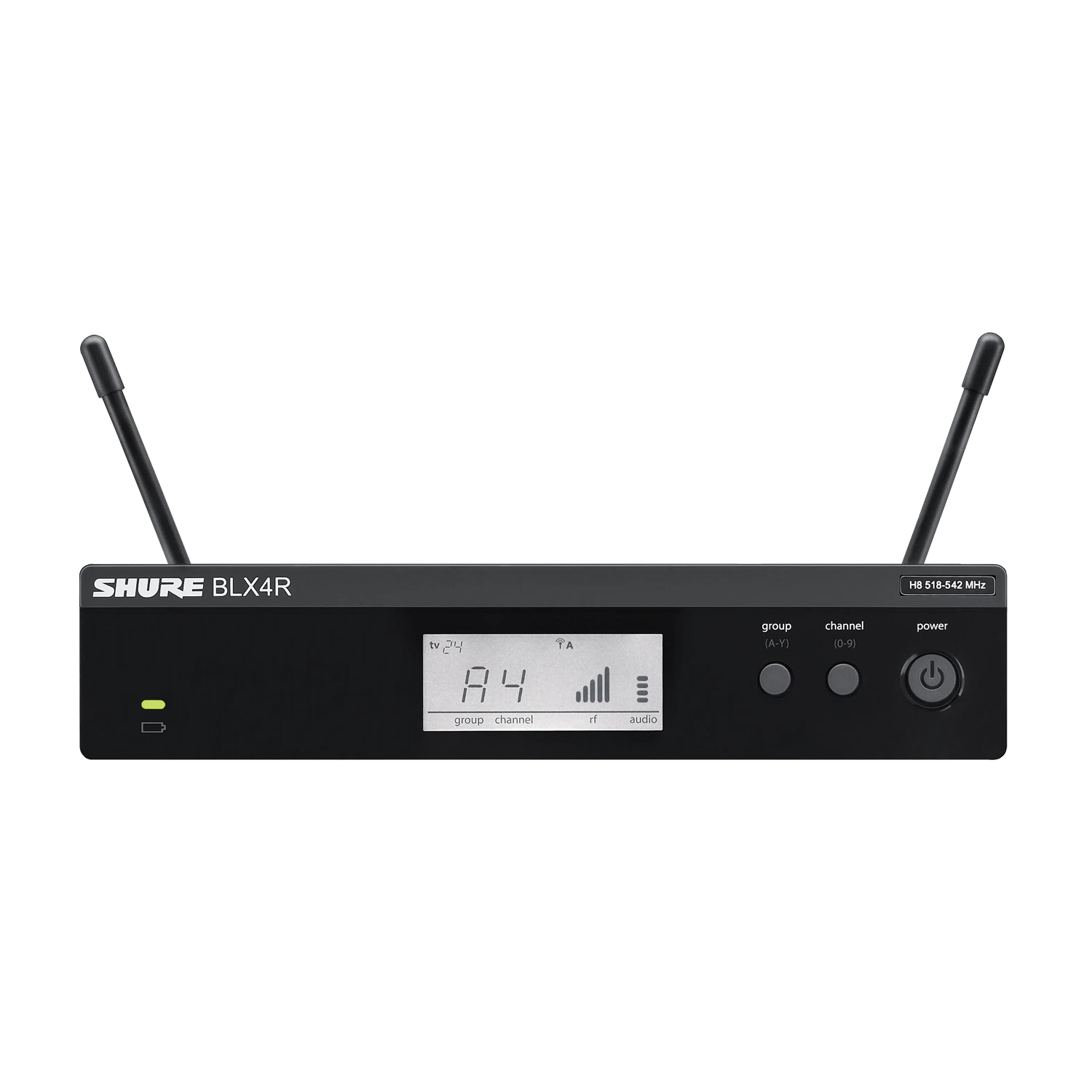

| Display | Backlit LCD |
| Power Requirements | AC/DC Power Adapter |

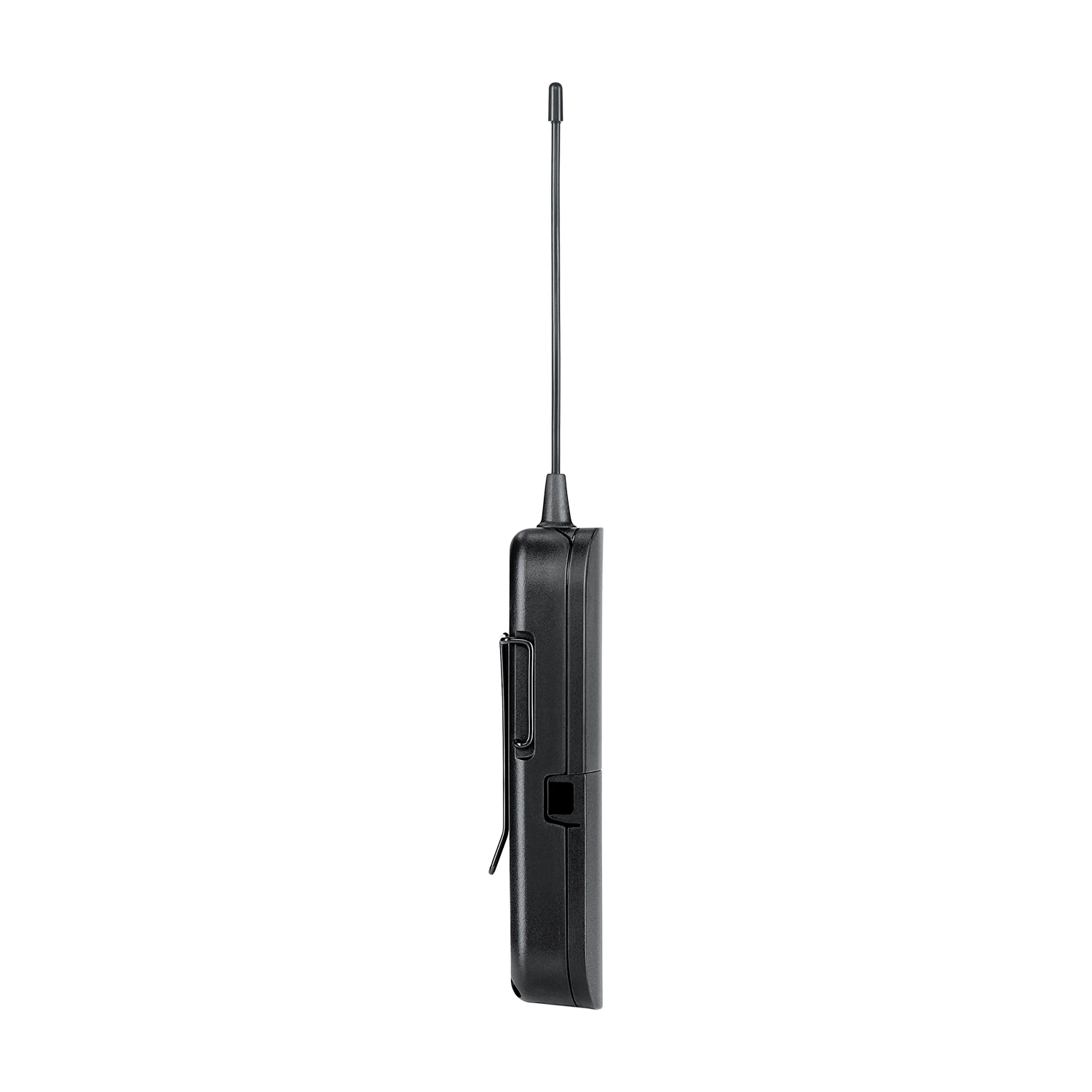

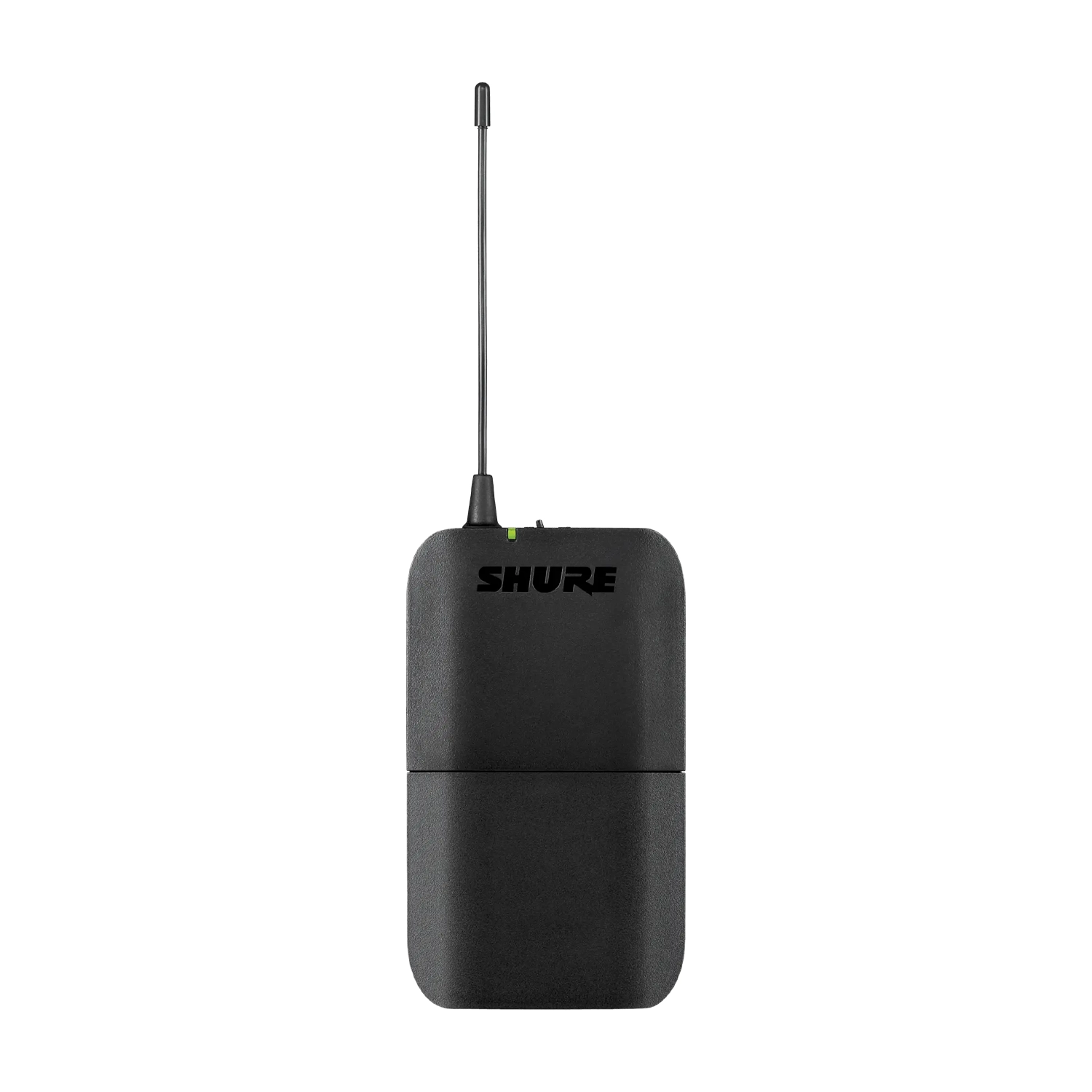

Transmitters
| Included Transmitters | 1x Bodypack |
| RF Output Power | 10 mW |
| Antenna | Fixed Flexible Whip |
| Input Level | Microphone |

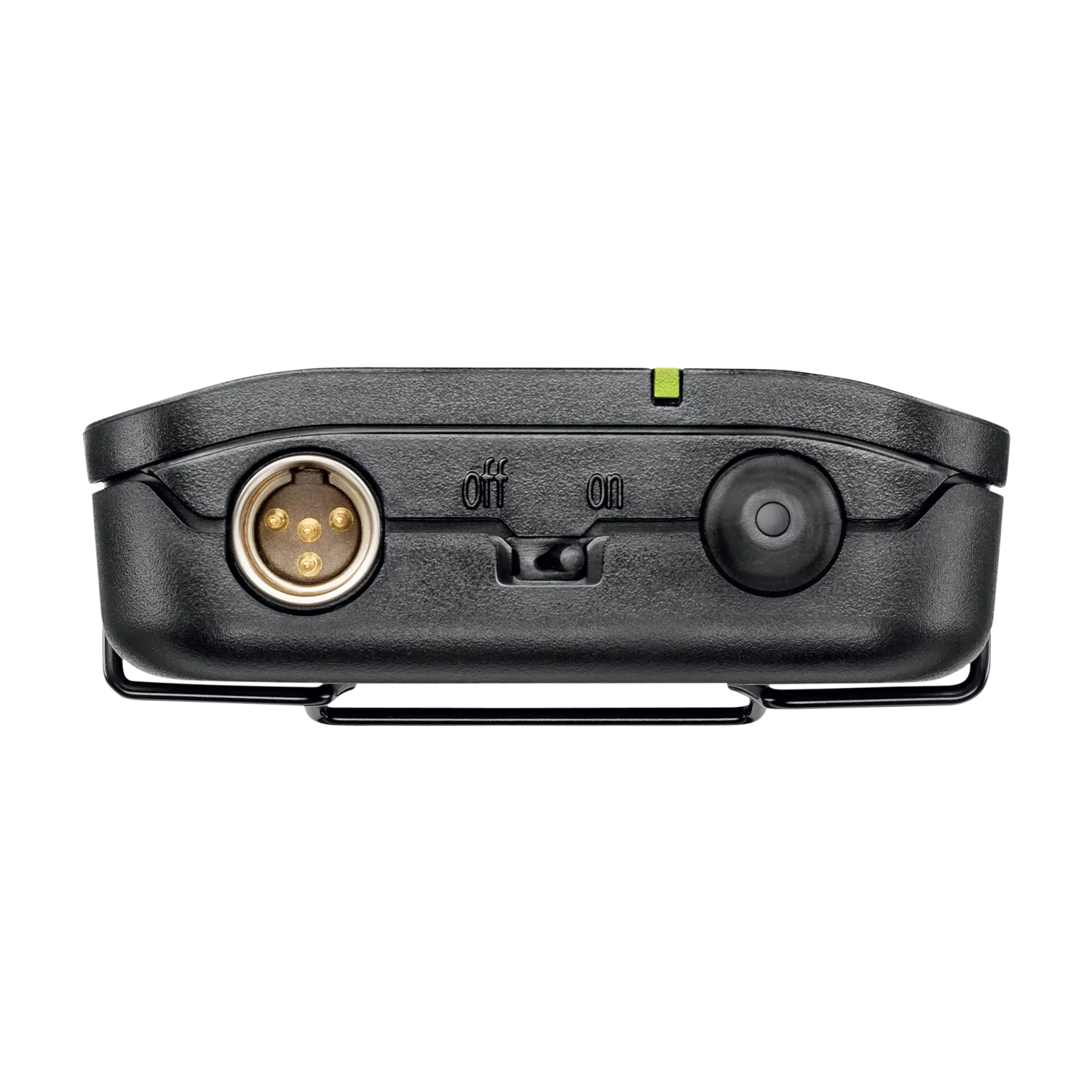

| Audio I/O | 1x TA4M/Mini-XLR 4-Pin Male Input |
| Bias/Plug-In & Phantom Power | 5 V Bias/Plug-In Power No Phantom Support |
| USB I/O | No |
| Muting | Off/On Switch |
| Gain Range | -16 to +10 dB |
| Auto-Level/Gain | No |
| Sync Method | Manual |

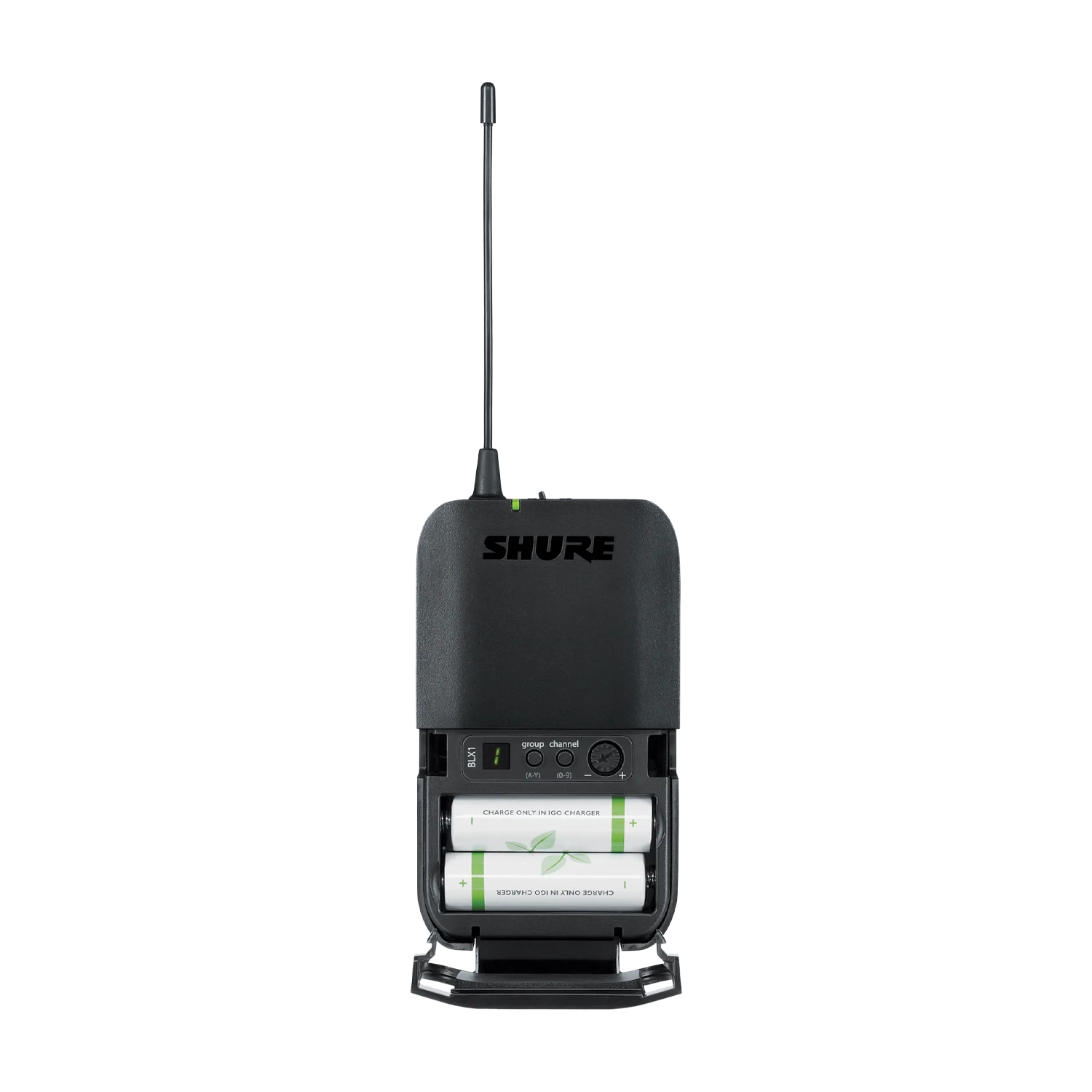

| Display | Alphanumeric LED (In Battery Compartment) |
Microphones
| Microphone Type | 1x Earset |
| Polar Pattern | Omnidirectional |
| Frequency Response | 20 Hz to 20 kHz |
| Maximum SPL | 107 dB |
| Sensitivity | -41 dBV/Pa |
| Output Connector | 1x TA4F/Mini-XLR 4-Pin Female |
| Cable Length | 4' / 1.22 m |
| Color | Tan |
Power
| Transmitter Battery Type | 2x AA (Included) |
| Transmitter Battery Life | 14 Hours (Alkaline) |
| Included Charging Case | No |
| AC/DC Power Adapter | 12 to 15 VDC at 260 mA, Center-Positive (Included) |
| Input Power | 12 to 15 VDC at 260 mA |
Physical
| Environmental Resistance | No |
| Housing | ABS (Transmitter) Steel (Receiver) |
| Dimensions |
Receiver: 7.8 x 6.4 x 2" / 198 x 163 x 50 mm Transmitter: 4.3 x 2.5 x 0.8" / 110 x 64 x 21 mm |
| Weight |
Receiver: 35.2 oz / 998 g Transmitter: 2.6 oz / 75 g Microphone: 0.7 oz / 19.8 g |

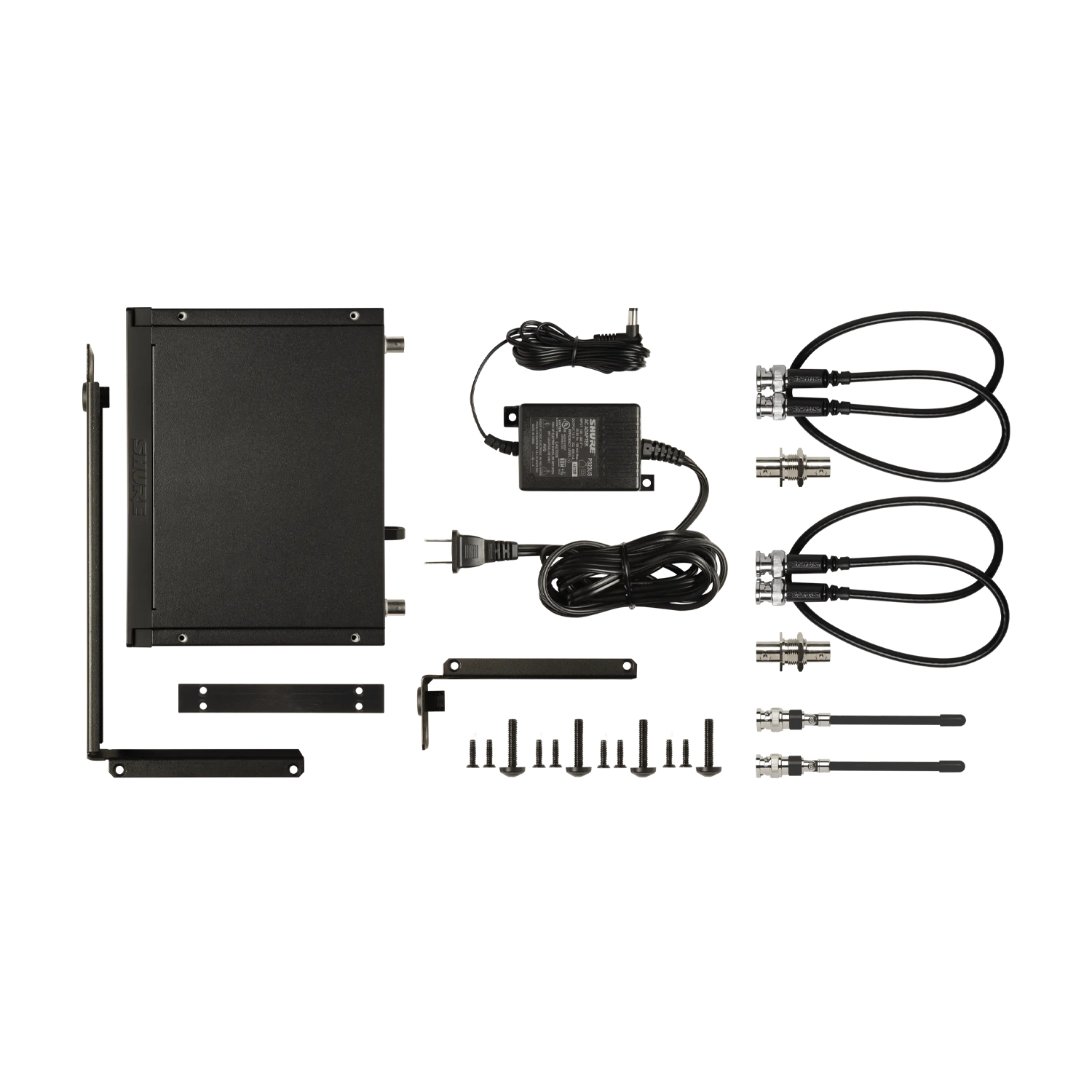

In the Box
- 1 53A8611 Rack Mount Bracket
- 1 53A8612 Long Rack Mount Bracket
- 1 53B8443 Link Bracket
- 1 90AZ8100 Hardware Kit
- 1 31B1856 Thread Adapter
- 2 95A8699 Antenna/BNC, 1/4 Wave
- 2 95A8994 Adapter, Bulkhead, BNC
- 1 95B2313 Vinyl Zippered Bag
- 2 95K2035 BNC Cable, 22 in.
- 1 Power supply
