BLX24/SM58
Overview
The Shure BLX24/SM58 Wireless Vocal System combines professional-quality sound with simple setup and up to 14 hours battery life for legendary audio performance right out of the box. The system includes BLX4 tabletop single-channel receiver, legendary SM58 handheld transmitter, microphone clip, power supply, 2 AA batteries, and user guide.
Specs
System
| Wireless Technology |
Analog UHF |
| Diversity |
Yes |
| RF Frequency Band |
H10: 542 to 572 MHz |
| Number of RF Channel Frequencies |
123 |
| Max Operating Range |
300' / 91.4 m (Line of Sight) |
| Max Transmitters per Band |
12 |
| Dynamic Range |
100 dBA |
| Encryption |
No |
| Built-In Recorder |
No |
| Timecode Support |
No |
| Mobile App Compatible |
No |

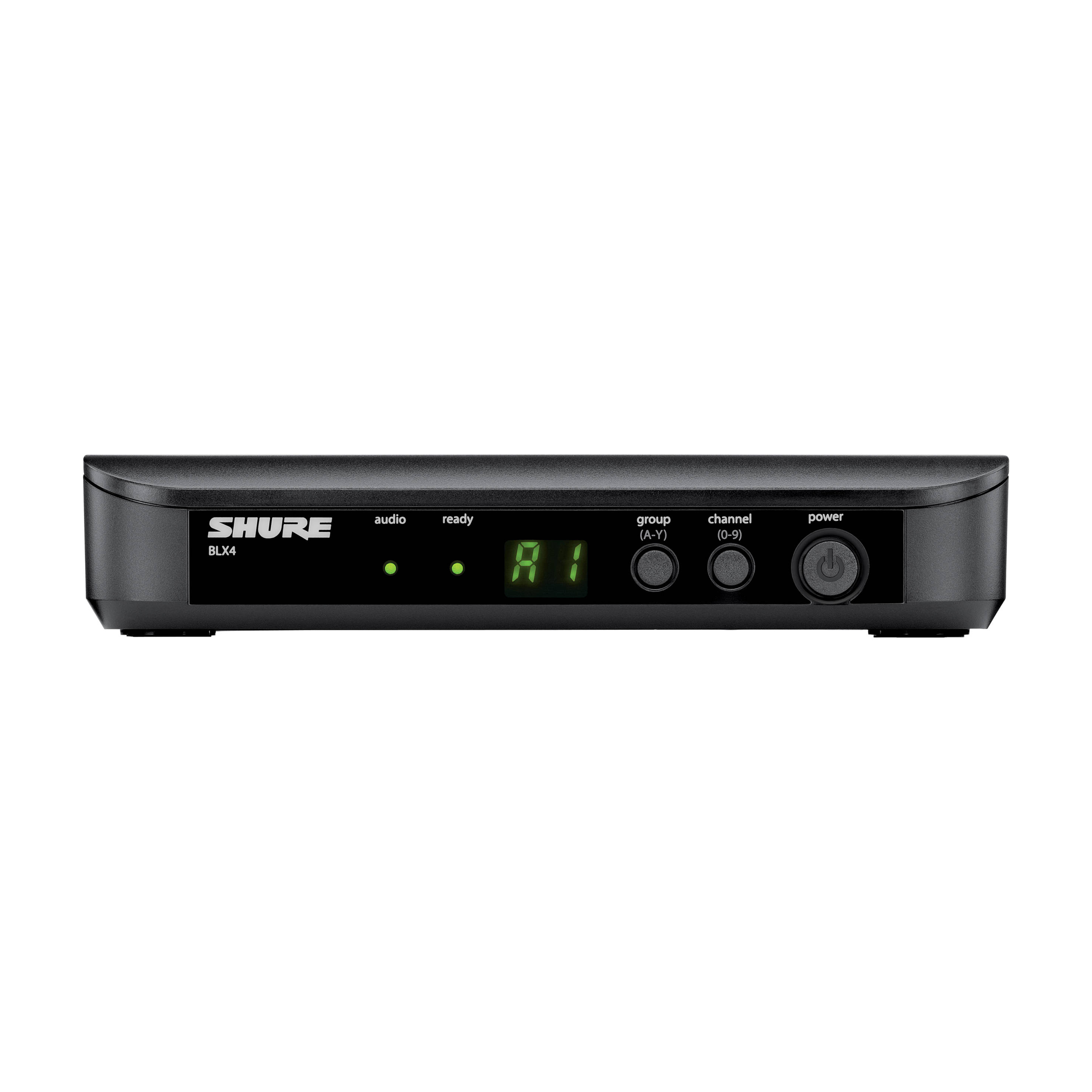

Receiver
| Receiver Type |
1x Tabletop |
| Mounting Options |
No |
| Antenna |
2x Internal |
| Number of Audio Channels |
1 |

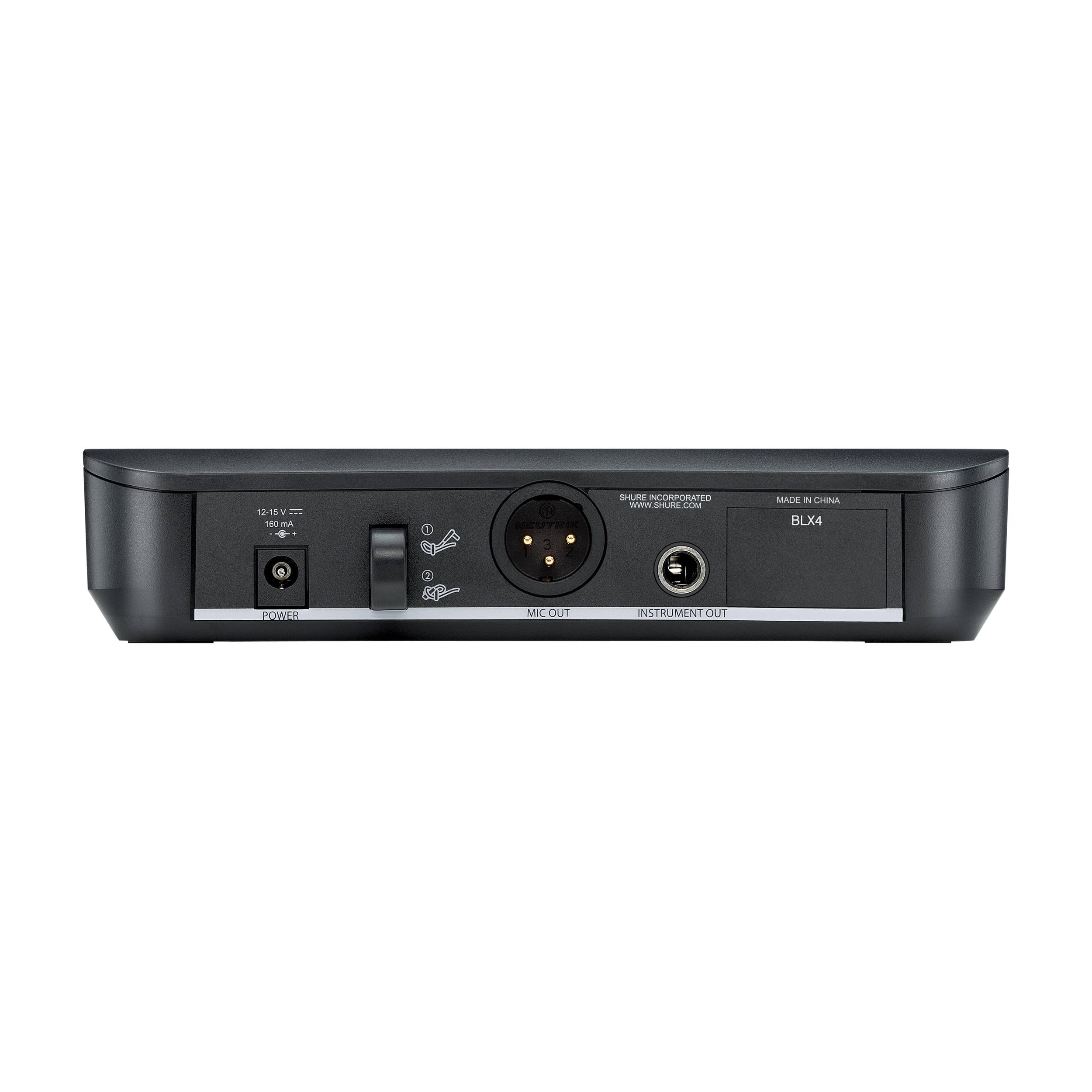

| Audio I/O |
1x XLR 3-Pin Balanced Output
1x 1/4" TS Unbalanced Output |
| Network I/O |
No |
| USB/Lightning Connectivity |
No |
| Frequency Response |
50 Hz to 15 kHz (Dependent on Mic) |
| Display |
Alphanumeric LED |
| Power Requirements |
AC/DC Power Adapter |

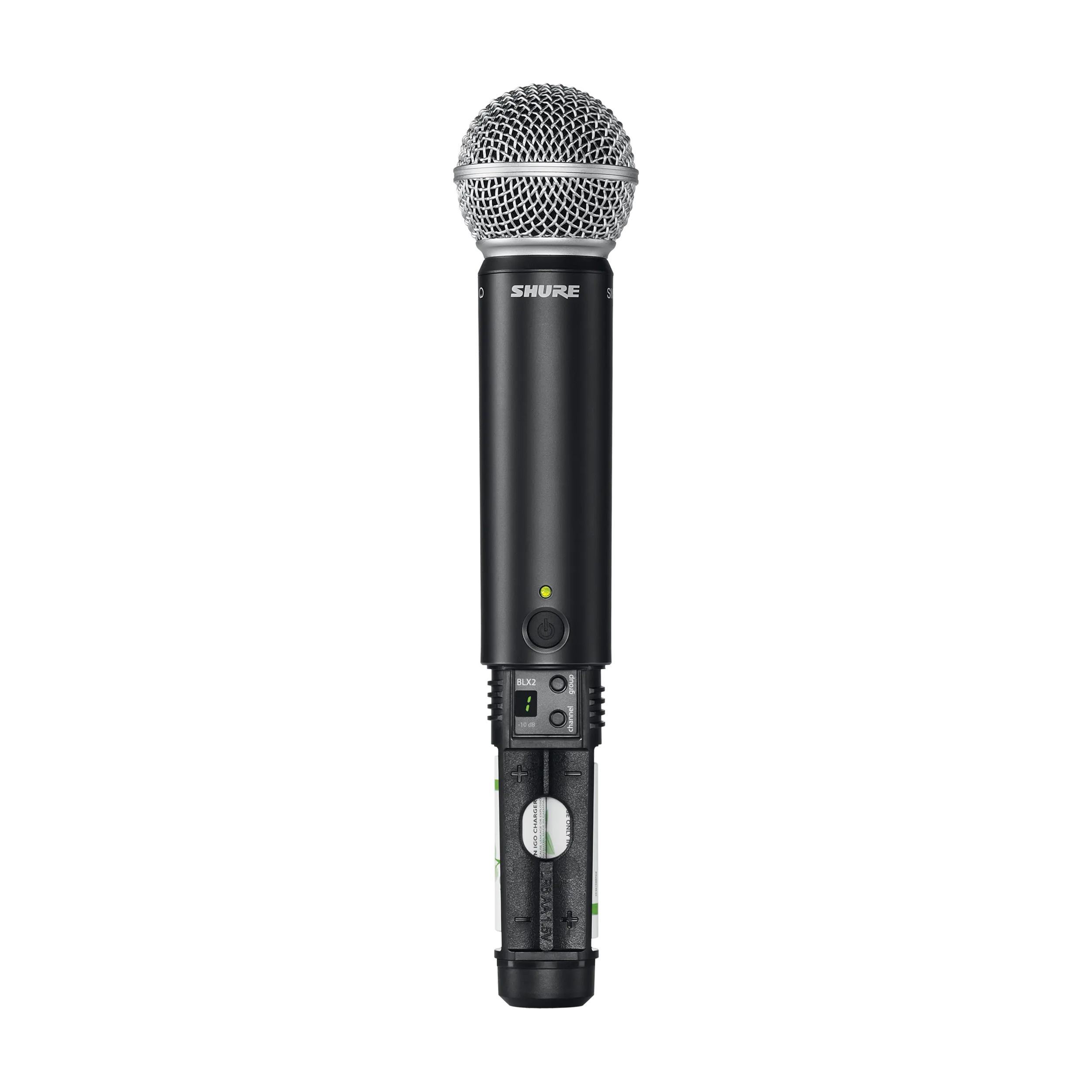

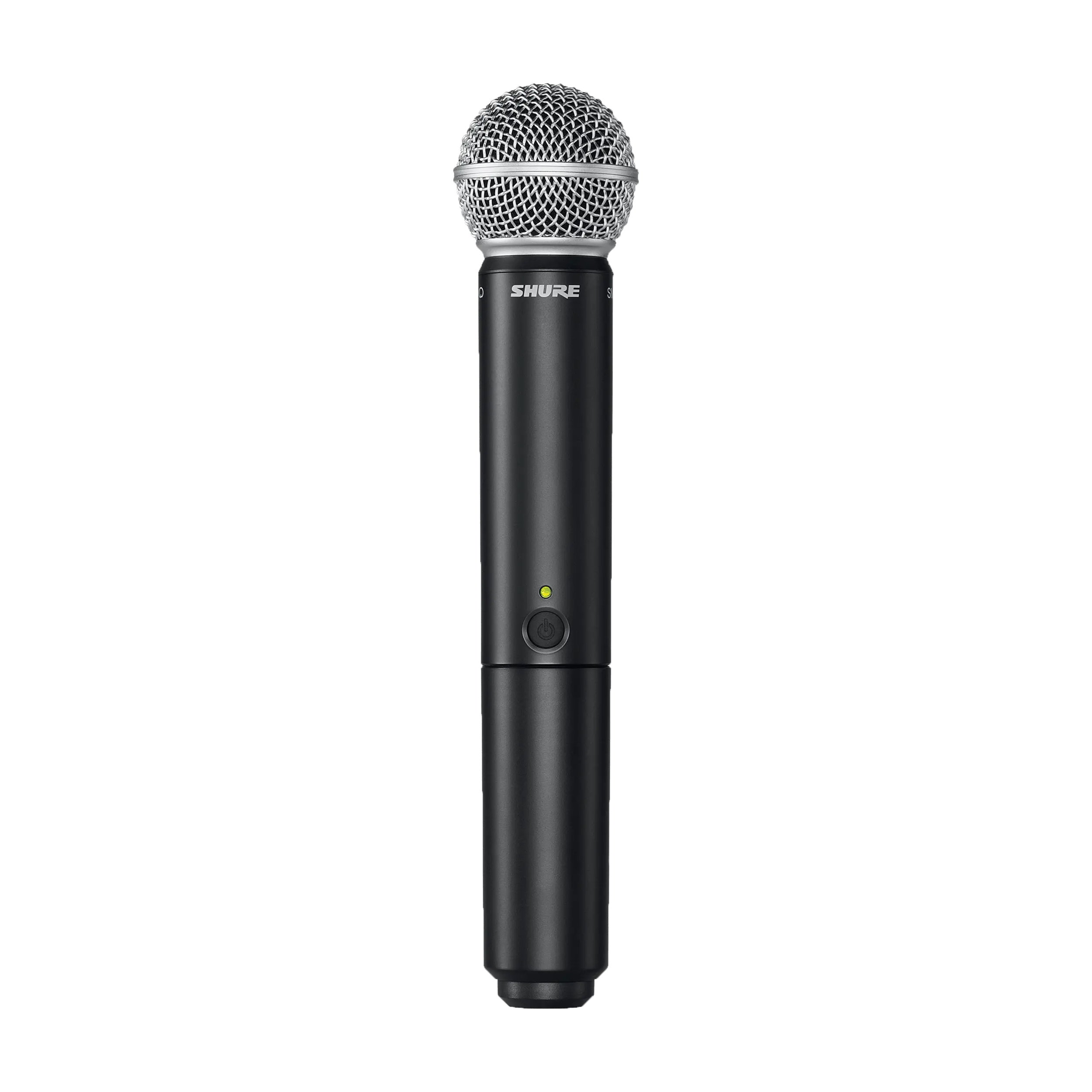

Transmitters
| Included Transmitters |
1x Handheld |
| RF Output Power |
10 mW |
| Antenna |
Internal |
| Input Level |
Microphone |
| Audio I/O |
No |
| USB I/O |
No |
| Muting |
Off/On Switch |
| Gain Range |
-20 to -10 dB |
| Auto-Level/Gain |
No |
| Sync Method |
Manual |
| Display |
Alphanumeric LED (In Battery Compartment) |
Microphones
| Microphone Type |
1x Handheld with Interchangeable Capsule (SM58 Included) |
| Polar Pattern |
Cardioid |
| Frequency Response |
50 Hz to 15 kHz |
| Maximum SPL |
146 dB |
| Sensitivity |
-54.5 dBV/Pa (at 1 kHz) |
| Color |
Silver / Black |
Power
| Transmitter Battery Type |
2x AA (Included) |
| Transmitter Battery Life |
14 Hours (Alkaline) |
| Included Charging Case |
No |
| AC/DC Power Adapter |
12 to 15 VDC at 160 mA, Center-Positive (Included) |
| Input Power |
100 to 240 VAC, 60 / 50 Hz |
Physical
| Environmental Resistance |
No |
| Housing |
ABS |
| Dimensions |
Receiver: 7.4 x 4.1 x 1.6" / 188 x 103 x 40 mm
Transmitter: 8.8 x 2.1" / 224 x 53 mm |
| Weight |
Receiver: 8.5 oz / 241 g
Transmitter: 7.7 oz / 218 g (without Batteries) |
In the box
- 1 WA371 Swivel Adapter
- 1 PS24 Power Supply
- 1 31B1856 Thread Adapter
