Shure BLX24R/B58 Rackmount Wireless Handheld Microphone System with Beta 58A Capsule (H10: 542 to 572 MHz)
BLX24R/B58
Overview
The Shure BLX24R/B58 Wireless Rack-mount Vocal System combines professional-quality sound with simple setup and up to 14 hours battery life for legendary audio performance right out of the box. The system includes BLX4R half-rack single-channel receiver, legendary BETA58A handheld transmitter, microphone clip, power supply, 2 AA batteries, rackmount kit, 2 1/4 wave antennas, and user guide.
Specs
System
| Wireless Technology | Analog UHF |
| Diversity | Yes |
| RF Frequency Band | H10: 542 to 572 MHz |
| Number of RF Channel Frequencies | 123 |
| Max Operating Range | 300' / 91.4 m (Line of Sight) |
| Max Transmitters per Band | 12 |
| Dynamic Range | 100 dBA |
| Encryption | No |
| Built-In Recorder | No |
| Timecode Support | No |
| Mobile App Compatible | No |
Receiver

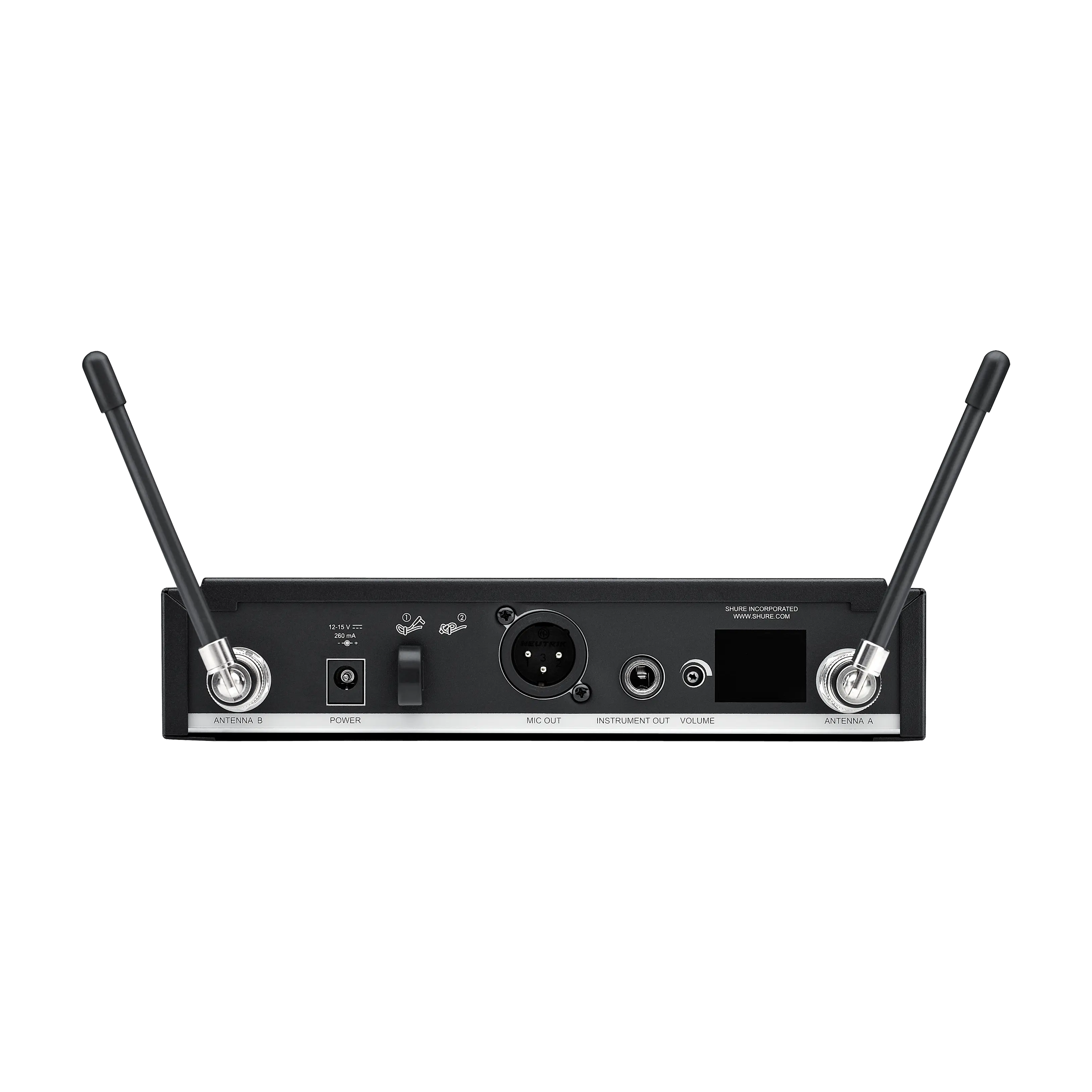

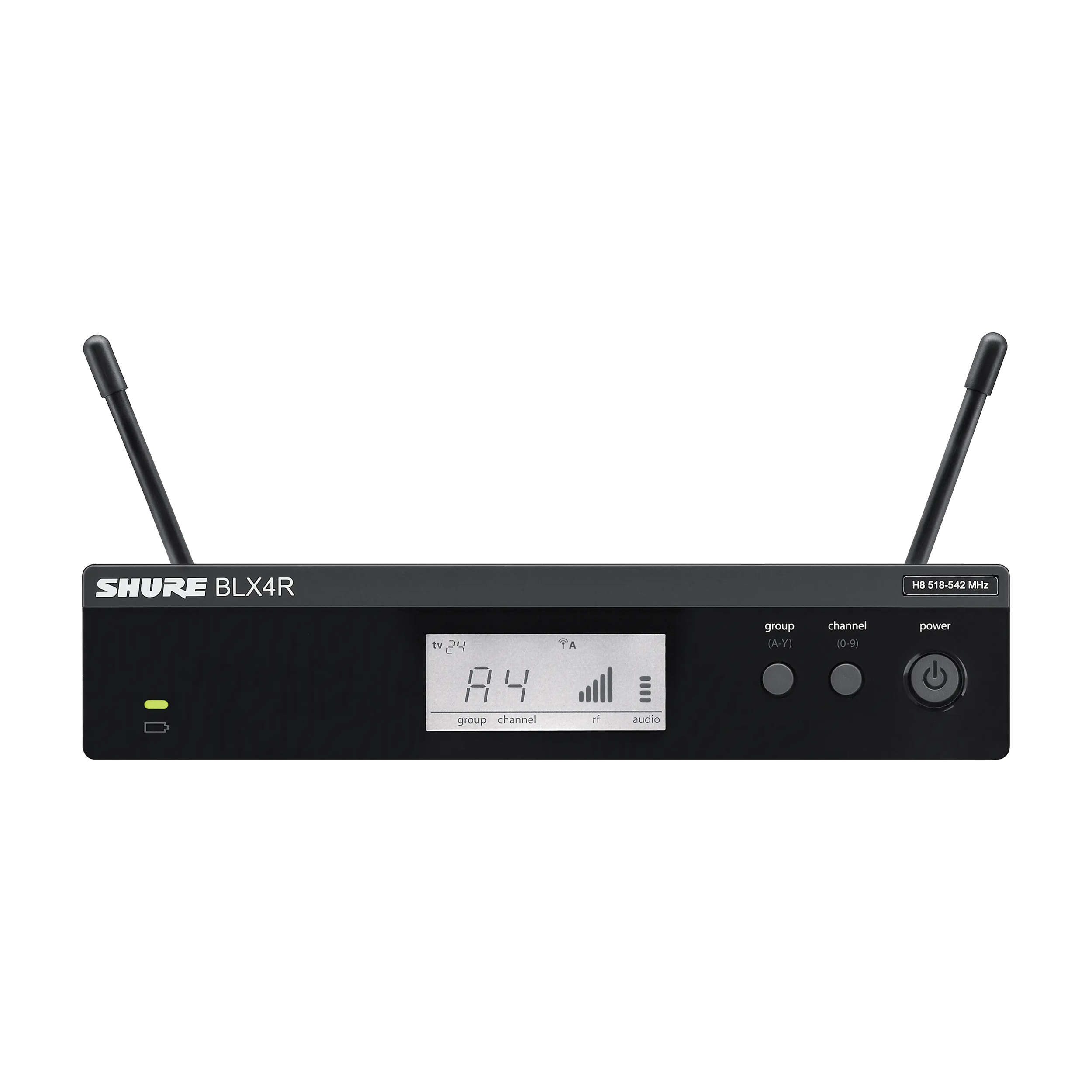

| Receiver Type | 1x Tabletop/Rack-Mountable |
| Mounting Options | Rackmount (with Included Hardware, 1 U Half-Rack) |
| Antenna | 2x Removable 1/4 Wave External (Rear-Mount) |
| Number of Audio Channels | 1 |
| Audio I/O | 1x XLR 3-Pin Balanced Output 1x 1/4" TS Unbalanced Output |
| Network I/O | No |
| USB/Lightning Connectivity | No |
| Frequency Response | 50 Hz to 15 kHz (Dependent on Mic) |
| Display | Backlit LCD |
| Power Requirements | AC/DC Power Adapter |
Transmitters
| Included Transmitters | 1x Handheld |
| RF Output Power | 10 mW |
| Antenna | Internal |
| Input Level | Microphone |
| Audio I/O | No |
| USB I/O | No |
| Muting | Off/On Switch |
| Gain Range | -20 to -10 dB |
| Auto-Level/Gain | No |
| Sync Method | Manual |
| Display | Alphanumeric LED (In Battery Compartment) |
Microphones

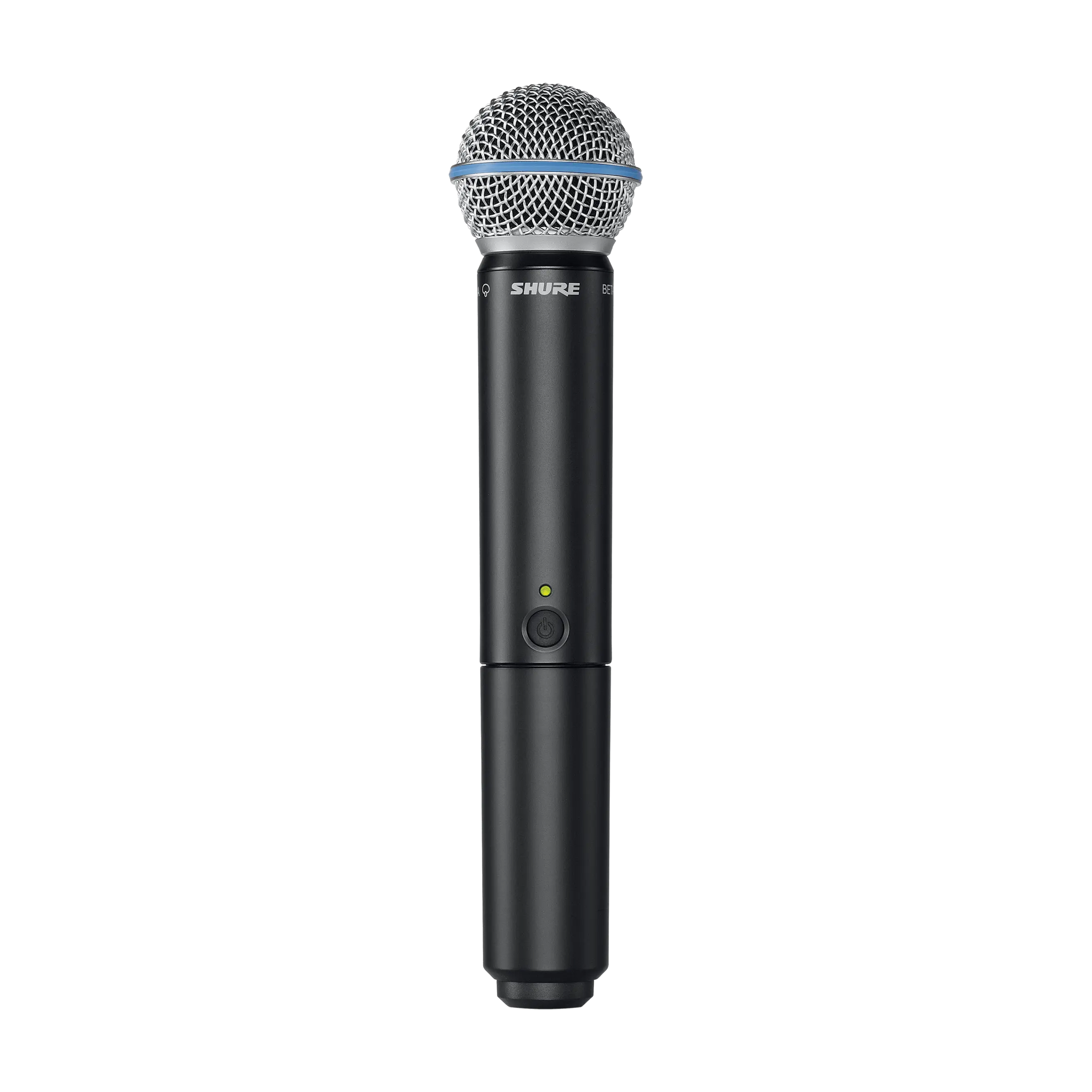

| Microphone Type | 1x Handheld with Interchangeable Capsule (Beta 58A Included) |
| Polar Pattern | Supercardioid |
| Frequency Response | 50 Hz to 16 kHz |
| Maximum SPL | 147 dB |
| Sensitivity | -51 dBV/Pa |
| Color | Silver / Black |
Power
| Transmitter Battery Type | 2x AA (Included) |
| Transmitter Battery Life | 14 Hours (Alkaline) |
| Included Charging Case | No |
| AC/DC Power Adapter | 12 to 15 VDC at 260 mA, Center-Positive (Included) |
| Input Power | 15 VDC 110 to 240 VAC, 60 / 50 Hz |
Physical
| Environmental Resistance | No |
| Housing | ABS (Transmitter) Steel (Receiver) |
| Dimensions |
Receiver: 7.8 x 6.4 x 2" / 198 x 163 x 50 mm Transmitter: 8.8 x 2.1" / 224 x 53 mm |
| Weight |
Receiver: 35.2 oz / 998 g Transmitter: 7.7 oz / 218 g (without Batteries) |

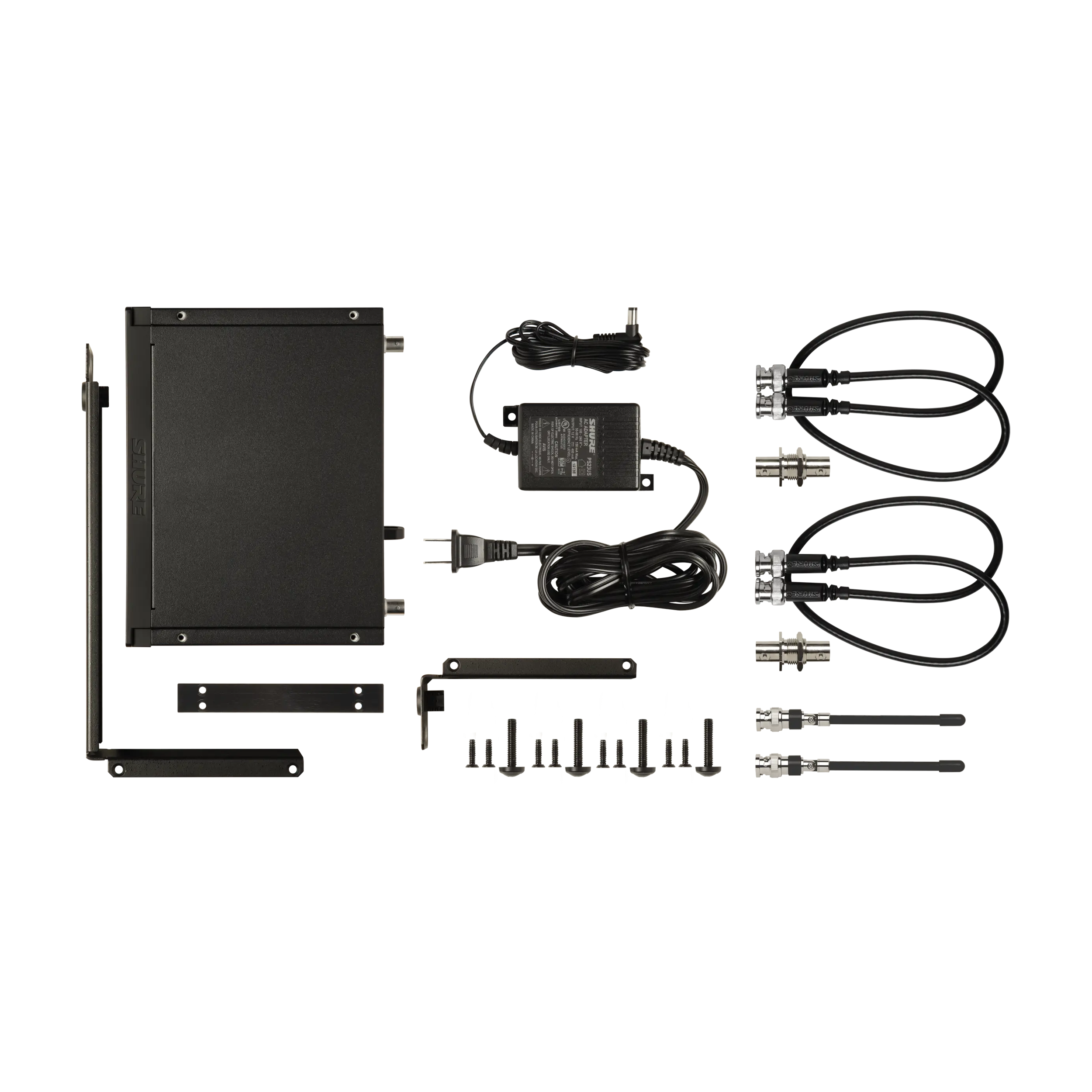

In the box
- 1 WA371 Swivel Adapter
- 1 PS24 Power Supply
- 1 31B1856 Thread Adapter
