Solid State Logic Revival 4000 Analog Channel Strip - 729747X3
A Legendary Channel Strip in a 19" Rack
Revival 4000 is an all-analogue channel strip from Solid State Logic, delivering the unmistakable sound of the early 1980s SL 4000 Series consoles. Used by iconic artists like Peter Gabriel, Phil Collins, Kate Bush, and Metallica, this unit draws on revered circuitry from both the B and E Series consoles to offer SSL’s signature tone and sonic flexibility.
Key Features
- Classic SSL 4000 E Jensen transformer-balanced mic preamp
- Musical one-knob 4000 B De-Esser section
-
Ultimate 4000 E Series Dynamics section:
- Discrete Class A VCA compressor
- Soft/Hard Knee modes
- Fast Attack toggle
- Logarithmic or Linear Release modes
- Classic Gate/Expander section with Fast Attack
- External sidechain (key) input
- Sidechain link for stereo pairing
-
Classic 4-band SSL EQ:
- Fully parametric mid bands
- Switchable 'Brown Knob' 02 and 'Black Knob' 242 EQ circuits
-
High and Low Pass Filters:
- Brown 02: 12 dB/oct HPF & LPF
- Black 242: 18 dB/oct HPF & 12 dB/oct LPF
- Balanced insert point for external gear
-
‘To sidechain’ routing:
- Filters to dynamics sidechain
- EQ to dynamics sidechain
- Flexible process-order routing
- Line output trim
- Switchable input/output metering
The 4000 Series Legacy
Launched in 1976, the SSL 4000 Series revolutionized music production. The rare SL 4000 B console helped create hits like “Intruder” by Peter Gabriel and “In the Air Tonight” by Phil Collins. The SL 4000 E, introduced in 1979, became the heartbeat of studios like Abbey Road and Electric Lady, empowering engineers like Hugh Padgham, Chris & Tom Lord-Alge, and Andy Wallace.
Meet Revival 4000

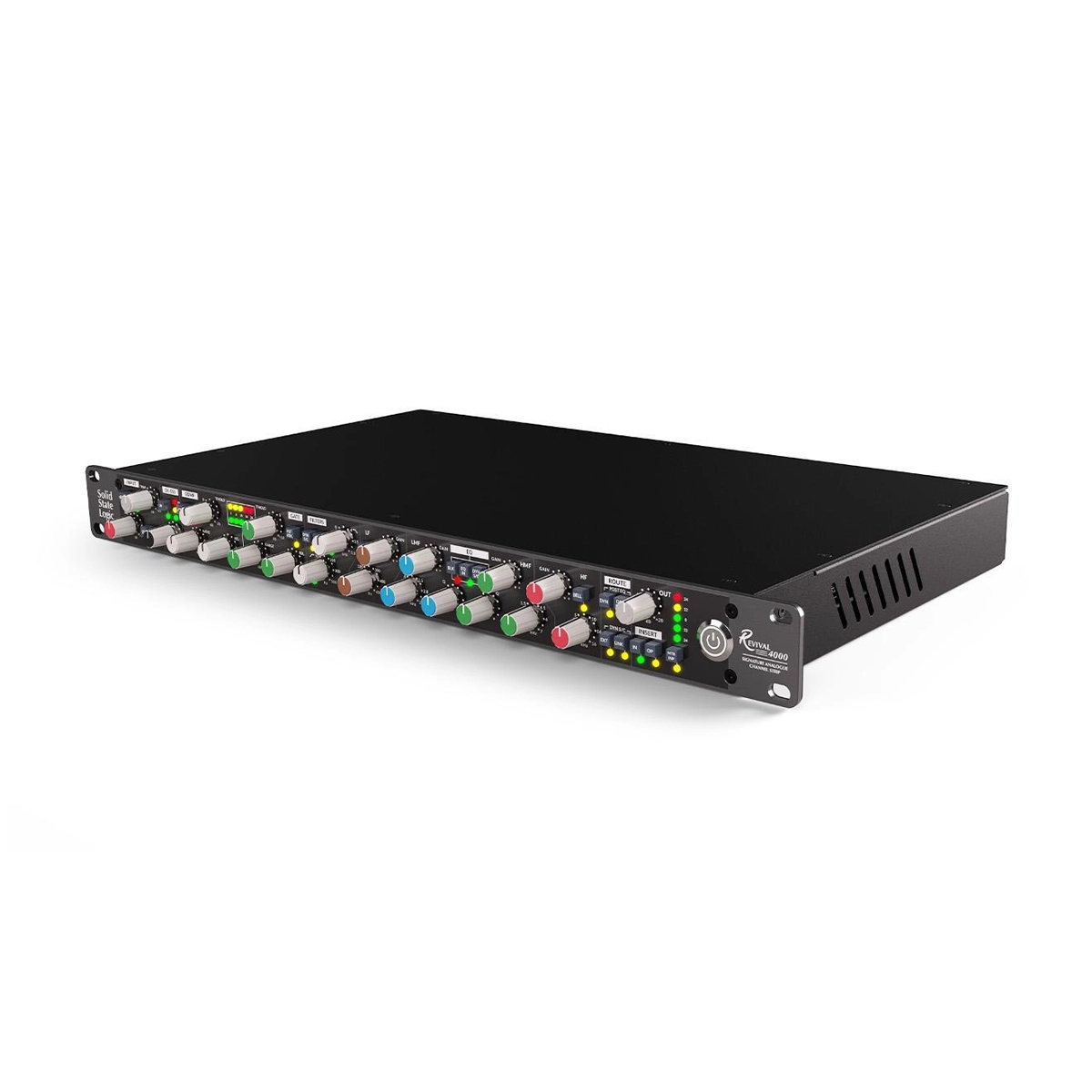

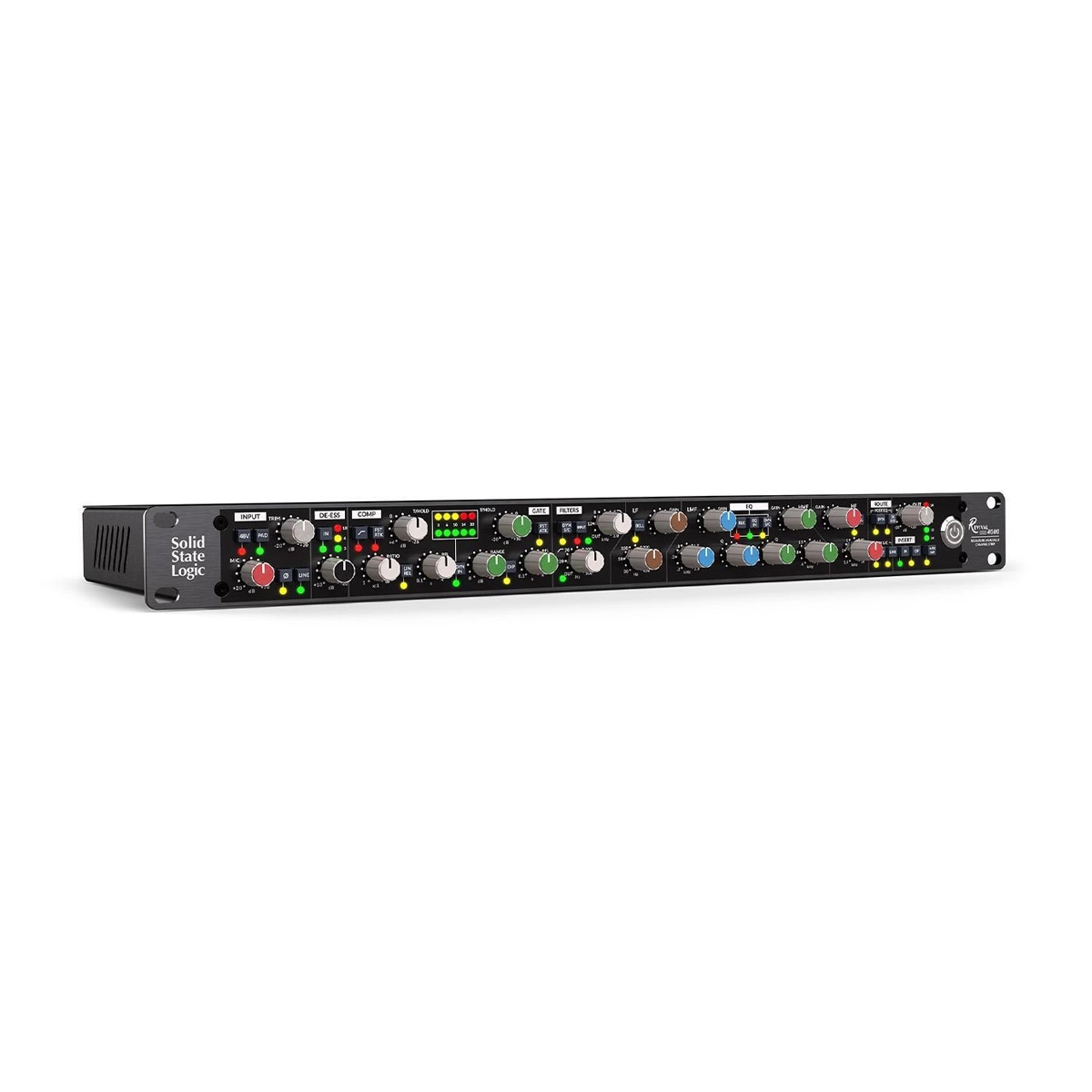

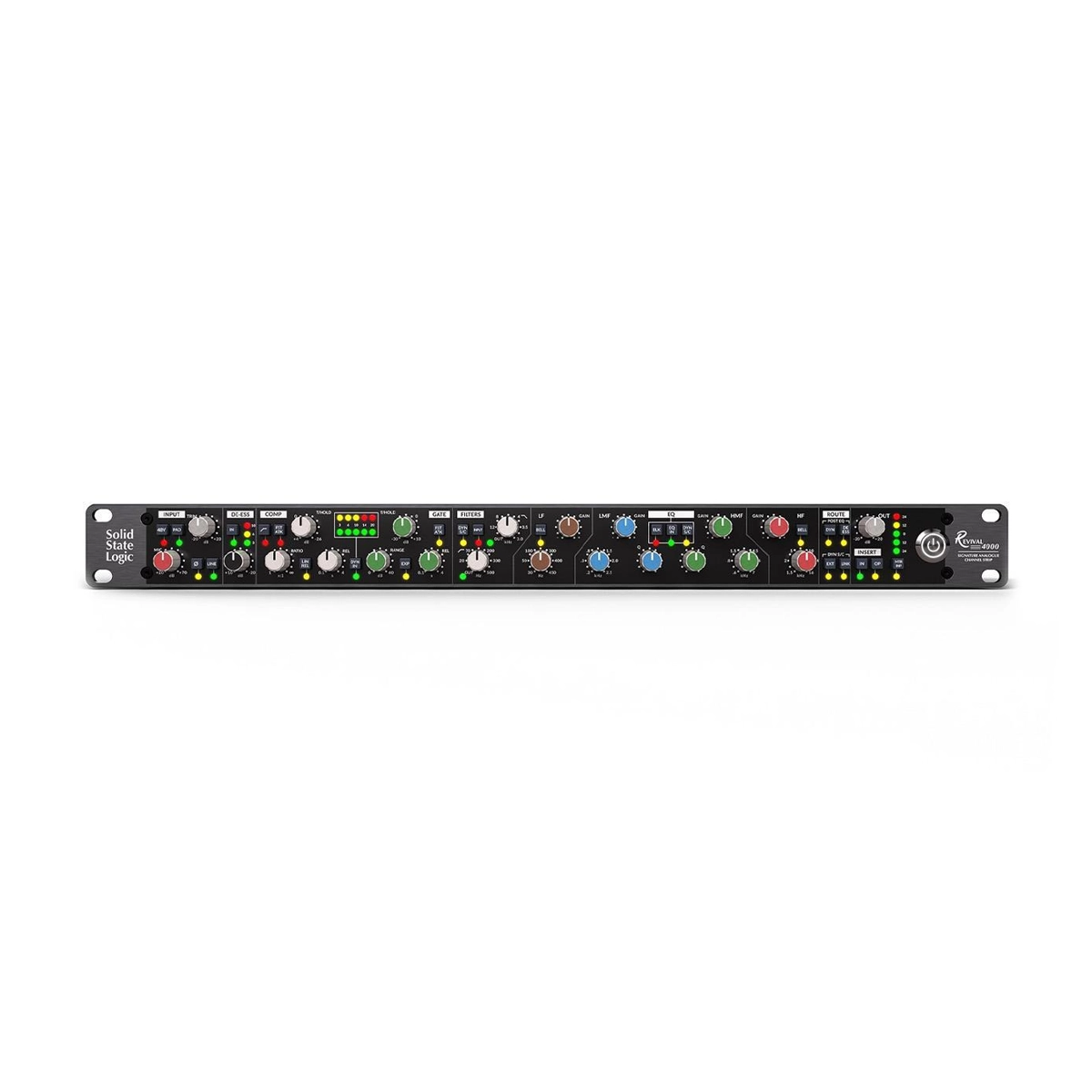

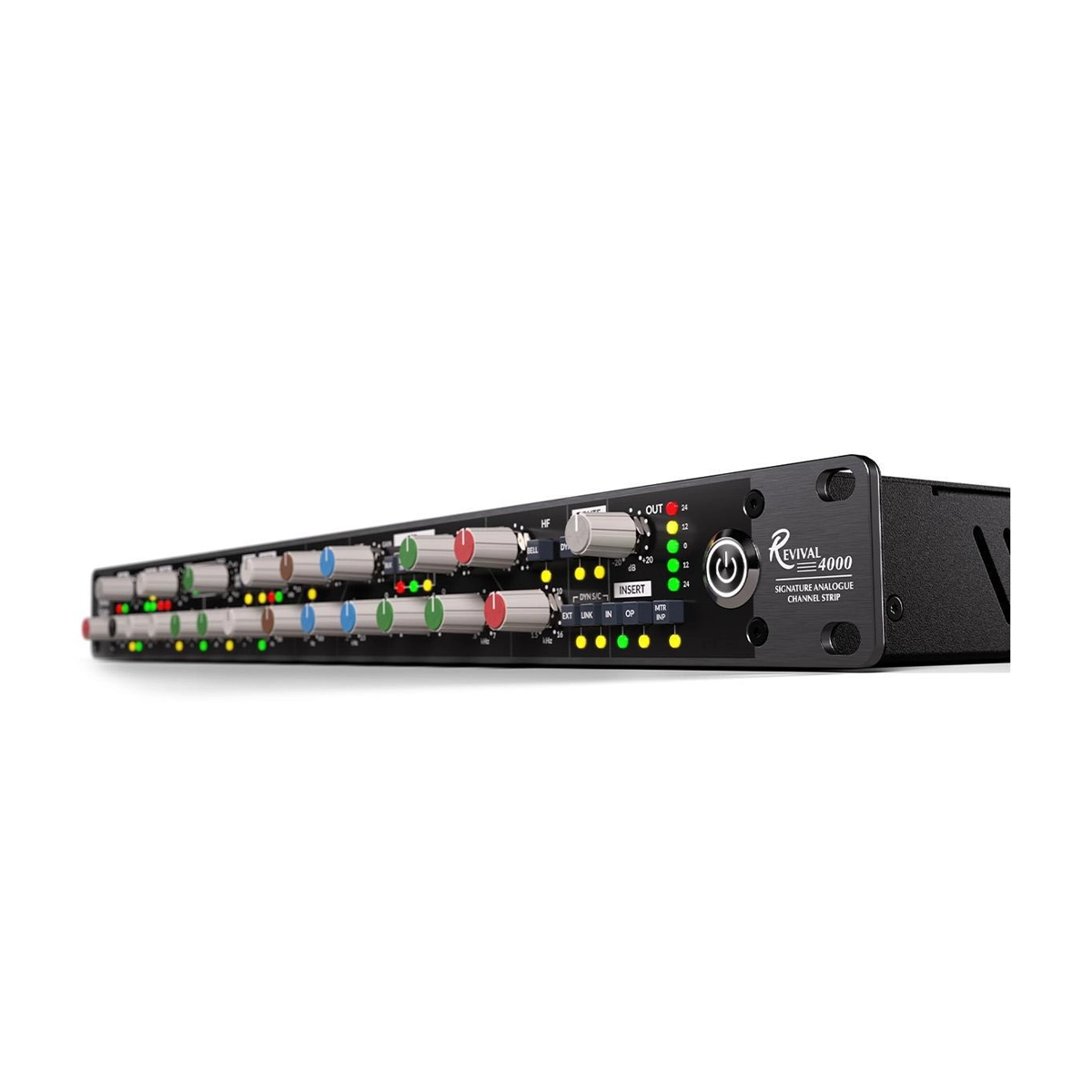

This 1U channel strip includes the E Series JT-115K-E mic preamp, B Series De-Esser, Class A VCA dynamics, and the iconic 4-band parametric EQ. With flexible routing, insert points, and stereo linking, it brings SSL’s analogue heritage into any modern studio.
4000 E Series Mic Preamp
Featuring the original Jensen transformer-balanced circuit, it delivers rich, pristine recordings with SSL’s classic clarity.
4000 B Series De-Esser
Uses a 10:1 ratio and 7 kHz high-pass filtered sidechain to tame sibilance in vocals, drums, and aggressive sources.
4000 E Series Dynamics
True RMS detection and discrete Class A VCA gain reduction. Offers soft/hard knee, fast attack, and flexible release curves for tonal shaping.
Classic 4-Band EQ
Includes 'Brown Knob' 02 and 'Black Knob' 242 circuits. Fully parametric mids, shelving highs/lows, and switchable bell response. The 242 offers ±18 dB range and steeper filters for tighter control.
Flexible Routing

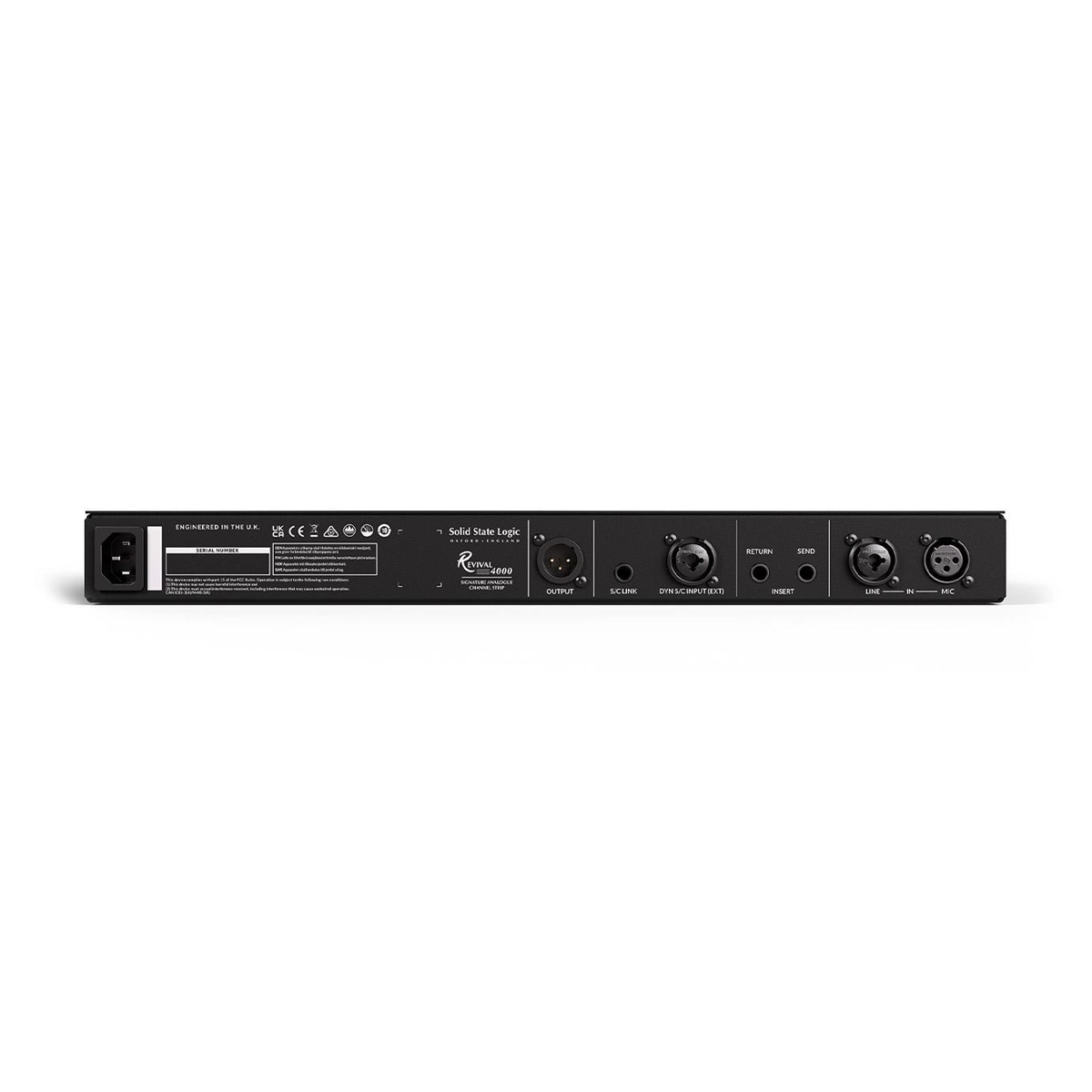

Balanced insert point, external sidechain input, and process-order routing. Ideal for stereo setups and advanced signal chains.
