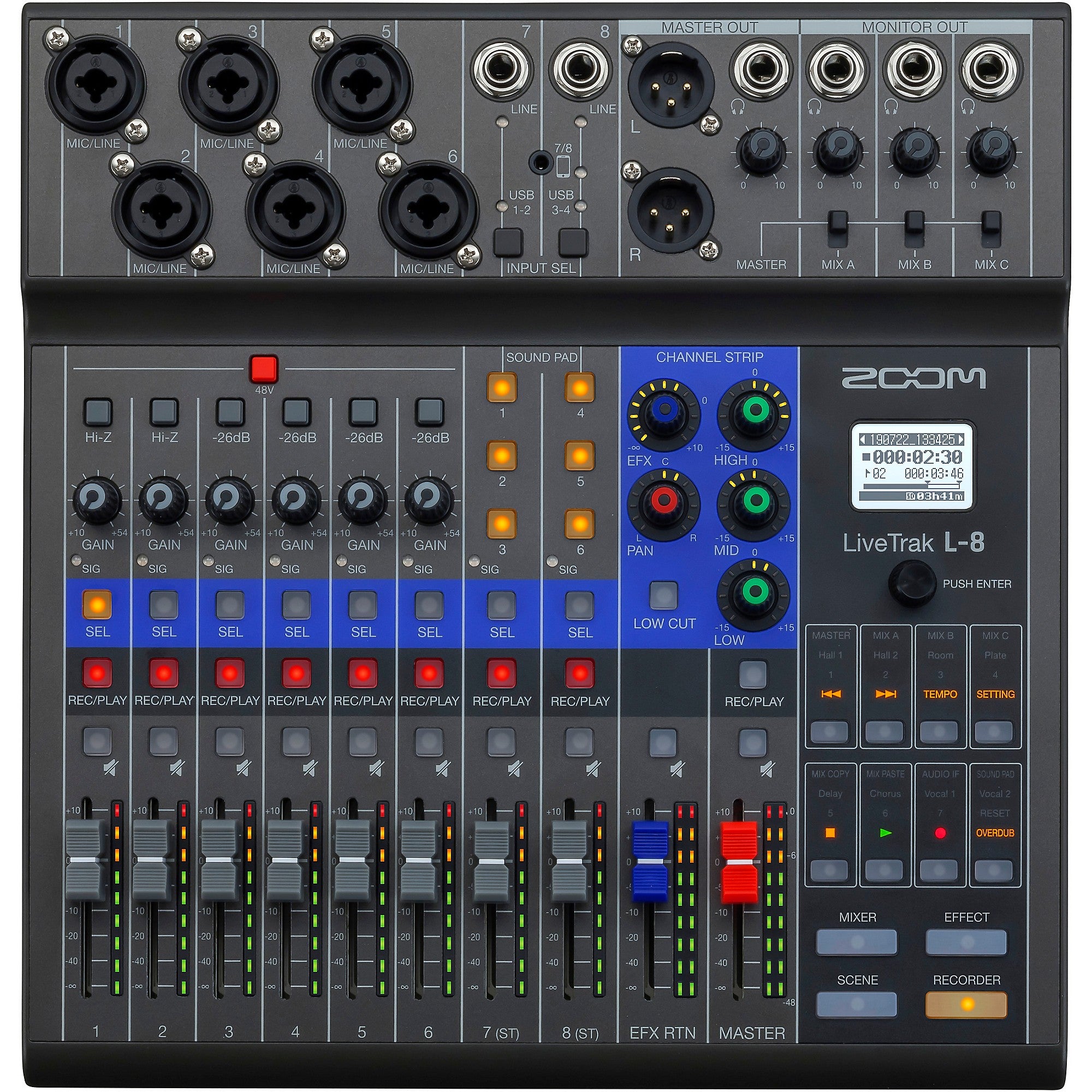

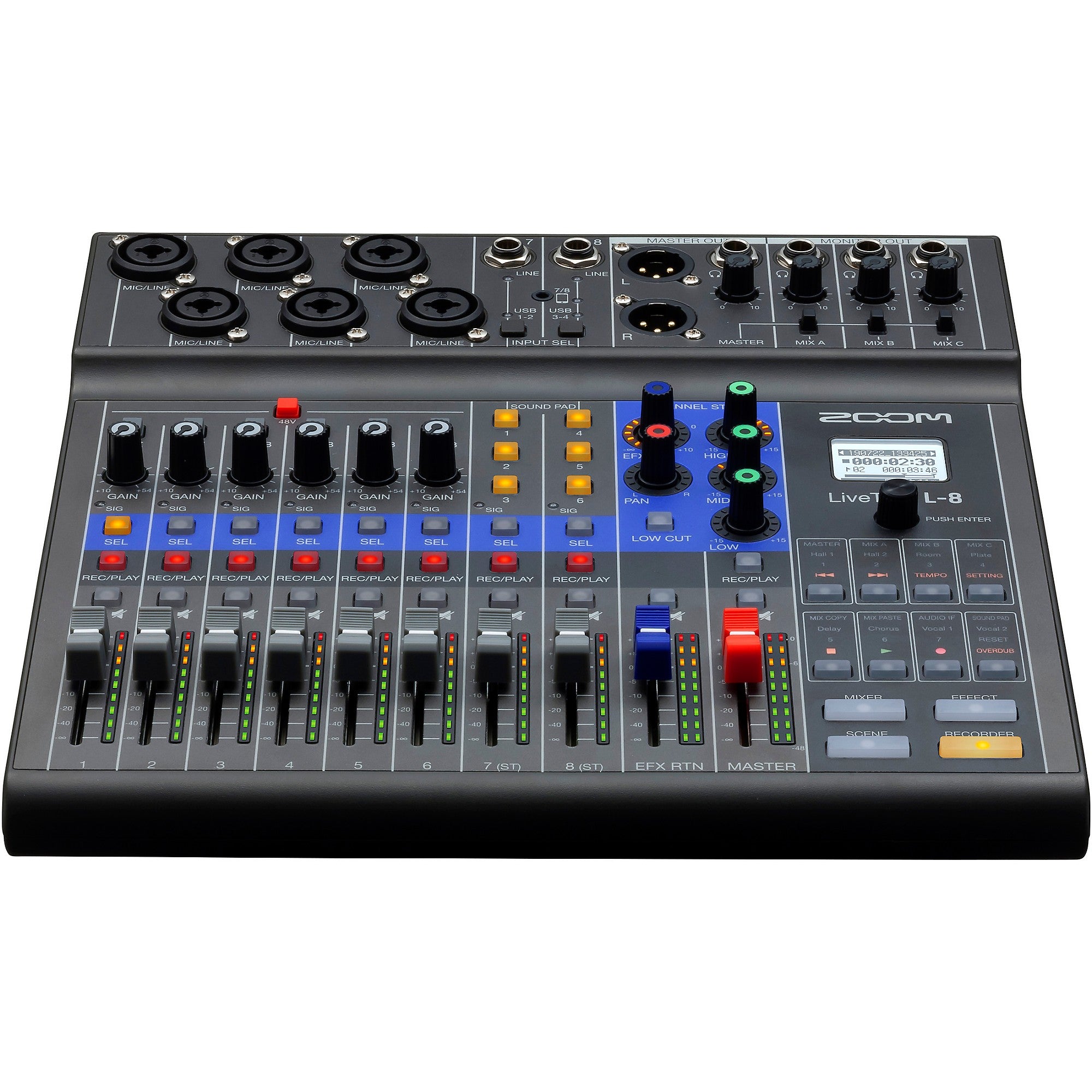

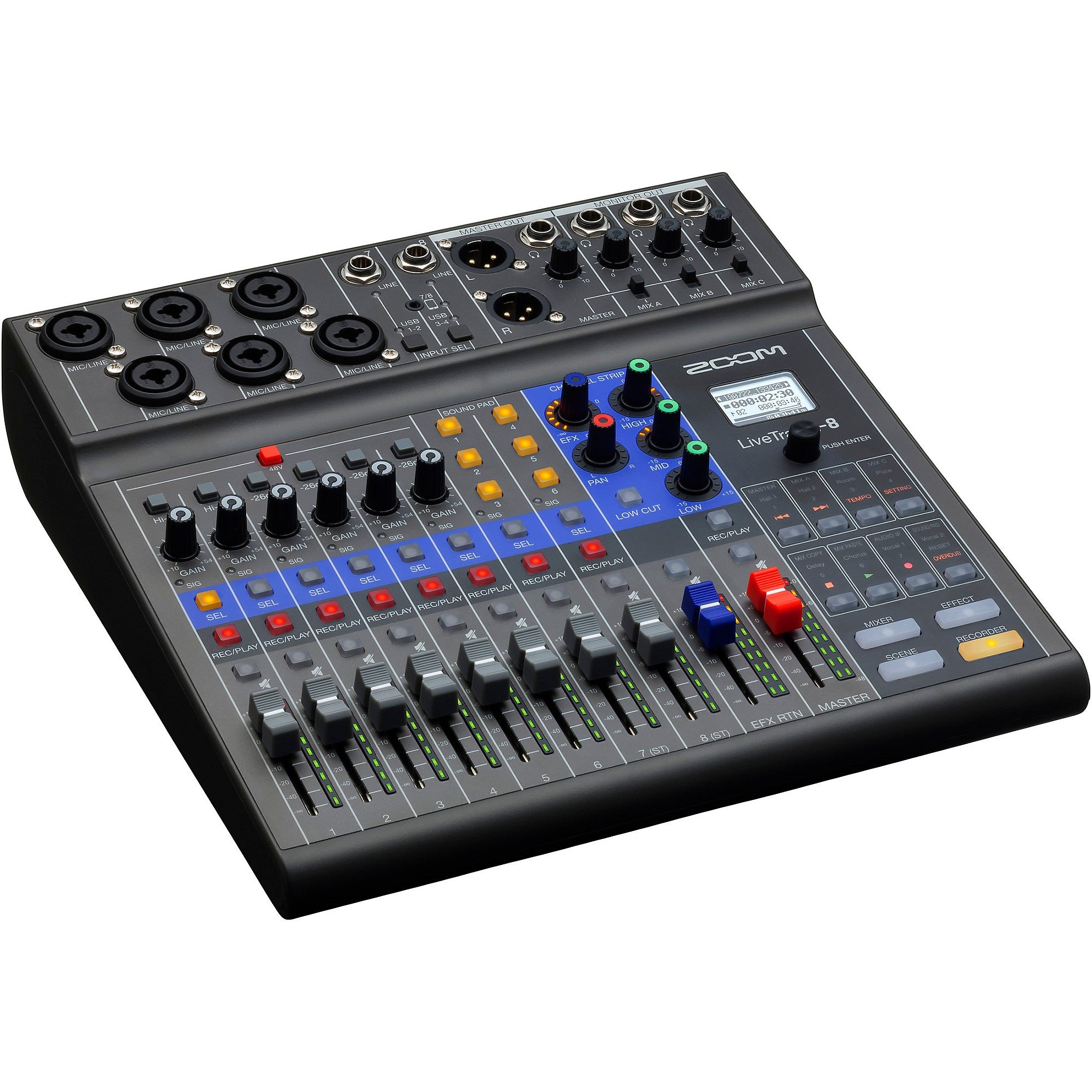

Zoom LiveTrak L-8

Name: Zoom LiveTrak L-8
Brand: ZOOM
SKU: ZL8
Price: 449.99 USD
Availability: OutOfStock

ZOOMSKU: ZL8

Share this product

LiveTrak L-8 Specifications:

Inputs

MIC/LINE : 6
LINE : 2

Output

MASTER OUT : 1
MASTER OUT (PHONES) : 1
MONITOR OUT (PHONES) : 3

INPUTS

MIC/LINE:

Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain: +10 – +54 dB/–3 – +41 dB (when Hi-Z ON)

Input impedance

XLR: 3 kΩ
TRS: 3 kΩ/1 MΩ (when Hi-Z ON)

Maximum input level

–2 dBu when –26dB switch OFF (at 0 dBFS)
+24 dBu when –26dB switch ON (at 0 dBFS)

Phantom power

+48 V

LINE

:
Type: TS phone jack
Input impedance: 10 kΩ
Maximum input level: +3 dBu

Smartphone connection jack

:
Type: TRRS mini jack (4-contact/TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)
Input impedance: 10 kΩ
Maximum input level: +3 dBu

OUTPUTMASTER OUT:

Type: XLR jacks (balanced)
Maximum output level: +14.5 dBu
Output impedance: 100 Ω

MASTER OUT (PHONES):

Type : Standard stereo phone jack
Maximum output level: 10 mW + 10 mW (60Ω load)
Output impedance: 10 Ω

MONITOR OUT (PHONES):

Type: Standard stereo phone jack
Maximum output level: 10 mW + 10 mW (60Ω load)
Output impedance: 10 Ω

BUSES

MASTER: 1
MONITOR: 3
SEND EFX: 1

CHANNEL STRIP

LOW CUT: 75 Hz, 12 dB/OCT

EQ:

HIGH: 10 kHz, ±15 dB, shelving
MID: 2.5 kHz, ±15 dB, peaking
LOW: 100 Hz, ±15 dB, shelving
Level meter: 9 segments
Send effects: 8 types

RECORDER

Maximum simultaneous recording tracks: 12 at 44.1/48/96 kHz
Maximum simultaneous playback tracks: 10
Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
Recording media: 4GB–32GB SDHC-compliant cards (Class 10 or higher), 64GB–512GB SDXC-compliant cards (Class 10 or higher)

AUDIO INTERFACE

44.1/48 kHz:
Recording: 12 channels
Playback: 4 channels
Bit depth: 24-bit
Interface: USB 2.0

SYSTEM REQUIREMENTS FOR AUDIO INTERFACE MODE

Windows:

OS： Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit)
CPU: Intel® Core i3 or faster*
USB: USB 3.0/USB 2.0**
* Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.

Mac:

OS：macOS 10.12 / 10.13 / 10.14 / 10.15
CPU: Intel® Core i3 or faster
USB: USB 3.0/USB 2.0*
* Operation is not guaranteed when used with USB hubs or expansion cards.
iPhone/iPad:
OS： iOS 10 / 11 / 12 / 13
* Apple Lightning-to-USB Camera Adapter required.

CARD READER

Class:

Mass storage USB 2.0 High Speed
Sampling frequency: 44.1/48/96 kHz

Frequency response:

20 Hz – 20 kHz: –1 dB at 44.1 kHz
20 Hz – 40 kHz: –3 dB at 96 kHz (when GAIN at 3 o'clock)
Equivalent input noise: –121 dBu or less (IHF-A) at +54dB/150Ω input
Display: LCD with backlight (96×64 resolution)

Power:

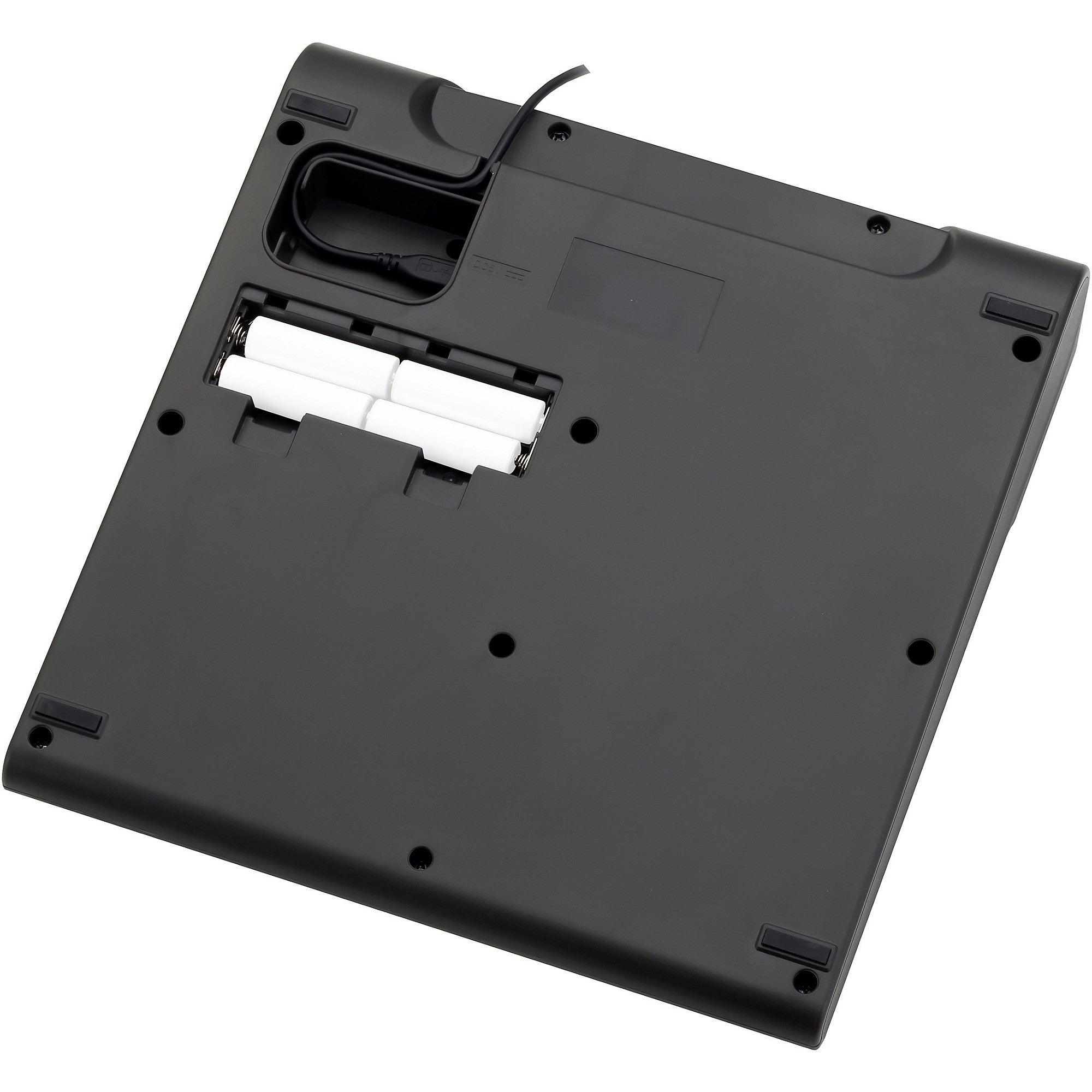

4 AA batteries (alkaline, lithium, or rechargeable NiMH)
AC adapter (ZOOM AD-17): DC 5V/1A
Supports USB bus power
Estimated continuous recording time using batteries:
Recording 44.1kHz/16-bit/4ch audio to SD card (when 48V is OFF, LCD BACKLIGHT is 15sec, BATTERY SAVING is ON and headphone impedance is 62Ω):
Alkaline batteries: about 2 hours
NiMH batteries (1900 mAh): about 3.5 hours
Lithium batteries: about 6.5 hours
• The above values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.
Power consumption: 5 W
External dimensions: 268 mm (W) × 282 mm (D) × 74 mm (H)
Weight (main unit only): 1.56 kg
