Specifications

• Modulation Method: π /4 -DQPSK
• Frequency Range: 480-690MHz, 2X100/4X50 CH’s
• Sampling Ratio: 48KHz
• Transmission Rate: 204.8Kbps
• Dynamic Range: >90dB
• Total Harmonice Distortion: < 0.1 %
• Delay Time of Audio Transmission: <3ms S/N Ratio: >96 dB
• Frequency Response: 30 ~ 20 Khz
• RX Sensitivity: < -94dBm
• Unique ID Address: Yes

Available Frequencies

• 480-530 MHz
• 640-690 MHz

Includes:

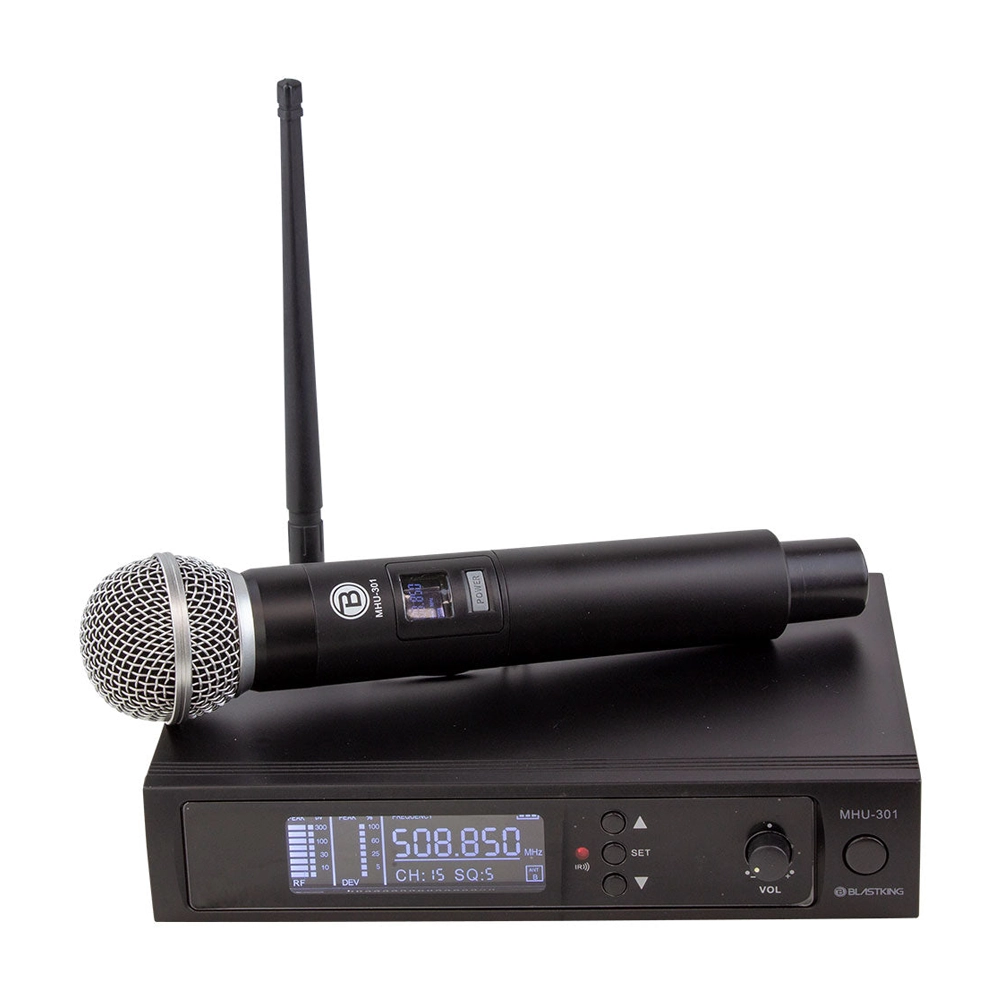

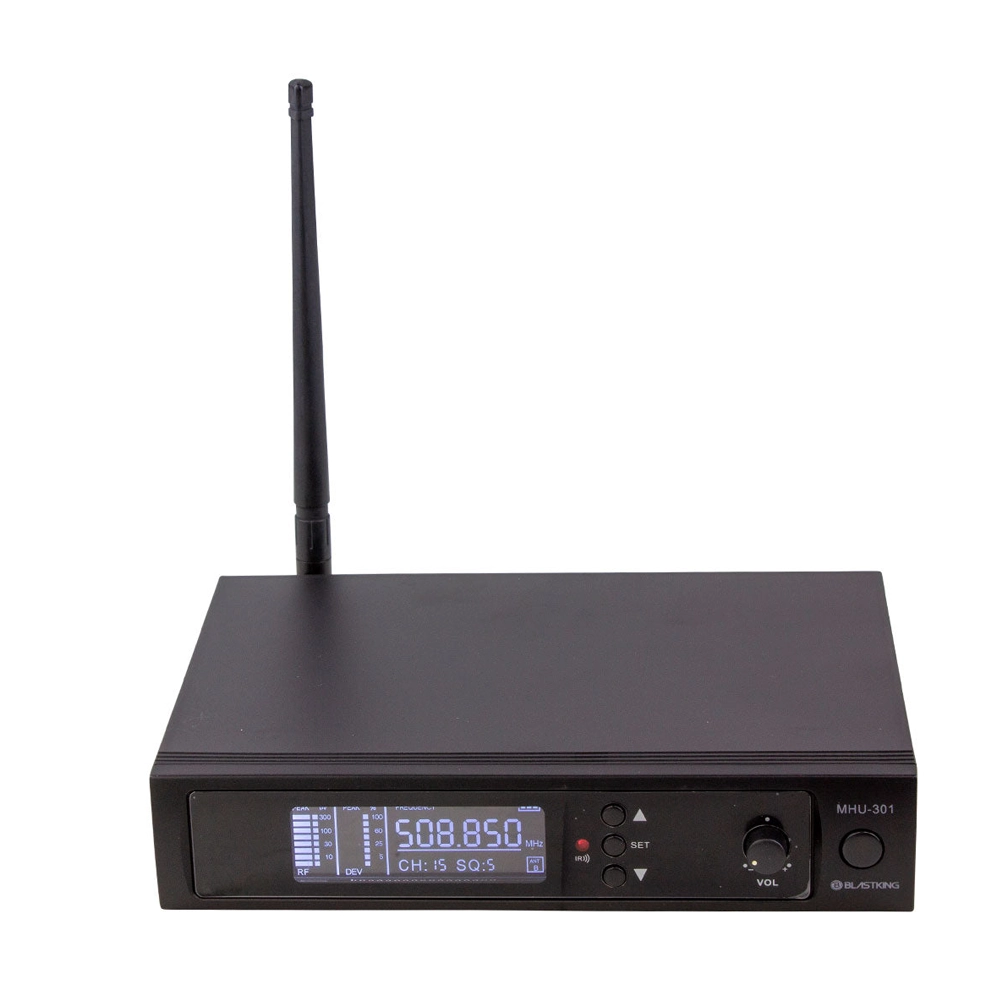

• Wireless Receiver
• (1) Handheld Microphone
• 1/4″ to 1/4″ Cable
• Colored Identification Ring
• Batteries
• Power Adapter
• User Manual
• Plastic Carrying Case

Barcode: 686811893637
