Boss Katana 210 Bass 160W Combo Amp

Crafted with the breakthrough design philosophy behind the acclaimed Katana guitar amp series, the Katana-210 Bass delivers premium sound and advanced features perfectly tuned for the needs of serious bassists. Three unique amp characters and onboard BOSS effects provide a wide range of tones, delivered with 300 watts of assertive class AB stage power and a high-performance speaker system based around two 10-inch woofers. And with comprehensive EQ, flexible connectivity, and more, the Katana-210 Bass is ready to take on any playing situation, from stage to studio to everyday practice at home.

Features

• Versatile combo bass amp with stage-ready sound and advanced features
• 160-watt class AB power amp delivers big, punchy tone
• Rock-solid combo cabinet with two custom 10-inch woofers and high-frequency tweeter with on/off switch
• Three selectable amp voicings cover a wide range of styles
• Shape switch with three tone characters: mid scoop, bright, and extended range
• Four independent effect sections: compressor, drive, and FX1/FX2 with a vast range of selectable effects
• Comprehensive four-band EQ with selectable low and high-mid frequency controls
• Studio-inspired Blend section enables you to mix in the dry sound for enhanced fatness and clarity
• Six memories for storing and recalling favorite sound setups
• Power Control realizes cranked-amp volume in any playing situation
• Adjust preamp and effect settings, organize sounds, and more with the dedicated BOSS Tone Studio editor for macOS and Windows
• USB and phones/recording outputs with mic'd cabinet emulation
• Balanced XLR direct output with selectable direct, pre, or post signal
• External speaker jack
• Optional GA-FC footswitch for deep performance control
• Edit sounds from a smartphone with the optional BOSS Bluetooth® Audio MIDI Dual Adaptor

Specs

Output Power

• 160 W Continuous (RMS)
• 300 W Peak

Nominal Input Level

• INPUT: -10 dBu (1 M ohm)
• POWER AMP IN: -10 dBu (20 k ohms)
• AUX IN: -10 dBu (20 k ohms)
• RETURN IN: -10 dBu (100 k ohm)

Speaker

• WOOFER: 25 cm (10 inches) x 2
• TWEETER: x 1

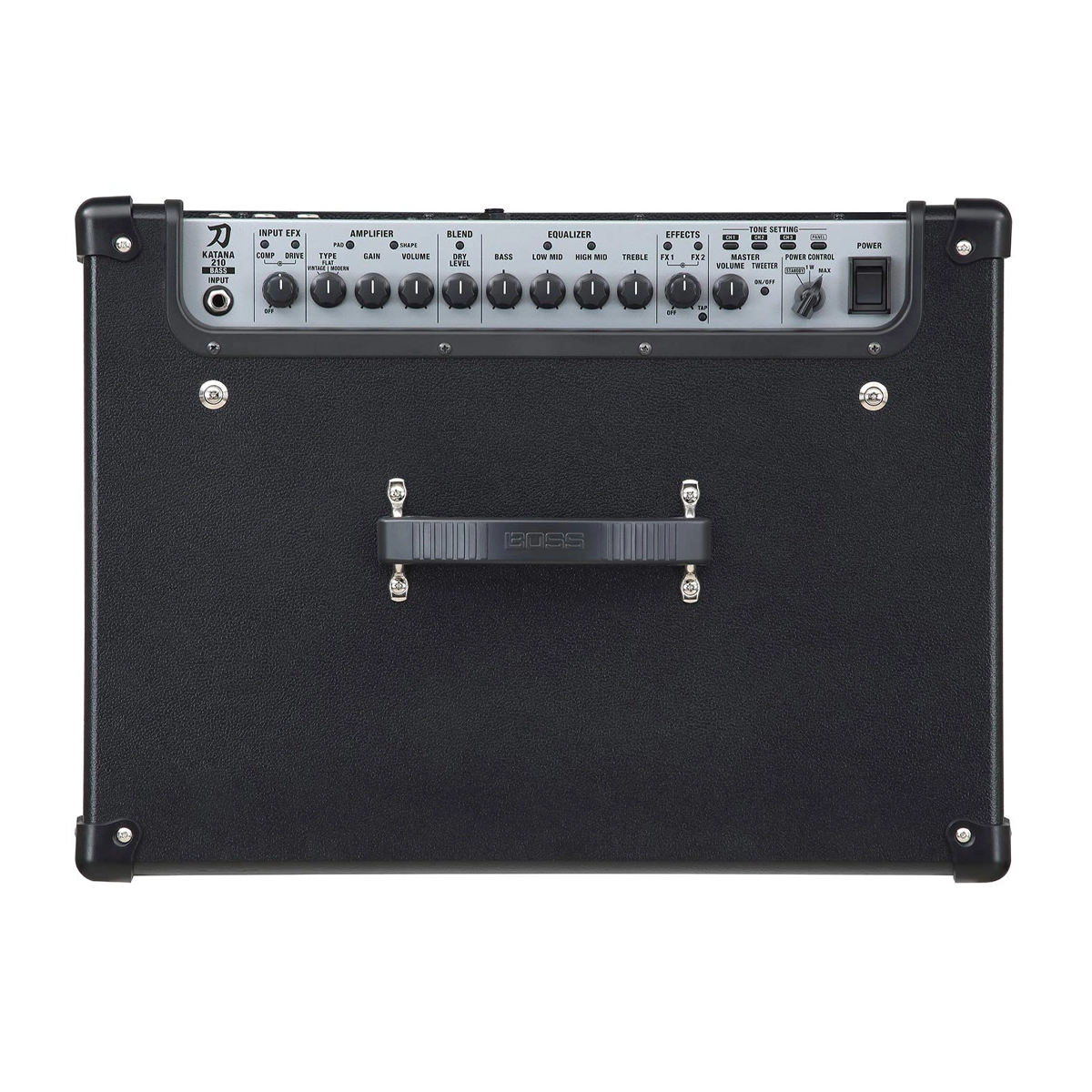

Controls

• POWER - switch
• MASTER VOLUME - knob
• POWER CONTROL - switch (STANDBY, 1 W, MAX)
• TWEETER - button

[INPUT EFX]

• COMP -  button
• DRIVE - button
• COMP - knob
• DRIVE - knob


[AMPLIFIER]

• PAD - button
• SHAPE -  button
• TYPE - knob (VINTAGE, FLAT, MODERN)
• GAIN - knob
• VOLUME - knob

[BLEND]

• BLEND - button
• DRY LEVEL - knob

[EQUALIZER]

• LOW MID button
• HIGH MID button
• BASS knob
• LOW MID knob
• HIGH MID knob
• TREBLE knob

[EFFECTS]

• FX1 button
• FX2 button
• TAP button
• FX1 knob
• FX2 knob

[TONE SETTING]

• CH1 button
• CH2 button
• CH3 button
• PANEL button

[BALANCED OUT]

• GND LIFT switch (OFF, ON)
• SELECT (POST, PRE, DIRECT)

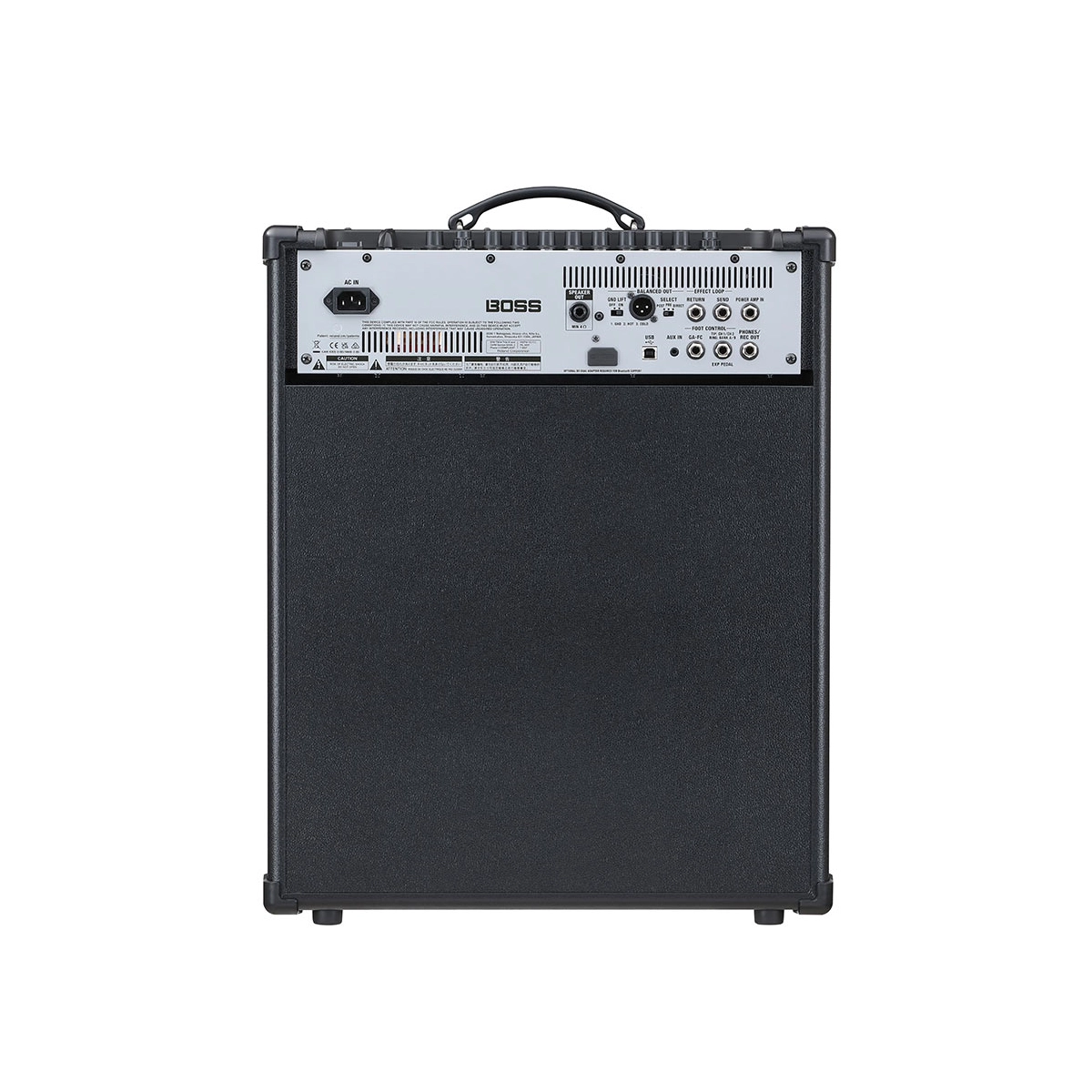

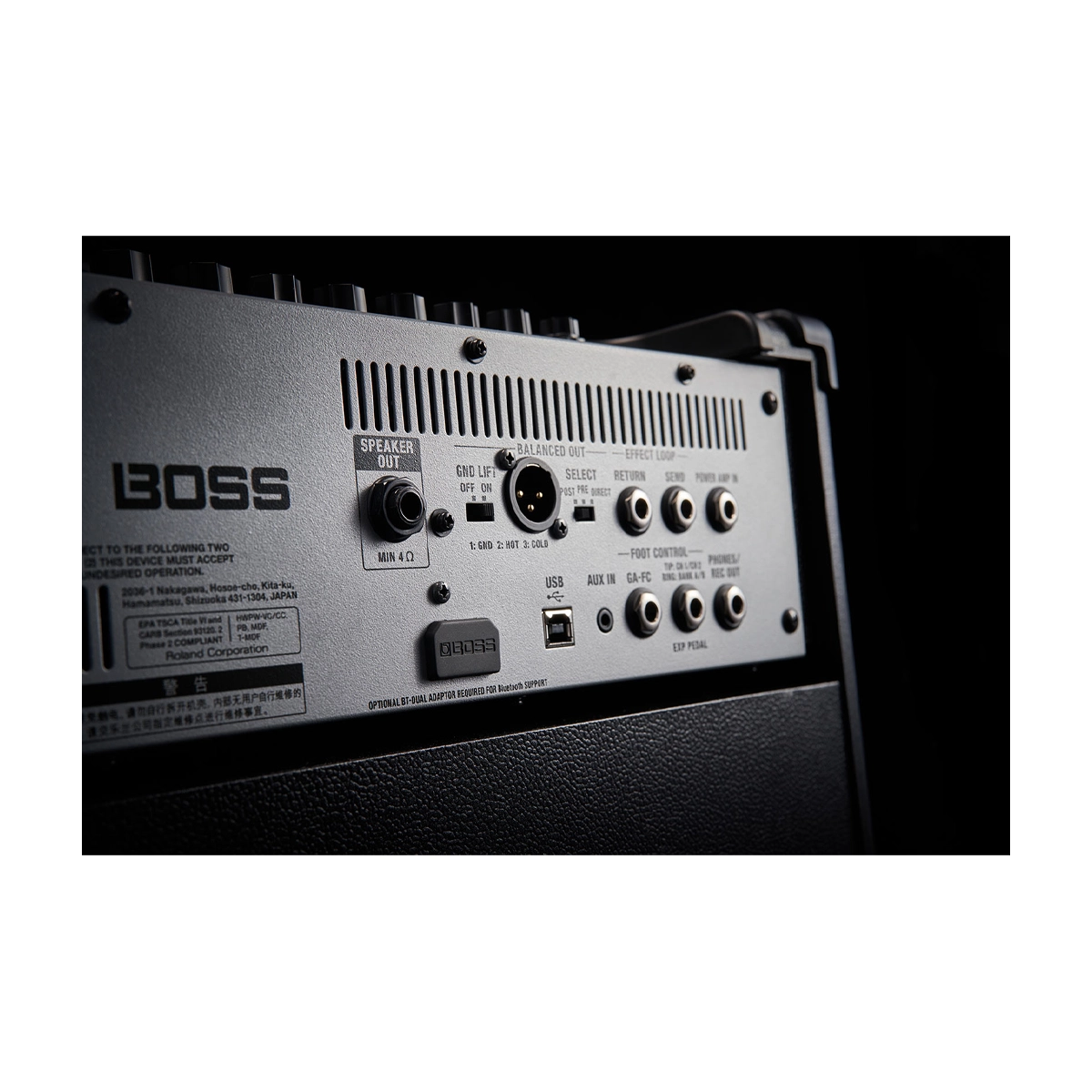

Connectors

• INPUT jack: 1/4-inch phone type
• POWER AMP IN jack: 1/4-inch phone type
• BALANCED OUT jack: 1/4-inch phone type
• SEND jack: 1/4-inch phone type
• RETURN jack: 1/4-inch phone type
• SPEAKER OUT 4 ohms jack: 1/4-inch phone type
• REC OUT/PHONES jack: Stereo 1/4-inch phone type
• EXP PEDAL/CTL CH1/CH2 jack: 1/4-inch TRS phone type
• GA-FC jack: 1/4-inch TRS phone type
• AUX IN jack: Stereo miniature phone type
• USB port: USB B type
• BLUETOOTH ADAPTOR SLOT: BluetoothⓇ Audio MIDI Dual Adaptor
  AC IN jack
