Boss RV-500 Reverb Multi-Effects Pedal

SKU: RV-500
Sale price$399.99 USD Regular price$524.00 USD

OVERVIEW




The BOSS RV-500 Reverb features 32-bit/96 kHz AD/DA, deep programmability and advanced features. It offers musicians unlimited creative capabilities with cutting-edge BOSS technology.

The RV-500 features 12 modes and 21 reverb types, and all include sound-shaping parameters like modulation, ducking, and EQ. On tap is everything from standard reverbs to shimmer, non-linear, fast decay, SFX, and more, plus recreations of the classic Roland SRV-2000 and RE-201 Space Echo. Thanks to powerful DSP, players can access a full-featured digital delay with modulation along with every reverb, and even use two patches at once with Simul mode.

Free editor/librarian software is available for the RV-500, allowing users to edit sounds and organize patches on a computer via USB.

SPECIFICATIONS
Sampling Frequency
  • 96 kHz
AD/DA Conversion
  • 32 bits
Processing
  • 32-bit floating point
Modes
  • 12 modes
  • ROOM
  • HALL
  • PLATE
  • SPRING
  • SHIMMER
  • FAST DECAY
  • EARLY REFLECTION
  • NON-LINEAR
  • SFX
  • DUAL
  • SRV
  • SPACE ECHO
Memory
  • 198 (99 banks x 2 [A] [B]), 297 (99 banks x 3 [A] [B] [C])
Nominal Input Level
  • INPUT A/MONO, B: -10 dBu
Maximum Input Level
  • INPUT A/MONO, B: +8 dBu
Input Impedance
  • INPUT A/MONO, B: 1 M ohm
Nominal Output Level
  • OUTPUT A/MONO, B: -10 dBu
Maximum Output Level
  • OUTPUT A/MONO, B: +8 dBu
Output Impedance
  • OUTPUT A/MONO, B: 2 k ohms
Recommended Load Impedance
  • OUTPUT A/MONO, B: 20 k ohms or greater
Bypass
  • Buffered bypass or True bypass (with relays)

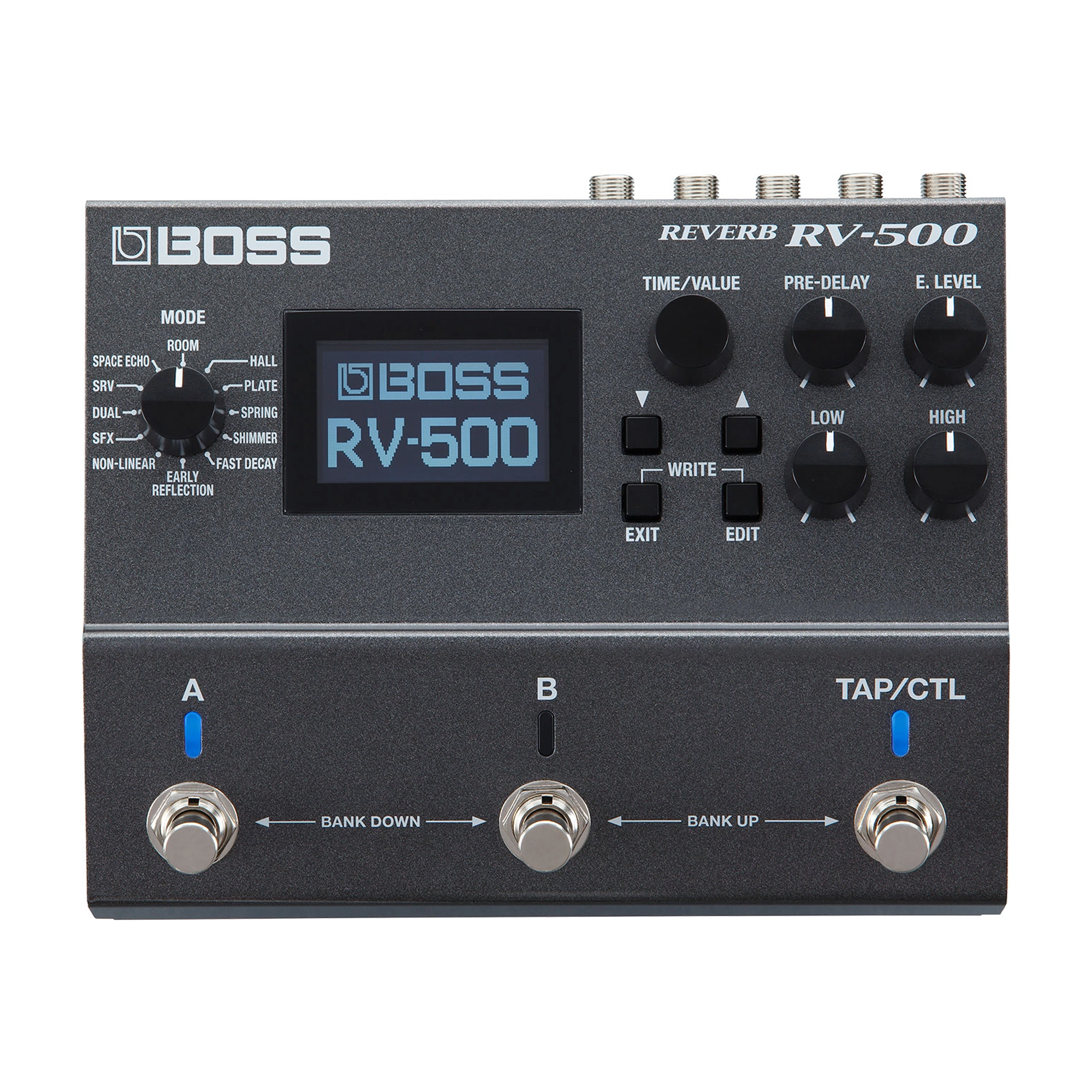

Controls
  • A switch, B switch, TAP/CTL switch
  • DOWN button, UP button, EXIT button, EDIT button
  • MODE knob, TIME/VALUE knob, PRE-DELAY knob, E.LEVEL knob, LOW knob, HIGH knob
Display
  • Graphic LCD (128 x 64 dots, backlit LCD)

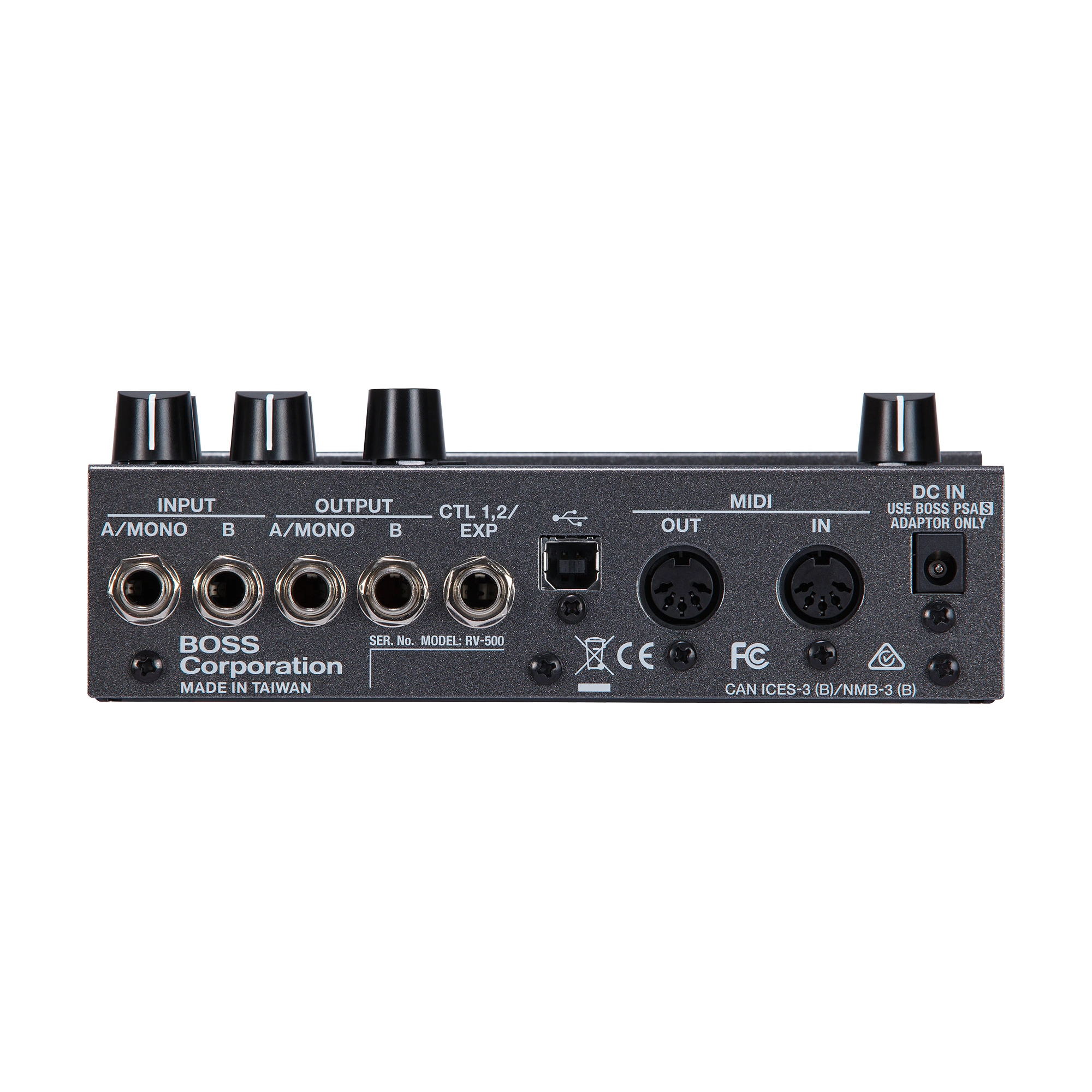

Connectors
  • INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type
  • CTL 1,2/EXP jack: 1/4-inch TSR phone type
  • USB COMPUTER port: USB type B
  • MIDI (IN, OUT) connectors
  • DC IN jack
Power Supply
  • Alkaline battery (AA, LR6) x 4, AC adaptor (sold separately)
  • Current Draw: 225 mA
  • Expected battery life under continuous use: Alkaline: Approx. 4.5 hours
Dimensions
  • 6-3/4 x 5-7/16 x 2-1/2 in. (170 x 138 x 62 mm)
Weight
  • (including battery)
  • 2 lb. 4 oz. (1.0 kg)
Accessories
  • Owner's manual
  • Leaflet "USING THE UNIT SAFELY"
  • Alkaline battery (AA, LR6) x 4
Options (sold separately)
  • AC adaptor: PSA-S series
  • Footswitch: FS-5U, FS-5L
  • Dual Footswitch: FS-6, FS-7
  • Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
