Overview

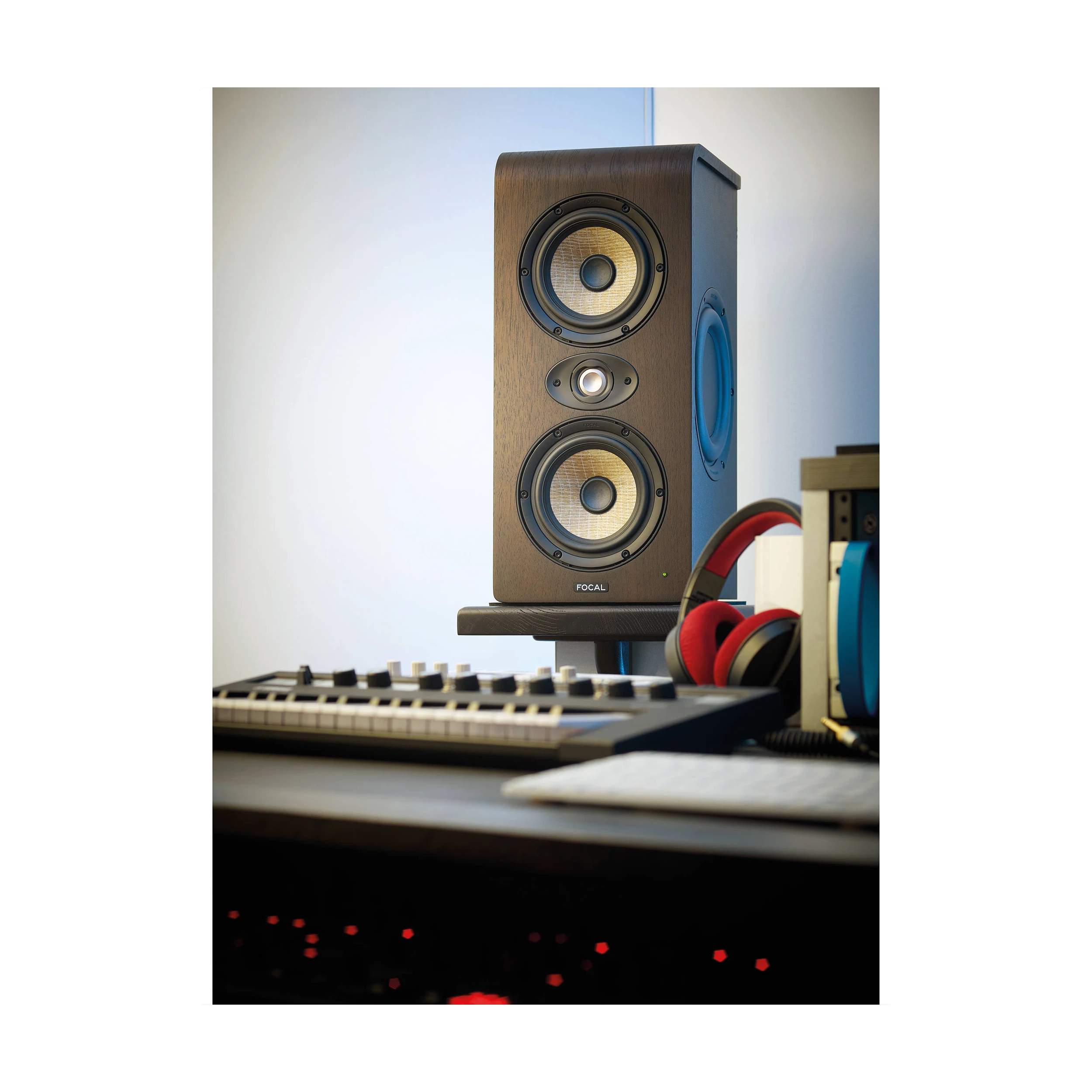

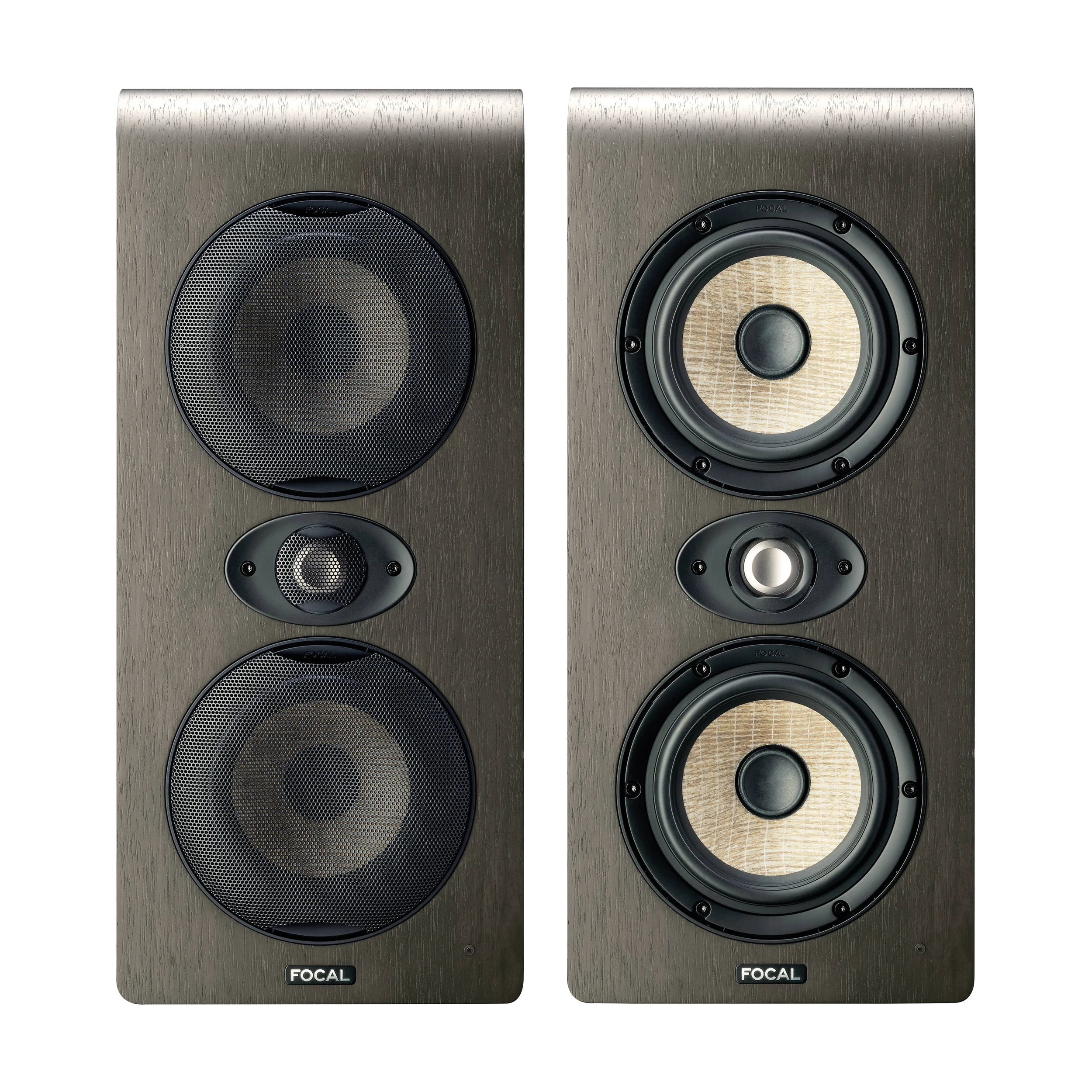

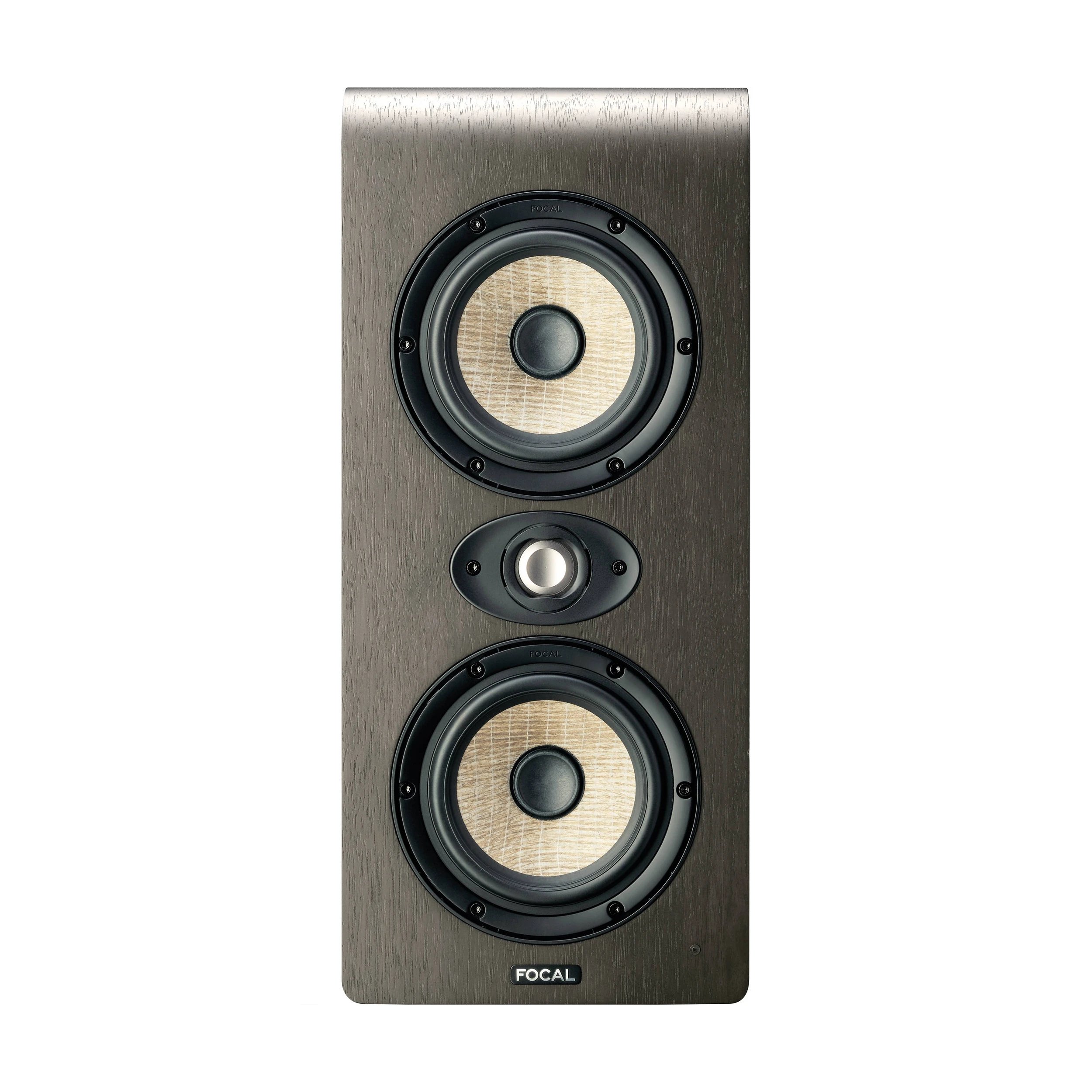

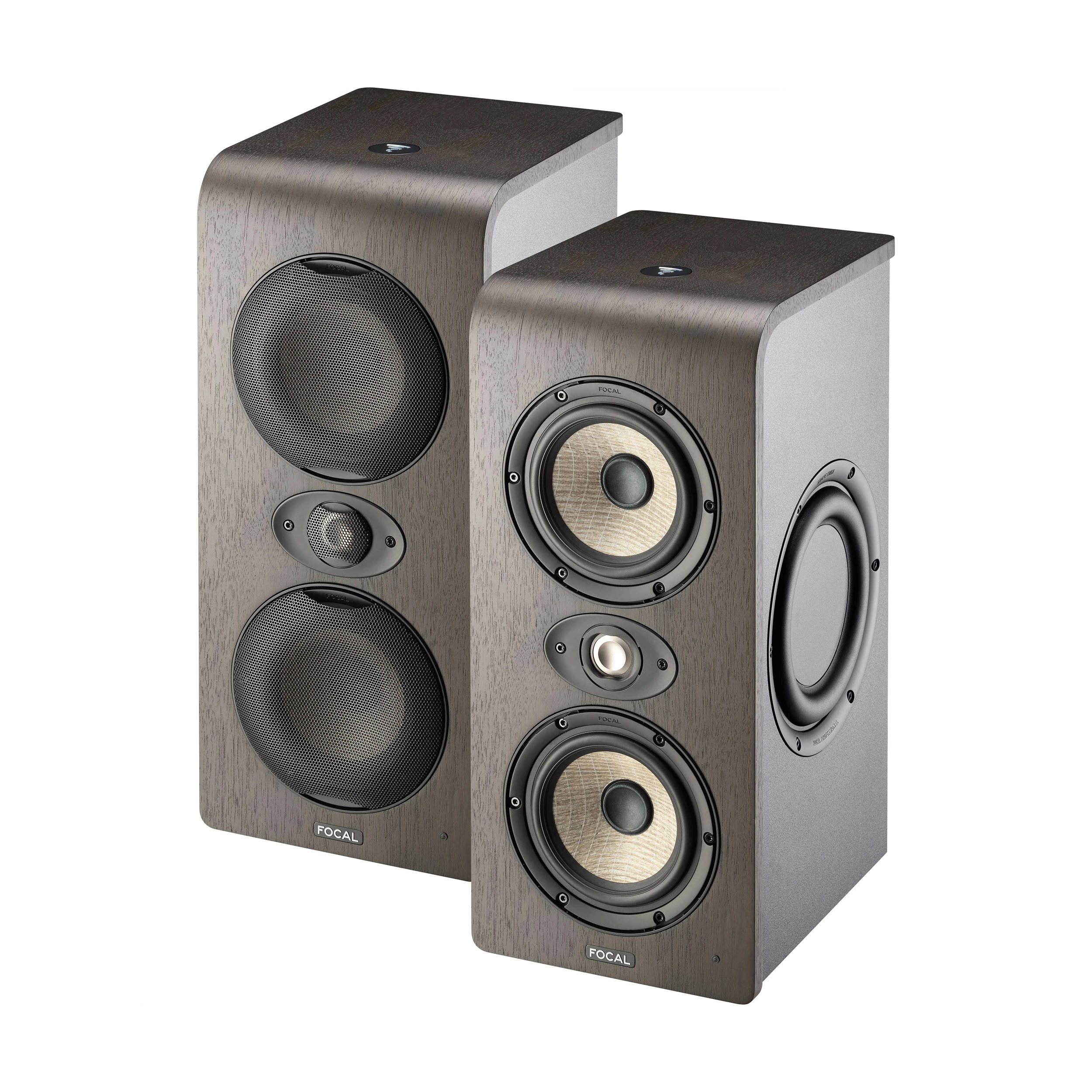

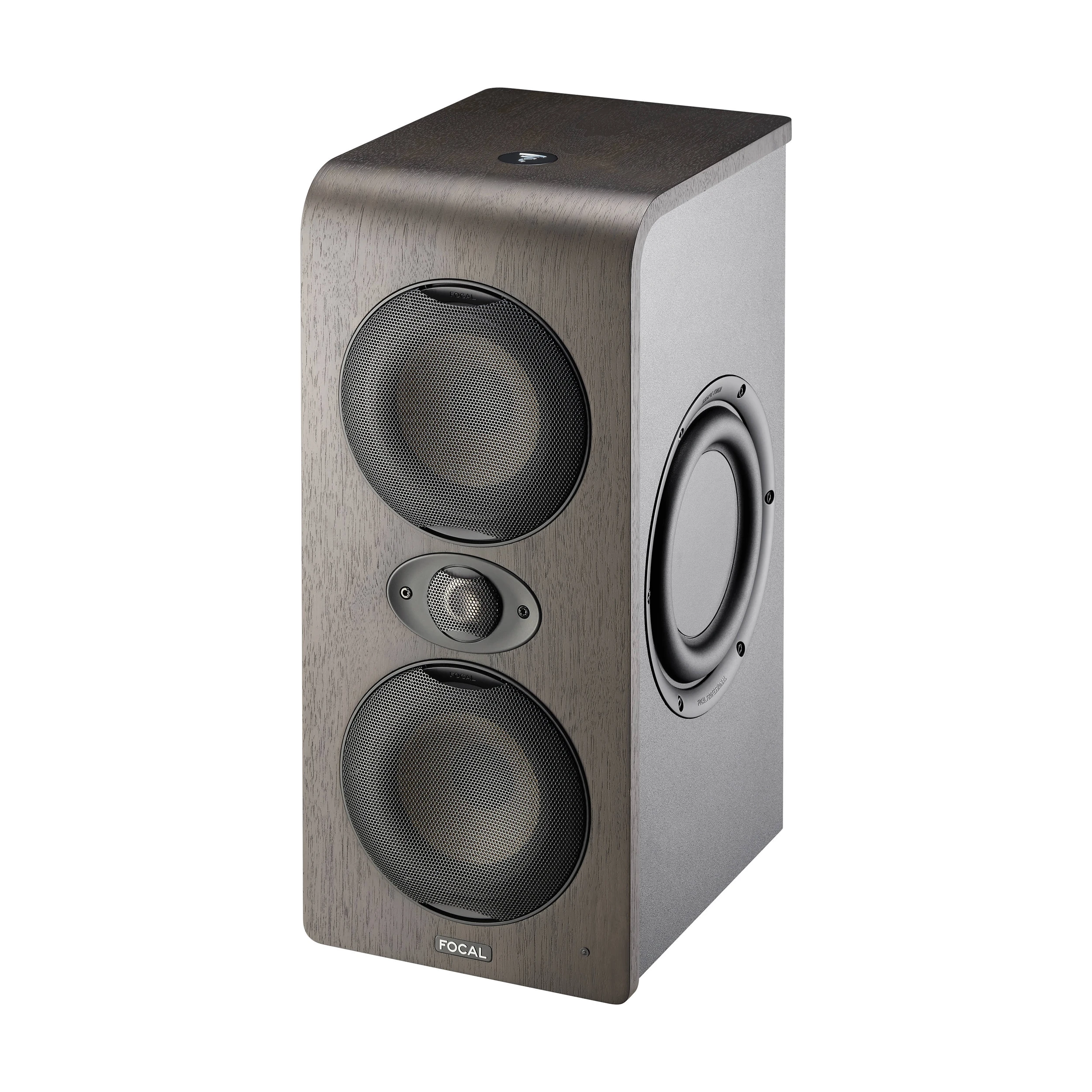

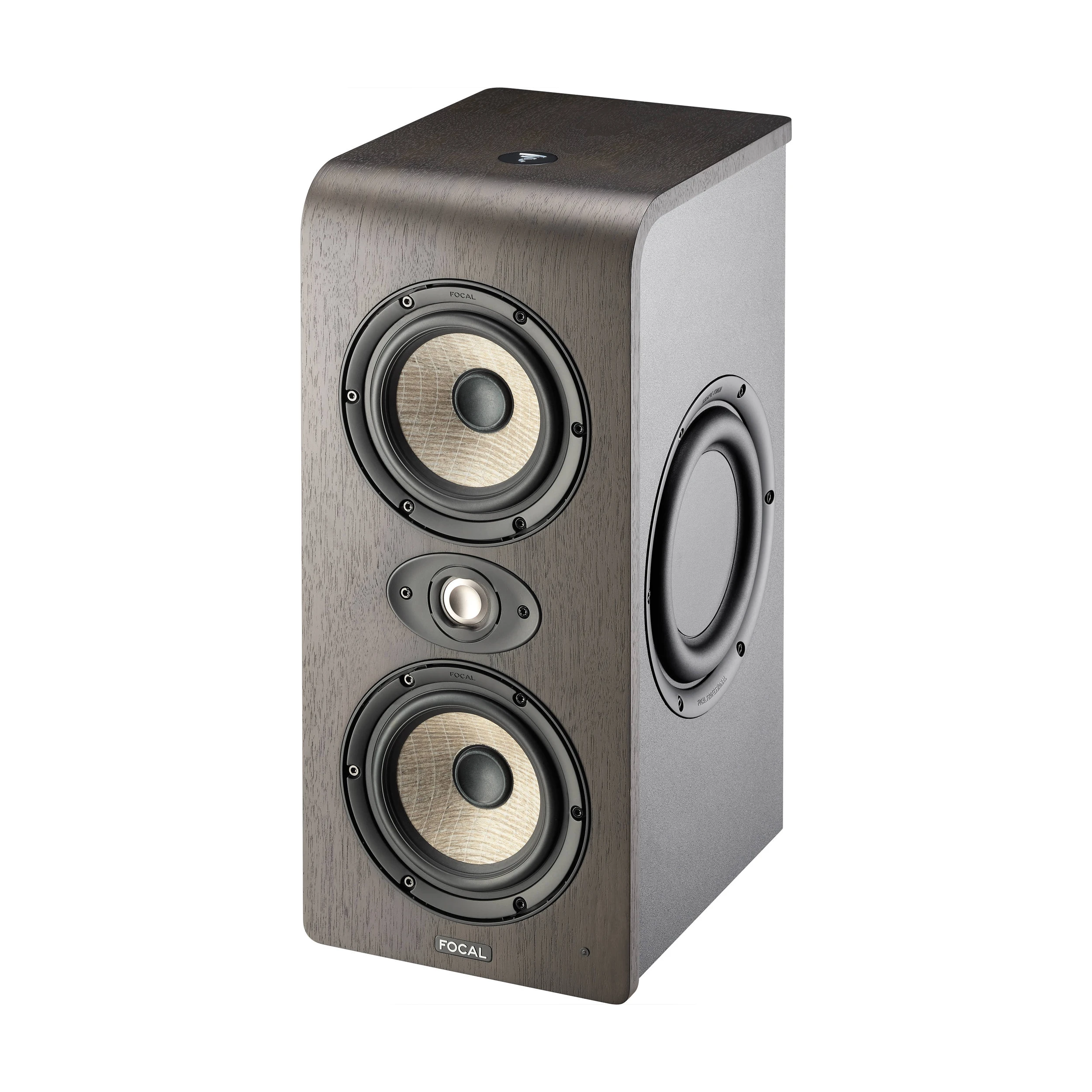

Shape Twin is the flagship of the Shape line. This 2.5-way monitoring loudspeaker features excellent readability across the entire audio spectrum, combined with extended low-frequency response and a high SPL (110.5 dB) for its size. Equipped with two 5" (13 cm) Flax cone woofers reproducing the 40 Hz - 2.5 kHz register, it shines in terms of performance and design.

Key Highlights

Reference Monitor

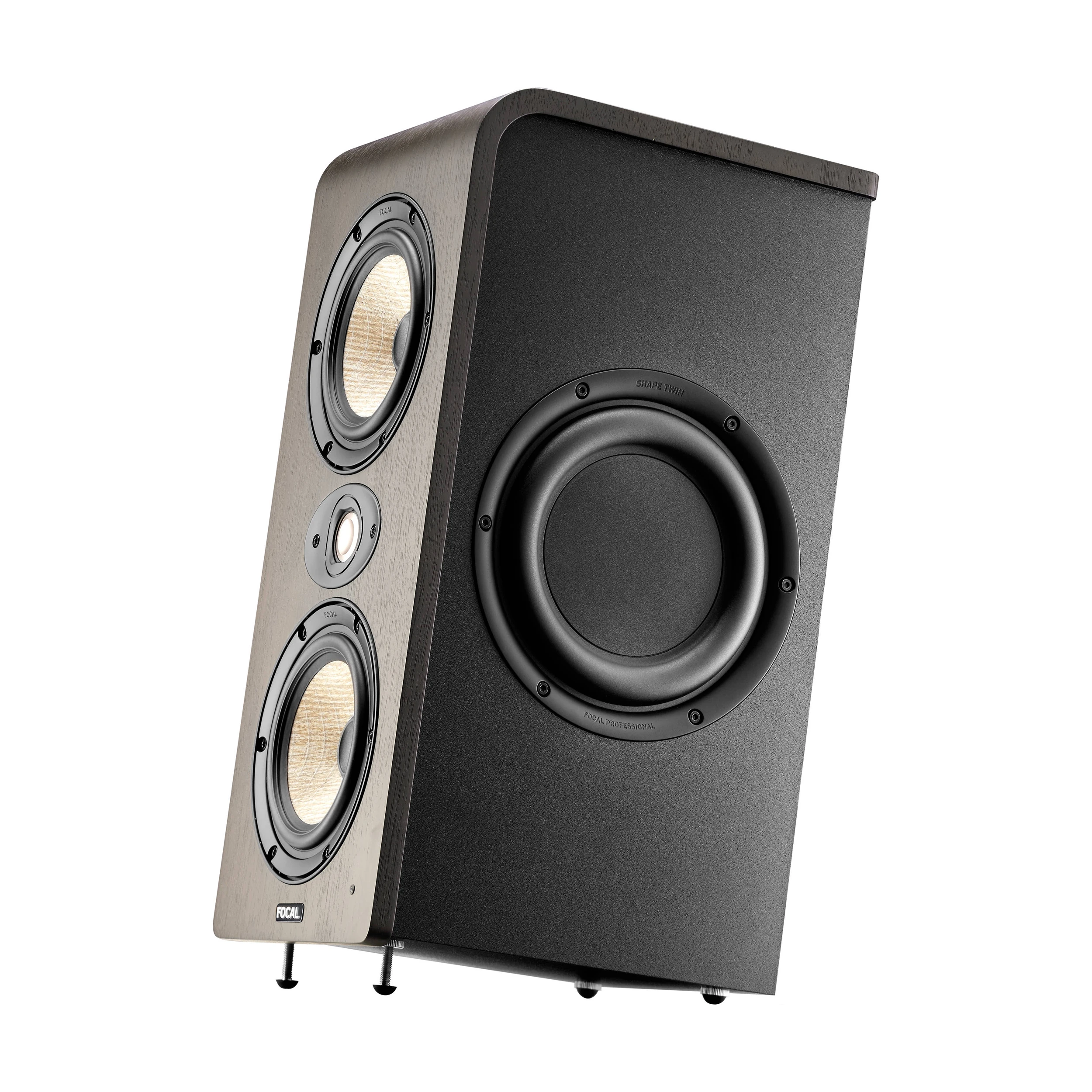

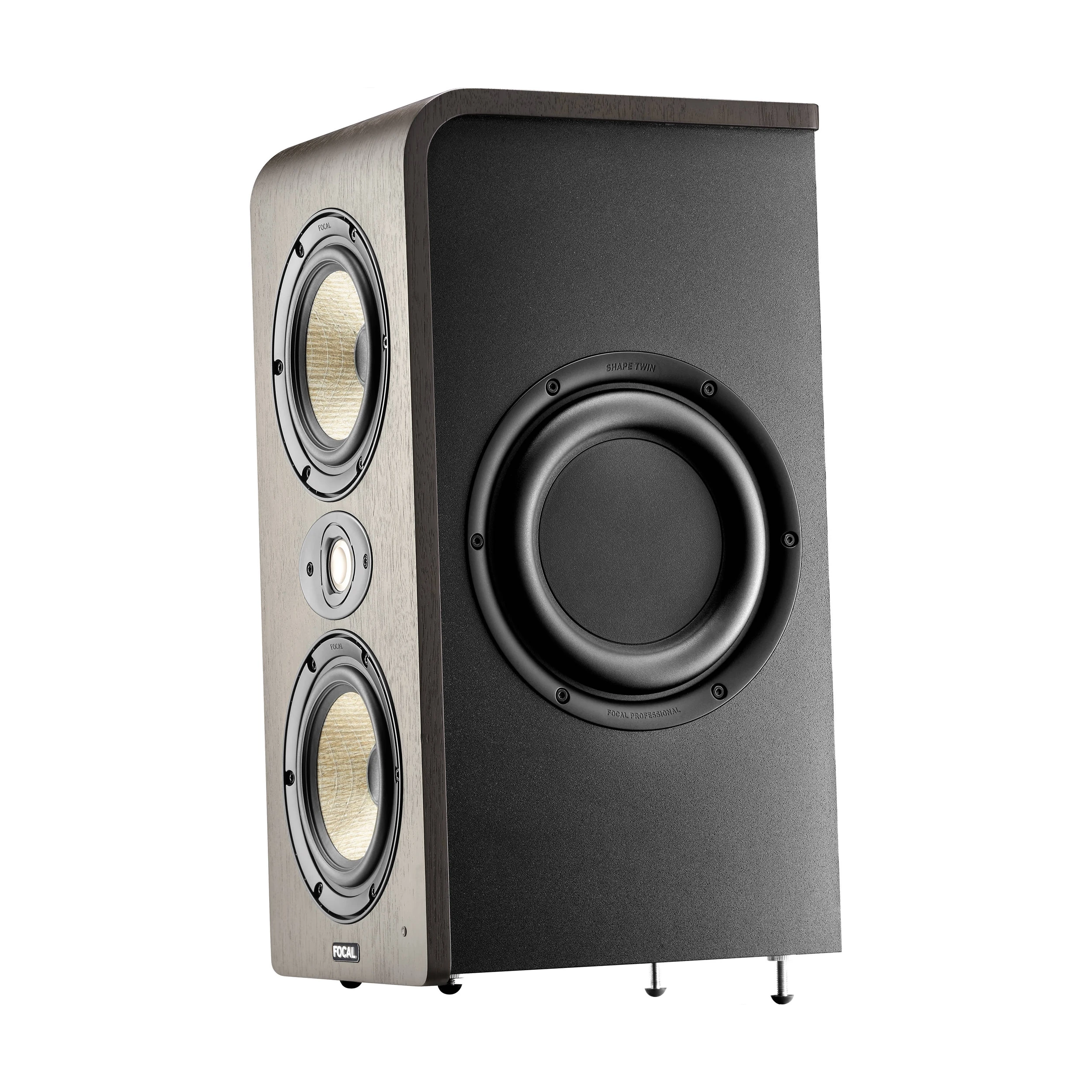

Flax membranes on the woofers, an aluminum-magnesium "M" profile tweeter, three Class AB amplifiers, two 21 cm passive radiators: Shape Twin is a work tool with a vast and precise stereophonic image. A must-have for any recording studio!

Compact Design

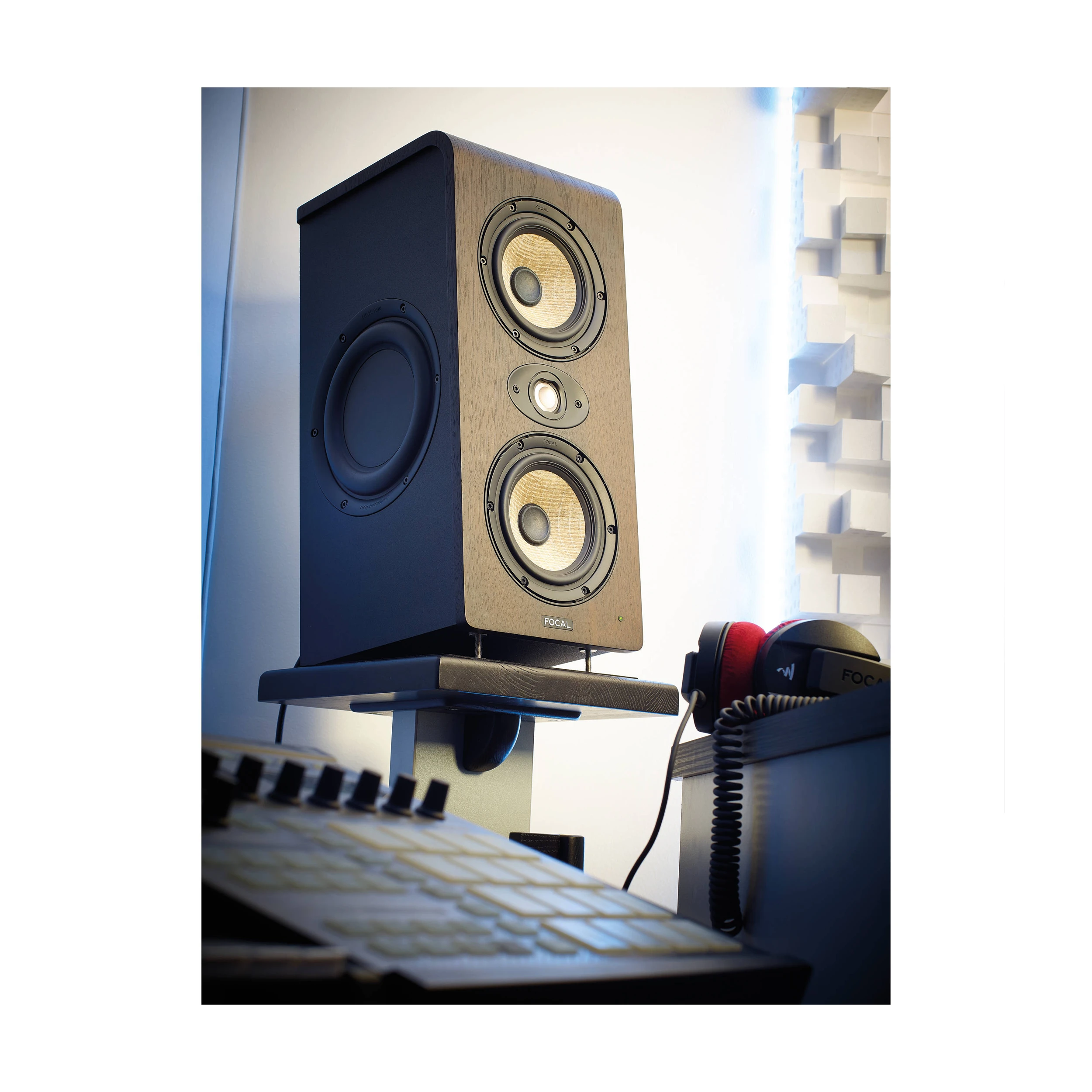

Its compactness makes it easy to integrate, even in the smallest of spaces. Its 2.5-way d'Appolito design offers a decisive advantage in terms of bass and low-midrange register control, always critical in a small space. This monitor expresses its full potential from a listening distance of 1 m.

Functional

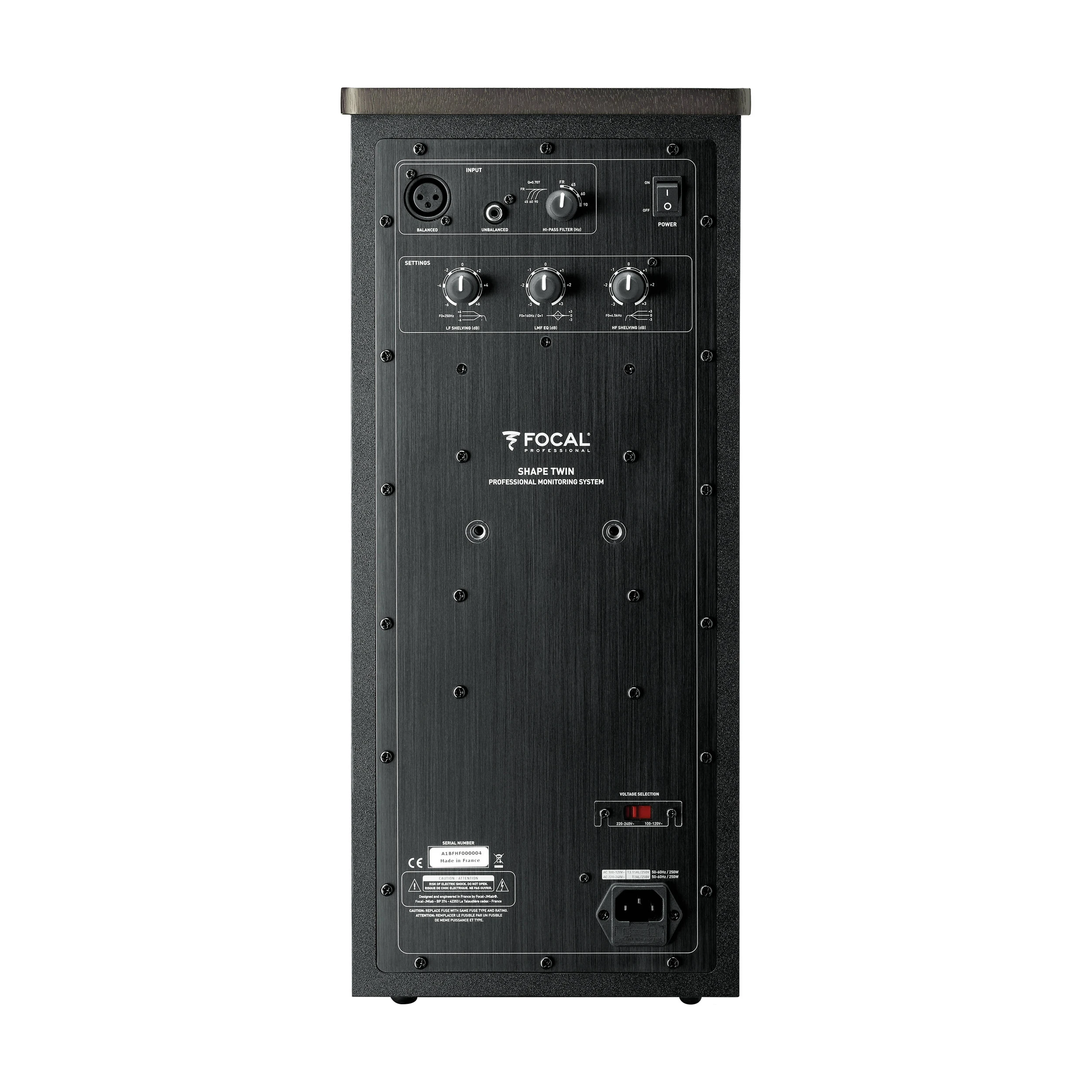

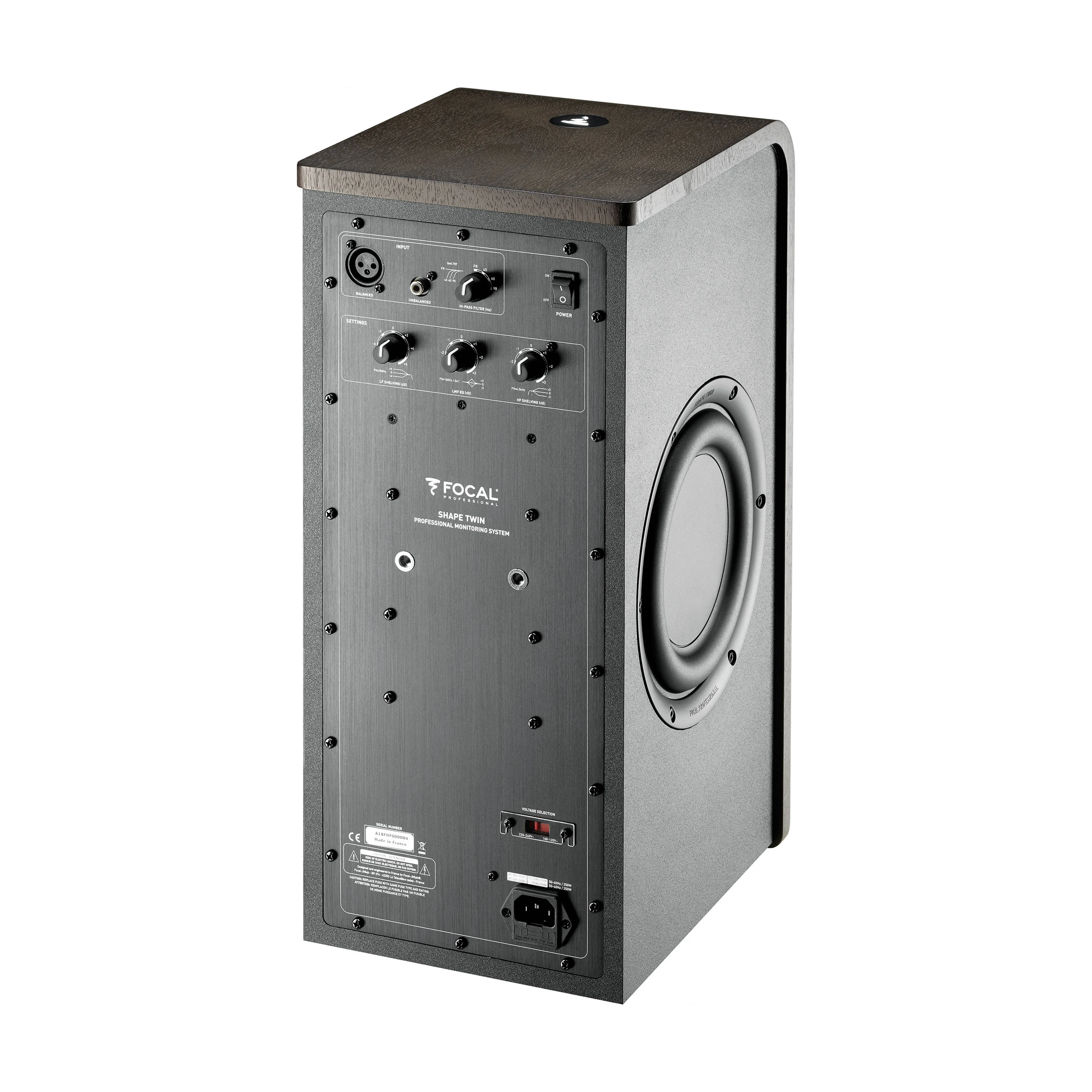

XLR and RCA inputs, adjustable bass and treble levels, adaptable 160 Hz crossover, and a disengageable high-pass crossover are just some of the functions and settings available to suit your acoustic space.

Style and Discretion

Alongside an MDF cabinet body partly covered with real walnut veneer, Shape Twin is very stylish. Compact, it is as discreet as it is flexible in its positioning, thanks to the mounting inserts.

Focal Technologies

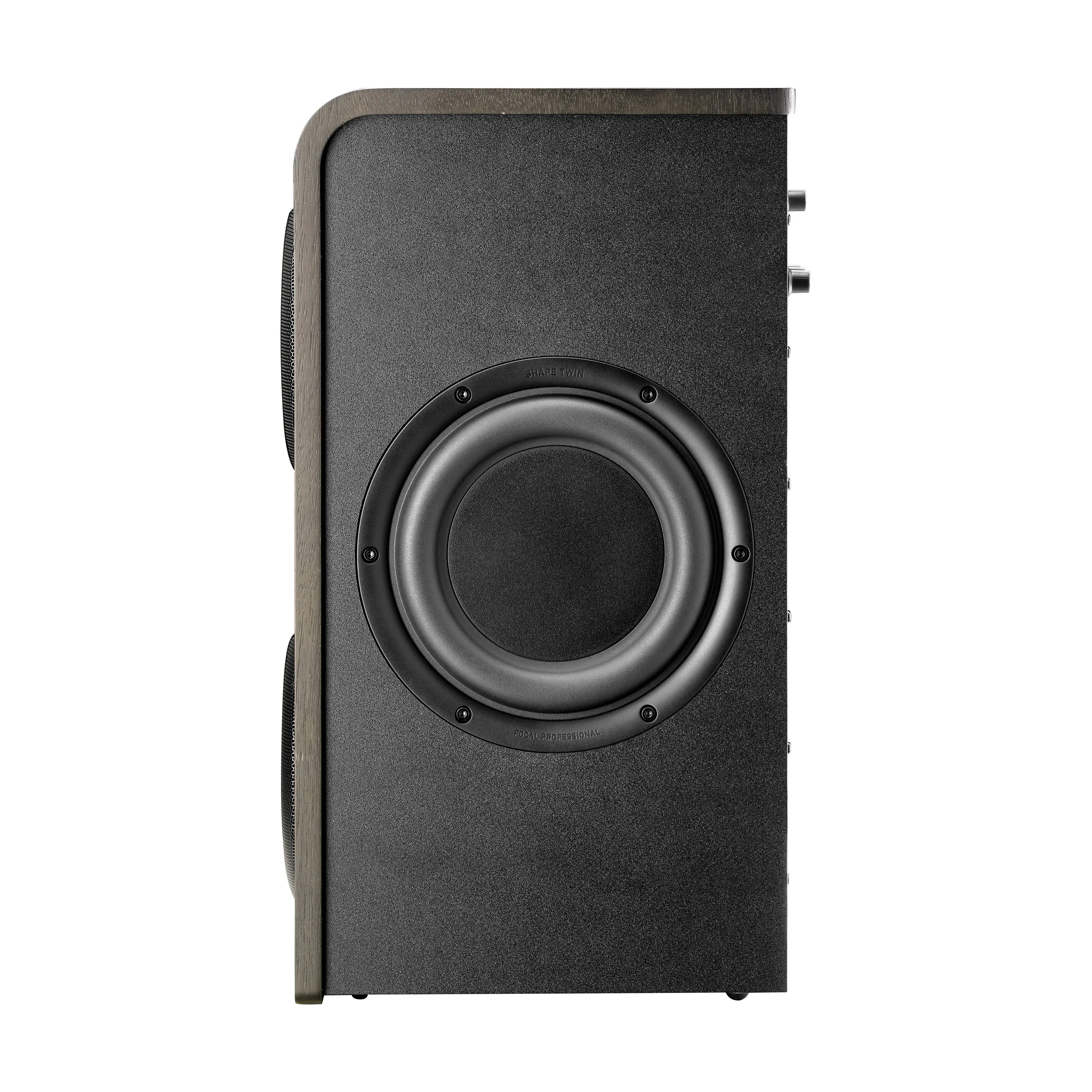

Passive Radiator for Deeper Bass

A passive radiator enclosure provides the benefits of a bass-reflex enclosure in a very small footprint. It uses a bass driver without a motor (coil and magnet) instead of a vent. This design allows for extended low-frequency response and excellent power handling in a small enclosure volume.

Flax Membrane: Sound Purity and Precision

The centerpiece of a loudspeaker, the cone is at the heart of our acoustic engineers' research. After more than five years of research and development, Focal unveiled an exclusive cone made of flax in 2013. This patented Flax cone is a sandwich made of very high-quality French flax fiber placed between two thin sheets of fiberglass. It meets all the criteria of a high-fidelity cone: lightness to offer good dynamics, rigidity to hold the bass, and damping to deliver a neutral, natural sound, without coloration.

NIC Technology: Very High Sound Definition

For very high-definition sound, controlling the magnetic field circulating in the speaker is essential. Our acousticians have created an incredibly stable magnetic circuit, guaranteeing perfectly controlled sound: NIC (Neutral Inductance Circuit) technology. This patented technology resides in a Faraday ring whose dimensions, material, and positioning are optimized to make the magnetic field stable and thus the sound very precise.

Specifications

Design & Dimensions

• Height: 47.8 cm / 18.8 in
• Width: 21.1 cm / 8.3 in
• Depth: 27.9 cm / 11 in
• Weight: 11 kg / 24 lb

Sound & Acoustics

• Product Type: 2.5-way monitor
• Woofer: 2 x 5" Flax membrane
• Tweeter: 1" Aluminium-Magnesium M-shaped dome
• Frequency Response (+/- 3dB): 40 Hz - 35 kHz
• Maximum SPL (peak@1m): 110 dB

Electronics & Connectivity

• High Frequency Amplifier: 50 W, class AB
• Mid-range and Low Frequency Amplifier: 2 x 80 W, class AB
• Inputs: XLR (symmetrical 10 kOhms), RCA (asymmetrical 10 kOhms with compensated sensitivity)
• High-pass Filter: Full range, 45 Hz, 60 Hz, 90 Hz
• Bass/Midrange Level (160 Hz): Adjustable, +/- 3 dB
• Bass Level (>250Hz): Adjustable +/- 6 dB
• Treble Level (< 4.5kHz): Adjustable +/- 3 dB
• Indicators and Controls: HPF, LF Shelving, LMF EQ, HF Shelving, Power On LED
• Power: On/Off switch on the rear panel
• Local Supply: 220-240V (T500mAL / 250V fuse) or 100-120V (T1.6AL / 250V fuse)
