Harrison Audio Comp 500 Series Compressor
Overview: Harrison's Secret Sauce
The Comp module is a very flexible dynamics processor. From a transparent ‘leveler’ on guitars and vocals, using a 1:2 ratio and fast release, applying 2-3 dB of gain reduction. To a sizzling vibe compressor on drums and bass, slamming the ratio in combination with a slow release. The Comp 500 Series module is a well-crafted, no-nonsense compressor that is your secret production ‘sauce’ – you’ll put it on everything.
Key Features
- The Harrison sound.
- Extremely flexible compressor; from transparent ‘leveler’ to ‘character’ comp.
- Classic feed-forward design.
- THAT 2180 VCA chip for outstanding analog performance.
- Program-dependant ‘Attack’ time.
- Continually variable Release time from ‘Fast’ to ‘Slow’.
- Input overload LED.
- Compatible with 500 Series format chassis.
Design & Legacy
Comp Design
The Comp 500 Series module is based on a classic ‘feed-forward’ design, using a THAT 2180 VCA chip for outstanding analog performance. The compressor’s Attack is program-dependent, adapting to the input signal and offering an optimal Attack time depending on the source material. The Release time is continuously variable. These parameters can turn the Comp module from a transparent leveler to a highly saturated, vibe compressor, adding character and excitement to a wide range of sources.
Legacy in Analog
Harrison consoles have helped create some of the most highly regarded and influential music in history. Michael Jackson, ABBA, Led Zeppelin, Queen, Donald Fagan, and many more iconic artists have relied on Harrison production tools to help create their multi-platinum albums. The latest range of 500 series modules from Harrison harnesses the sound and features that engineers like Bruce Swedien, Roger Nichols, and Reinhold Mack trusted to make music that stands the test of time.
Specifications
- Processor Type: VCA Compressor
- Number of Channels: 1
- Module Slot Size: Single

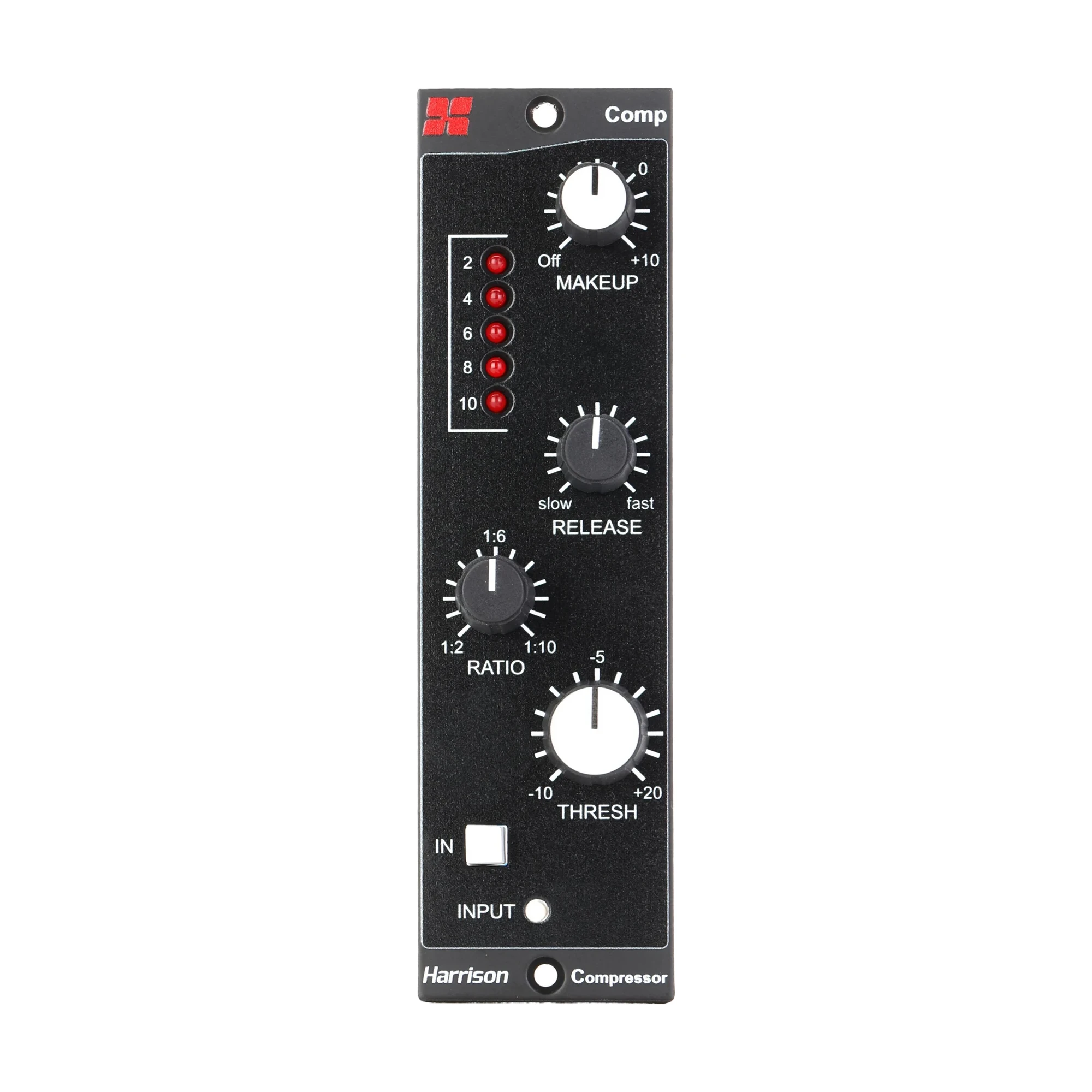

- Controls: Makeup, Threshold, Ratio, Release
- Threshold: -10dB to +20dB
- Ratio: 2:1 to 10:1
- Bypass: Bypass Switch
- Power Source: Proprietary Interface (Requires 500 Series Chassis)
