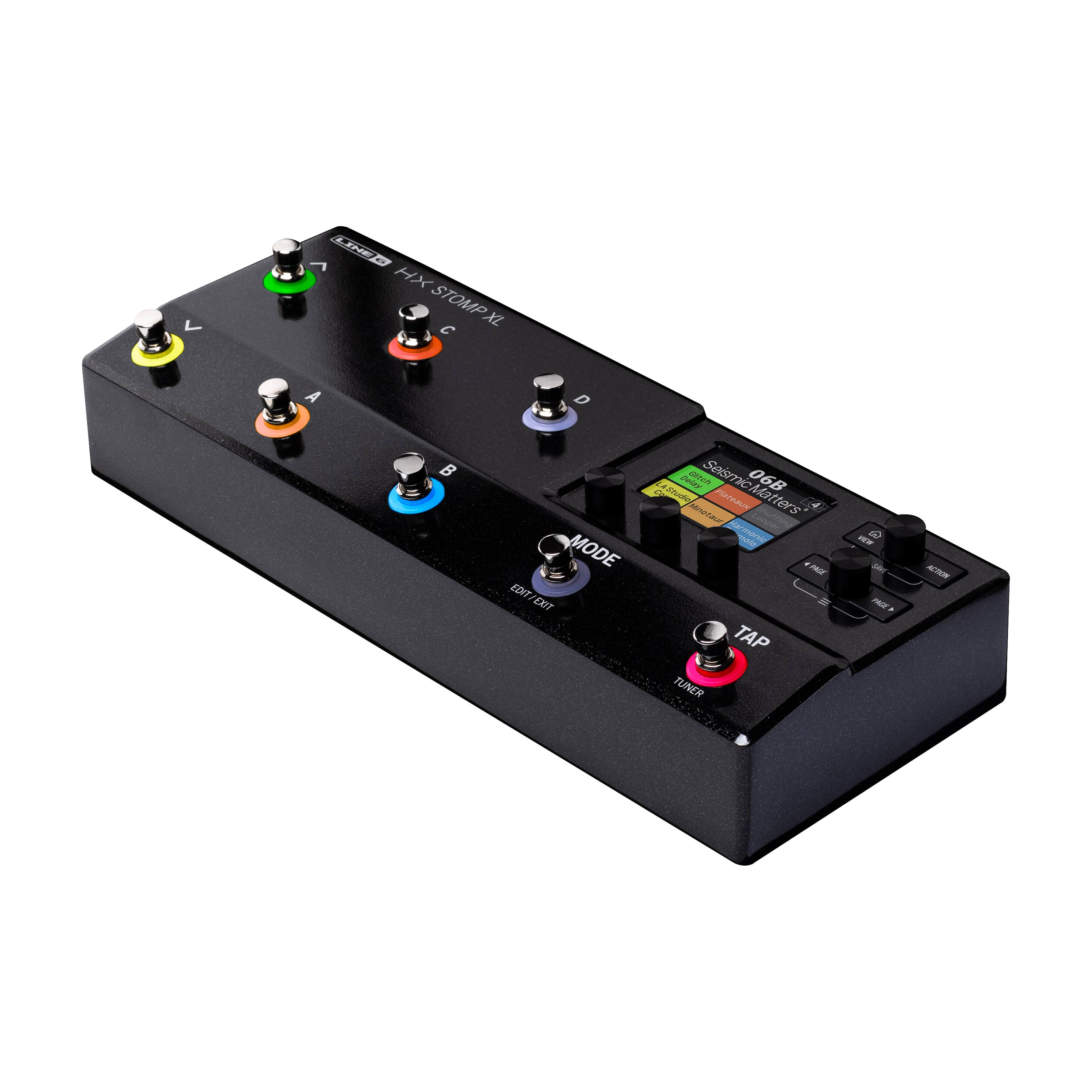

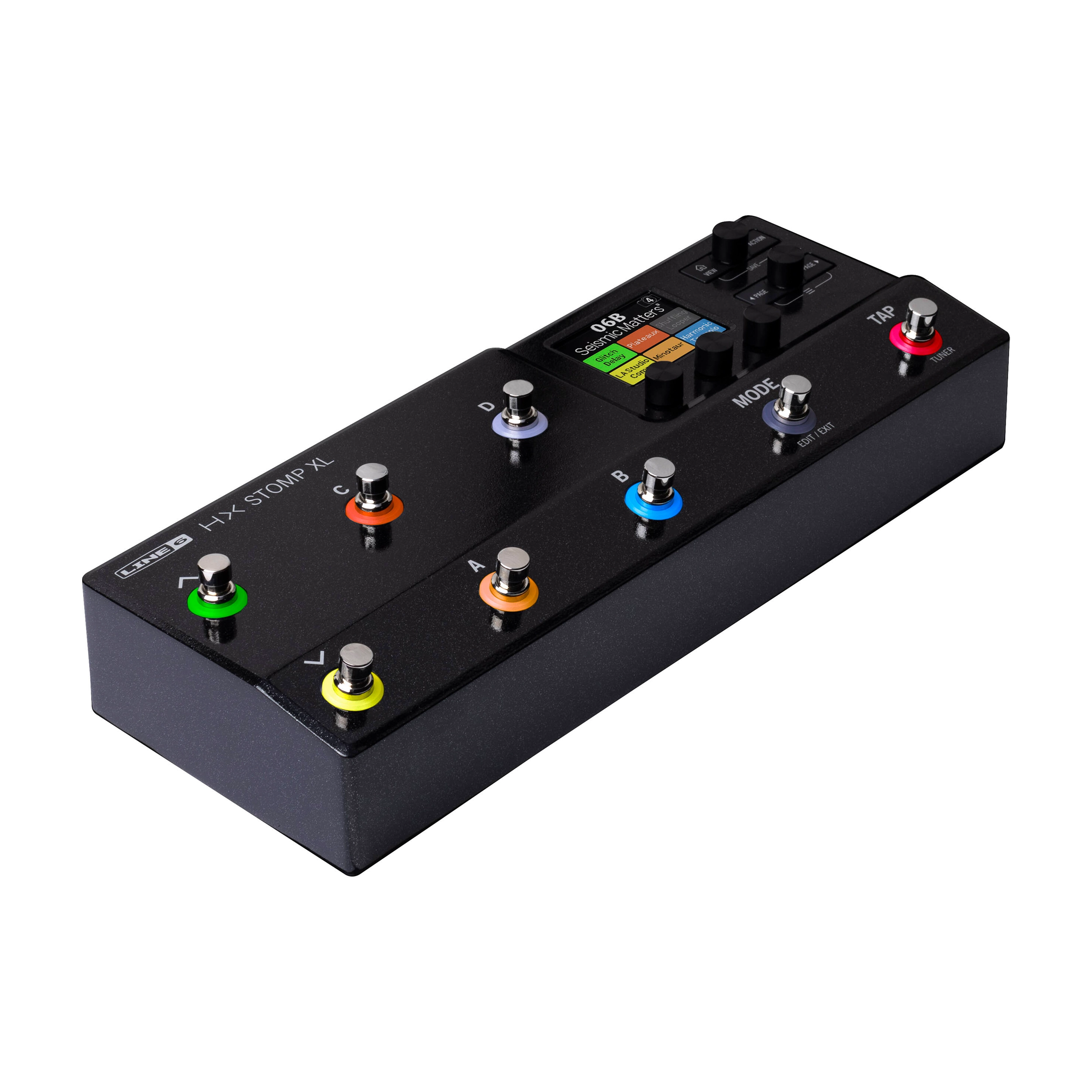

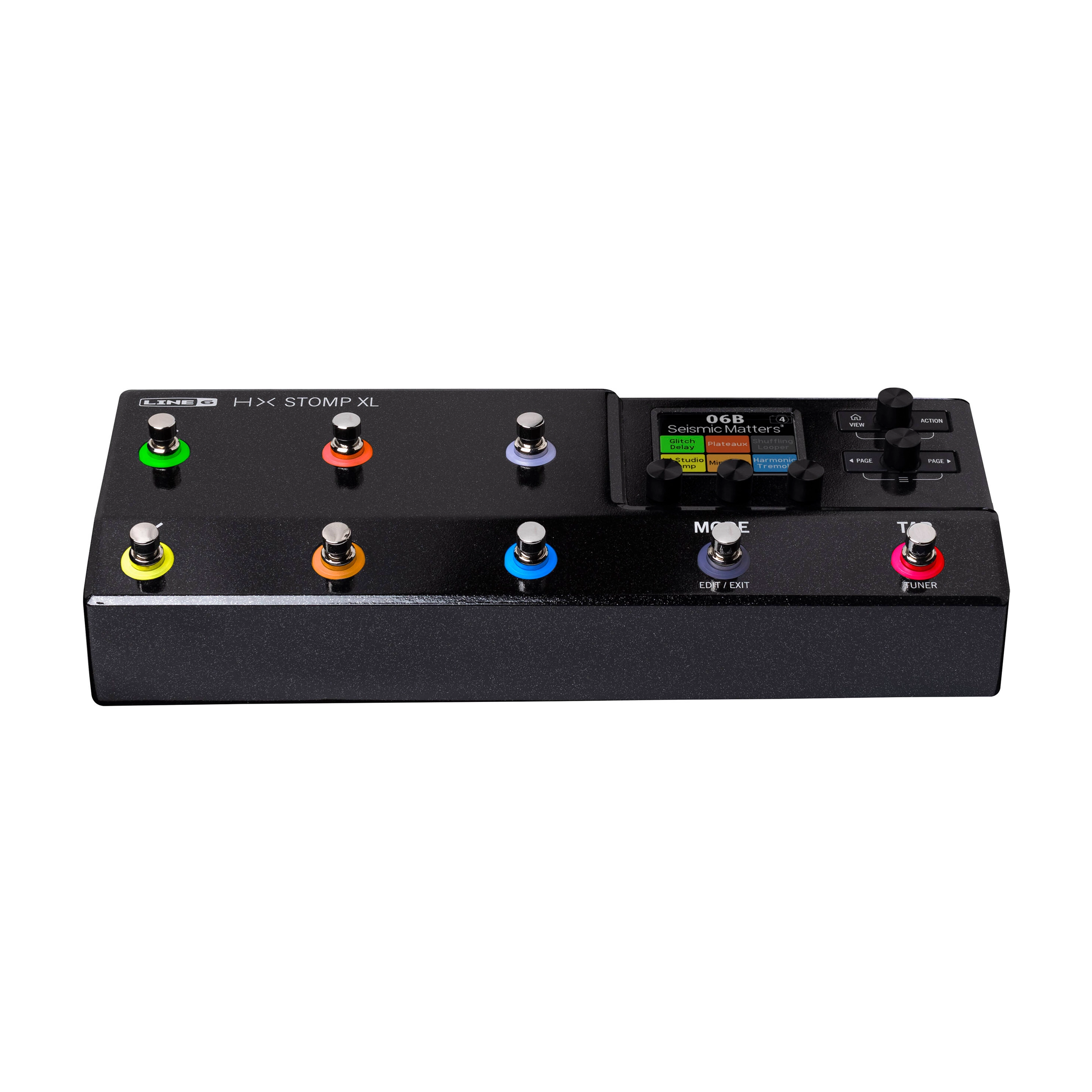

Line 6 HX Stomp XL Guitar Multi-FX Pedal

128 inspiring presets

Not only does the HX Stomp XL give you 128 presets for real-world gigging applications, but it also comes loaded with heaps of great tones for instant inspiration. Stock presets are organized by instrument (guitar, bass, keys, acoustic) and application (direct to PA, 4-cable amp routing, etc.), which makes it fast and intuitive to dive in and find tones.

4-cable amp integration

Modern ampists rejoice! The HX Stomp XL has integrated support for 4-cable amp integration. This allows you to front load your FX loop-equipped guitar head with stomps traditionally reserved for the front end of an amp (drives, EQs, filters, wahs, and fuzzes), and back-end effects that tend to sound best after an amp's preamp section (delay, reverb, and modulation). Not only that, but several of the HX Stomp XL's presets are also preconfigured for the 4-cable method, which provides a pre-routed template from which to create custom patches.

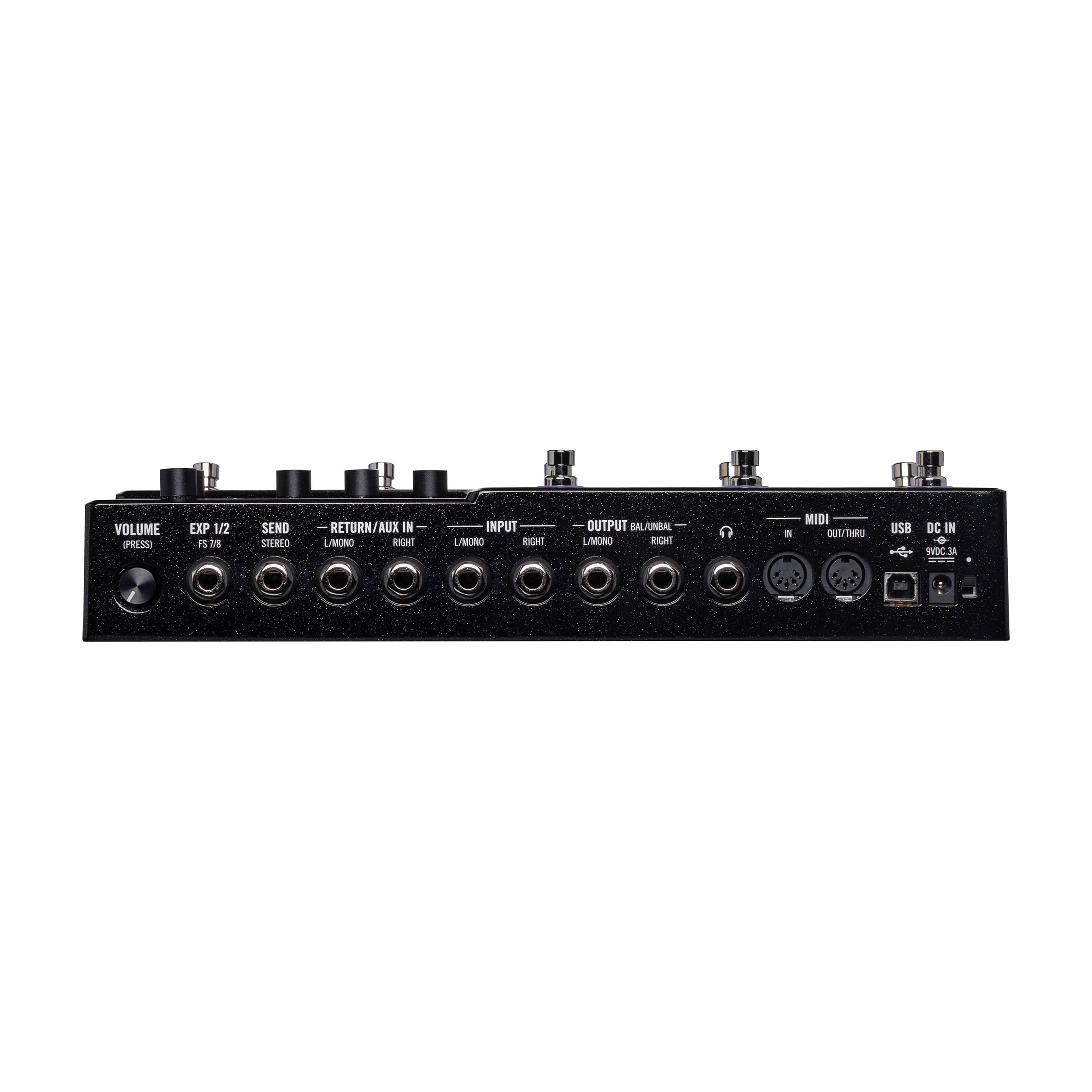

Exhaustive I/O

The HX Stomp XL is much more than a multi-effects amp modeler. Though it can easily replace your current board into the front end of your amplifier, it also boasts enough I/O and control to take the lead in even the most complex guitar setups. Here's what you get:

• Stereo TS ins and balanced TRS outs minimize noise into guitar and pro-level gear
• FX loop lets you incorporate your favorite stomps anywhere in your chain
• MIDI in/out for traditional MIDI switchers or advanced performance integration
• TRS expression pedal/footswitch jack lets you connect up to two external expression pedals or expand your switching options by two
• USB connection for computer-based patch management and effortless firmware updating

Capacitive touch footswitches

Following Helix's lead, the HX Stomp XL boasts eight capacitive touch footswitches and a Helix-inspired pedal edit mode makes designing and recalling presets easier than ever. Simply touch the switch you want to adjust, make the necessary changes, and save. The HX Stomp XL allows four snapshots per preset and seamlessly switches between them. Each switch includes bright color-coded LEDs for visibility on any stage.

Expansive MIDI capabilities

The HX Stomp XL can also serve as the command center for complex, MIDI-enabled rigs. It boasts 102 customizable controllers via MIDI-CV for foot-tappable control over pedal stacks, amp channel switching, preset selection, and more. Sync all time-based devices via the onboard tap tempo switch.

Multichannel USB interface

The HX Stomp XL streamlines your recording setup. Dialing in tones is fast and intuitive, while the 24/96 USB audio preserves pristine clarity.

True bypass switching

True bypass switching eliminates unwanted coloration between your other stomp effects, letting you integrate the HX Stomp XL with your setup without compromising tone.

Third-party cab IR support

The HX Stomp XL includes support for third-party cab IRs.

Features:

• The processing power of the Helix family in an intuitive 8-switch stomp
• The ultimate standalone travel rig or balanced part of any pedalboard/amp setup
• Expansive MIDI capability
• 300+ onboard amp, cab, and stomp models
• World-class polyphonic pitch-shifting effects
• 128 presets
• Up to 8 blocks per preset
• 4 snapshots per preset
• 24/96 HX audio engine
• 2.4-inch full-color display
• FX loop
• Preconfigured 4-cable amp integration
• True stereo performance
• MIDI capability
• USB audio interface with re-amp capabilities
• True bypass switching
• Computer-based patch management and firmware upgrades
• Supports third-party IRs

Specs:

• Pedal Type: Multi-FX with USB Interface
• Analog/Digital: Digital
• Presets: 128, 4 Snapshots each
• Effects: 200+, up to 8 simultaneous
• Effects Types: 150 Helix, 77 Legacy
• Amp Modeling: 80+ Amps, 40+ Cabinets
• IR: Supports up to 128
• Looper: 60s mono, 30s stereo
• Inputs: 2 x 1/4", 2 x 1/4" Aux/Return
• Outputs: 2 x TRS, 1 x 1/4" send
• MIDI I/O: In, Out/Thru
• USB: Type B (8x6)
• Headphones: 1 x 1/4"
• Other I/O: 1 x 1/4" TRS (expression 1/2)
• Bypass: Analog/DSP switchable
• Processor: 450MHz SHARC DSP
• Software: HX Editor
• Compatibility: Windows, macOS
• Power: 9V DC (included)
• Dimensions: 2.7" H × 12.4" W × 4.7" D
• Weight: 3.3 lbs.
• Part Number: 99-060-2605
