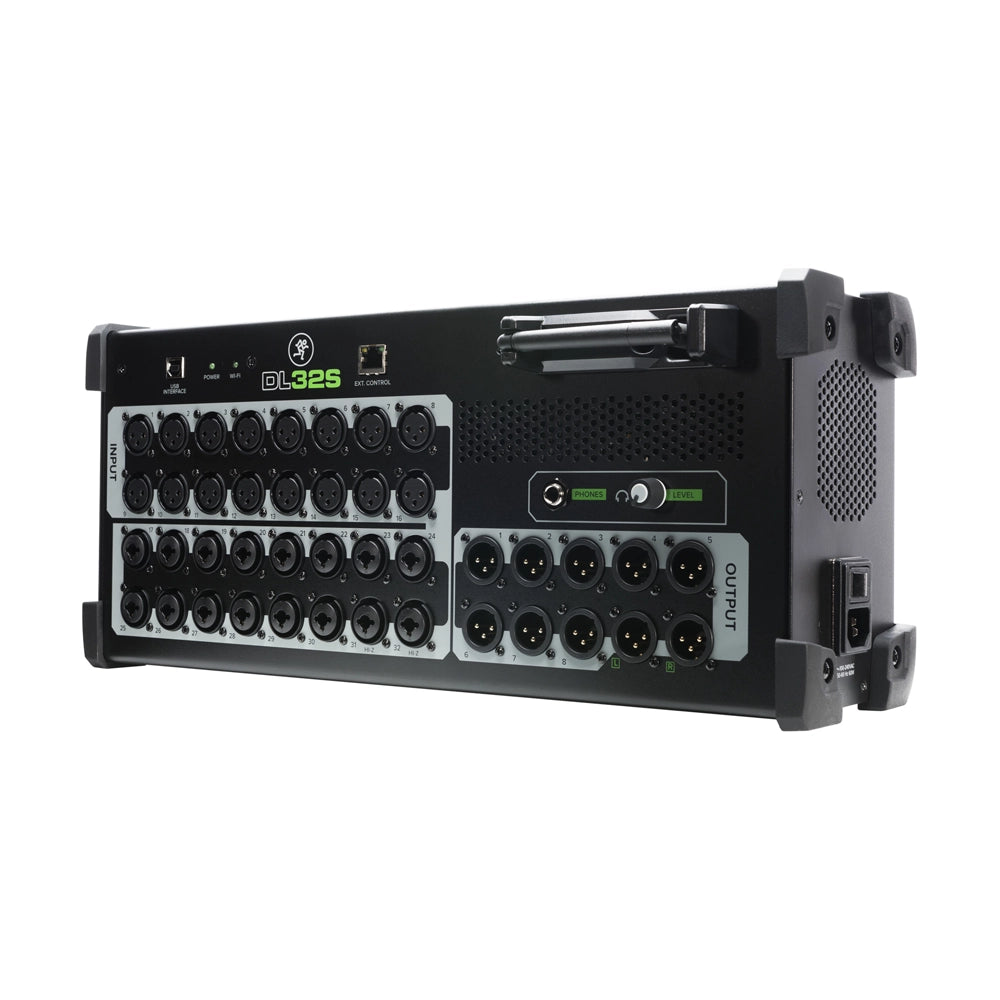

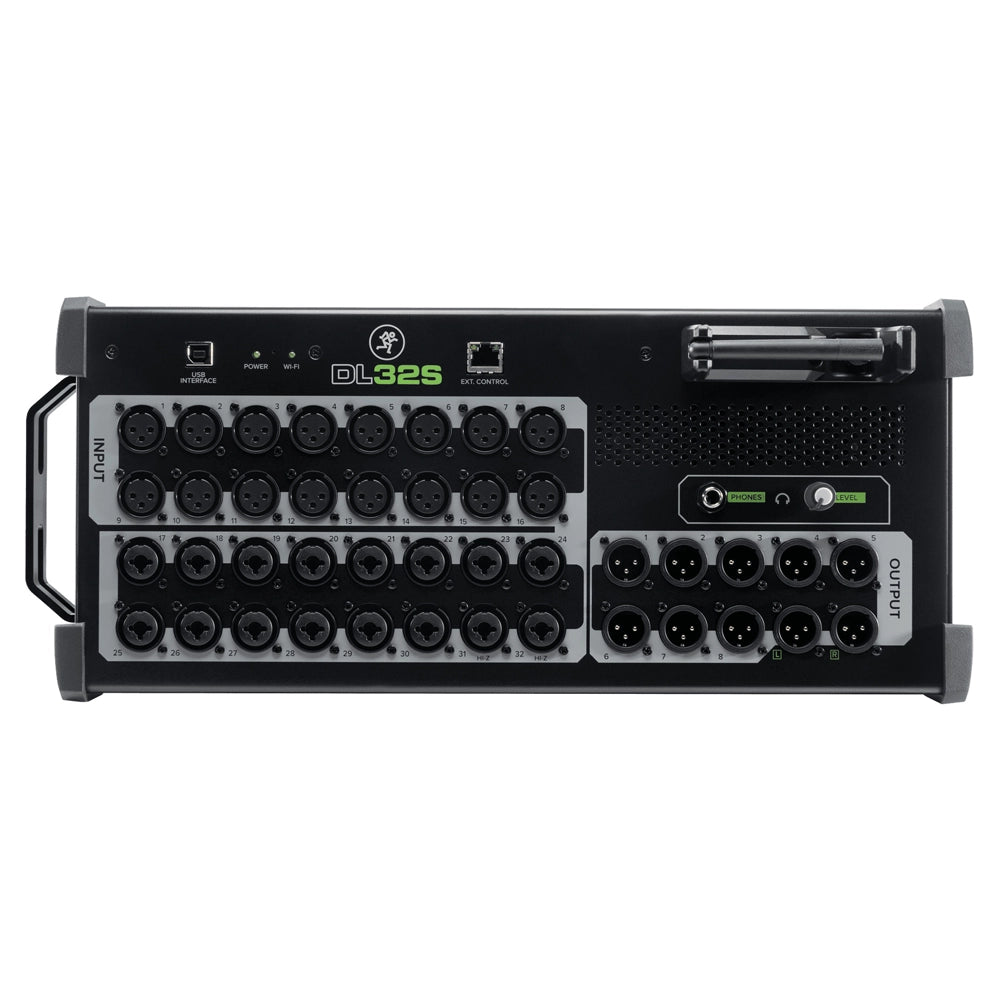

Mackie DL32S 32-Channel Wireless Digital Live Sound Mixer
DL32S brings all the powerful DSP, renowned Onyx+ mic preamps, and Built-Like-A-Tank reliability that the DL Series is known for, in an all-new stagebox form factor with built-in WiFi. Mount it in a rack, set it on a desk, or put it right on the stage. Mix your way.
EXPERIENCE YOUR BEST MIX EVER
The DL32S wireless digital mixer delivers proven mixing power with legendary Onyx+ mic preamps in an all-new Built-Like-A-Tank™, stage-friendly design made to withstand real-world abuse. Get mixing quickly with built-in Wi-Fi and the industry-leading, multi-platform Master Fader™ app. Create stunning multi-track recordings and get playback for a virtual soundcheck via USB I/O. Loaded with channel/output DSP plus 4 FX processors, DL32S gives you the capability and flexibility you need for your best mix ever.
Want to give Master Fader a spin before you buy? Download any version of the app for free
FEATURES:
- 32 Onyx+™ recallable mic preamps
- 10 fully-assignable XLR outputs plus a headphone output
- Industry-leading Master Fader control app
- 32x32 USB recording
- Ditch the snake – Place it anywhere on stage or in a rack
WIRELESS MIXING
- Complete control via iOS, Android™, macOS®, or Windows® devices
- No set FOH position – mix from anywhere
- Supports up to 20 separate devices at once
- Multiple engineers can work from a single mixer
POWERFUL PROCESSING AND SIGNAL PROCESSING
- 32 input channels with 4-band PEQ + HPF, gate, compression and RTA/Spectrograph
- 32 stereo-linkable input channels
- 15 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, comp/limiter, alignment delay and RTA/Spectrograph
- 8 stereo-linkable aux sends
- 6 stereo-linkable subgroups
- Main L/R bus
- 6 VCAs and 6 mute groups
- 4 stereo FX processors featuring great built-in FX like reverbs, delays, choruses, flangers, and many more with dedicated sends and returns
- Full I/O routing with A/B sources per channel
- Assignable oscillator including pink/white noise and sine waves
- Modern and Vintage options for comp/gate and EQ
MULTI-TRACK RECORDING & PLAYBACK
- 32x32 USB 2.0 audio interface for Mac or PC
- Record the show for later mixdown
- Play intermission music, backing tracks and more directly into a dedicated stereo return channel
- Perform a virtual sound check
- Amazing low-cost, high channel count studio recording solution
- Utilize Mac or PC audio plug-ins in a live environment
MASTER FADER CONTROL APP
- Intuitive and easy to master
- Fast navigation with view groups and overview
- Quick setup with tons of factory and user-definable presets
- Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments from other users
- Quickly access channel processing, signal routing, and a massive suite of great sounding effects with presets to get you started
- Export presets, shows and complete system backups via Dropbox, email and more
- Complete offline operation
- Available on iOS, Android, macOS, and Windows
RECORD AND PRODUCE LIKE A PRO
- Waveform™ OEM professional software and plugin packages included
- The DAW Essentials™ Bundle for Waveform OEM includes 16 powerful plugins like Equaliser, Compressor, Reverber8, and Limiter
DL16S and DL32S are compatible with iOS 11 or later, Android OS 6 or later, macOS 10.12 or later, and Windows 10 or later
SPECS:
- Type: Digital Stage Box Mixer
- Channels: 32
- Inputs - Mic Preamps: 16 x XLR, 14 x XLR-1/4" combo, 2 x XLR-1/4" combo (mic/line/Hi-Z)
- Outputs - Main: 2 x XLR (L/R, assignable), 8 x XLR (assignable)
- Aux Sends: 8 x Stereo Sends
- Busses/Groups: 6 x Stereo Sub Groups, 15 x Output Busses, 6 x Mute Groups
- Data I/O: 1 x RJ45 (external control)
- USB: 1 x Type B
- Computer Connectivity: USB (32 x 32), Wi-Fi
- Headphones: 1 x 1/4"
- EQ Bands: 4-band Parametric EQ, Highpass Filter
- Effects: 4 x Stereo FX Processors, Reverb, Delay, Chorus, Flange
- Signal Processing: Gate, Compressor
- Software: Master Fader 5 Control App (iOS 11 or later, Android 6.0 or later, macOS 10.2, Windows 10)
- Height: 7.3"
- Depth: 5.8"
- Width: 17.6"
- Weight: 8.8 lbs.
