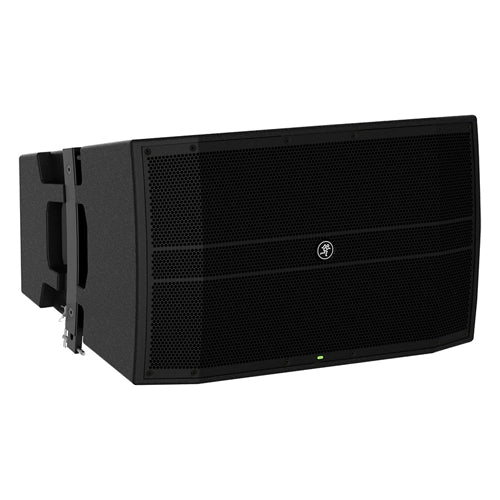

Mackie DRM-12A 12" Powered Professional Line Array Speaker
The Mackie DRM12A is a powered constant curvature array loudspeaker with 2000W of ultra-efficient amplification and sophisticated Advanced Impulse™ DSP for concert venues, clubs, houses of worship, touring, and more.
THE NEW STANDARD FOR GREAT SOUND
The DRM12A represents decades of innovation in acoustic, DSP, and amplifier design. Combining extensive tuning, premium components, and cutting-edge DSP – the DRM12A provides unmatched clarity, versatility, and reliability in a world tour-worthy package. Whether you are a DJ that needs some serious output or a equipping a massive club, the DRM12A is ready to be the backbone of your PA.
FEATURES
High-efficiency 2000W Class-D amplifier offers ample headroom for professional applications
- Universal power supply (100-240 VAC) with Power Factor Correction technology ensures consistent performance even with unstable AC power
- Next-gen protection circuitry keeps transducers safe and ensures peak performance in all applications
Advanced Impulse™ DSP module
- Precision crossovers and transducer time-alignment deliver reference quality sound that is consistent throughout the frequency range
- Cutting-edge FIR Filtering technology drastically reduces inherent anomalies, phase issues, and muddy midrange resulting in crystal clear sound
DRM Control Dashboard™ features a high-contrast full color display for easy single-knob access to configuration, processing, and more
- View current EQ and voicing mode, high-resolution metering, and more from a single overview window
- Preset array configuration settings make setup easy with modes for 1 cabinet, 2 cabinets, 3-4 cabinets with long throw option, and independent Sub option
- Adjustable 3-band parametric EQ allows for additional customization and tuning for your application and venue
- Alignment Delay control for delay stacks
- Save and recall up to 6 user presets for various applications and venues
- Screensaver plus dimmer and contrast control
- System lock with 4-digit passcode

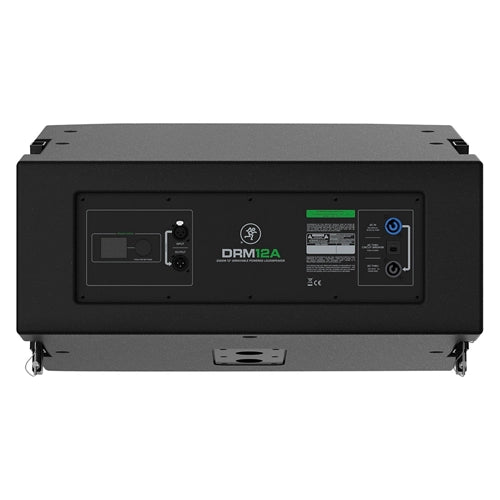

Parallel XLR Input and Output
Premium components and cabinet design
- Road-worthy 15mm plywood construction and internal bracing offers optimal acoustic performance with a touring-grade textured coating and powder-coated heavy gauge steel grille
- Unique ported design provides exceptionally smooth yet punchy low frequency response while providing cool air to the internal amplifier
- Triple 1” Titanium diaphragm compression driver array is perfectly matched to the amplifier for maximum clarity and efficiency
- 12” High-excursion woofer offers minimal distortion with increased bass response and reliability to withstand the most demanding live applications
Versatile configuration options
- Dual-angle pole mount
- Flyable with up to 4 DRM12A cabinets and 2 DRM18S subwoofers using the FB100 Fly Bar
- 7 x M10 flypoints
- Integrated flying hardware
- Optional FB100 Fly Bar
- Max SPL: 135 dB
- Coverage: 20˚V x 110˚H
- 55.0 lb / 24.9 kg
SPECS:
- Powered: Yes
- Power Configuration: Single Amp
- LF Driver Size: 12" woofer
- HF Driver Size: 1" Titanium compression driver
- LF Driver Power Amp: 2000W Class D
- Total Power: 2000W
- Inputs: 1 x XLR
- Outputs: 1 x XLR
- Frequency Range: 50Hz-20khz (-10 dB)
- Maximum Peak SPL: 135dB
- Horizontal Coverage Angle: 110˚
- Vertical Coverage Angle: 20˚
- Signal Processing: DSP Presets, 3-band EQ, Delay
- Enclosure Material: 15mm Plywood with Textured coating, Powder-coated heavy gauge steel grille
- Mounting Options: Dual angle Pole-mount, 7 x M10 flypoints
- Power Source: PowerCon In/Out
- Height: 15.2"
- Width: 24.7"
- Depth: 18"
- Weight: 55 lbs.
