Samson MCD2 Pro 2-channel Passive A/V Direct Box
Stereo DI for DJs and Electronic Musicians
The stereo Samson MCD2 Pro is a clean solution for mobile DJs and electronic musicians who need to get their signal into a sound system. It includes stereo RCA ins for a turntable, a stereo 1/8" input for a phone or laptop, and dual 1/4" inputs for instruments or a keyboard. The MCD2 Pro's -12dB attenuator switch easily accommodates both balanced and unbalanced signals. And Samson's custom STLX transformers have the far-reaching low end (down to 18Hz) to reproduce rich synth pads and fat breakbeats in powerful detail with super-low distortion, each with a Mu-metal shielding to protect against hum and RFI onstage.
Custom STLX shielded transformers are rich, dynamic, and quiet
The transformer is where the rubber meets the road in a passive DI box. And fortunately, Samson's custom STLX transformers deliver in the MCD2 Pro. The STLX covers the full audible spectrum and beyond, able to capture the subharmonic richness of a synth and high-end detail of a 48kHz recording and deliver it noise-free to your mixing board or interface thanks to a Mu-metal shielding.
Features:
- Stereo DI for mobile DJs and electronic musicians
- Delivers 2 balanced signals to front of house or into an interface
- Dual RCA inputs for a turntable
- Dual 1/4" inputs for a stereo keyboard or 2 instruments
- Stereo 1/8" input for a phone or laptop
- -12dB attenuator accommodates both pro and consumer gear
- Custom shielded STLX transformers cover the full frequency spectrum and beyond (18Hz-40kHz)
- Captures subsonic bass and lifelike high-end detail
- Reduces noise over long cable runs
- Ground lift reduces hum in some environments
- Mono or stereo operation
- Completely passive design - no power required
Specs
- Type: Passive Direct Box
- Channels: 2
- Pads: -12dB
- Ground Lift: Yes

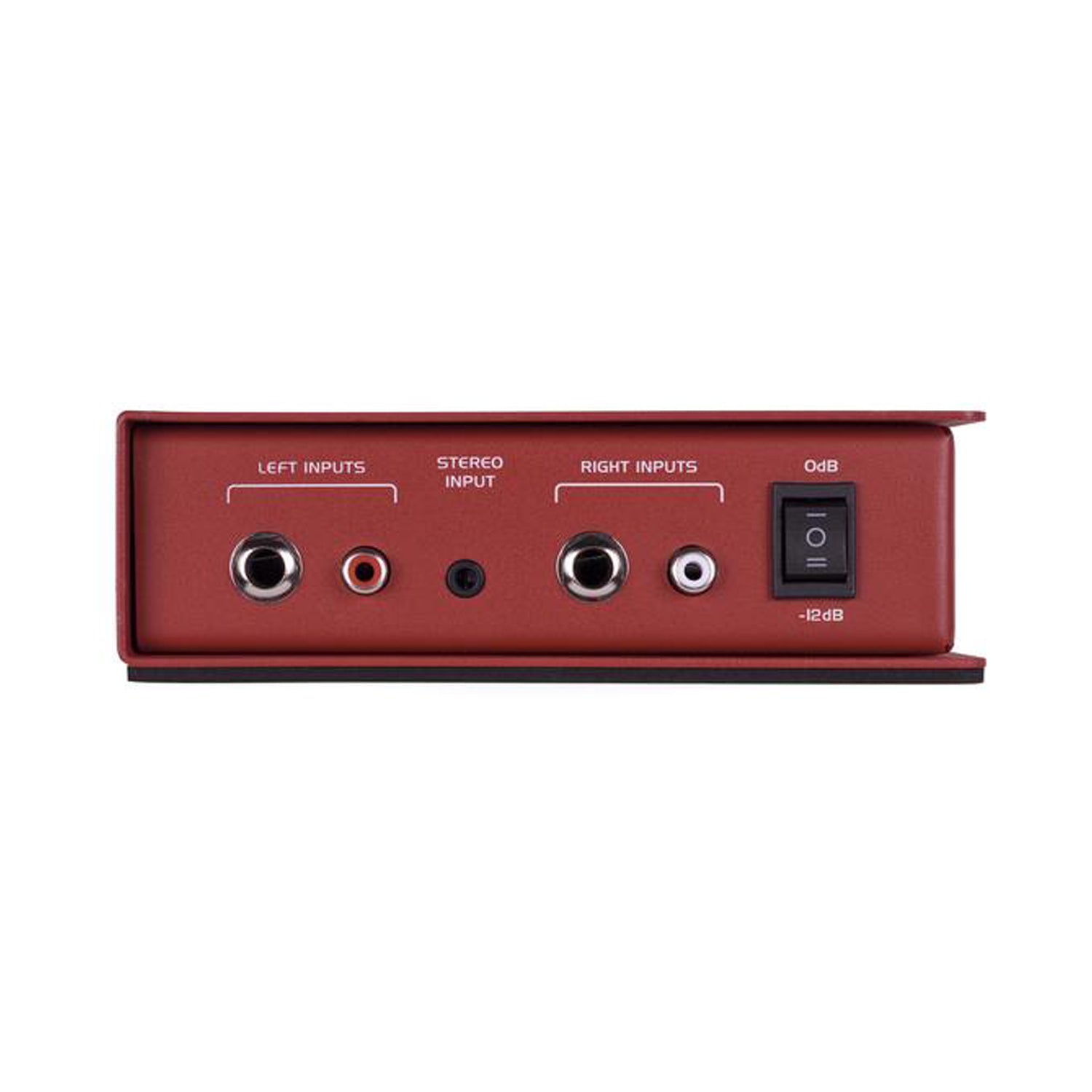

- Inputs: 2 x 1/4", 2 x RCA, 1 x 1/8" (stereo in)

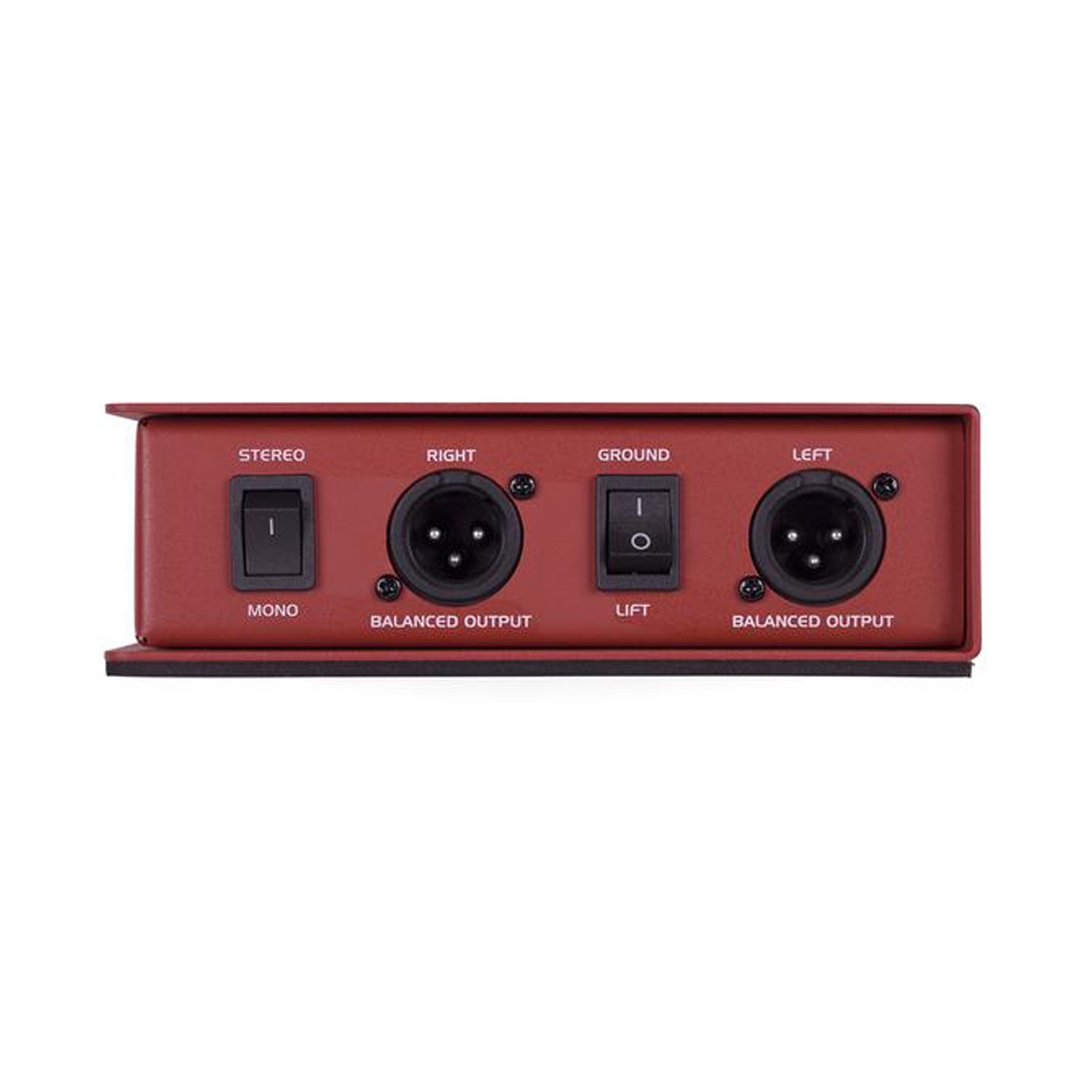

- Outputs: 2 x XLR (balanced out)
- Height: 2.25"
- Width: 6.5"
- Depth: 4.75"
- Weight: 2.3 lbs.
