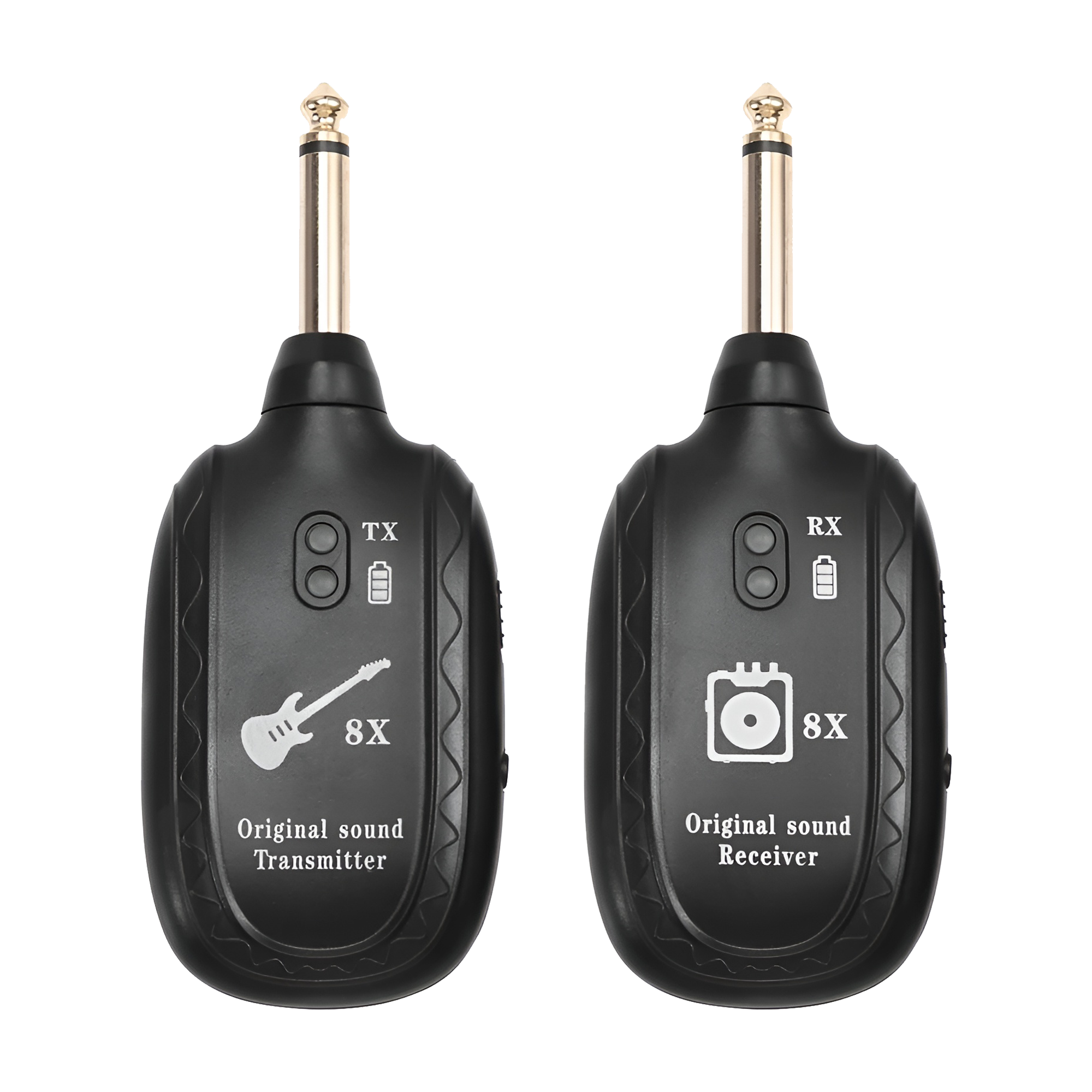

PBS 8x Guitar Wireless System

Features

• Battery life: 4-5 hours
• Suitable for all instruments
• Compact and portable
• Easy to operate
• Supports multiple devices
• Anti-interference, no noise
• Transmission distance: 50 meters
• Built-in lithium battery

Functions

1. Power switch
2. Transmission channel selection
3. Receiving channel switch
4. Charging indicator
5. Transmission signal indicator
6. Receiving signal indicator
7. Receiver audio interface
8. Transmitter audio interface
9. Charging interface

Channel Matching Method

1. Turn on the transmitter and receiver using the power switch.
2. Press the transmitter’s channel selection button to choose the desired channel (supports up to 6 transmitters). There are 6 preset channels available.
3. The default channel when powered on is the last selected channel.
4. After pressing the receiver’s channel selection button, the blue indicator starts flashing; once paired successfully, it stays solid blue.
5. If multiple transmitters are used, press the receiver’s channel selection button again to match them.

Charging Instructions

1. Use a 5V power supply to charge the device. The indicator turns red while charging and turns off when fully charged.
2. During use, if the green and blue lights flash alternately, the battery is low. Please recharge promptly.
