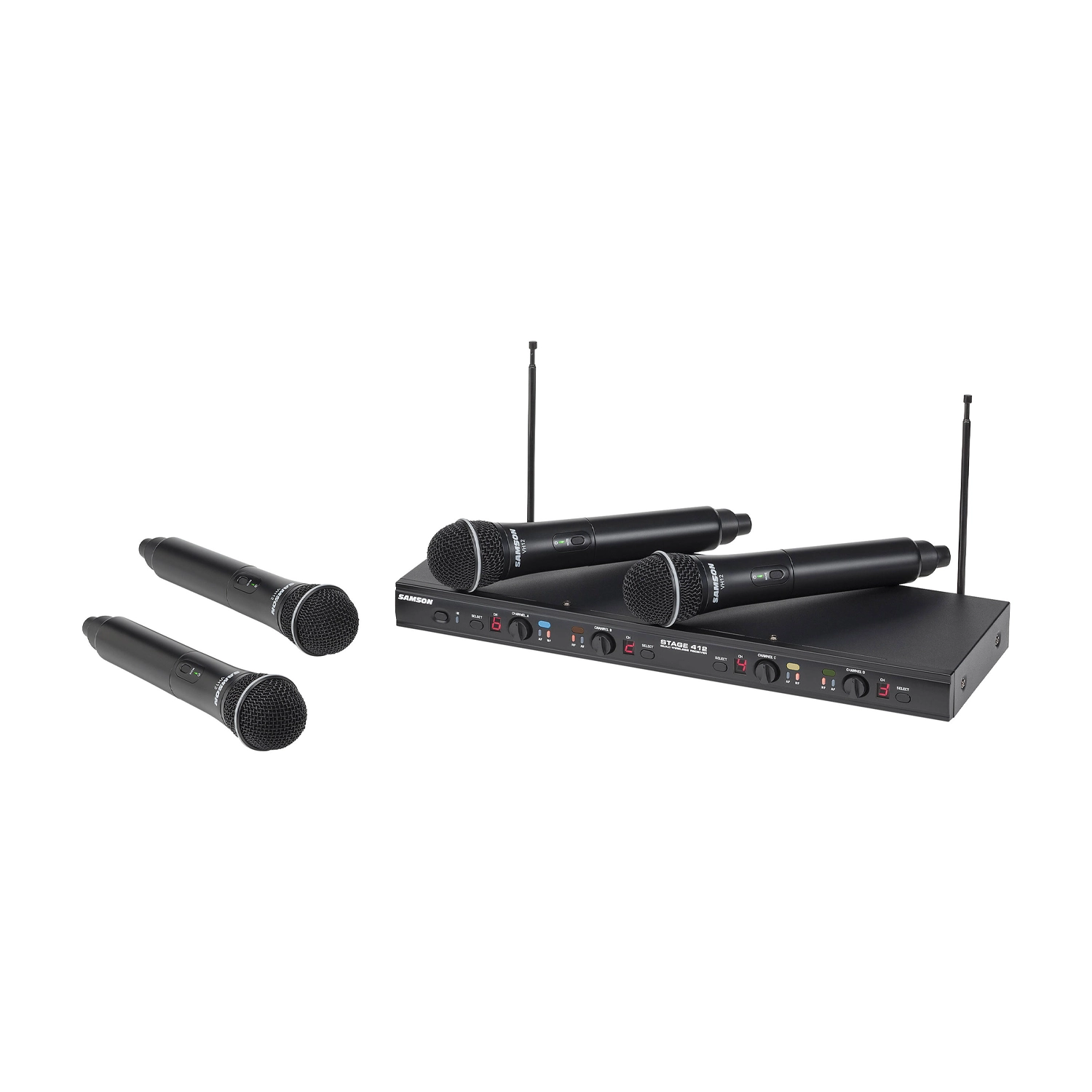

Samson Stage 412 Quad-Channel Handheld VHF Wireless System

Quad-Channel Handheld VHF Wireless System, Frequency Selectable

The Stage 412 is a frequency-agile, four-channel wireless microphone system with four dynamic handheld microphones that transmit to a single rugged metal receiver. Each handheld features Samson's Q6 dynamic microphone element, providing crisp, clear sound and reliable VHF wireless performance for presentations, education, worship, karaoke and other applications with up to four performers.

VHF Operation

Samson has been at the forefront of wireless innovation, always striving to make it easier for performers everywhere to cut the cord. The Stage 412 operates on the reliable VHF frequency spectrum, which has become much less crowded with the advent of digital television.

Simple Setup

The Stage 412's frequency-agile design offers four channels with six operating frequencies per channel over a 173 MHz–198 MHz frequency range. The system's IR sync feature allows users to wirelessly match each transmitter to a receiver channel in seconds. A 200' operating range provides ample freedom for presenters or performing groups, while each microphone transmitter offers up to 10 hours of battery life on two AA batteries (not included).

Versatile Performance

Featuring the rugged metal SR412 receiver, the Stage 412 is designed for maximum durability and versatility. The rear panel features four 1/4" outputs and three balanced XLR outputs for connection to a mixer or powered PA speakers. The 1/4" outputs send each channel separately, while the XLR outputs send mixed outputs (A/B, C/D, and all four). Front-panel volume controls on each channel let you blend performers easily.

Specs:

Stage 412 Wireless System

• Quad-channel VHF (173 MHz–198 MHz) wireless system
• Six operating frequencies per channel
• Up to three simultaneous systems (region dependent)
• IR sync wirelessly matches receiver and transmitter frequency
• 200' (60 m) operating range (line-of-sight)
• AC adapter included

VH12 Handheld Transmitters

• Q6 dynamic microphone capsules
• Each offers up to 10 hours of battery life using two AA batteries (not included)

SR412 Wireless Receiver

• Rugged metal chassis
• Dedicated volume controls for each channel
• Four 1/4" independent channel outputs
• Three balanced XLR mixed outputs
