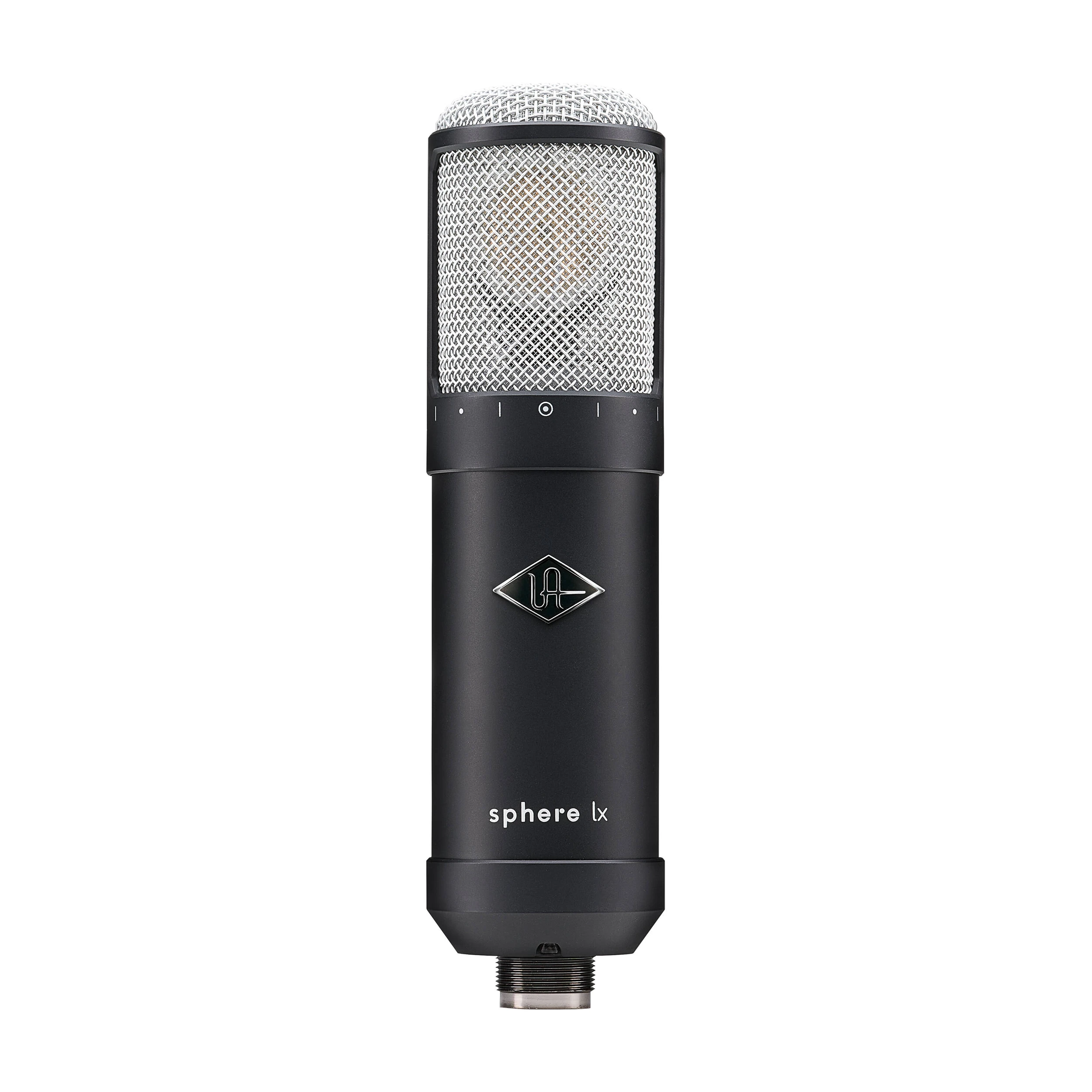

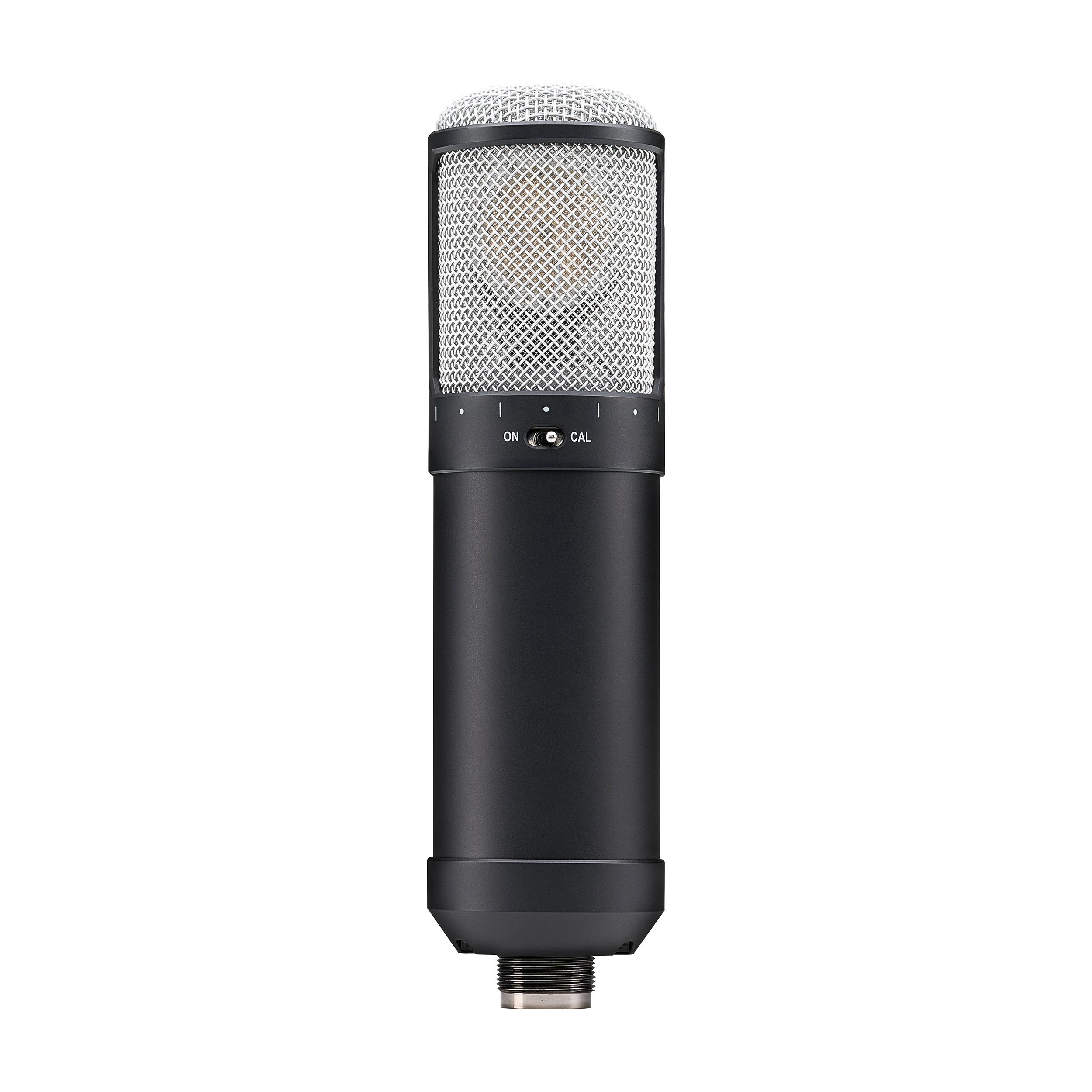

Universal Audio Sphere LX Modeling Microphone
Overview
Record through 20 of the greatest mics ever made. The Universal Audio Sphere LX is a premium mic modeling system featuring a large-diaphragm condenser microphone with dual gold-sputtered diaphragms. Boasting the lowest noise of any mic in its class, it allows you to record with the most sought-after ribbon, condenser, and dynamic microphones ever made, giving you unparalleled flexibility in the studio.
Key Features
- Record with 20 of the most sought-after ribbon, condenser, and dynamic microphones ever made.
- Change mic type, polar pattern, and other microphone characteristics even after tracking.
- Experience the ultimate mic modeling system with the lowest noise floor of any microphone in its class.
- Includes a mic stand mount, a 10’ cable, and a durable carrying case to get you started immediately.
Included Microphone Models
- Large Diaphragm Condensers: LD-47K, LD-67 NOS, LD-87 Vintage, LD-87 Modern, LD-103, LD-12, LD-251, LD-800, LD-414 Brass, LD-414 US
- Dynamics: DN-57, DN-7, DN-20, DN-409U, DN-421B, DN-12A
- Ribbons: RB-121
- Small Diaphragm Condensers: SD-451, SD-416
- Custom Mics: Sphere Linear, Sphere Diffuse, Sphere Direct
Specifications
- Microphone Type: Modeling Condenser
- Polar Pattern: Variable Dual Output
- Frequency Range: 20 Hz – 20 kHz
- Sensitivity: -39 dB (11 mV) ref 1V at 1 Pa, 1 kHz
- Output Impedance: 200 Ohms
- Recommended Load Impedance: > 1 K Ohms
- Self-Noise: 10 dBA
- Signal-to-Noise Ratio: 84 dB
- Maximum SPL: 145 dB SPL, 1% THD
- Dynamic Range: 135 dB
- Capsule: 1” Diameter Dual Diaphragm
- Phantom Power Requirements: 48 VDC, 3 mA typical
- Connector: 5-Pin XLRM
- Dimensions (L x Dia): 7.7" (195 mm) x 2" (50 mm)
- Weight: 1.2 lbs. (545 g)
- Included Accessories: Mic Stand Mount, 10’ (3m) Cable, Carrying Case

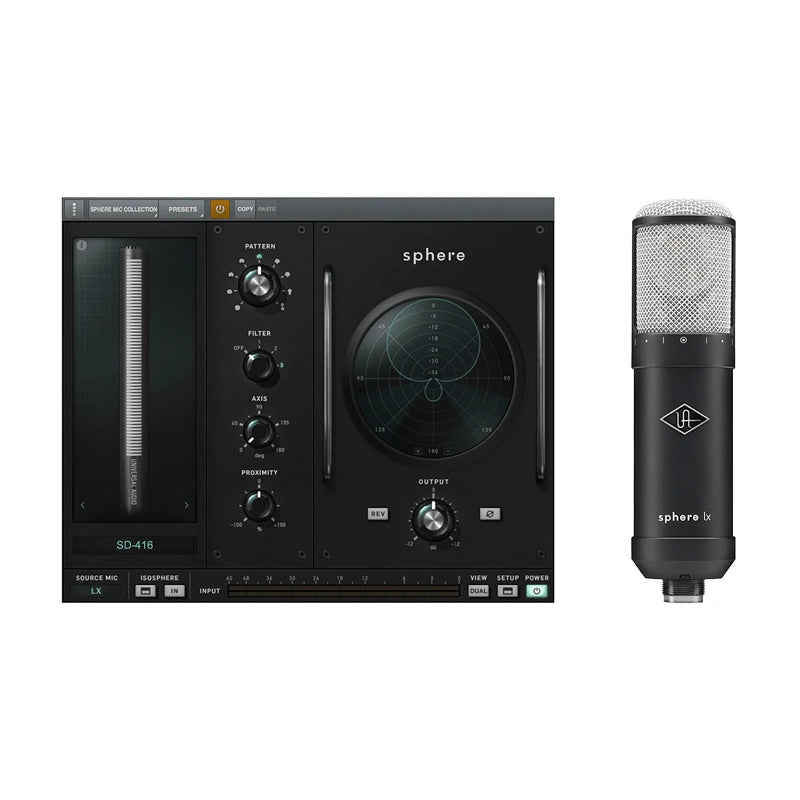

- Included Software: Sphere Mic Collection (Mac/Windows, AU/VST/AAX/Apollo interfaces)
