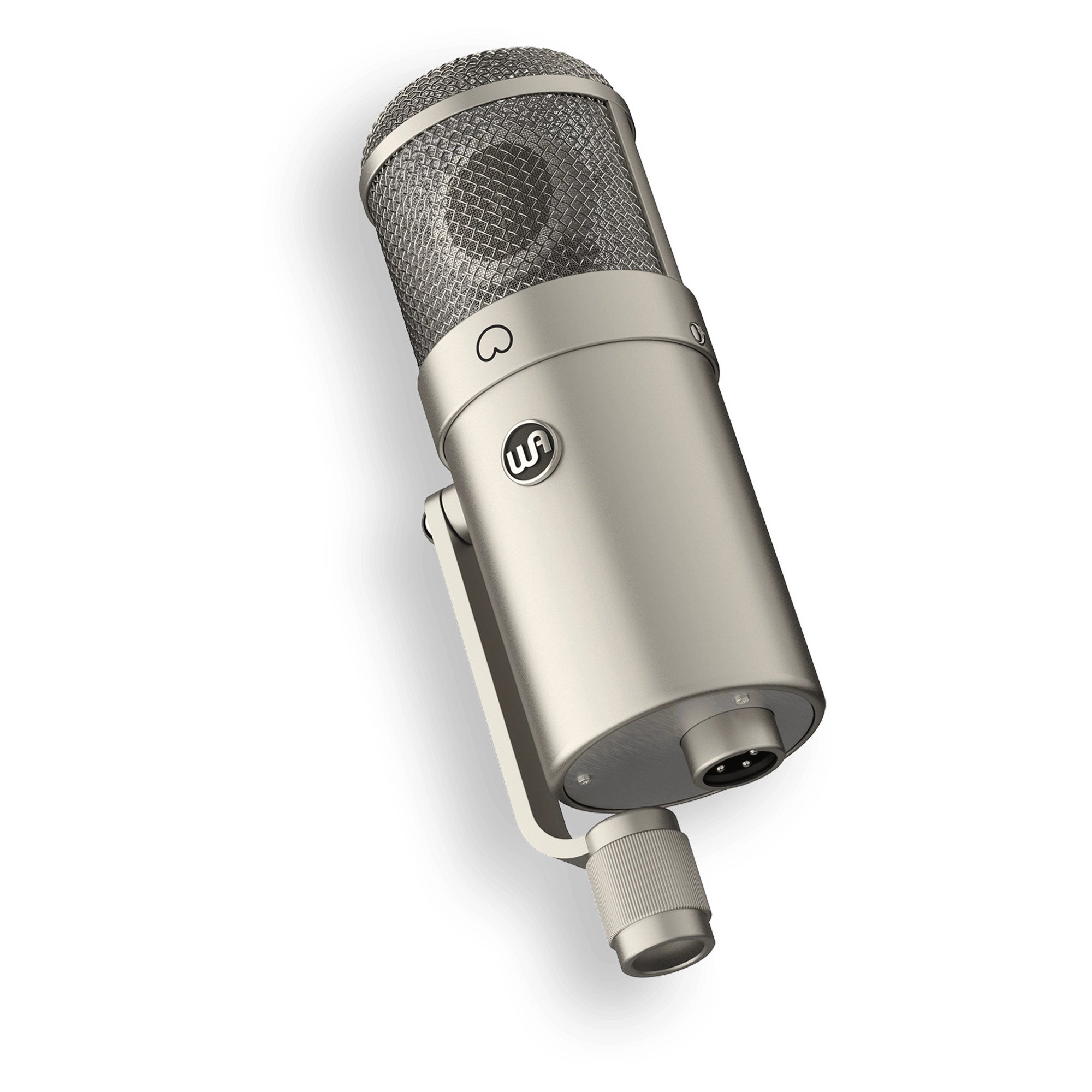

Like all Warm Audio microphones, the WA-47F is a no-nonsense studio tool with premium components and elite build quality. Like the originals, the WA-47F takes the sound of the WA-47 tube mic and swaps the valve for solid-state FETs, meaning there’s no compromise between capturing rich midrange, detailed bass, and handling very loud sources. At its core, the WA-47F uses a premium reproduction of the vintage K47-style capsule found in the original microphone for ultra-wide frequency response and detail. The WA-47F uses a single backplate, cardioid-only version of the same capsule used in our award-winning WA-47 tube microphone. The capsule is joined by a custom TAB-Funkenwerk USA Output Transformer that drives the punchy, powerful sound captured by this capsule. The WA-47F pairs premium Fairchild FETs with polystyrene & Wima capacitors and the AMI output transformer, giving the WA-47F the ideal frequency response to capture extra detail and depth. The -10dB pad gives you extra headroom for those loud sources that you need to keep loud. When you need to eliminate unwanted bass frequencies on sources like lead vocals or electric guitar cabs, engage the included 140 Hz low-cut filter to save yourself from unnecessary post-EQ. Our meticulous R&D process allowed us to dial in a true-to-original output level and frequency response that matches the performance expectations of world-class audio engineers and recording facilities.

Like the original, the WA-47F’s custom-tuned frequency response captures huge kick drum sounds, punchy guitar & bass cabs, and adds a pristine edge to solo vocals that need to stand out.

Kick Drum

In addition to a dynamic mic on the inside of the kick, aimed right at the beater, many engineers choose to add a 47FET-style microphone to the outside of the kick drum on the front head. The dynamic mic on the beater tends to capture the “snap” of the kick, while the WA-47F on the outside will get the “thump” from the drum. The air pressure “boom” of the resonant kick drum head is a huge sound easily missed by the dynamic mic. Adding a WA-47F to your kick will have a huge spatial effect on the sound, making tracks feel more alive and less robotic.

Vocals

The original mic was chosen to capture some very famous vocals including Bon Scott (AC/DC), David Lee Roth (Van Halen), and REM’s Michael Stipe. Like the original, the WA-47F delivers powerful, detailed vocals ranging from screaming hair metal all the way to soft falsettos over iconic indie rock.

Guitar & Bass Cabinets

The original is also a favorite inside studios for tracking guitar and bass cabinets - especially for percussive, loud guitar parts like you might find on an AC/DC record. The openness of the condenser capsule and the ability for the circuit to handle higher-than-normal SPLs means that you can track guitars LOUD without compromising detail. For those about to rock - you'll notice a difference.

Technical Specifications

• Gold Sputtered, Large Diaphragm, Single Backplate, K47 Style Capsule

---

• Custom TAB-Funkenwerk (AMI) USA Output Transformer

---

• Premium Fairchild Transistors

---

• Wima And Polystyrene Capacitors

---

• Polar Pattern: Cardioid

---

• Max SPL: 137dB, 147dB With 10dB Pad Engaged

---

• Frequency Response: 20Hz-19kHz

---

• Output Impedance: 150 Ohms

---

• Rated Load Impedance: >1kOhms

---

• Pads And Filters: -10dB Pad, 140 Hz Low-Cut Filter

---

• Signal-To-Noise Ratio (+ Weighted): 69 DB, 76 DB-A

---

• EIN / Self-noise (+ weighted): 25dB, 18 dB-A

---

• Total Weight: 3.5lbs, Mic Only: 2lbs

---

• Mic Dimensions: 8” X 2.75” (20.3cm X 7cm)

---

• Included Accessories: Premium Wood Box & Hard Mount

Cardioid Frequency Chart

Sound Samples

---
