Warm Audio WA-DI-A Active Direct Box

The Warm Audio WA-DI-A is a premium active direct box designed for exceptional versatility and pristine signal conversion. It features a unique onboard variable pad knob that attenuates your input signal from -3 dB to -30 dB, making it easy to handle any instrument source with precision.

Equipped with a Thru-put jack linked to the input, you can send your instrument’s signal to multiple destinations simultaneously, such as a live mixer, recording interface, or secondary amplifier. The WA-DI-A can also take a recorded line-level signal and route it to another line input while sending a balanced mic-level signal via XLR.

Ideal for connecting electric guitars, basses, keyboards, and drum machines directly to a PA or recording system, this DI box converts high-impedance, unbalanced signals into low-impedance, balanced signals—delivering proper voltage levels for clean, distortion-free audio.

Active Specifications

• Power: 48V phantom or two 9V batteries; can also operate passively
• Custom-wound Cinemag USA output transformer
• Converts instruments to mic-level signals without degradation
• Perfect for direct instrument-to-preamp connections

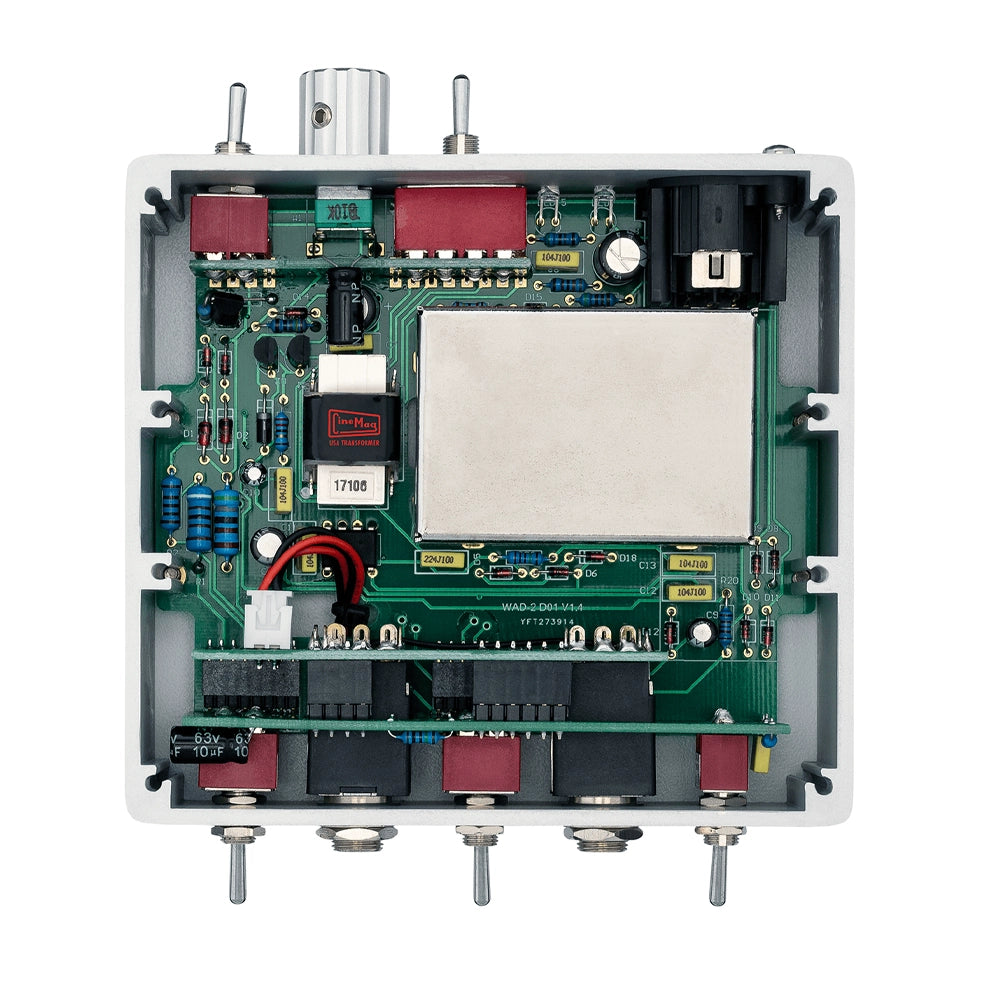

• Class A components with gold-plated PCB traces
• Rugged aluminum housing

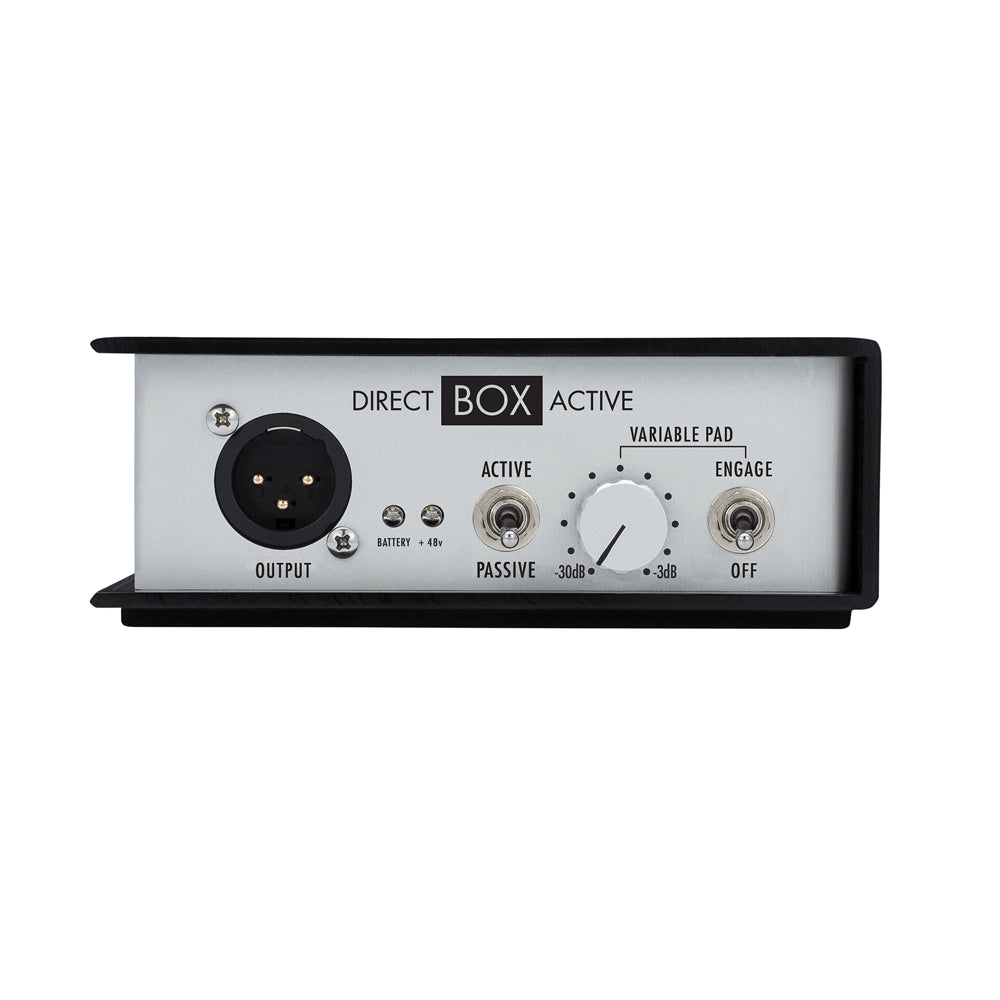

• Variable pad: -3 dB to -30 dB
• Balanced output: 600 ohms, mic level
• Input impedance: 1 MΩ
• THD: 0.01% (20 Hz – 50 Hz), <0.003% (50 Hz – 20 kHz)
• Frequency response: 10 Hz – 90 kHz ±0.5 dB
