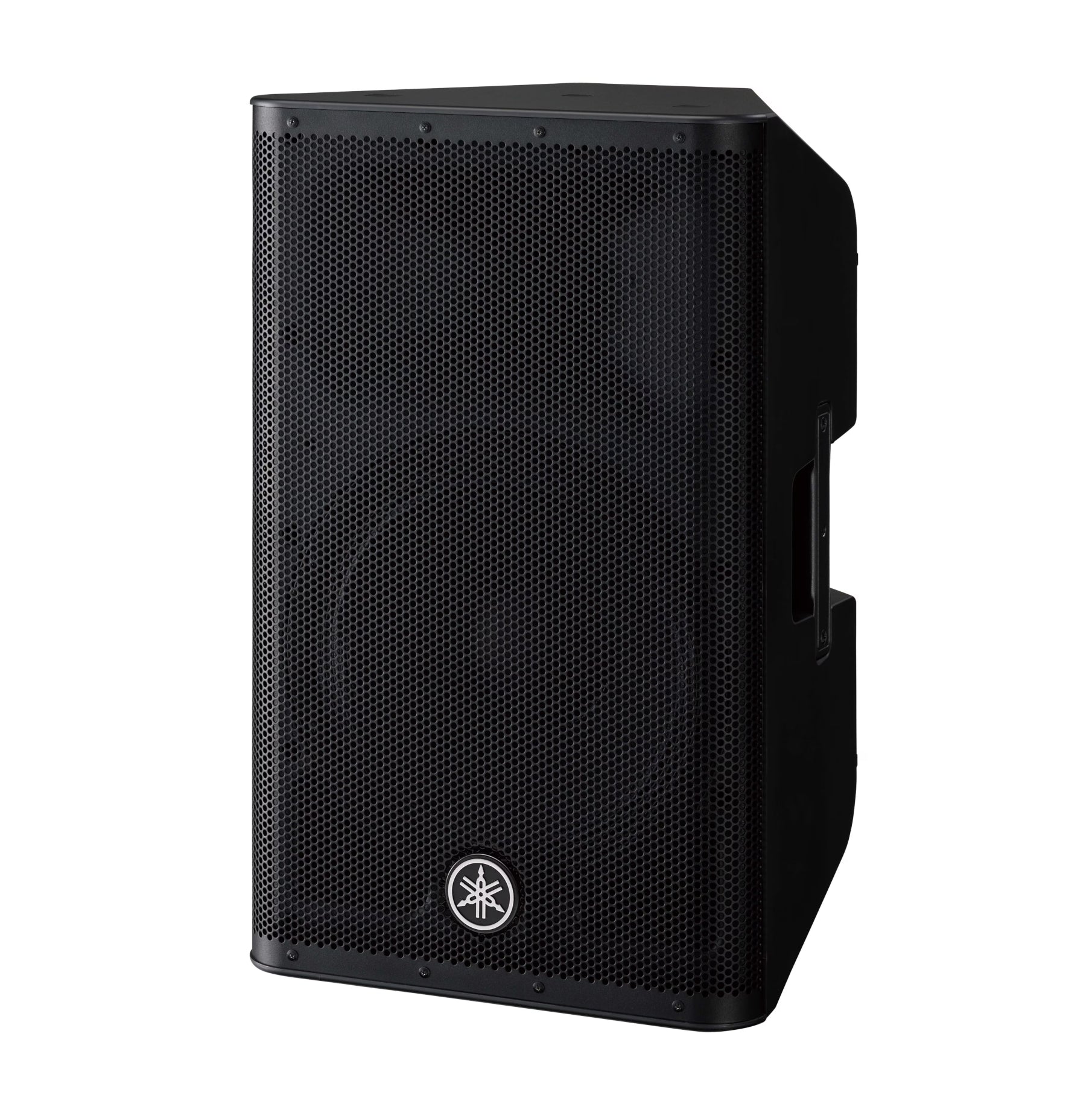

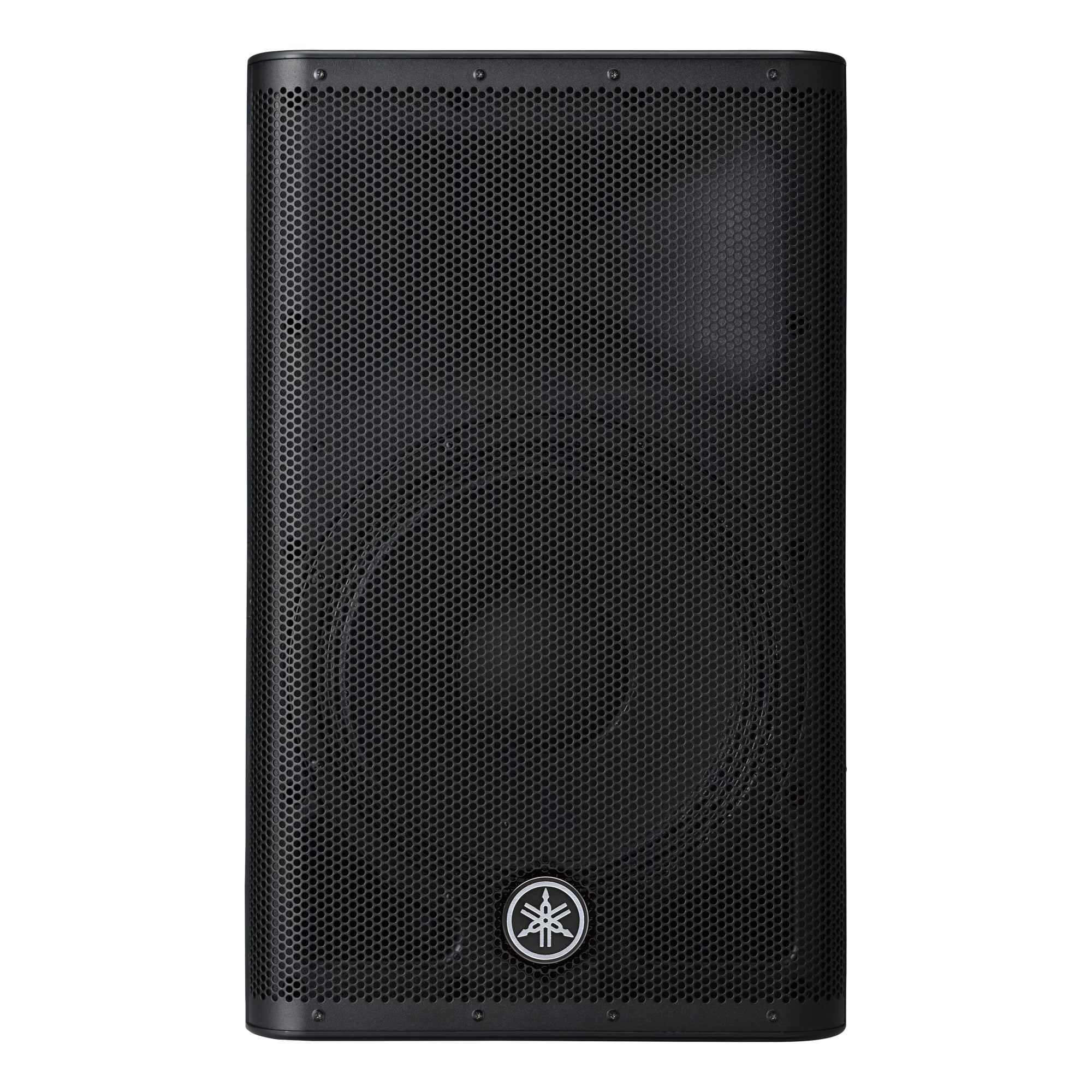

Yamaha DXR12mkII 12" 1100W 2-Way Active Loudspeaker

The DXR12mkII is an extremely high-power loudspeaker capable of producing a maximum SPL of 134dB with its impressive 1100W of power. It is the perfect solution for live sound applications that demand wide bandwidth and extremely high-resolution sound.

General Features

• 12" powered loudspeaker with 1100W Class-D amplifier
• High SPL output with remarkable clarity across frequency range
• 1.75" neodymium HF compression driver + 12" woofer for wide frequency response and powerful bass
• Frequency Range: 52 Hz – 20 kHz
• Max SPL: 134 dB
• Precision 48-bit DSP with D-Contour intelligent dynamic control
• Durable and compact ABS enclosure
• Symmetrical design for mirror-mode floor monitoring

Key Features

• FIR-X tuning: Linear-phase FIR filter technology ensures high-resolution sound with smooth frequency response unaffected by phase interference near crossover.
• D-CONTOUR (Dynamic Contour): Multiband compressor adjusts frequency ranges based on application and human hearing characteristics.
  • FOH/MAIN: For use as a main speaker
  • MONITOR: Optimized for floor monitor use
• Mixing/LINK functionality:
  • Mix sounds directly by inputting up to 3 channels
  • LINK function allows stereo or dual-mono SR setup using two DXR mkII units
• DSP-controlled protection system:
  • Protection circuits safeguard speaker, amplifier, and power supply
  • Ensures reliable performance without distortion, even in demanding environments
