Yamaha DXS15XLF 1600W 15" Powered Subwoofer

Key Features

For Live Stage, Theatre, DJ Setups
Designed for Low-Frequency Extension

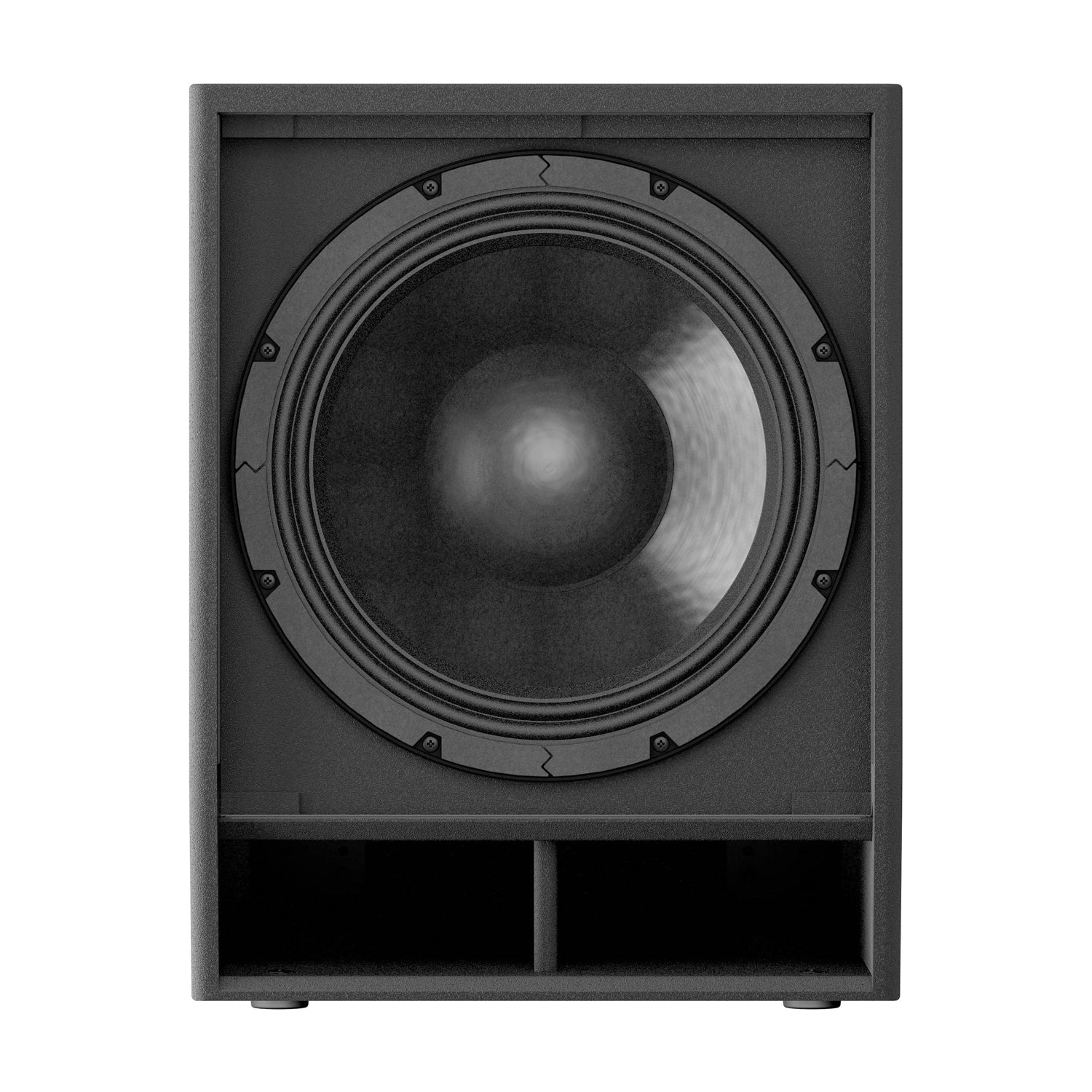

Woofer: 15" with 4" Voice Coil
Max SPL: 136 dB
Frequency Range: 33 to 150 Hz (-10 dB)
Class-D Amplifier: 1600W
2 x Combo XLR-1/4" Inputs + XLR Thru/Out
D-XSUB LF Processing
Cardioid Mode for Two or More Subs

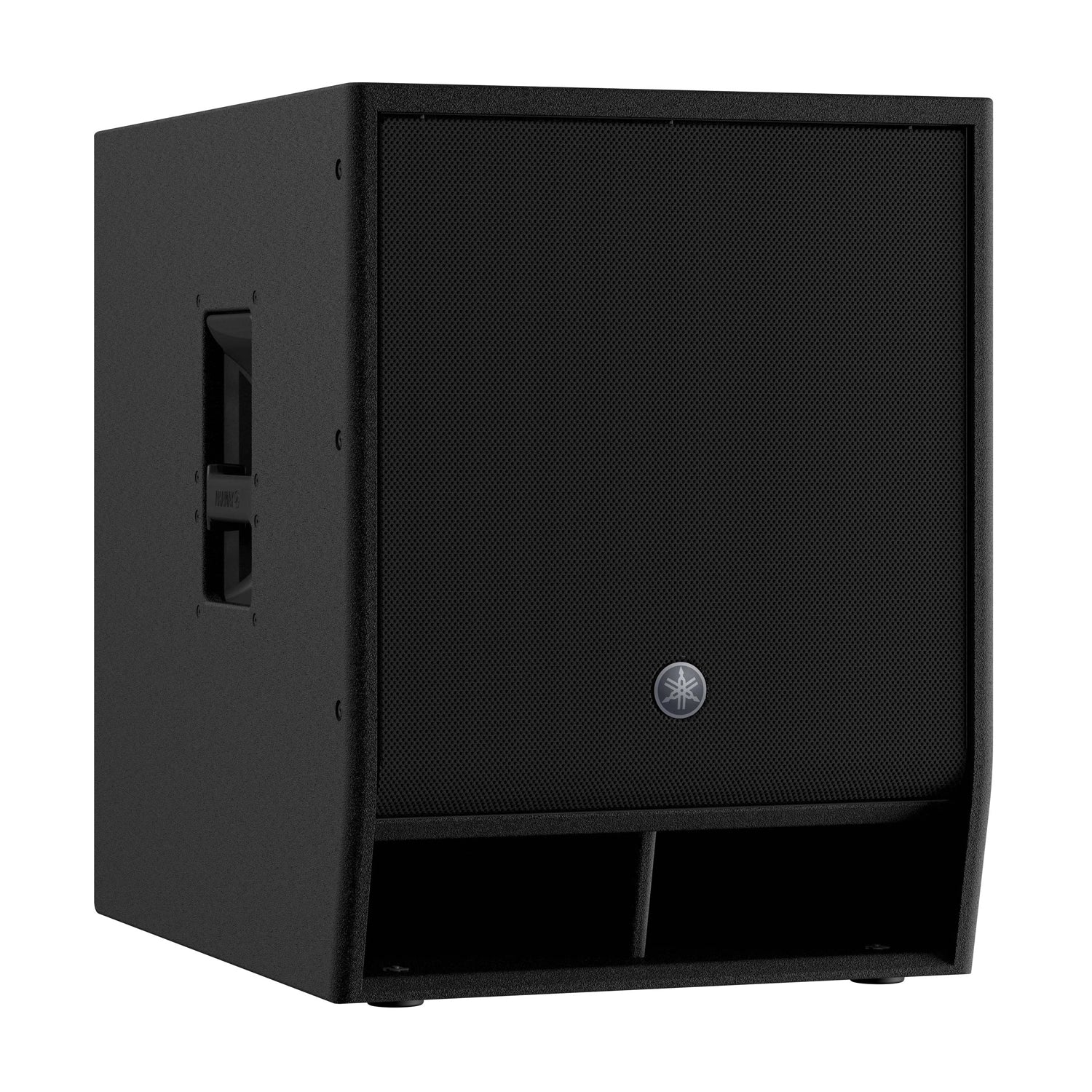

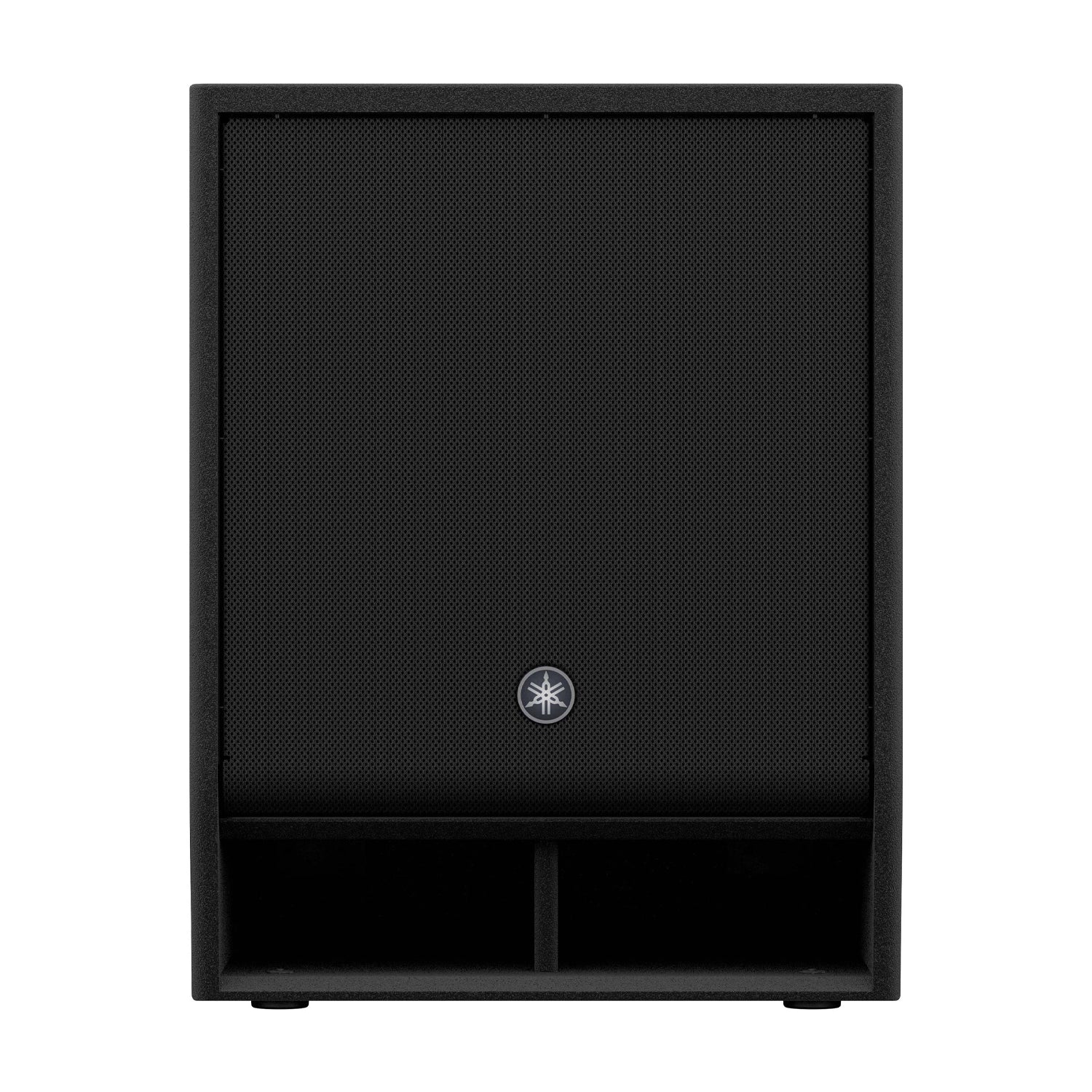

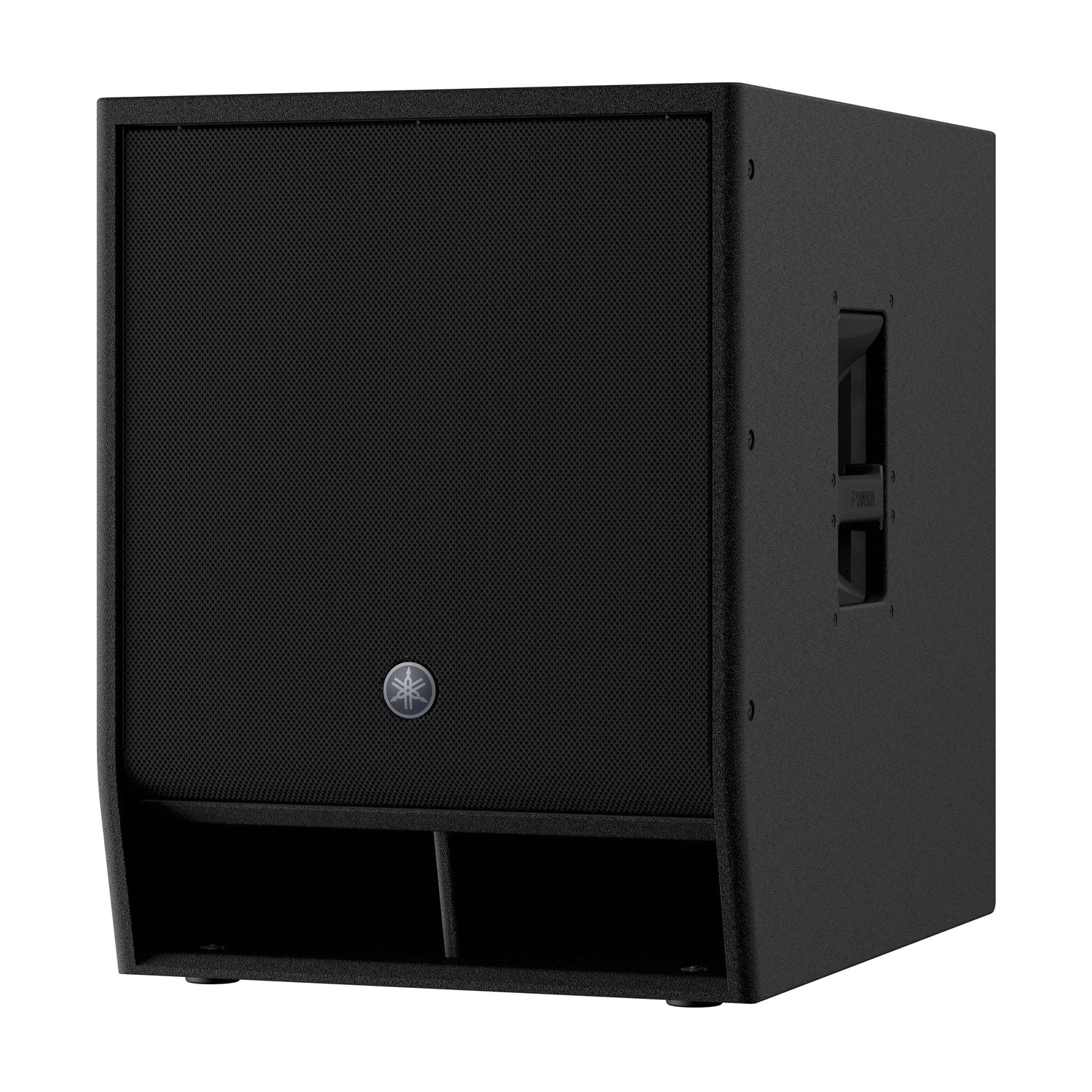

The black Yamaha DXS15XLF is a powered subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the DZR-series powered loudspeakers. The 1600W Class-D amplifier powers the 15" woofer to provide a frequency range of 33 to 150 Hz (-10 dB) with a maximum SPL of 136 dB.

The on-board D-XSUB LF 96 kHz DSP processor provides total bass management. The Normal mode is ideal for a balanced low-frequency response, while Boost mode provides a tighter and more focused bass with some extra punch. Xtended LF mode drops the low-end frequencies down even further for large bottom end. If using two or more subwoofers, the selection of Cardioid mode can effectively reduce stage volume, while increasing low-end output directed at the audience.

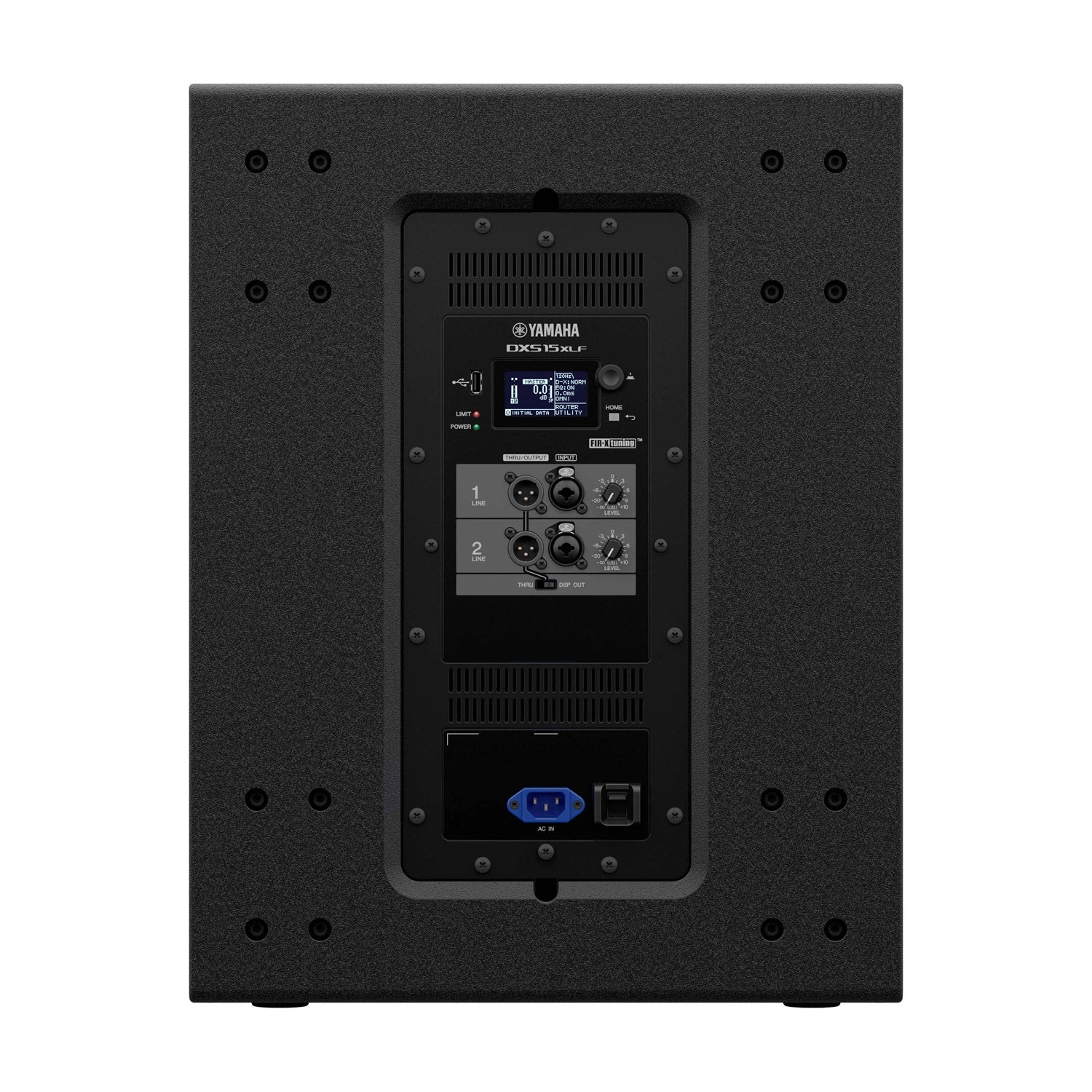

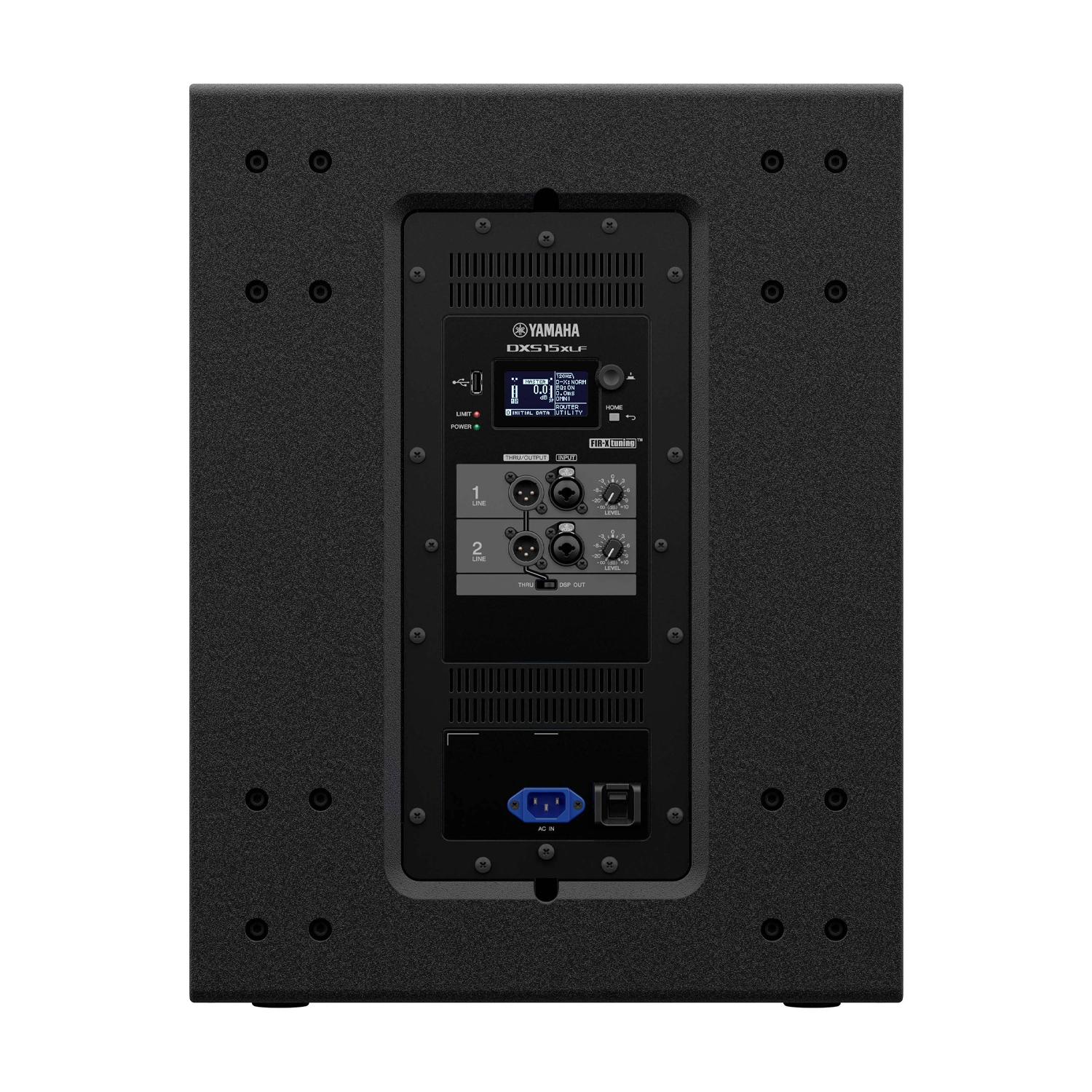

The rear panel offers two combo XLR-1/4" inputs with XLR thru/outputs and dedicated level controls. A USB port allows for system upgrades and preset configuration and backups. The Yamaha DXS15XLF ships with a standard IEC power cord.

General Features:

Powered reflex subwoofer
- Woofer: 15" with 4" voice coil
Ideal for low-frequency extension to all full-range loudspeakers
- Maximum SPL: 136 dB
- Frequency range (-10 dB): 33 to 150 Hz
High-power 1600W Class-D amplifier module
Lightweight yet very durable plywood cabinet with premium grade Polyurea coating

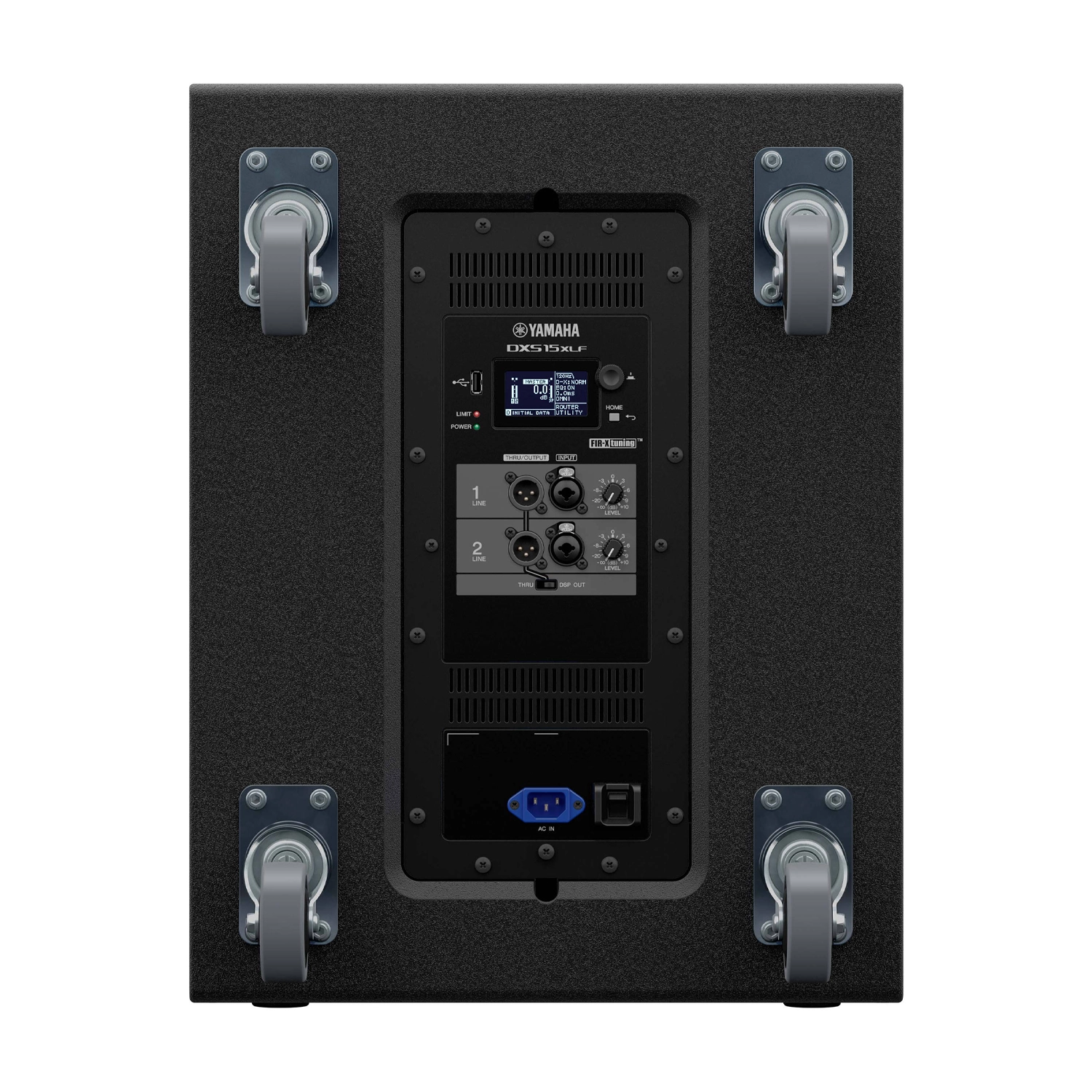

Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)

D-XSUB LF Processing:

DXS XLF subwoofers are driven by 96 kHz high-power DSP processors and utilize dynamic EQ
Onboard D-XSUB LF processing provides total low-frequency management
- Normal mode: Set for ideally balanced low-frequency response.
- Boost mode: Provides a tighter and more focused bass with some extra punch.
- Xtended LF mode: Drops the low-end frequencies down even further for a large bottom end.
Cardioid mode:
- Works with two or more subwoofers.
- Effectively decreases the sound pressure on stage while increasing the bottom-end output directed towards the audience.
- Results in a much cleaner stage monitoring environment.

DSP Protection

DSP protection functions for maximum output and component longevity
Active subwoofers ensure the combination of transducer and amplifier are matched and optimized for the best possible performance.
During development, Yamaha measured and tested the durability of each transducer and the overall amplifier output to set optimal limiter points using precise DSP control.
Employing many of the same protection functions used in high-end professional power amplifiers, Yamaha's DSP consistently monitors the status of the power supply, power amplifiers, transducers, and signal levels to protect each component in order to maintain optimum performance while extending component life and usability.
