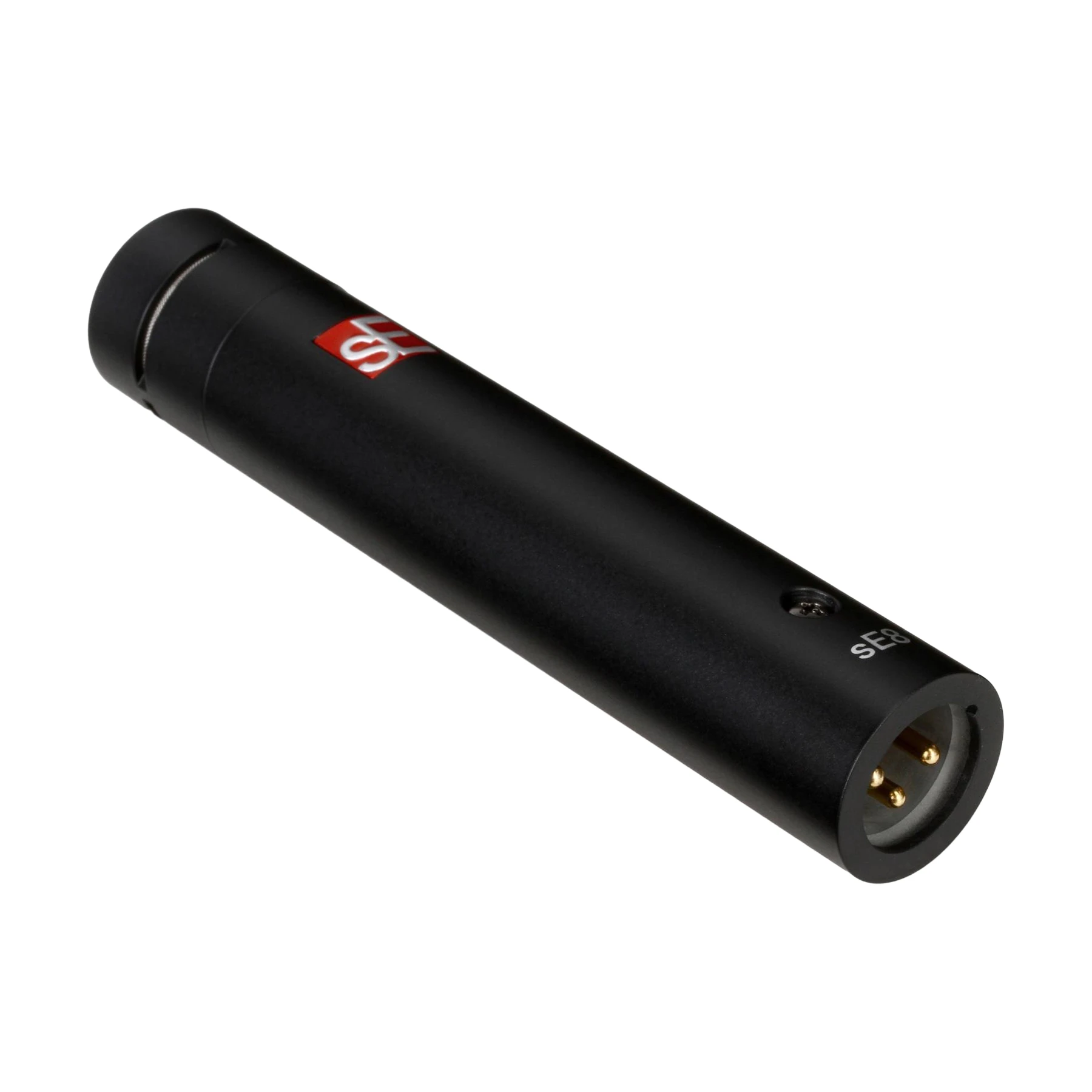

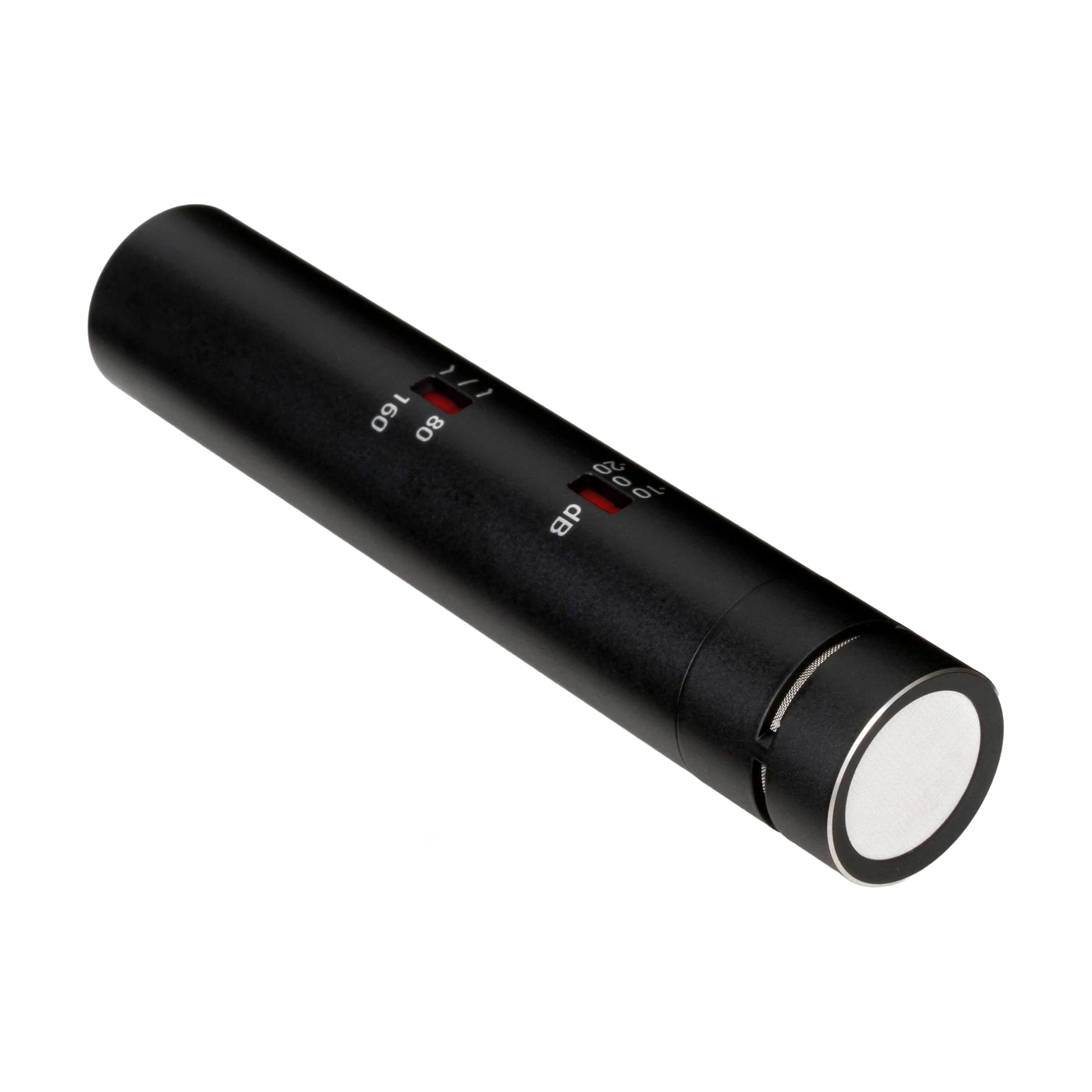

sE Electronics sE8 Small-Diaphragm Condenser Microphone
Overview
Small in stature, huge in sound.
Fit for any challenges in the studio or on stage, the sE8 is a brand new high-performance handcrafted small-diaphragm condenser, fresh from the labs at sE.
Recommended Use: Acoustic guitar, choir, orchestral & strings, piano, woodwinds, drums, percussion, cymbals / OH.
Key Highlights
- Hand-made capsule & all-metal build
- Balanced sound & sophisticated backplate design
- Perfect for sources like high-hats and drum overheads
- One of the quietest small-capsule mics on the planet
- Highest dynamic range and SPL handling in its class
- Integrated attenuation pads and low-cut filters
- Compatible with our sE8 omni capsule
Inside the sE8
Handcrafted True Condenser Capsule
The sE8’s gold-sputtered diaphragms ensure maximum reliability for natural, balanced sound quality. Every capsule is handcrafted and individually tuned in our very own factory with ultra-precision electrode design optimized for superb linearity and natural sonics.
Natural Balanced Sound
An ultra-thin 3-micron gold-sputtered diaphragm for superior transients and a newly-developed backplate design provides smooth, natural sound & truly consistent off-axis response. The sophisticated acoustic design with precision components avoids coloration in demanding applications.
The Quietest Pencil Mic in its Class
With zero integrated circuits, and state-of-the-art electronics, the sE8 is the quietest microphone in its class. The transformerless design ensures pristine sound quality, reproducing instruments with excellent clarity and depth. The proven Class-A circuitry ensures a high dynamic range without distortion and brilliant transient response.

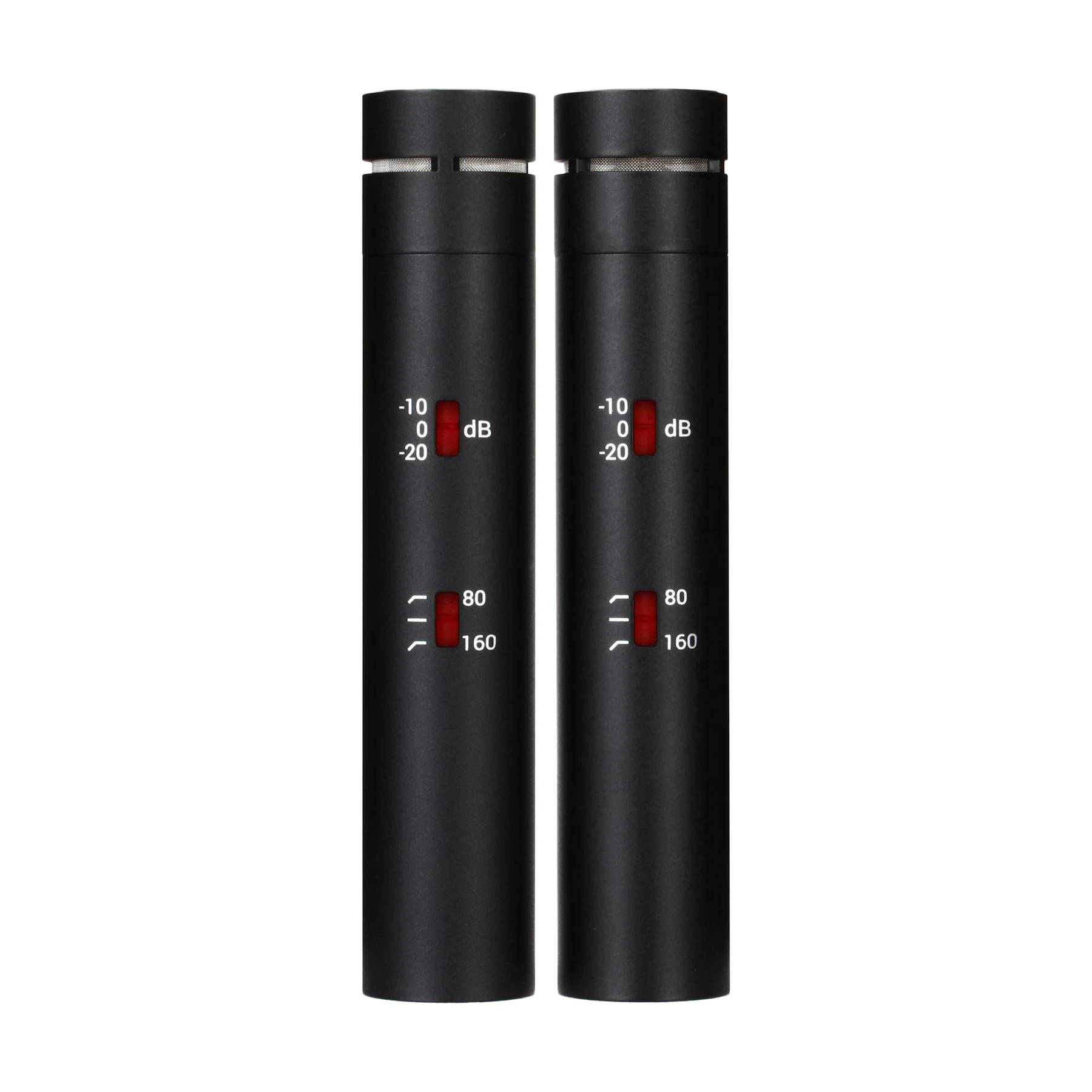

Two Switchable Pre-Attenuation Pads & Low-Cut Filters
The -10 dB and -20 dB pad switches provide extended dynamic range, enabling a wide range of applications and close-mic techniques for brass instruments, snare drums, and more. Selectable at either 80Hz or 160Hz, the two low-cut filters help eliminate low-frequency rumble or footfall noise, as well as help compensate for excessive bass (proximity effect) with close-mic techniques.
Why a Handcrafted Capsule?
As with all of sE's true condensers, the sE8’s gold-sputtered capsule is handcrafted and hand-tuned by skilled technicians in our own factory. This is highly unusual for mics at this price, and is a great point of pride for us. Building and tuning a capsule is a subtle, artistic process, and given the scale of the vibrations which they must perceive, this is the most vital element of the mic.
All-Metal Housing with Gold-Plated XLR Connector & Premium Finish
Unlike the cheaply constructed bodies of some small-capsule microphones, the sE8's all-metal chassis provides efficient rejection of any electrical interference and noise - and the high-quality finish and gold-plated XLR connector ensures a great look and a loss-free, reliable signal connection for years to come.
sE8 Matched Pair (Optional Configuration)
As with all of our factory-matched pairs, every mic ending up in a sE8 Stereo Pair configuration is hand-selected from hundreds of individual microphones. This ensures identical performance and the highest possible mic-to-mic consistency, so you can rest assured that your stereo image will be as clear & accurate as possible.

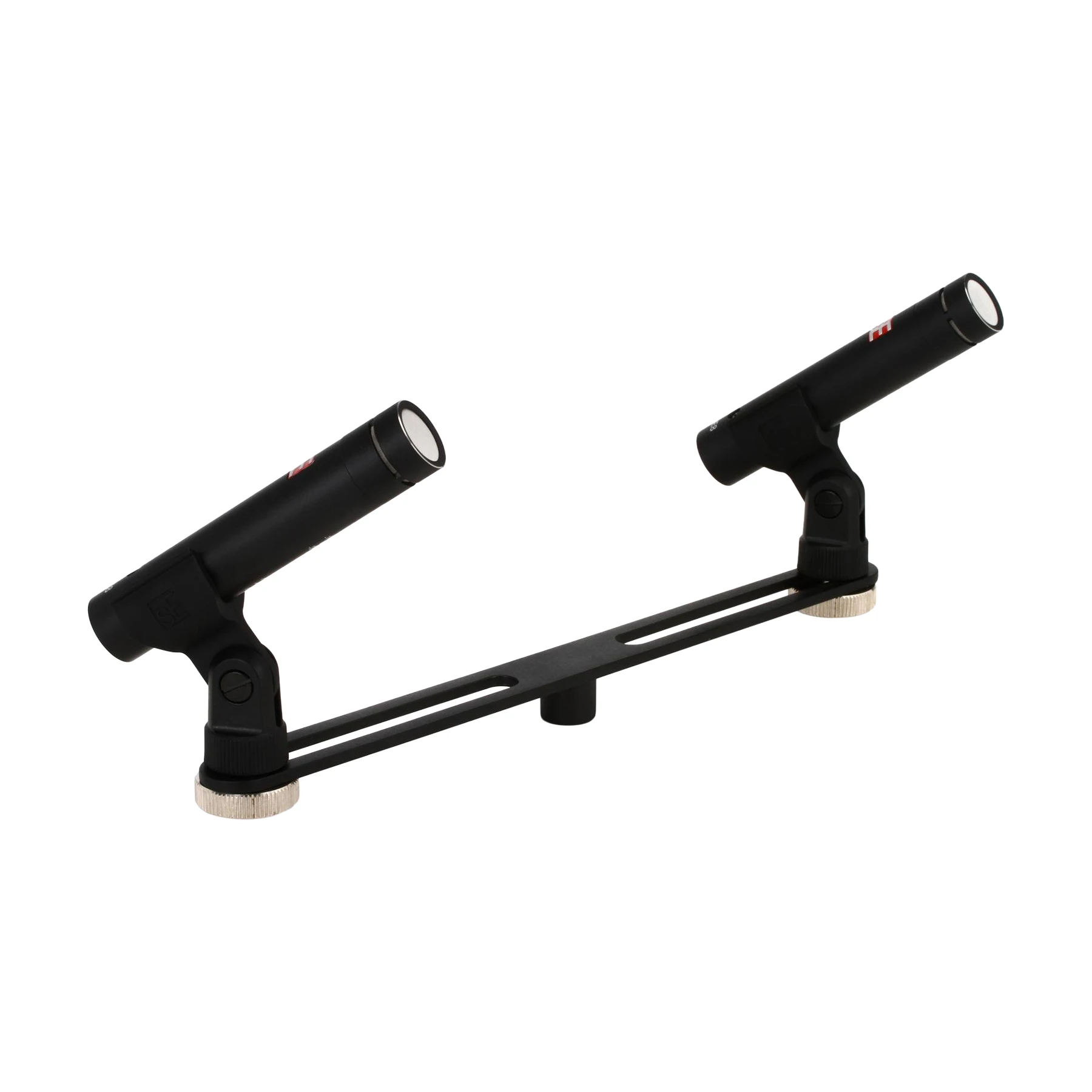

What comes with the Matched Pair? The sE8 Matched Pair comes complete with a precision stereo mounting bar, two protective wind screens, two mic clips, and a robust high-quality metal flight case.
Specifications
| Feature | Specification |
|---|---|
| Capsule | Hand-crafted 1/2" True Condenser |
| Polar Pattern | Cardioid |
| Frequency Range | 20 Hz - 20 kHz |
| Sensitivity | 25 mV / Pa (-32 dBV) |
| Max SPL | 139 / 149 / 159 dB (0 / 10 / 20 dB pad) (0.5% THD @ 1kHz) |
| Equivalent Noise Level | 13 dB(A) |
| Dynamic Range | 126 / 136 / 146 dB (0 / 10 / 20 dB attenuation pad) |
| Signal to Noise Ratio | 81 dB |
| Low-Cut Filter | 80 / 160 Hz, 6 dB / Oct, switchable |
| Attenuation Pad | 10 / 20 dB, switchable |
| Electrical Impedance | 110 Ohms |
| Recommended Load Impedance | >1k Ohms |
| Powering | 48V Phantom Power (P48 according to IEC 61938) |
| Current Consumption | 2.7 mA |
| Connectivity | 3-pin male XLR connector |
| Dimensions | Diameter: 23 mm (0.91 in.) | Length: 120 mm (4.72 in.) |
| Weight | 141 g (4.97 oz.) |
What's in the Box (Single Mic)
- sE8 microphone

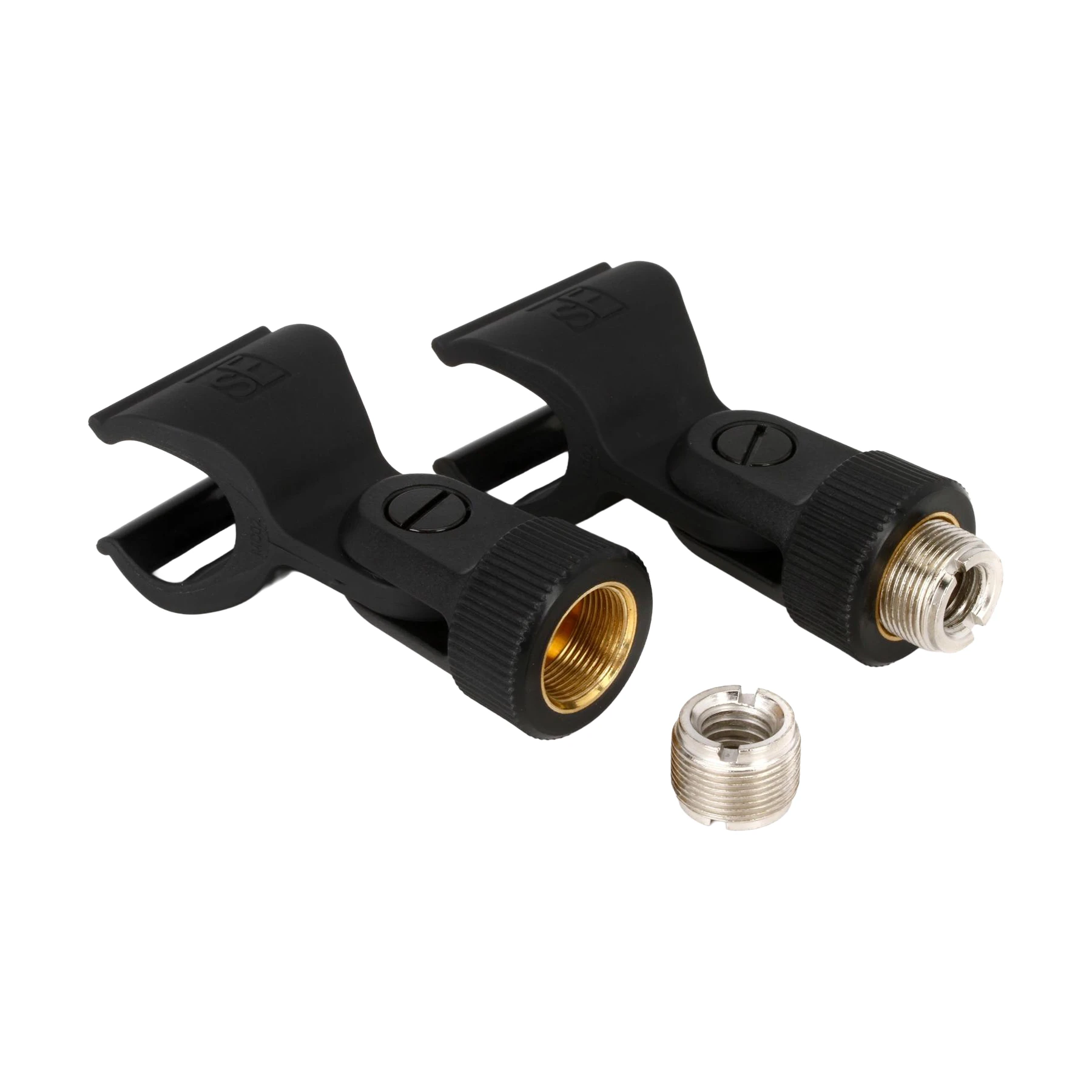

- Mic clip (with thread adapter)
- Wind screen
Note: Products inside our drum packs come without a protective pouch.
